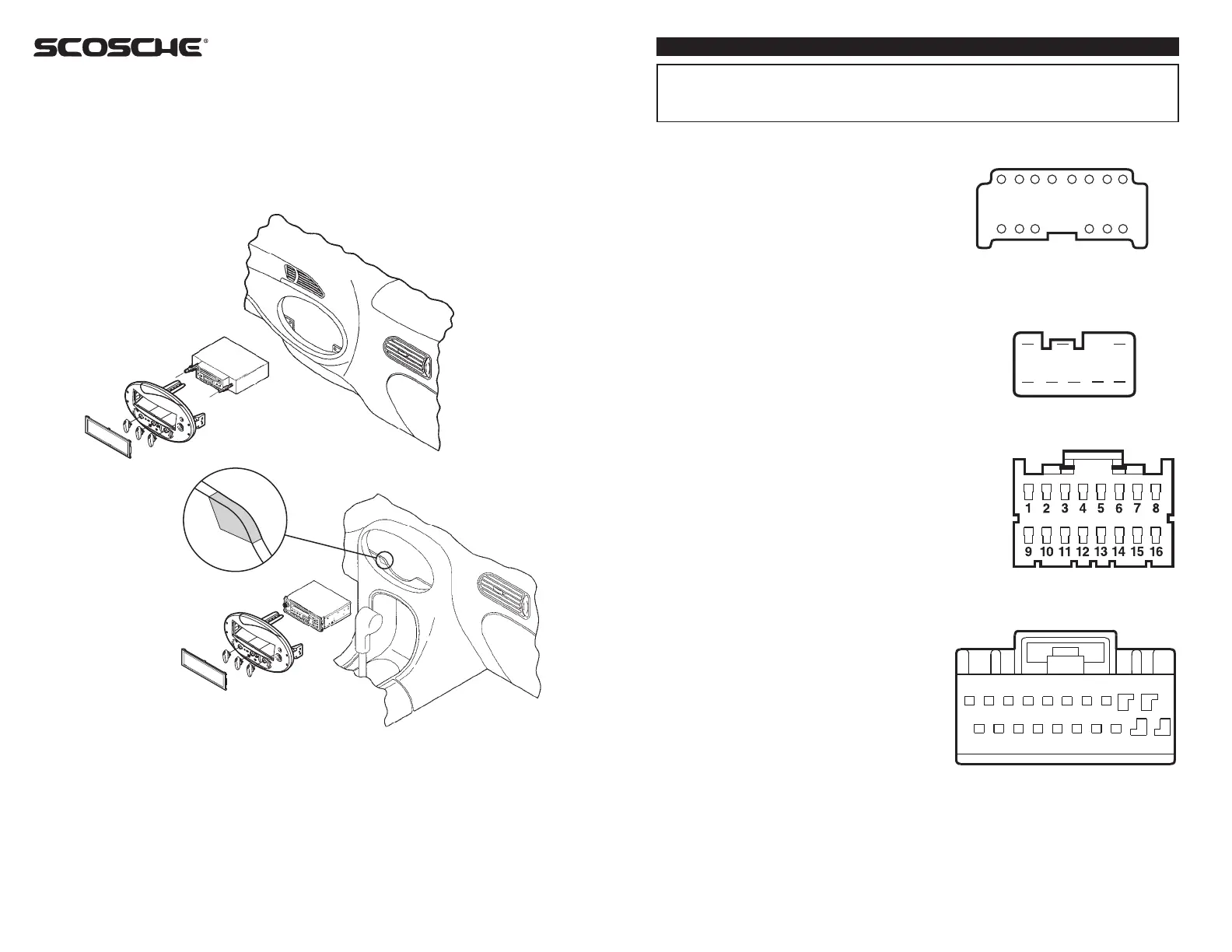

FD134030

IN-DASH INSTALLATION KIT FOR

1996-99 FORD TAURUS

1996-99 MERCURY SABLE

WITH ROTARY CLIMATE CONTROLS

Minor modification may be

necessary on console model.

See shaded area.

NOTE:

•

All wire codes are viewed as looking at the front of the plug with the wires

exiting the rear.

•

Use these wiring codes as a guide. Your vehicle might differ.

BLACK 16-PIN

9=Open

10=Momentary Defrost on

11=Open

12=Open

13=Not Used

14=Open

15=Not Used

16=Not Used

Not Used = Substitute

"Not for aftermarket use"

1=Led Defrost On +12V

2=Open

3=Not Used

4=Not Used

5=Not Used

6=Not Used

7=Not Used

8=Not Used

1=Illumination

2=Ground

3=Battery +12V

4=Open

5=Open

6=Ground

7=Open

8=Accessory +12V

GRAY PLUG 8-PIN

8=RF+

9=Open

10=Power Antenna

11=Open

12=Ground

13=Ground

14=Battery +12V

BLACK 14- SPEAKER INPUT*

1=LR-

2=LR+

3=RR-

4=RR+

5=LF-

6=LF+

7=RF-

*Located in trunk

1996-97 VEHICLES

1998-UP VEHICLES

POWER AND SPEAKER

1.= White/Pink = Not Used

2.= Blue/White = Not Used

3.= Black = Not Used

4.= Green/Violet = Defroster on Indicator

5.= Black/Pink = +12V Accessory

6.= Empty

7.= Light Green/Black = Not Used

8.= Empty

9.= Light Blue/Black = Not Used

10.= Black (Larger Gauge) = -12V Chassis Ground

11.= Brown/Light Green = Not Used

12.= Gray = Not Used

13.= Empty

14.= Blue/Orange = Defroster Switch Wire

(Momentary Ground)

15.= Red/Yellow = Not Used

16.= Gray/Red = Not used

17.= Tan = Not Used

18.= Light Blue/Pink = Not Used

19.= Black/Light Green = Not Used

20.= White = +12V Constant

1

234

5

6

78

9

101112

13

14

1

23

4

5678

20

19

18

171615

14

13

1211

1

10

98

7

6

5

4

3

2

FACTORY WIRING CODES
