Sida 1/3
KA2411B
IN-DASH STEREO INSTALLATION
KIT
FOR
2011-UP
KIA
OPTIMA
6761
POCKET
7247
PANEL
7249
LEFT
MOUNTING
BRACKET
INTRODUCTION/PRELIMINARY
7248
RIGHT
MOUNTING
BRACKET
This premium
installation
kit is for
2011-Up
Kia
Optima
vehicles.
Included are
all
the parts you need
to
mount
your car stereo or CD player into your vehicle's dash. Refer
to
the individual instruction
in
this manual
to
remove
your vehicle's factory radio and assemble the kit.
CAUTION
DISCONNECT YOUR VEHICLE'S NEGATIVE
BATTERY
TERMINAL BEFORE
THE INSTALLATION TO
HELP
PREVENT
ELECTRICAL
DAMAGE. WE RECOMMEND THE USE OF
A
VOLT/OHM METER
OVER
A
TEST
LIGHT
TO
CHECK
WIRING.
A
TEST LIGHT OR GROUNDED WIRE PROBE
CAN
CAUSE
DAMAGE
TO
THE
VEHICLE'S COMPUTER
AND/OR
DIAGNOSTIC SYSTEMS. AVOID
ALL
FACTORY AIRBAG WIRING
-
AIRBAGS CAN
ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.
NOTES
•
See your vehicle's instructions for any special tools your
installation
might require.
•
Read
all
instructions accompanying
your car stereo for proper wiring and mounting instructions.
FACTORY
WIRING
CODES
For Factory Wiring
Codes
go
to:
www.scosche-cars.com
CAR
STEREO
CONNECTORS
PROVIDE
EASY
CONNECTION OF YOUR
CAR
STEREO TO FACTORY WIRING
HARNESS.
HY12B
201
0-up Hyundai
HY12B
LIABILITY
DISCLAIMER
This instruction booklet is based on carefully documented data and research
of
automobile dash disassembly, wire
harness/codes and information pertaining to installation
of
this kit
(KA2411
B)
in
2011-Up Kia
Optima
vehicles. Scosche
Industries, Inc.
cannot be held responsible for discrepancies/inconsistencies that may occur due to the automobile
manufacturing changes or options, or damage that may occur
in
the automobile during the installation
of
components
while using this booklet.
If you have any further questions, call
our
toll
free technical help line
at:
1-800-621-3695x3
©2011
SCOSCHE INDUSTRIES, INC.
Sl
KA2411 8
(3000003)
9/11

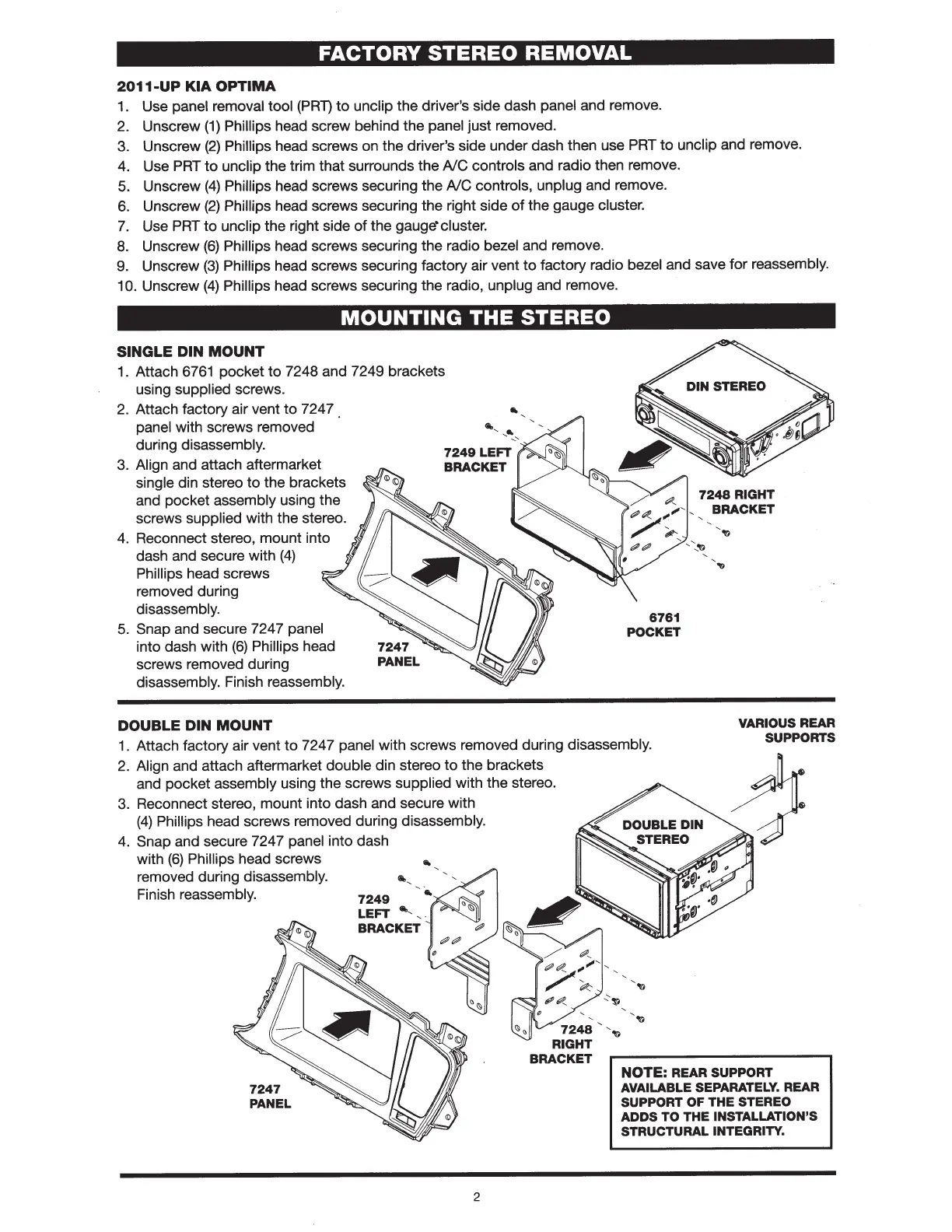

FACTORY
STEREO
REMOVAL
2011-UP
KIA
OPTIMA
1 . Use panel removal tool
(PR"D
to
unclip the driver's side dash panel and remove.
2.
Unscrew
(1)
Phillips head screw behind the panel just removed.
3.
Unscrew
(2)
Phillips
head screws on the driver's side under dash then use
PRT
to
unclip and remove.
4. Use
PRT
to
unclip the trim that surrounds the A/C controls and radio then remove.
5.
Unscrew
(4)
Phillips head screws securing the A/C controls, unplug and remove.
6.
Unscrew
(2)
Phillips head screws securing the right side
of
the gauge cluster.
7.
Use PAT to unclip the right side
of
the
gauge-
cluster.
8.
Unscrew
(6)
Phillips head screws securing the radio bezel and remove.
9.
Unscrew
(3)
Phillips
head screws securing factory air vent
to
factory radio bezel and save for reassembly.
1
0.
Unscrew
(4)
Phillips
head screws securing the radio, unplug and remove.
MOUNTING
THE
STEREO
SINGLE DIN
MOUNT
1.
Attach
6761
pocket to 7248 and 7249 brackets
using supplied screws.
2.
Attach factory air vent to 7247.
,
panel with screws removed
during disassembly.
3.
Align and attach aftermarket
single din stereo
to
the brackets
and pocket assembly using the
screws supplied with the stereo.
4. Reconnect stereo, mount into
dash and secure with
(4)
Phillips
head screws
removed during
disassembly.
5.
Snap and secure 7247 panel
into dash with
(6)
Phillips
head
screws removed during
disassembly. Finish reassembly.
DOUBLE DIN MOUNT
6761
POCKET
1 . Attach factory air vent to 724 7 panel with screws removed during disassembly.
VARIOUS
REAR
SUPPORTS
2.
Align and attach aftermarket double din stereo
to
the brackets
and pocket assembly using the screws supplied with the stereo.
3.
Reconnect stereo, mount into dash and secure with
(4)
Phillips
head screws removed during disassembly.
4.
Snap and secure 724 7 panel into dash
with
(6)
Phillips head screws
removed during disassembly.
Finish reassembly.
7247
PANEL
7249
LEFT
-.
, , ,
BRACKET
2
NOTE:
REAR
SUPPORT
AVAILABLE
SEPARATELY. REAR
SUPPORT OF
THE
STEREO
ADDS
TO
THE
INSTALLATION'S
STRUCTURAL
INTEGRITY.
