MZ2352SRB
IN-DASH INSTALLATION KIT FOR SELECT
2007-09 MERCEDES BENZ SLK (R171) VEHICLES
(for amplied vehicles w/ 5 pin connector)
This premium installation kit is for 2007-09 Mercedes Benz SLK vehicles with ber amplifer and 5 pin
connector. Included are all the parts you need to mount your car stereo or CD into your vehicle’s dash.
Refer to individual instruction in this manual to remove your vehicle’s factory radio and assemble the kit
© 2018 SCOSCHE INDUSTRIES, INC
Table of Contents
If you have any further questions, call our toll free technical help line: 1-800-363-4490 x1 or visit us online at www.scosche.com/contact
This MZ2352SRB instruction manual is based on carefully documented data and research. Scosche
Industries Inc. cannot be held responsible for discrepancies/inconsistencies that may occur due to
the vehicle manufacturing changes or options, or damages that may occur in the vehicle during the
installation of components while using this manual.
INTRODUCTION / PRELIMINARY
LIABILITY DISCLAIMER
1. Cover Page
2. About / Disassembly
3. Disassembly (con’t)
4. Wiring Codes / SWC Codes
5. SWC Samples/ SWC Controls
6. LPMZ35 Interface Wiring Diagram
7. Kit Assembly
8. Notes
MZ2352SRB 04/18
Custom Manufactured in China
2

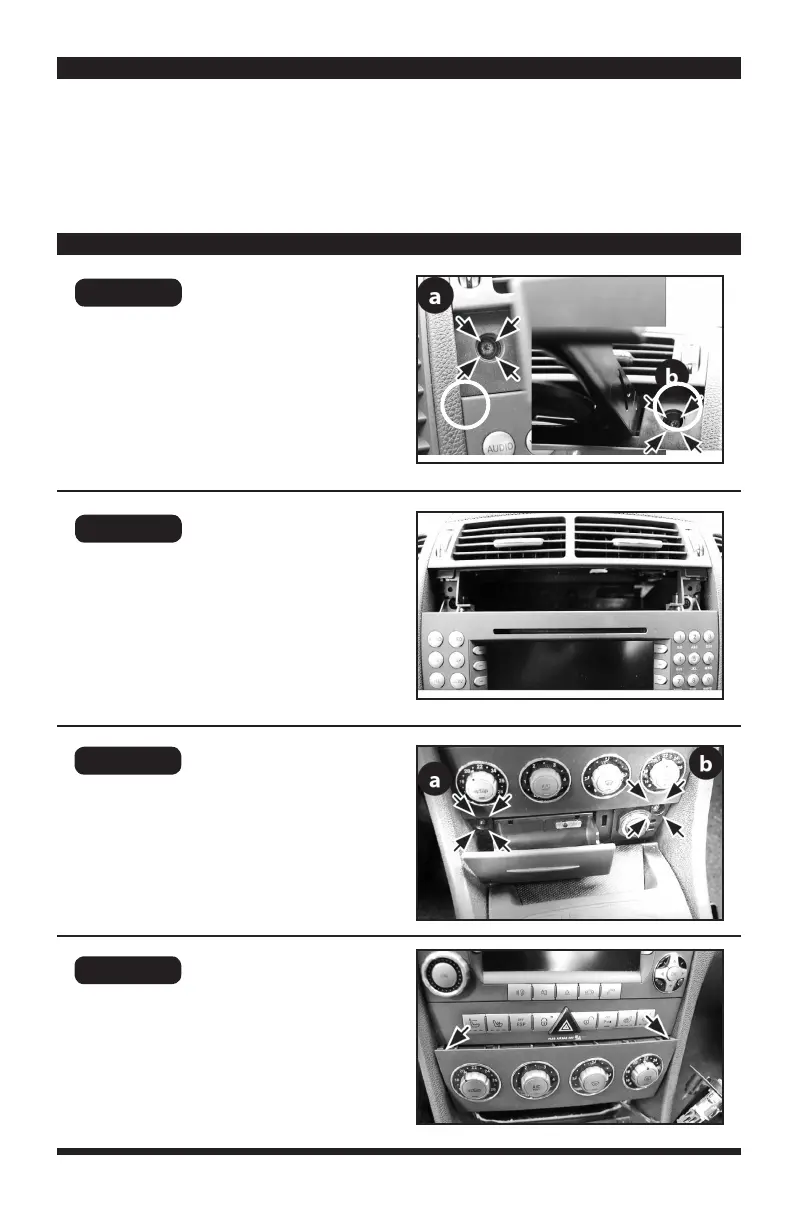

Remove the cup holder unit
Open the cup holder above the OEM
head unit and remove the two (2)rubber
caps from each side. Use a screwdriver
to remove the two (2) screws (a and b)
underneath the caps
Step 2
Step 1
ABOUT MZ2352SRB
Disassembly
Disassembly
© 2018 SCOSCHE INDUSTRIES, INC
Kit Features (if equipped)*
• Double Din Installation
• Retains SWC
• Retains Fiber Optic Amplier*
Tools Required (not included)
• Panel Removal Tool
• Screwdriver

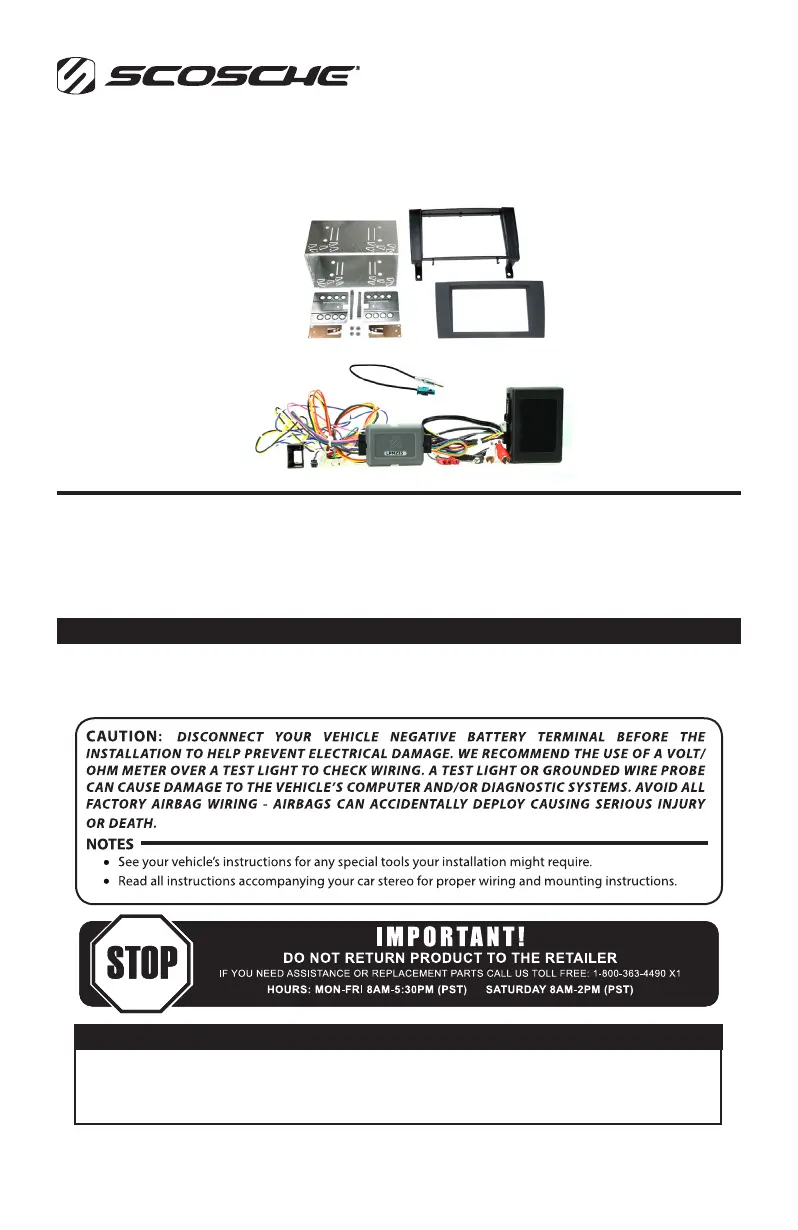

Parts Included (Refer to cover page)
• (1) Double Din Panel w/ faceplate
• (1) Radio Mounting Harware
• (1) SWC Harness
• (1) Antenna Adapter
• (1) Vehicle Specic (LPMZ35)
Interface
Disassembly
Open the ash tray and cigarette lighter
cover. Use a screwdriver to remove
screws a and b.
Remove the ash tray unit
Remove the climate control unit
Step 3
Step 4
Disassembly
Disassembly
2007-09 MERCEDES SLK
MZ2352SRB 04/18
