EN -3-

SAFETY WARNINGS

Operating voltage / frequency:

(V/Hz) (220-240) V~/50Hz;

Total current (A): 10

Water pressure (Mpa)

Maximum: 1 Mpa / Minimum : 0.1 Mpa

Total power (W) : 2200

Maximum dry laundry capacity (kg): 9

Do not install your machine on a carpet or such grounds that would prevent

the ventilation of its base.

The appliance is not intended for use by people (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

Call the nearest authorized service for a replacement if the power cord

malfunctions.

Use only the new water inlet hose coming with your machine while making

water inlet connections of your machine.Never use old, used or damaged

water inlet hoses.

This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand

the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without

supervision.

Note:For softcopy of this user manual, please contact following address:

“washingmachine@standardtest.info”.In your e-mail, please provide

the model name and serial number (20 digits) which you can nd on the

appliance door.

You must read these warnings. You can thus protect yourself and your

beloved ones against fatal injuries and risks.

CHAPTER -1: BEFORE USING THE APPLIANCE

EN -4-

Danger of getting burnt!

Do not touch discharging hose and water during discharging as the

appliance may reach high temperatures when running.

DEATH RISK DUE TO ELECTRICAL CURRENT!

• Do not use multiple receptacles or extension cord.

• Do not plug in damaged plug sockets

• Never pull the cable when unplugging – always grip the plug itself.

• Do not plug-in or out the plug from the receptacle with wet hands to

prevent electrocution!

• Never touch the machine with wet hands or feet.

• Call the nearest authorized service for a replacement if the power cord

malfunctions.

Flooding risk!

• Check whether the water runs fast or not before placing the discharge

hose on the sink.

• Take necessary measures to prevent the slipping of your hose.

• The backring force of a hose that is not placed appropriately can

displace the hose. Prevent the stopper inside your sink from blocking the

sink hole.

Danger of Fire!

• Do not keep inammable liquids near your machine.

• The sulphure content of paint removers might cause corrosion. For this

reason, never use paint-removing materials in your machine.

• Never use products that contain solvent material (like washing gas) in

your machine.

• Remove all the objects in the pockets of your laundries (needle, paperclip,

lighter, matches etc.) when placing them your machine.

Fire and Explosion risk may occur.

Fall and injury hazard!

• Do not climb on your machine. The upper table of your machine may

break and you might get injured.

• Tidy the hose, cable and packaging of your machine during installation.

You might trip over and fall.

• Do not turn your machine upside down, or on its side.

• Do not lift your machine by holding it from extruding parts (detergent

CHAPTER -1: BEFORE USING THE APPLIANCE

EN -5-

drawer, door). These parts might break and cause you to get injured.

• There’s the risk of tripping and injury if the materials like hose and cables

are not properly stored after your machine is installed.

Machine must be carried by 2 people or more.

Child safety!

• Do not leave children unattended near the machine. Children might lock

themselves up into the machine and death risk might occur.

• Door glass and surface might be extremely hot while your machine

operates. Thus, especially touching the machine might give damage to the

skins of children.

• Keep packaging material away from children.

• Poisoning might occur if the detergent and maintenance materials

are consumed, and eyes or the skin might be irritated if they come into

contact with the skin. Keep the cleaning materials away from the reach of

children.

GENERAL WARNINGS

• The necessary ambient temperature for your machine’s ideal operation

is 15-25°.

• Frozen hoses can tear and explode. In regions where temperature is

below zero, ambient temperature might endanger the safe operation of

electronic card.

• Please ensure that the clothes you will place in your machine do not

contain any foreign substances (nail, needle, coins, lighter, matches, clip

etc.) in their pockets. These foreign substances can damage your machine.

• Before starting to use your machine, you may call the nearest authorized

service and request free-of-charge help for installation, operation and use

of your machine.

• It is recommended to perform the rst washing operation in 90˚ Cotton

programme and without laundry by inserting ½ scale of detergent in 2nd

compartment of the detergent drawer.

• As detergent or softener exposed to air for a long time may cause residues,

put your detergent or softener in the detergent drawer at the beginning of

every washing.

• It is advised that you unplug your machine and close the water inlet tap if

you will not use your machine for a long time. Also, leaving the door of your

machine will prevent the formation of bad odors due to humidity.

• Some water might be left in your machine after the trials and tests

CHAPTER -1: BEFORE USING THE APPLIANCE

EN -10-

• Adjust the stays upward and downward by rotating them.

• After maintaining the balance, compress the plastic adjustment

nut upward again.

• Never put cardboard, wood or suchlike materials under your

machine if you are intending to stabilize the distortions on the

ground.

• When cleaning the ground, on which your machine rests, be

careful not to disorder stays stabilization.

ELECTRICAL CONNECTION

• Your washing machine is set to 220-240V and 50Hz.

• The mains cord of your washing machine is equipped with a specic earthed plug. This

plug should alwaysbe inserted to a earthed socket of 10 amps. The current value of the fuse

should be 10 amps. Fuse current value of the power line connected to this plug should also

be 10 amperes. If you don’t have such a receptacle and fuse conrming with this, please

have it done by a qualied electrician.

• We do not take the responsibility of the damages that occur due to ungrounded usage.

NOTE: Operating your machine under low voltage will cause the life cycle of your machine

to be reduced and its performance to be restricted.

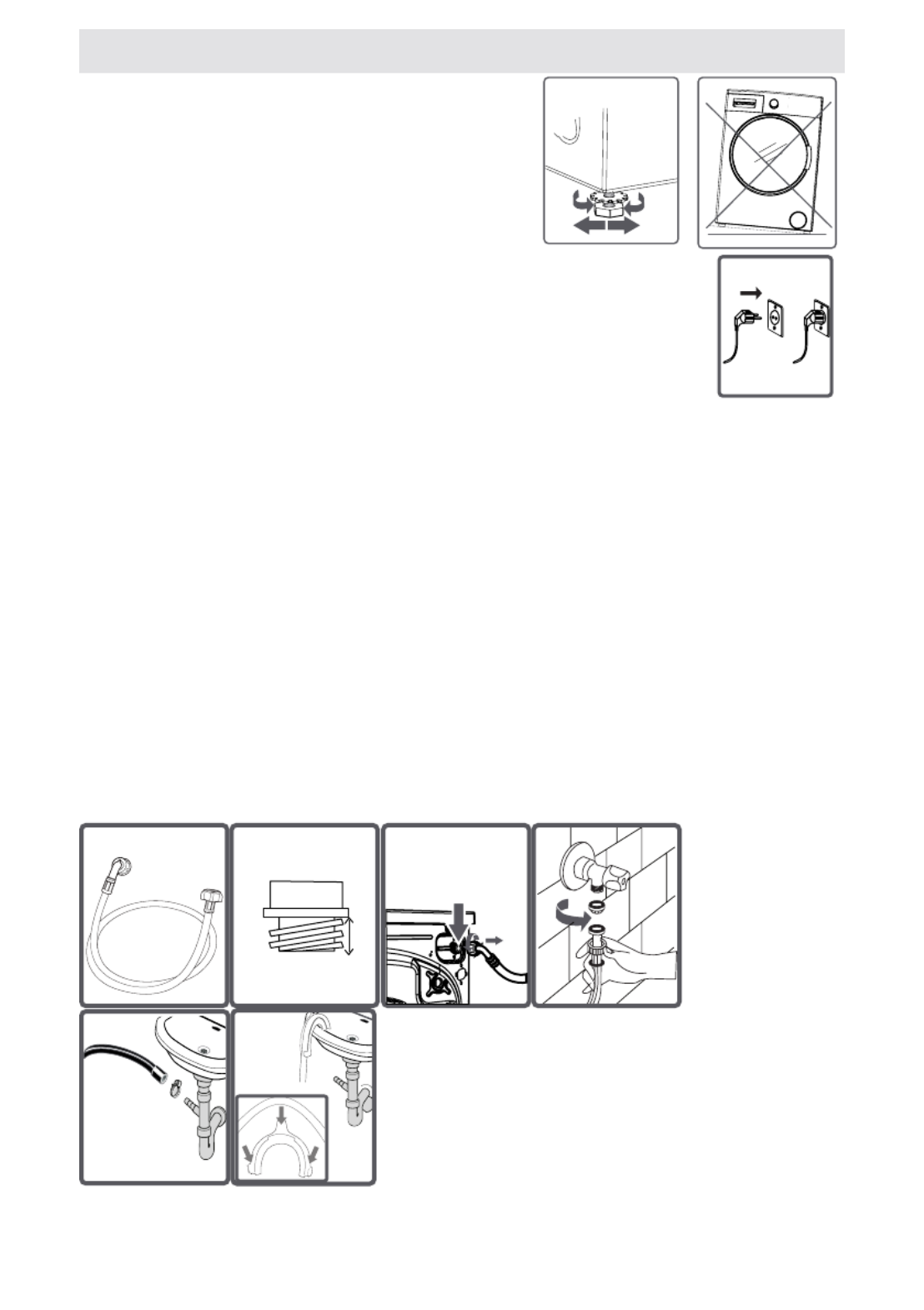

WATER INLET HOSE / WATER DISCHARGE CONNECTION

• Your machine may have either a single inlet (cold) or double water inlets (cold/hot) based on its specications.

White-capped hose should be connected to cold water inlet and red-capped hose to hot water inlet (applicable

for machines with double water inlets).To eliminate water leakages in points of contact, 1 or 2 nuts are provided

in the hose package (applicable for machines with double water inlets). Fit these nuts to the ends of new water

inlet hoses on the side of faucet.

• Mount new water inlet hoses to a ¾ ˝, threaded faucet.

• Connect the white-elbow end of the water inlet hoses to the white-ltered water inlet valve on the rear side of the

machine and the red-elbow end to red-ltered one (applicable for machines with double water inlets)

• Tighten plastic parts of the junctions using your hand. In uncertain conditions, have the connection works be

done by a qualied plumber.

• Flow of water with pressure of 0,1-1 Mpa will allow your machine to operate more efciently.) (0,1 Mpa pressure

means that more than 8 litres of water will ow through a fully-tapped faucet per one minute.)

• Ensure that points of contact do not leak by tapping the faucet completely after carrying making the connections.

• Ensure that the new water inlet hoses are not bent, broken, crushed and resized.

• If your machine has double hot water inlets, the temperature of hot water inlet should be maximum 70°C. Note:

Use only the new water inlet hose coming with your machine while making Water inlet hose connections of your

machine. Never use old, used or damaged water inlet hoses.

• The end of water discharge hose can be tted to a specic apparatus directly attached to dirty water discharge

hole or outlet joint of the basin elbow.

• Never attempt to extend the water discharge hose by jointing.

• Do not put discharging hose of your machine in a vessel, bucket or sink.

• Make sure that the water discharge hose does not bend, buckle, be crushed or extended. Please note:

• The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground

3/4”

10 mm

CHAPTER -3: INSTALLATION

EN -15-

KEY LOCK

To avoid program ow from being affected if function buttons are pressed or the program knob is turned when

performing a washing operation in your machine, a child lock is available.

The child lock engages after both of the buttons next to the symbol are pressed for more than 3 seconds.

The following warning text will be displayed after the key lock activated.

The following text will be displayed if any buttons are pressed while the child lock is engaged.

If the child lock is engaged while any program is running and the program knob is switched to the STOP position

and another program is selected, the program previously selected continues from where it left.

To disengage the child lock, it will be required to press on the buttons for more than 3 seconds. The following

warning text will be displayed after the child lock disengages.

Note: Child lock cannot lock the pump cover and detergent drawer of your machine.

SELECTING SUB-PROGRAMS

SYNTHETICS

When you select the synthetics program from the program knob, you will see two sub-program options.

1-Synthetics

2-Curtain

• You can make the sub-program selections by pressing the buttons of symbols.

• You can activate the program you want to select by touching the button of the symbol.

• After the activation is completed the electronic display will return to the main screen of the program you have

selected automatically. You can select the other features you want to select on this screen and run the machine

by pressing the Start/Stand-by button.

WOOL

When you select the wool program from the program knob, you will see two sub-program options.

1-Wool

2-Silk

• You can make the sub-program selections by pressing the buttons of symbols.

• You can activate the program you want to select by touching the button of the symbol.

• After the activation is completed the electronic display will return to the main screen of the program you have

selected automatically. You can select the other features you want to select on this screen and run the machine

by pressing the Start/Stand-by button.

EXTRAS

When you select the extras program from the program knob, you will see 4 sub-program options.

1-Rinse

2-Spin

3-Drain

4-Drum clean

• You can make the sub-program selections by pressing the buttons of symbols.

• You can activate the program you want to select by touching the button of the symbol.

• After the activation is completed the electronic display will return to the main screen of the program you have

selected automatically. You can select the other features you want to select on this screen and run the machine

by pressing the Start/Stand-by button.

CHAPTER -6: OPERATING YOUR MACHINE

Produktspecifikationer

Varumärke:	Sharp
Kategori:	Tvättmaskiner
Modell:	ES-GFD9144W3
Färg på produkten:	Wit
Vikt:	321 g
Bredd:	192 mm
Djup:	12 mm
Höjd:	114 mm
Användarmanual:	Ja
Blåtand:	Nee
Skärm diagonal:	7 "
Upplösning:	800 x 480 Pixels
Original bildförhållande:	16:9
Accelerometer:	Ja
Processorfrekvens:	1 GHz
Processorfamilj:	Boxchip
Processormodel:	A13
Intern lagringskapacitet:	4 GB
Minneskortets maximala kapacitet:	32 GB
Ljudformat som stöds:	AAC, APE, FLAC, MP3, OGG, WAV, WMA
GPS:	Nee
Plats position:	Nee
Vormfaktor:	Slate
Videoinspelning:	Ja
Inkluderar operativsystem:	Android
Plattform:	Android
Typ av anslutningskontakt:	3,5 mm
Videokomprimeringsformat:	3GP, AVI, FLV, H.263, H.264, MPEG4, RMVB
Medföljande kablar:	USB
Integrerad minneskortläsare:	Ja
Kompatibla minneskort:	MicroSD (TransFlash)
Inkluderar AC-adapter:	Ja
Mikrofon, linjeingång:	Nee
Inbyggda högtalare:	Ja
Maximal videoupplösning:	- Pixels
Internminne:	0.5 GB
Processorarkitektur:	ARM Cortex-A8
Bildformat som stöds:	BMP, GIF, JPG
Batteritid/batteritid:	- uur
Internminnestyp:	DDR3-SDRAM
Operativsystem version:	4.0
Inbyggd kamera:	Ja
Datanätverk:	Niet ondersteund
Hörlurarna avstängda:	Ja
Tangentbord ingår:	Nee
Anslutning till basstation:	Nee
Antal mikro-USB 2.0-portar:	1
Huvudkameraupplösning (numerisk):	0.3 MP
Andra kameran:	Nee
Wifi:	Ja
Batteriteknik:	Lithium
