Illumilift RGBW Turbo V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Order code: 41166
MANUAL
ENGLISH
1
Order code: 41166
Illumilift RGBW Turbo
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 5
Connection with the mains......................................................................................................................................... 6
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7
Overview ........................................................................................................................................................................ 7
Controller ........................................................................................................................................................................ 8
LED Sphere ..................................................................................................................................................................... 8
Installation ........................................................................................................................................................................... 9
Setup and Operation ......................................................................................................................................................10
Control Modes .............................................................................................................................................................10
One Illumilift (Manual) .............................................................................................................................................10
Multiple Illumilifts (DMX Control) ............................................................................................................................10
Fixture Linking ...............................................................................................................................................................11
Data Cabling ...............................................................................................................................................................11
Control Panel ...............................................................................................................................................................12
Control Mode ..............................................................................................................................................................12
DMX Addressing ..........................................................................................................................................................12
Menu Overview ...........................................................................................................................................................13
Main Menu Options ....................................................................................................................................................14
1. DMX Addressing ...................................................................................................................................................14
2. Channel Mode .....................................................................................................................................................14
3. Manual...................................................................................................................................................................14
4. Reset .......................................................................................................................................................................14
DMX Channels .............................................................................................................................................................15
6 Channels ................................................................................................................................................................15
10 Channels ..............................................................................................................................................................16
Maintenance ....................................................................................................................................................................17
Replacing the Fuse .....................................................................................................................................................17
Troubleshooting ...............................................................................................................................................................17
No Light .........................................................................................................................................................................17
No Response to DMX..................................................................................................................................................18
Product Specifications ....................................................................................................................................................19
Dimensions ........................................................................................................................................................................20
Notes ..................................................................................................................................................................................21
2
Order code: 41166
Illumilift RGBW Turbo

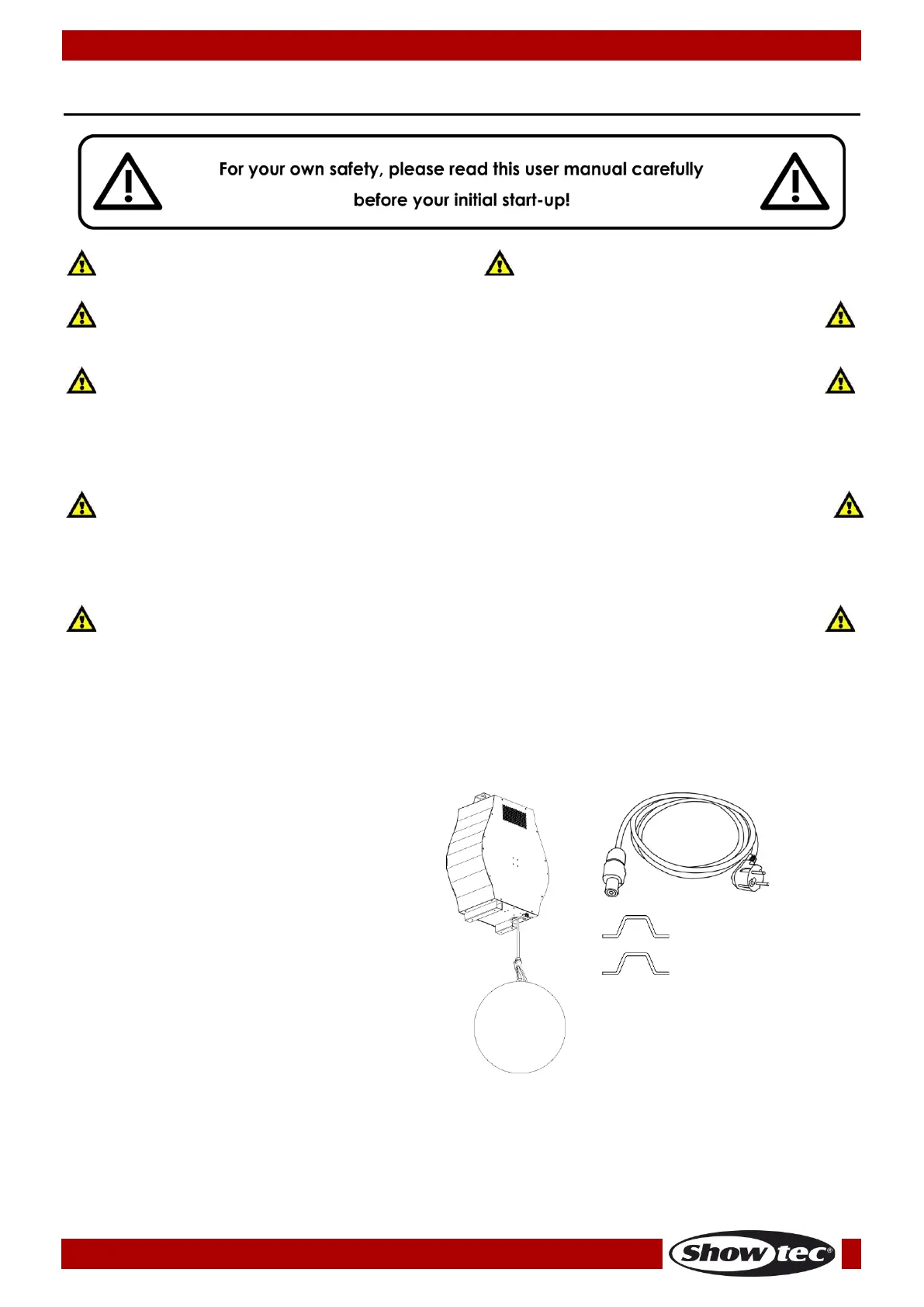

Warning
Do not exceed the maximum cable load (2 kg).
Do not attach any third-party LED spheres or any other objects to the hoisting cable.
Attach only the LED sphere that is included in the box or is recommended in this user manual.
Before connecting to power supply, make sure that:
● the cable tie, that keeps the hoisting cable together, is removed.
● the movement of the attached LED sphere is not obstructed in any way.
Connect to power supply only when:
● the LED sphere is installed.
● the controller is in vertical orientation.
● the hoisting cable is pulled tight and is not twisted.
The winch system resets on each start-up. If the controller is not in vertical orientation or the
LED sphere is not installed, the hoisting cable may twist. It may block or damage the winch
system. The warranty will become void.
Make sure that there is enough distance in height between the installed LED sphere (when the
hoisting cable is fully unwound) and the persons and objects on the surface below.
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
● Showtec Illumilift RGBW Turbo
● LED sphere (35 cm)
● Schuko to Power Pro cable (1,7 m)
● 2 x mounting bracket
● User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
Produktspecifikationer
