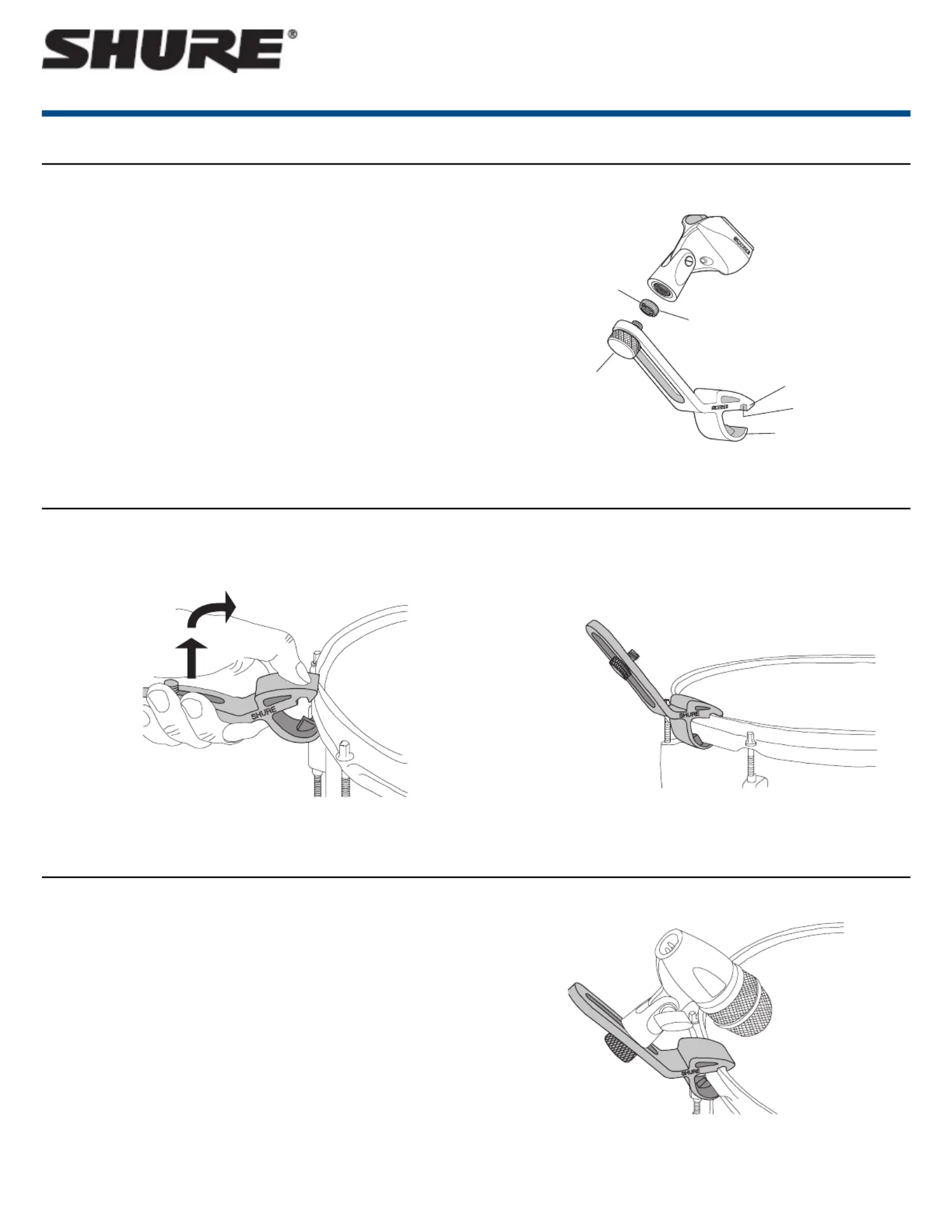

General Description

Use the Shure A50D to mount a microphone onto a drum. The flexible, yet

sturdy, rubber construction provides stability and ease of installation. Any

standard microphone clip fits on the mount with the included 5/8 – inch to

3/8 – inch thread adapter.

SLOT

THREAD ADAPTER

THUMBSCREW

UPPER LIP

GROOVE

LOWER JAW

EXPLODED VIEW WITH MIC CLIP

STEP ONE: INSTALL THE MOUNT ON A DRUM

1. Place the lower jaw of the mount under the drum rim as shown in the

following diagram.

INSTALLING THE MOUNT

2. After securing the mount’s lower jaw, lift the mount up until the groove

in its upper lip clicks into place over the top of the drum rim. Make sure

the mount is clamped securely over the top edge of the drum and under

the bottom flange of the drum rim.

PROPERLY INSTALLED MOUNT

STEP TWO: ATTACH A MICROPHONE TO THE MOUNT

After installing the mount onto the drum rim, follow these instructions to attach

a microphone:

1. Insert the thread adapter, slot side out, into the bottom of the mic clip.

NOTE: The adapter also works with microphones that have an integrated

mic clip, such as the PG56 (pictured below).

2. Screw the adapter clockwise until it is flush with the bottom of the mic

clip.

3. Position the mic clip over the mount’s thumbscrew. Turn the thumbscrew

clockwise until the mic clip is firmly attached to the mount.

NOTE: Do not over tighten.

4. Place a microphone in the clip.

5. To adjust the distance between the microphone and the drum head,

loosen the thumbscrew slightly and slide the microphone up or down

along the mount.

MICROPHONE ATTACHED TO MOUNT

NOTE: To minimize potential noise or damage from drum sticks, position the

microphone outside the drummer’s range of stick movement.

A50D

Model A50D User Guide Microphone Drum Mount

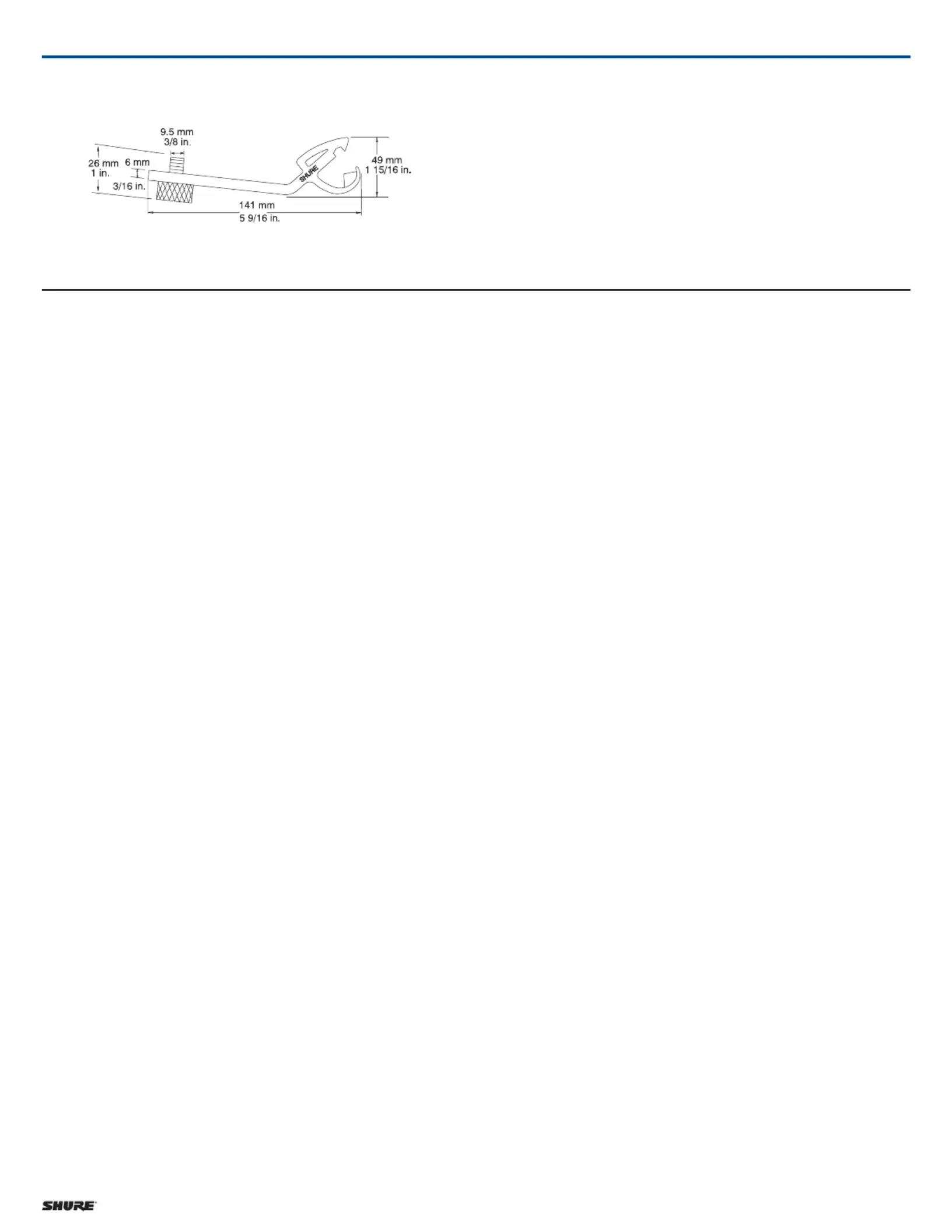

DIMENSIONS

Certifications

This product meets the Essential Requirements of all relevant European di-

rectives and is eligible for CE marking.

The CE Declaration of Conformity can be obtained from:

www.shure.com/europe/compliance

Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: +49-7262-92 49 0

Fax: +49-7262-92 49 11 4

Email: info@shure.de

Shure IncorporatedA50D Model A50D User Guide Microphone Drum Mount
