Sida 1/2
Antenna mounting location
2 m
(6.56”)
1 m (3.28”)
3 m
(9.84”)
10 m
(32.80”)
VHF
HF/SSB
5 m
(16.40”)
Surface mount the antenna
Pole mount (external cable)
4
2
3
1
Pole mount (Internal cable)
2
3
1
4
3 mm 19 mm
1
4
3
5
2
www.navico.com/commercial

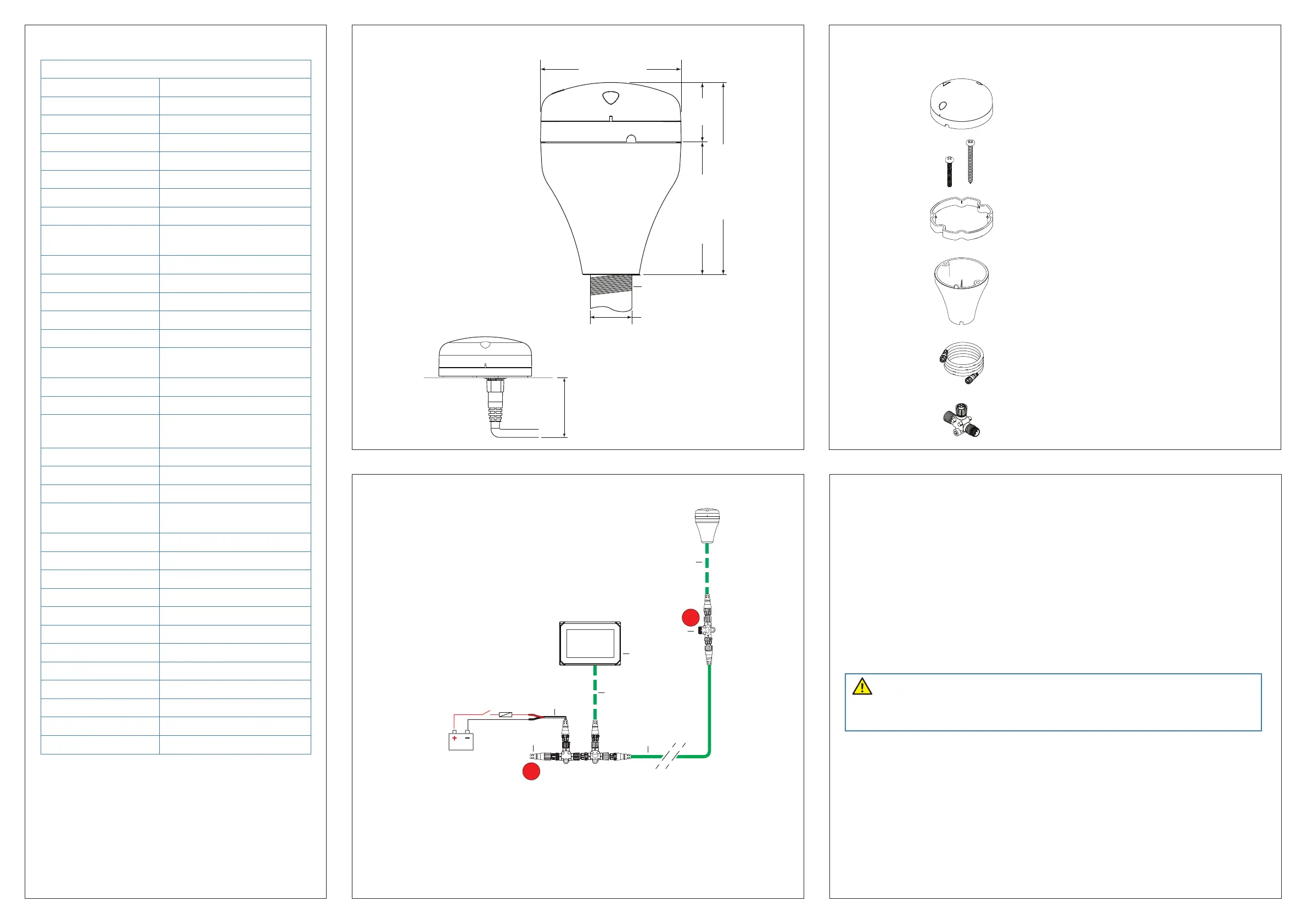

GS70
Installation Guide
*988-10540-003*
For product manuals, technical specications,
certicates and declarations refer to the
product website:
www.navico.com/commercial
Dimensions
Wiring
T
T
B
C
D
A
A
E
12 V DC
F
Technical specications
A
NMEA 2000 drop cable, max 6 m
B
NMEA 2000 backbone
C
Display unit
D
NMEA 2000 backbone power supply
E
Terminator
F
Inline terminator
Supplied parts
Antenna
Fixing screws:
• 2 self-tapping screws for deck mount
• 2 screws for pole mount
Gasket
Pole mount
Micro-C Drop cable (female to male)
4.5 m (15 ft)
Micro-C T-joiner
38 mm
(1.50")
90 mm (3.54")
25.4 mm (1")
14 Threads per inch
85 mm (3.35")
123 mm (4.84")
60 mm
(2.36 “)
General
Receiver Type L1, C/A code, 1.575 GHz
Channels 32 channels
Position Update Rate Up to 10 Hz (1, 5, 10)
Horizontal Accuracy 3 m (9.8 ft)
Cold Start 50 sec
Start-Up Time 3 sec
Satellite Reacquisition 5 sec
Environmental
Operating
Temperature
-25° C to +60° C
Storage Temperature -40° C to +85° C
Splash Proof IPX7
Humidity 40° C, 93% RH, operating
Electrical
Input Voltage 9 V - 18 V DC
Reverse Polarity
Protection
Yes
Power Consumption < 100 mA @ 12 V DC
Mechanical
Dimensions 90 mm (dia.) x 38 mm (height)
3.54” (dia.) x 1.50” (height)
Weight 0.14 Kg (0.3 lbs) approx.
Power/Data Cable NMEA 2000
Antenna Connector NMEA 2000 Micro C
Mounting Flush mount / Standard 1”-14
threads pole mount
Communications
Data I/O Protocol NMEA 2000
NMEA2000 PNGs
PGN Number PGN Title
126992 System Time
129025 Position, Rapid Update
129026 COG & SOG RU
129029 Position Data
129539 GNS DOP
129540 GNS Satellites in view
127258 Magnetic Variation
127257 Attitude
Europe
This product complies with CE under RED Directive 2014/53/EU. The relevant Declaration of
Conformity is available in the product’s section at the following website:
www.navico.com/commercial
Australia/New Zealand
Complies with the requirements of level 2 devices of the Radiocommunications
(Electromagnetic Compatibility) standard 2017.
United States of America
Warning: The user is cautioned that any changes or modications not
expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Compliance statements
Dierential data can be added to the system using external
DGNSS Corrections (PGN 129549).
