Sida 1/12

WLR-4100

User Manual

Table of Contents

Introduction .......................................................................................................... 3

Key Features ......................................................................................................... 4

Package Contents .................................................................................................. 5

Cautions ............................................................................................................... 6

Product Layout ...................................................................................................... 7

Network + System Requirements ............................................................................ 9

Setup your Router ................................................................................................10

Setup your Computer ............................................................................................11

Configure your Internet connection .........................................................................15

Configure your Router ...........................................................................................16

Wireless Settings ..................................................................................................21

Firewall Settings ...................................................................................................28

Advanced Settings ................................................................................................32

Toolbox Settings...................................................................................................37

Addendum A: GNU/GPL Leaflet...............................................................................44

Addendum B: GNU/GPL .........................................................................................45

Addendum C: Declaration of Conformity ..................................................................53

Revision 1.0

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device‟s

software may have a slightly different appearance or modified functionality than

presented in this manual.

Introduction

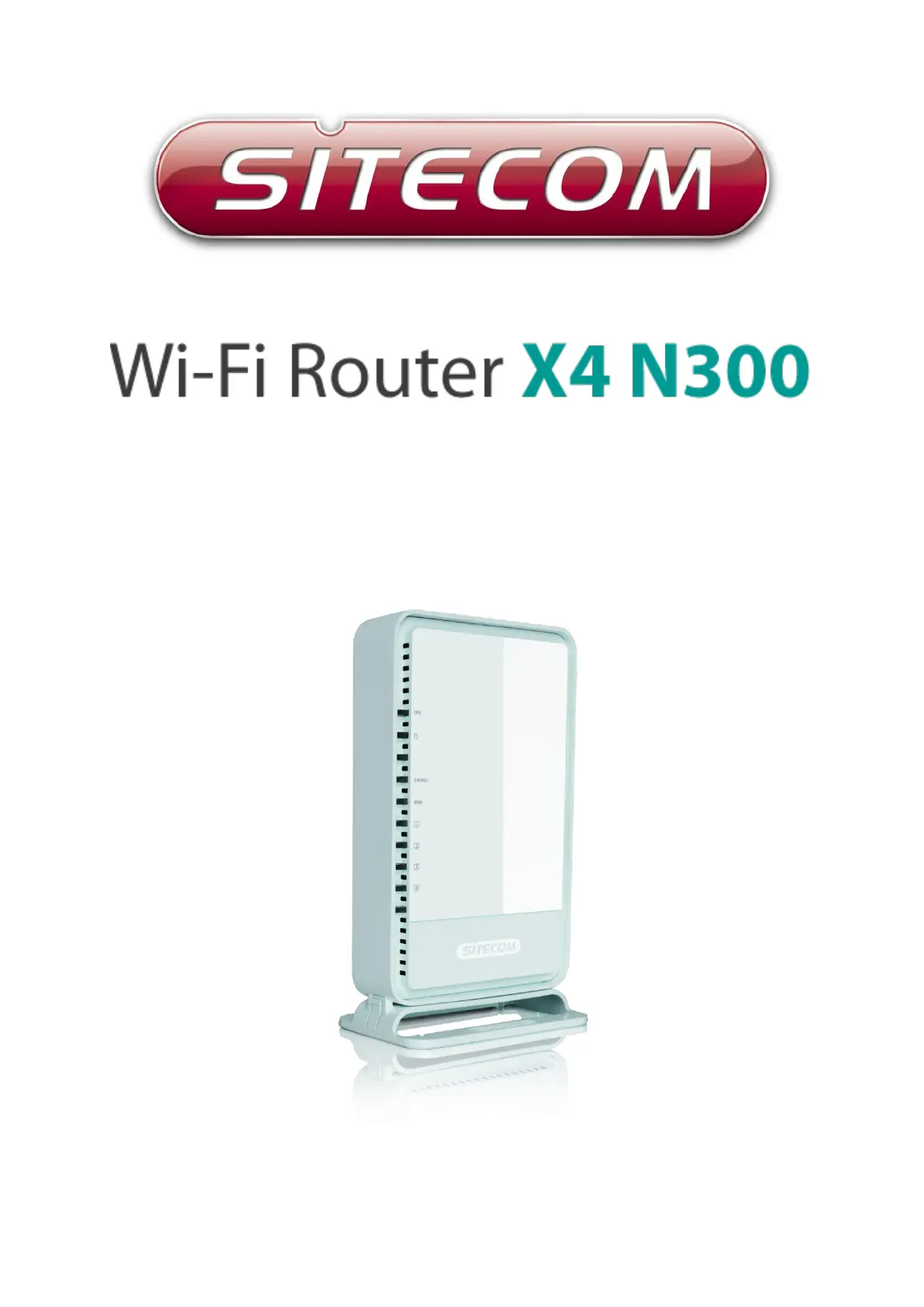

Congratulations on your purchase of the WiFi Router X4 N300. This router is compliant

with 802.11n and up to 6 times faster than standard 802.11g based routers while still

being compatible with 802.11g & 802.11b devices. This router is not only a Wireless

Access Point, but also doubles as a 4-port full-duplex Gigabit switch that connects your

wired-Ethernet devices together at 10/100/1000 Mbps speeds.

At 300 Mbps wireless transmission rate, the Access Point built into the router uses

advanced MIMO (Multi-Input, Multi-Output) technology to transmit multiple streams of

data in a single wireless channel, giving you seamless access to multimedia content. The

robust RF signal travels farther, eliminates dead spots and extends the network range.

For data protection and privacy, the router encodes all wireless transmissions with WEP,

WPA, or WPA2 encryption.

With the built-in DHCP Server & powerful SPI firewall, the router protects your computers

against intruders and most known Internet attacks and also provides safe VPN pass-

through. With the incredible speed and QoS function of 802.11n, the router is ideal for

media-centric applications like streaming video, gaming, and VoIP telephony to run

multiple media-intense data streams through the network at the same time, with no

degradation in performance.

With Sitecom Cloud Security, Sitecom goes one step further and ensures that you can

surf the Internet even more safely, not only on your PC, but on all the devices in your

home which you use to access the Internet. It does not matter whether you surf the

Internet on a laptop, a tablet, a mobile telephone or your television. Thanks to the

security that is integrated in the router, all the Internet devices in your home are

protected against the dangers of Internet criminality.

Produktspecifikationer

Varumärke:	Sitecom
Kategori:	Router
Modell:	WLR-4100
Vikt:	268 g
Bredd:	180 mm
Djup:	115 mm
Höjd:	35 mm
LED-indikatorer:	LAN, Power, WAN, WLAN, WPS
Processorfrekvens:	580 MHz
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Frekvensband:	2.4 GHz
Snabbstartsguide:	Ja
Certifiering:	RoHS, CE
USB-version:	2.0
Internminne:	64 MB
Kabelteknik:	10/100/1000Base-T(X)
3G:	Nej
4G:	Nej
Processor:	MediaTek MT7620
Mobil nätverksanslutning:	Nej
Återställningsknapp:	Ja
Bandbredd (första):	2.4 GHz
MAC-adressfiltrering:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
Brandvägg:	Ja
Flashminne:	8 MB
DHCP-server:	Ja
Universal Plug and Play (UPnP):	Ja
DHCP-klient:	Ja
Nätverksadressöversättning (NAT):	Ja
DMZ-stöd:	Ja
Full duplex:	Ja
Antenndesign:	Intern
Systemhändelselogg:	Ja
Produktens färg:	Vit
Antal USB-portar:	1
Monteringsbar på väggen:	Ja
Windows-operativsystem som stöds:	Ja
Mac-operativsystem som stöds:	Ja
Inbyggd processor:	Ja
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	4
AC-inspänning:	220 - 240 V
Kryptering/säkerhet:	64-bit WEP, 128-bit WEP, WPA, WPA-AES, WPA-TKIP, WPA2
Kabel inkluderad:	LAN (RJ-45)
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	TCP/IPv4, IPv6
Likströmsingång:	Ja
Firmware kan uppgraderas:	Ja
Strömkälla av typen:	AC
AC-adapter inkluderad:	Ja
På / av-knapp:	Ja
Webbaserad adminstraion:	Ja
Antal USB 2.0 anslutningar:	1
Antenner mängd:	2
Antenn ökningsnivå (max):	3 dBi
USB-port:	Ja
Processorkärnor:	1
Kommunikationsstandarder:	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Plug & Play-kompatibel:	Ja
Typ av Ethernet LAN-gränssnitt:	Gigabit Ethernet
Linux operativsystem som stöds:	Ja
Tillgängliga dataöverföringshastigheter, WLAN:	300 Mbit/s
Wi-Fi-standard:	Wi-Fi 4 (802.11n)
Wi-Fi-band:	Singel-band (2,4 GHz)
WPS tryckknapp:	Ja
Portvidarebefordran:	Ja
Löstagbar(a) antenn(er):	Nej
Dataöverföringshastighet via WLAN (max):	300 Mbit/s
Kontrollampa:	Ja
Gästanvändare:	Ja
DoS-attacker:	Ja
SPI (Stateful Packet Inspection):	Ja
Verifieringsmetod:	802.1x RADIUS
