Installation
Manual
Control 16 Computers, PC or Mac on one Display
Up To 20 Feet Away with Stereo Audio and USB 2.0
DVN- 6P1

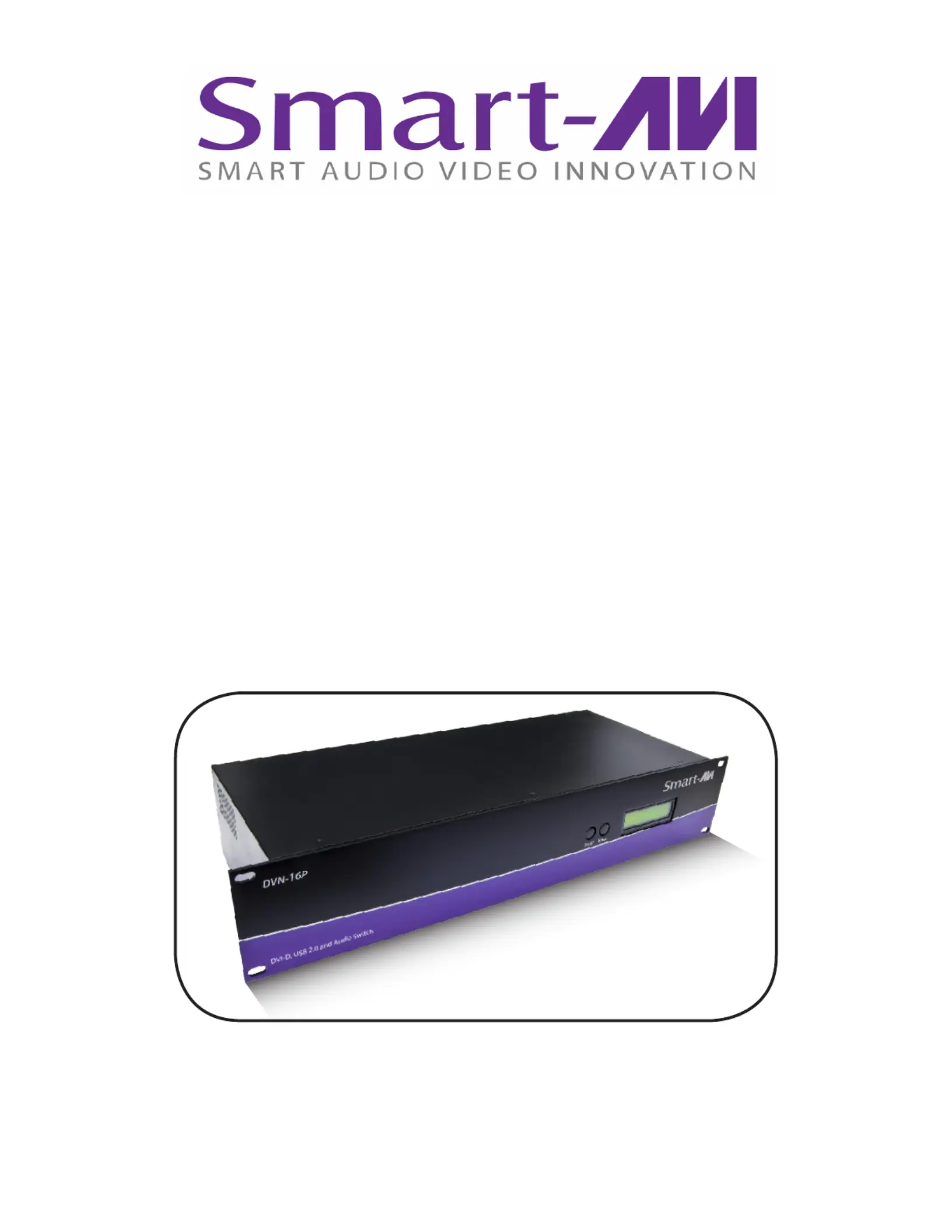

16-Port Cross-platform DVI-D Switch
with Stereo Audio and USB 2.0
2www.smartavi.com
Introduction
The DVN-16P is a cross-platform switch capable of sharing a DVI-D monitor, stereo speakers and
USB 2.0 devices between sixteen computers. It is RS-232 and Infrared compliant, capable of being
controlled remotely via software (TCP/IP), locally via the front panel, RS-232 or Infrared remote control.
Applications
• Server Collocation
• Digital Signage
• Airports
• Dealer Rooms
• Control Rooms
• Audio/Visual Presentations
• Hotels/Resorts
• KVM Switches
The DVN-16P has a broad range of applications, but its main function is to centralize the access
to several computers into one console. Not only does it function like a KVM, it has USB support.
This allows a user at the console to use USB devices that would otherwise be unavailable with
conventional KVMs. For example, it allows a user to use a ash memory drive without having to
plug it directly into the remote computer. In the medical or industrial eld for example, where
it may not be practical (or safe) to have one or more CPUs in the general vicinity, the DVN-16P is
the perfect solution.
Features
• Supports Mac, PC, Linux and Sun DVI
• Supports High Resolution1920x1200 60Hz WUXGA
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• Supports all USB 2.0 Devices (Flash Drives, Printers, Scanners, etc.)
• Supports USB 2.0 keyboard and mouse
• Balanced stereo audio output
• Front panel tactile switch with LCD display
• Full IR and RS-232 control
• Optional TCP/IP control
NOTE: THE USB OPERATION OF THE DVN-16P IS FULLY TRANSPARENT.
TO ATTACH ADDITIONAL USB DEVICES A USB HUB MAY BE USED.
3
www.smartavi.com
Technical Specications
What’s in the Box?
PART NO. QTY DESCRIPTION
DVN-16PS 1 DVNET-16P, 16X1 DVI-D, USB2.0, Audio switch
Power Supply 1 PS5VDC4A
User Manual 1
VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (16) DVI-D 29-pin female
Output Interface (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal Level 0-1.0 V
Common Mode Rejection at 60dB
Input Interface (16) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
USB
Signaling USB 2.0, 1.1 and 1.0 w/ Internal Hub
Input Interface (16) USB Type B
Output Interface (2) USB Type A
CONTROL
Front Panel Tact Switch
RS232 Via Software @ 9600 bps
IR Via Remote Control with IR-EYE Type 3
OTHER
Power External 100-240 VAC/5VDC4A @20W
Dimensions 10.5”W x 1.875”H x 6”D
Weight 8 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
Emulation NO KEYBOARD OR MOUSE EMULATION
