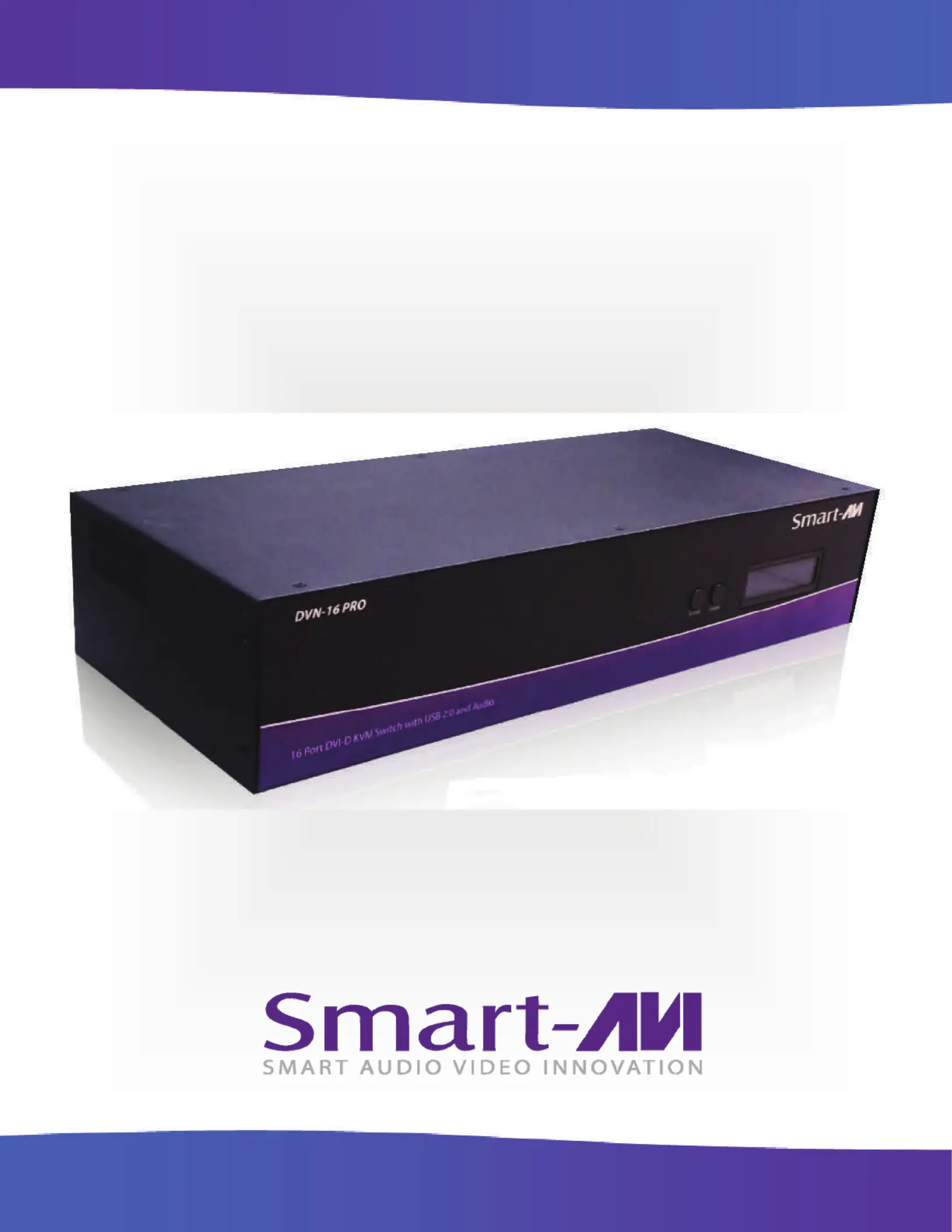

DVN‐16Pro
UserManual
Access and Control 16 Computers
with One USB keyboard, USB Mouse and DVI-D Monitor
16-Port DVI-D KVM Switch with Audio and USB 2.0 Sharing
2
TABLE OF CONTENTS
WHAT'S IN THE BOX? 2
INTRODUCTION 3
FEATURES 3
APPLICATIONS 3
TECHNICAL SPECIFICATIONS 4
HARDWARE INSTALLATION 5
FRONT PANEL CONTROL 6
RS-232 COMMANDS 7
HOTPLUG COMMANDS 7
LIMITED WARRANTY STATEMENT 8
Figure 2-1
Figure 2-2
WHAT'S IN THE BOX?
PA
PA
PA
PAPAR
R
R
RRT
T
T
TT N
N
N
N NO
O
O
OO.
.
.
..
QT
QT
QT
QTQTY
Y
Y
Y Y DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION DESCRIPTION
DVN-16PROS 1 DVN-16Pro, 16x1 DVI-D, USB 2.0, Audio Switch
PS5VDC4A 1 Power Supply/Adapter
1 Quick Start Guide
EN-DVN16P-EAR-P 2 Mounting Brackets
3
INTRODUCTION
The DVN-16Pro is a dedicated multi-platform KVM switch capable of managing up to 16 different com-
puters through a single DVI-D monitor, USB keyboard & mouse and a single set of speakers with USB 2.0
device sharing. The USB emulation technology utilized by the DVN-16Pro enables immediate hotkey
source switching through a remote USB keyboard and mouse. The DVN-16Pro provides high resolution,
up to 1920x1200 with zero pixel loss from TMDS signal correction.
FEATURES
Supports Mac, PC, Linux and Sun DVI
Supports High Resolution1920x1200 60Hz WUXGA
Uses universal DVI Single Link connectors
Zero pixel loss with TMDS signal correction
Supports all USB 2.0 Devices (Flash Drives, Printers, Scanners, etc.)
Supports USB 2.0 keyboard and mouse
Balanced stereo audio output
Front panel buttons with LCD display
Full RS-232 control
Hotkey commands for quick channel selection
Complete keyboard emulation for error free booting
Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to
audio from one computer while working on the other or scan a document and save in another com-
puter
SOURCE S
SOURCE S
SOURCE S
SOURCE SSOURCE SWIT
WIT
WIT
WITWITCHING MADE EAS
CHING MADE EAS
CHING MADE EAS
CHING MADE EASCHING MADE EASY
Y
Y
Y Y
The DVN-16Pro provides simplified control of up to 16 computers with DVI-D, audio, and USB 2.0 outputs.
This dynamic KVM console can be controlled remotely from easily accessible keyboard hotkeys or RS-232
communication channel commands, as well as directly through the console’s easy to read front panel.
EDID LEARNING & PROGRAMMING
EDID LEARNING & PROGRAMMING
EDID LEARNING & PROGRAMMING
EDID LEARNING & PROGRAMMING EDID LEARNING & PROGRAMMING
Detection of DDC signals for all attached devices is effortless with DVN-16Pro due to its EDID learning
and programming. This is vital in optimizing the resolution of the selected graphics card to properly dis-
play on the remote monitor. Furthermore, the DDC learning feature continues to replicate the right EDID
for the computer to enable the display card to effectively work when unused ports are not selected.
FULL USB KEYBO
FULL USB KEYBO
FULL USB KEYBO
FULL USB KEYBOFULL USB KEYBOARD AND MOUSE EMULA
ARD AND MOUSE EMULA
ARD AND MOUSE EMULA
ARD AND MOUSE EMULAARD AND MOUSE EMULATION
TION
TION
TION TION
The USB keyboard and mouse emulation utilized by DVN-16Pro provides accurate and quick source
switching by means of keyboard hotkeys. The DVN-16Pro imitates the presence of a keyboard and mouse
for every attached computer through its USB cable. This is essential as it simulates the existence of the
keyboard and mouse to all the computers when switching out of the circuit.
APPLICATIONS
Server Collocation
Digital Signage
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Hotels/Resorts
