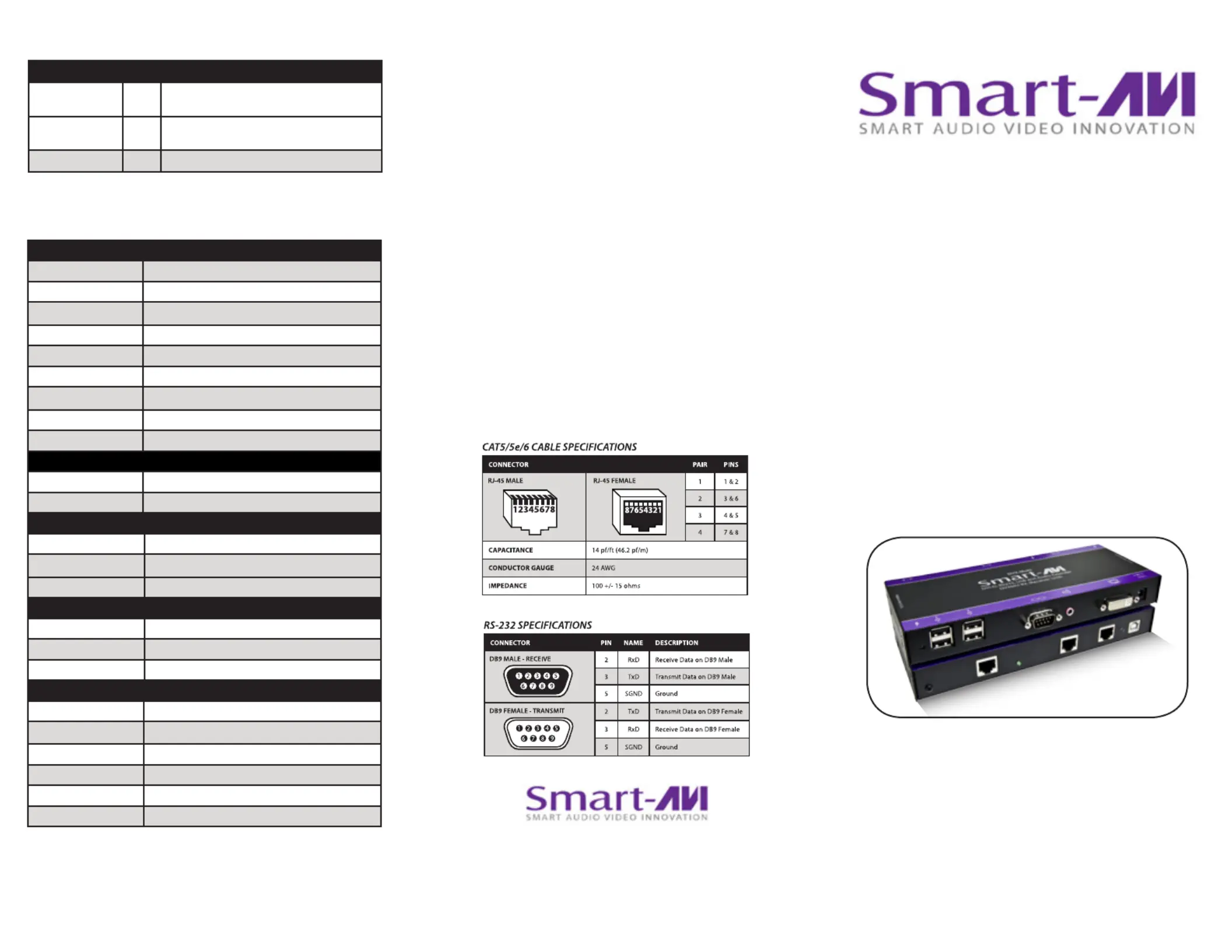

DVI-D, RS232, USB 1.1 and Audio Extender
up to 275 feet over 3 STP Cables
DVX-Multi
www.smartavi.com
Installation
Manual
Technical Specications
What’s in the Box?
PART NO.QTYDESCRIPTION
DVX-MUTXS1DVI-D, RS232, USB, Audio over CAT6 STP Ex-
tender Transmitter
DVX-MURXS1DVI-D, RS232, USB, Audio over CAT6 STP Ex-
tender Extender Receiver
Power Supply2PS5VDC4A
VIDEO
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)DVI-D 29-pin female
Output Interface (RX)DVI-D 29-pin female
ResolutionUp to 1920 x 1200 @60Hz
DDC5 volts p-p(TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
OTHER
PowerExternal 100-240 VAC/5VDC4A @20W
Dimensions7.5 in W x 1 in H x 3.5 in D
Weight1 lb
Operating Temp.0-55 °C (32-131°F)
Storage Temp.-20-85 °C (-4-185 °F)
HumidityUp to 95%
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St., North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
USB
Signal Type OHCI/UHCI (USB 1.1)
Input Interface (TX)(1) USB Type B (Female)
Output Interface (RX)(4) USB Type A (Female)
AUDIO
Signal TypeStereo Unbalanced
Input Interface (TX)3.5 mm Jack Socket (Female)
Output Interface (RX)3.5 mm Jack Socket (Female)
RS232
InterfaceDB9 Male
ControlVia Software @ 19,200 bps
