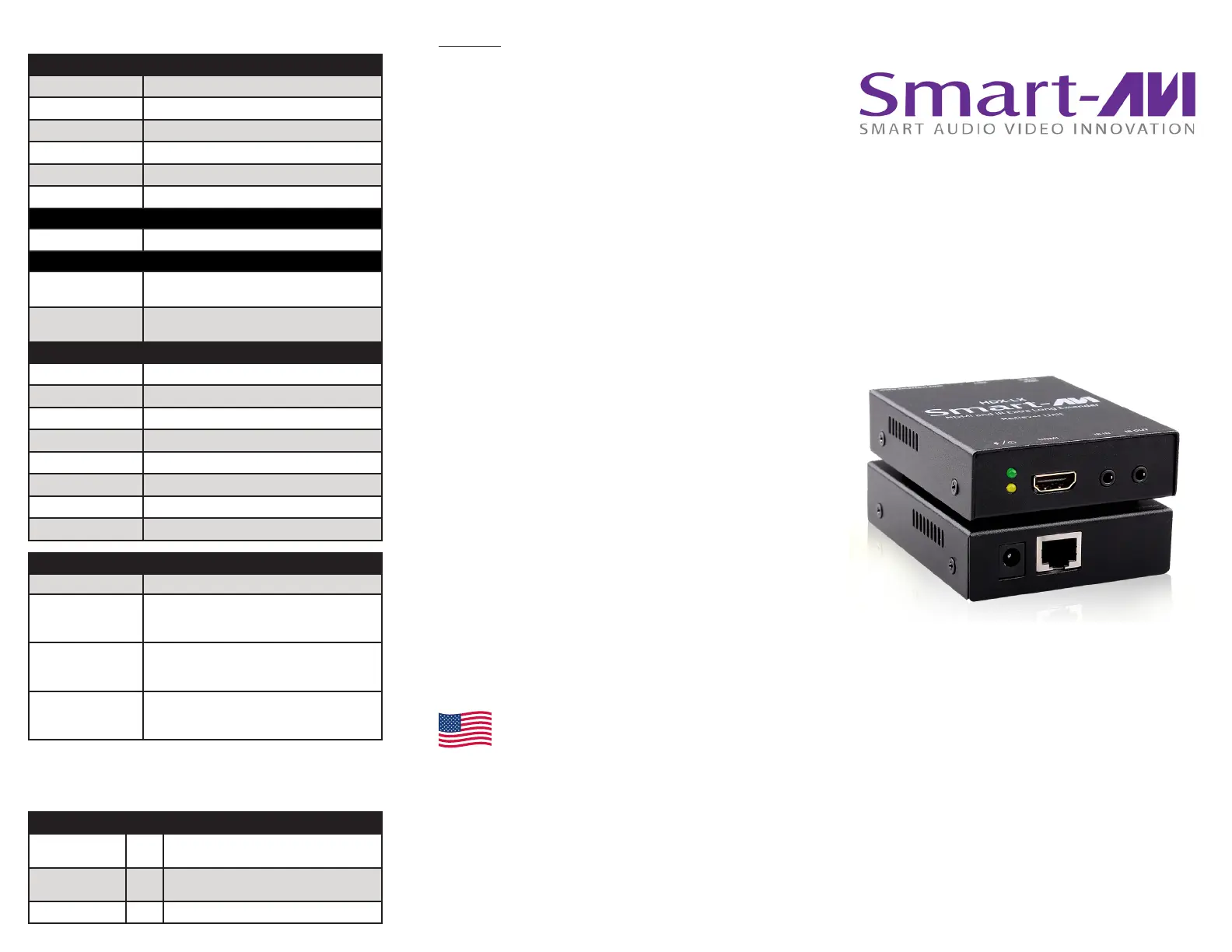

HDX-LX

Boost 4K HDMI Video & infrared signals

up to 250 feet with CAT5e/6.

4K HDMI/IR Extender over CAT5e/6

WWW.SMARTAVI.COM

VIDEO

HDMI version HDMI 1.3a

Color Depth Deep Color 36/30/24 Bit @ 1080p & 3D

HDMI resolution Up to 4K (3840x2160 @ 30Hz)

Bandwidth 10.2 Gbps

Input Video Signal 1.2 Volts P-P

Input DDC Signal 5 Volts (TTL)

AUDIO

Format HDMI Digital Audio

Input (1) 2.5mm DC jack;

(1) 3.5mm IR jack

Output (1) RJ45 jack;

(1) 3.5mm IR jack

OTHER

Power Adapter External 5VDC2A

Dimensions 0.9”W X 2.9”D X 3.7”H

Weight 0.26 lbs

Working Temperature 32 to 104°F (0 to 40°C )

Working Humidity Up to 85% (no condensation)

Storage Temperature -4 to 149 °F (-20 to 65 °C )

Storage Humidity Up to 90% (no condensation)

Certicate FCC, CE, RoHS

ORDER INFO

Part No. Description

HDX-LXS HDMI, IR, CAT5/5e/6 Extender,

Includes: [HDX-LXTX, HDX-LXRX,

2 x (PS5VD2A-WLLMNT)]

HDX-LX-TXS HDMI & IR Extender Transmitter

Over a Single CAT5 UTP Cable.

Includes: (HDX-LX-TX and PS5VD2A-WLLMNT)

HDX-LX-RXS HDMI & IR Extender Receiver

Over a Single CAT5 UTP Cable.

Includes: (HDX-LX-RX and PS5VD2A-WLLMNT)

Technical Specications

Quick Start Guide

Designed and Manufactured in the USA

Tel: 800.AVI.2131 • 818.503.6200

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

PART NO. QTY DESCRIPTION

HDX-LX-RXS

HDMI & IR Extender Receiver

Over a Single CAT5 UTP Cable.

HDX-LX-TXS

HDMI & IR Extender Transmitter

Over a Single CAT5 UTP Cable.

Power Supply 2

PS5VD2A-WLLMNT

What’s in the Box?

Notice

The information contained in this document is subject

to change without notice. SmartAVI makes no

warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained herein

or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

20191022

Produktspecifikationer

Varumärke:	Smart-AVI
Kategori:	audio/video-omvandlare
Modell:	HDX-LX-RX
Vikt:	120 g
Bredd:	74 mm
Djup:	94 mm
Höjd:	23 mm
LED-indikatorer:	Ja
Maximal upplösning:	1920 x 1080 pixlar
Certifiering:	FCC, UL, CE, FCC
Modell:	AV-mottagare
Driftspänning:	5 V
Produktens färg:	Svart
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	10 - 85 %
Hållbarhetscertifiering:	RoHS
Anslutningsteknologi:	Kabel
