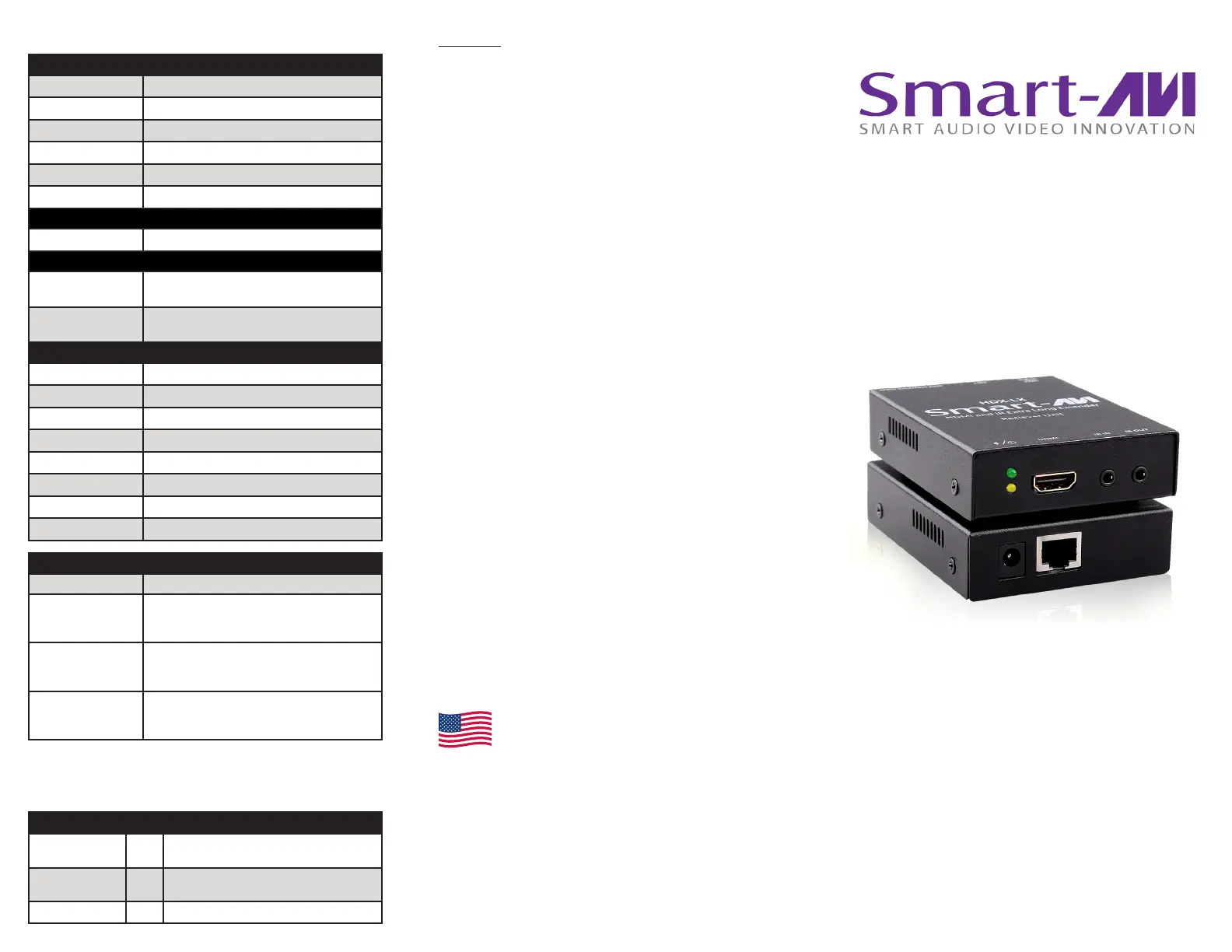

HDX-LX

Boost 4K HDMI Video & infrared signals

up to 250 feet with CAT5e/6.

4K HDMI/IR Extender over CAT5e/6

WWW.SMARTAVI.COM

VIDEO

HDMI version HDMI 1.3a

Color Depth Deep Color 36/30/24 Bit @ 1080p & 3D

HDMI resolution Up to 4K (3840x2160 @ 30Hz)

Bandwidth 10.2 Gbps

Input Video Signal 1.2 Volts P-P

Input DDC Signal 5 Volts (TTL)

AUDIO

Format HDMI Digital Audio

Input (1) 2.5mm DC jack;

(1) 3.5mm IR jack

Output (1) RJ45 jack;

(1) 3.5mm IR jack

OTHER

Power Adapter External 5VDC2A

Dimensions 0.9”W X 2.9”D X 3.7”H

Weight 0.26 lbs

Working Temperature 32 to 104°F (0 to 40°C )

Working Humidity Up to 85% (no condensation)

Storage Temperature -4 to 149 °F (-20 to 65 °C )

Storage Humidity Up to 90% (no condensation)

Certicate FCC, CE, RoHS

ORDER INFO

Part No. Description

HDX-LXS HDMI, IR, CAT5/5e/6 Extender,

Includes: [HDX-LXTX, HDX-LXRX,

2 x (PS5VD2A-WLLMNT)]

HDX-LX-TXS HDMI & IR Extender Transmitter

Over a Single CAT5 UTP Cable.

Includes: (HDX-LX-TX and PS5VD2A-WLLMNT)

HDX-LX-RXS HDMI & IR Extender Receiver

Over a Single CAT5 UTP Cable.

Includes: (HDX-LX-RX and PS5VD2A-WLLMNT)

Technical Specications

Quick Start Guide

Designed and Manufactured in the USA

Tel: 800.AVI.2131 • 818.503.6200

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

PART NO. QTY DESCRIPTION

HDX-LX-RXS

HDMI & IR Extender Receiver

Over a Single CAT5 UTP Cable.

HDX-LX-TXS

HDMI & IR Extender Transmitter

Over a Single CAT5 UTP Cable.

Power Supply 2

PS5VD2A-WLLMNT
