Sida 1/2

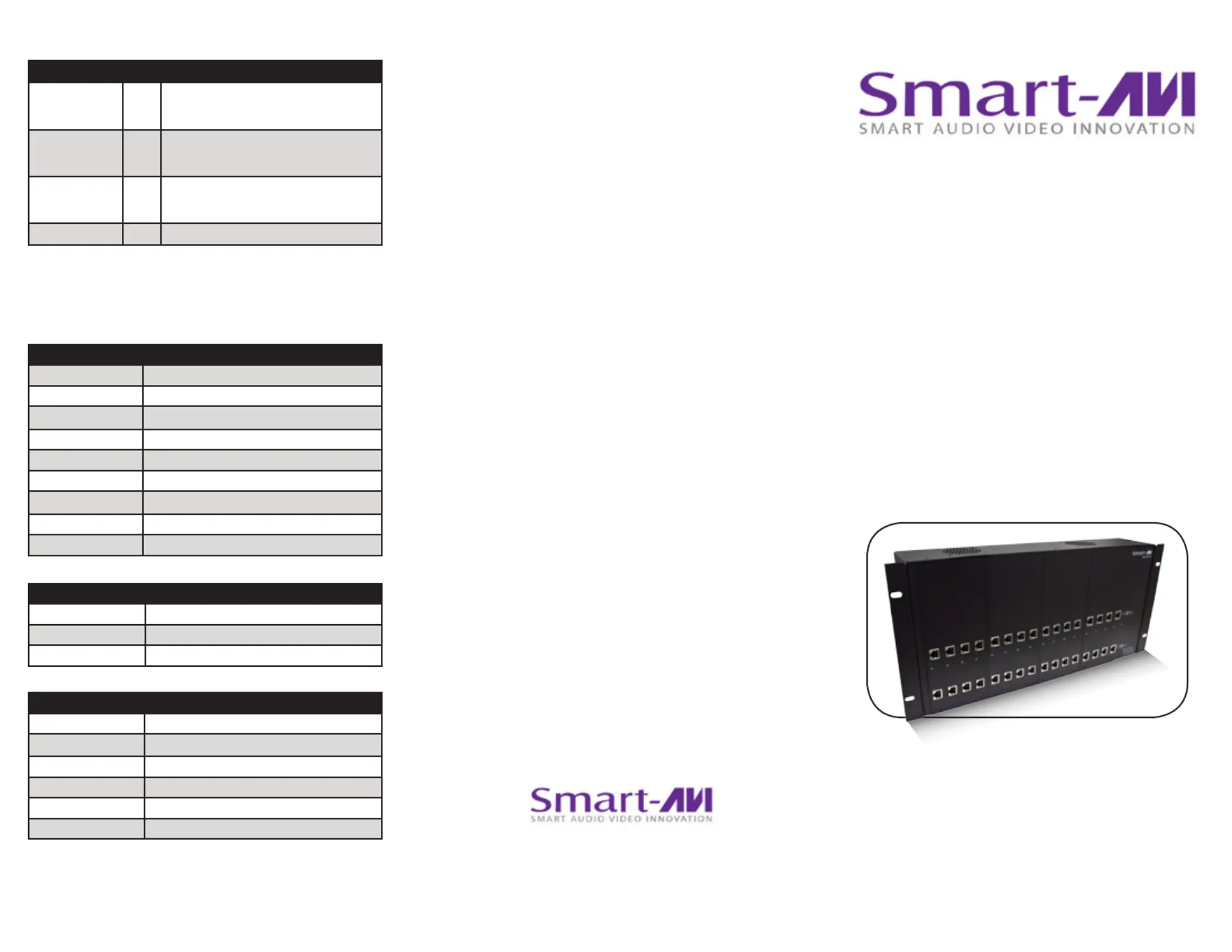

16-Port Dual DVI-D and USB 1.1

Extender up to 275 feet

over STP Cable

RK-DVX-Plus

16-Port Dual DVI-D and USB 1.1

Extender over STP

www.smartavi.com

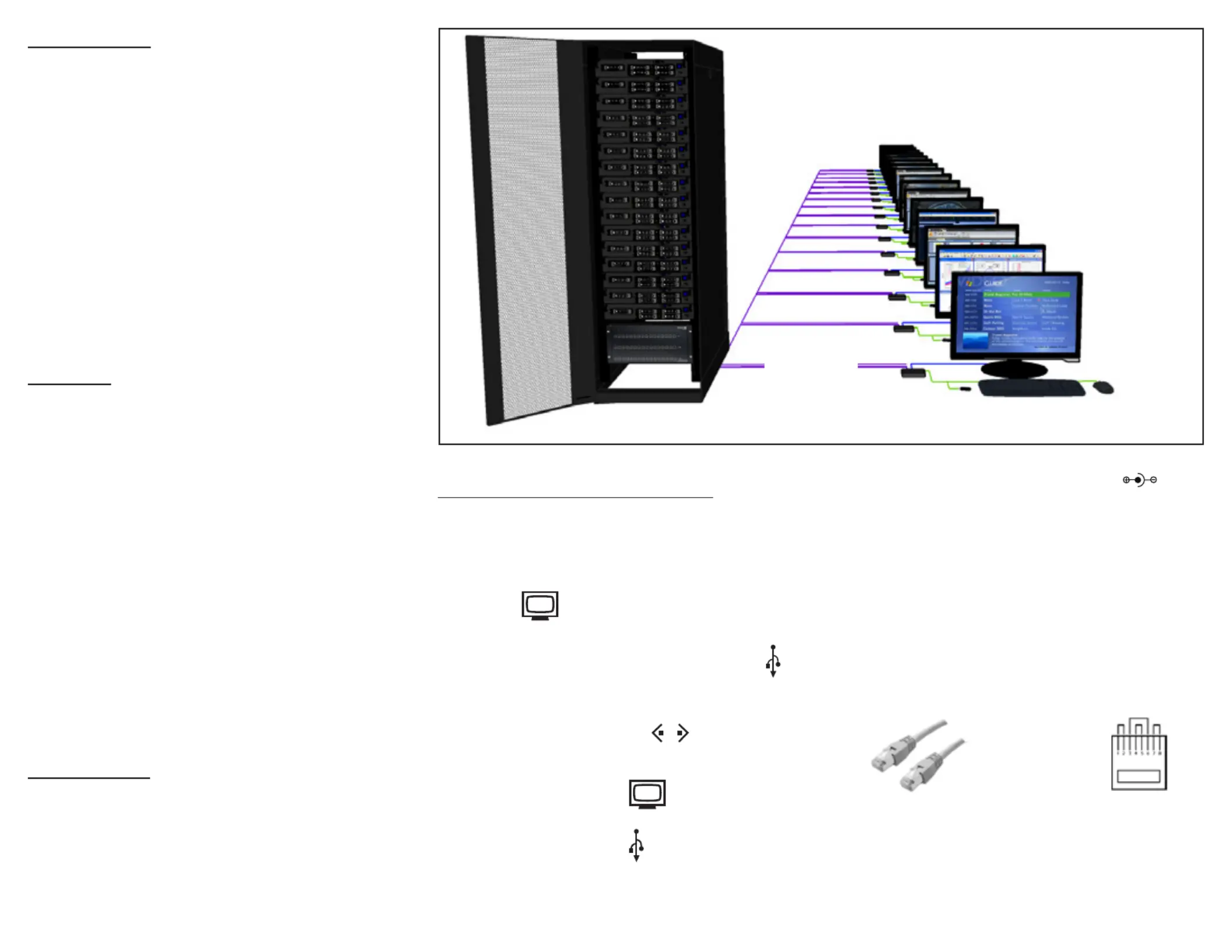

Installation

Manual

Technical Specications

What’s in the Box?

PART NO. QTY DESCRIPTION

RK-DVX-Plus-TX4S Powered Rack/Chassis with DVI/USB CAT6

Transmitter, 4 Card Package. Includes: [RK-

DVX-Plus-TX4 and CCPWR06]

RK-DVX-Plus-TX8S Powered Rack/Chassis with DVI/USB CAT6

Transmitter, 8 Card Package. Includes: [RK-

DVX-Plus-TX8 and CCPWR06]

RK-DVX-Plus-

TX16S

Powered Rack/Chassis with DVI/USB CAT6

Transmitter, 16 Card Package. Includes: [RK-

DVX-Plus-TX16 and CCPWR06]

User Manual 1

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (TX) 16 DVI-D 29-pin female

Output Interface (RX) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

USB

Signal Type USB 1.1 (Fully Transparent)

Input Interface (TX) 16 x (1) USB Type B (Female)

Output Interface (RX) (4) USB Type A (Female)

OTHER

Power Internal 110-240 VAC

Dimensions 17 in W x 7 in H x 3.25 in D

Weight 10 lb

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

*specications shown are for 16-Port option

NOTICE

T h e i n f o r m a t i o n c o nt a i n e d i n t h i s d o c u m e n t

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

Produktspecifikationer

Varumärke:	Smart-AVI
Kategori:	AV förlängare
Modell:	RK-DVX-TX16S
Maximal upplösning:	1920 x 1200 pixlar
Modell:	Sändare för AV-utrustning
Videoingång:	DVI-D 29-pin female
RJ-45 utgångsportar:	16
Produktens färg:	Svart
Video ut:	Ethernet
Nätverksansluten (Ethernet):	Ja
Maximal överföringshastighet avstånd:	67 m
DVI ingångar:	16
