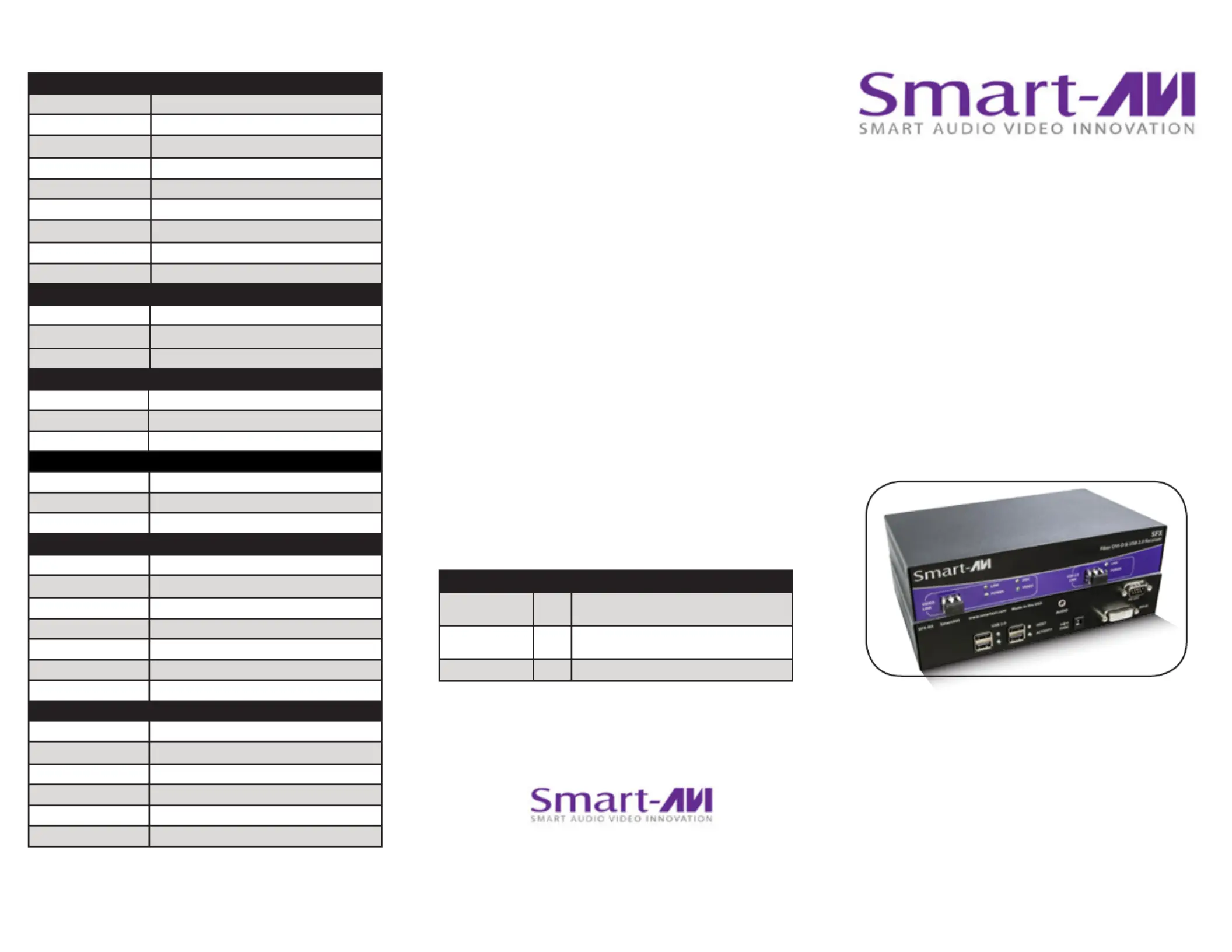

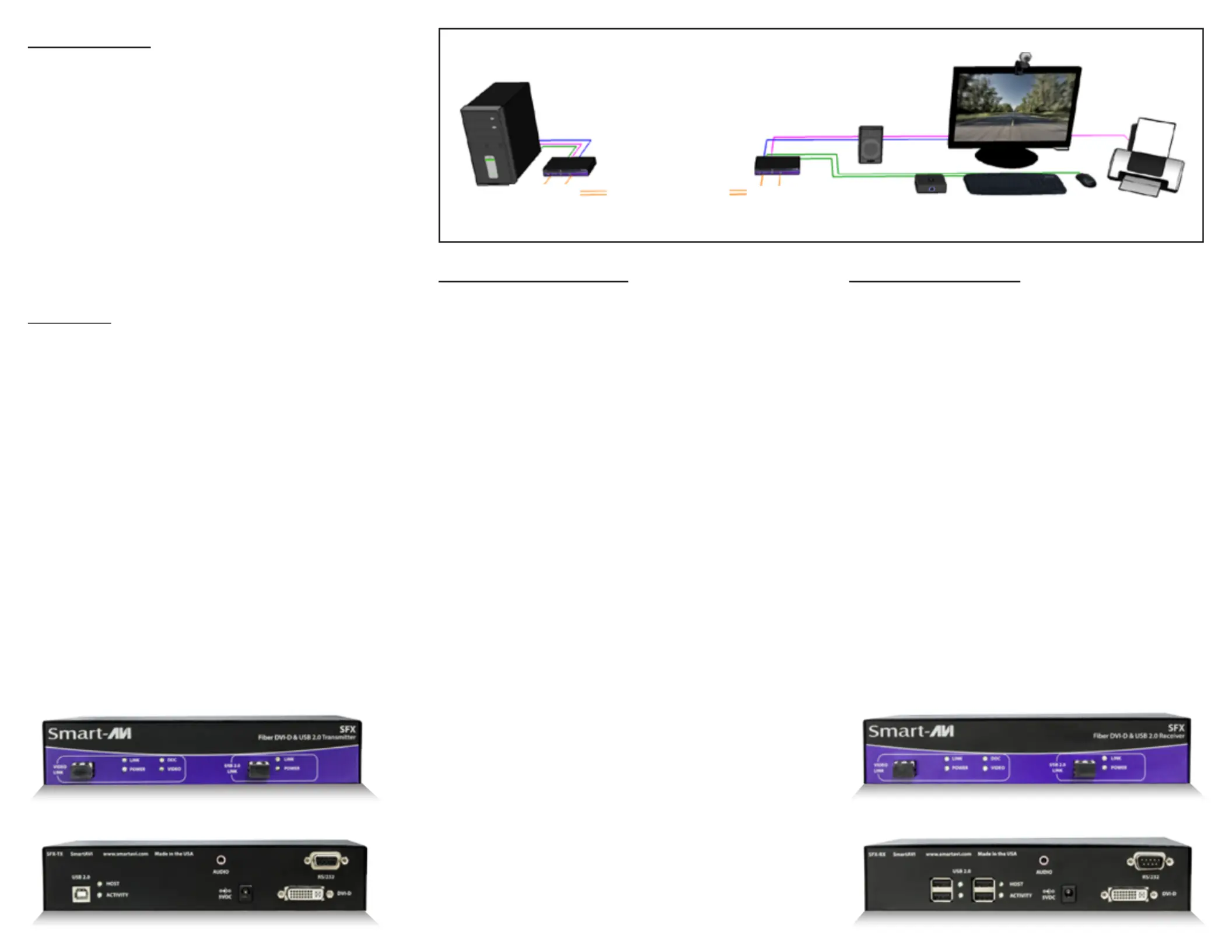

SFX
www.smartavi.com
Installation
Manual
What’s in the Box?
Technical Specications
PART NO.QTYDESCRIPTION
SFX-TX1DVI-D + USB2.0 + Audio + RS232 Extender
Transmitter
SFX-RX1DVI-D + USB2.0 + Audio + RS232 Extender
Receiver
PS5VDC4A25 Volt 4 Amp Power Supply
© Copyright 2012 Smart-AVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
DVI-D, USB 2.0, Audio and RS232
Fiber Extender
OTHER
PowerExternal 100-240 VAC/5VDC4A @20W
Dimensions8.5 in W x 1.85 in H x 5.375 in D
Weight1.5 lb
Operating Temp.0-55 °C (32-131°F)
Storage Temp.-20-85 °C (-4-185 °F)
HumidityUp to 95%
OPTICAL
Fiber TypeDuplex, multi mode
Connector TypeDuplex LC
Wavelength1310 nm/1550 nm (Dual wavelength)
Data Rate2x2.5 Gbps (2.5 Gbps per single wavelength)
Transmission Power-5 dB Min.
Receiver Sensitivity-21 dB Max
Distance500 m Max.
USB
Signal Type EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Input Interface (TX)(1) USB Type B (Female)
Output Interface (RX)(4) USB Type A (Female)
RS232
Input Interface (TX)DB9 (Female)
Input Interface (RX)DB9 (Male)
SpeedUp to 115 Kbps
AUDIO
Signal TypeStereo Unbalanced
Input Interface (TX)3.5 mm Jack Socket (Female)
Output Interface (RX)3.5 mm Jack Socket (Female)
DVI-D VIDEO
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)DVI-D 29-pin (Female)
Output Interface (RX)DVI-D 29-pin (Female)
ResolutionUp to 1920 x 1200 @60Hz
DDC5 volts p-p(TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
