Sida 1/7
Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131

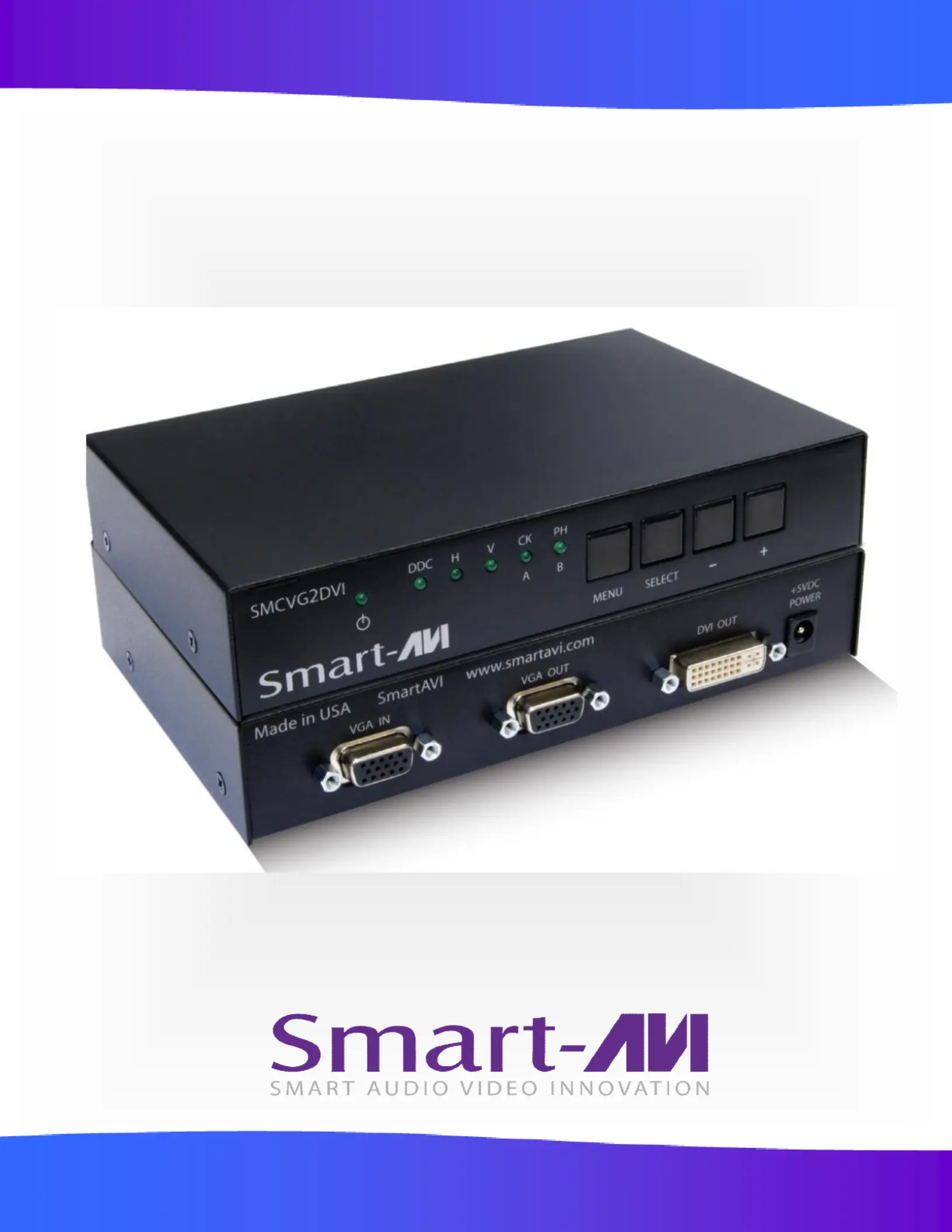

SMCVG2DVI
User Manual
VGA to DVI Active Converter
2
TABLE OF CONTENTS
Page
WHAT'S IN THE BOX? 2
INTRODUCTION 2
FEATURES 2
TECHNICAL SPECIFICATIONS 2
HARDWARE INSTALLATION 3
FRONT PANEL: Changing, Learning EDID settings 4-5
FRONT PANEL: Adjusting Horizontal on the DVI Monitor: 5
Limited Warranty Statement 6
WHAT'S IN THE BOX?
PART NO. QTY DESCRIPTION
SMCVG2DVI 1 VGA to DVI Active Converter
PS5VDC2A 1 Power Supply Adapter
1 Quick Start Guide
INTRODUCTION
The SMCVG2DVI automatically detects the VGA input resolution and converts it to DVI video display format.
It also supports a local VGA display.
FEATURES
• Allows older systems to connect to a DVI display.
• Converts analog video signals to digital DVI signals.
• Highly precise 8-bit A/D conversion of each color channel, better image quality.
• Ensures a high-definition signal without signal loss.
• Supports Plug-and-play function, no software installation required.
• Front panel buttons for better synchronization and tuning to the Display.
• Sync Tuning for better signal conversion.
TECHNICAL SPECIFICATIONS
VIDEO
Resolution Up to 1920x1200, 1920x1080
Format VGA, DVI-D Single-link
Input Interface (1) HD-15 Female
Output Interface (1) DVI-D Single-link Female, (1) HD-15 Female
DDC Signal 5 Volts [peak-to-peak], TTL
TDMS Signal 1.2 Volts [peak-to-peak], TTL
OTHER
Power External 5VDC2A @ 10W
Dimensions 6 3/4 W x 1 3/8 H x 4 3/8 D ” ” ”
Weight .45 lbs
3
HARDWARE INSTALLATION
1. Turn off the computer, displays and the make sure the SMCVG2DVI is unplugged.
2. Connect a VGA cable to the computer and to the VGA IN port on the rear of the SMCVG2DVI.
3. Connect the VGA display to the VGA OUT port on the rear of the SMCVG2DVI.
4. Connect the DVI display to the DVI OUT port on the rear of the SMCVG2DVI.
5. Connect the power cord to the SMCVG2DVI and wait for the lights on the front to stop blinking.
The SMCVG2DVI must be turned on before the computer so the displays work as the computer boots up.
6. Power on the displays and the computer.

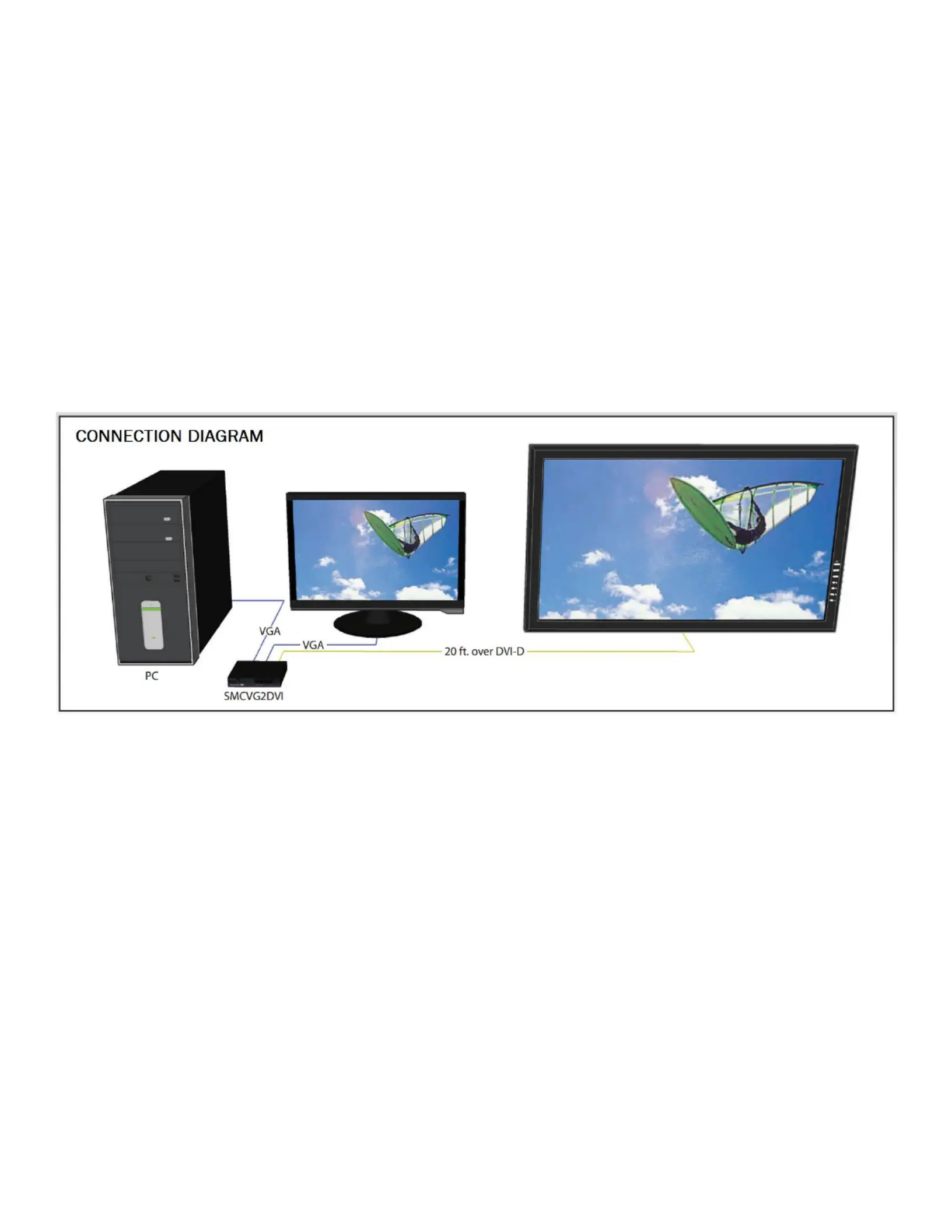

Figure 3-1
