Sida 1/17

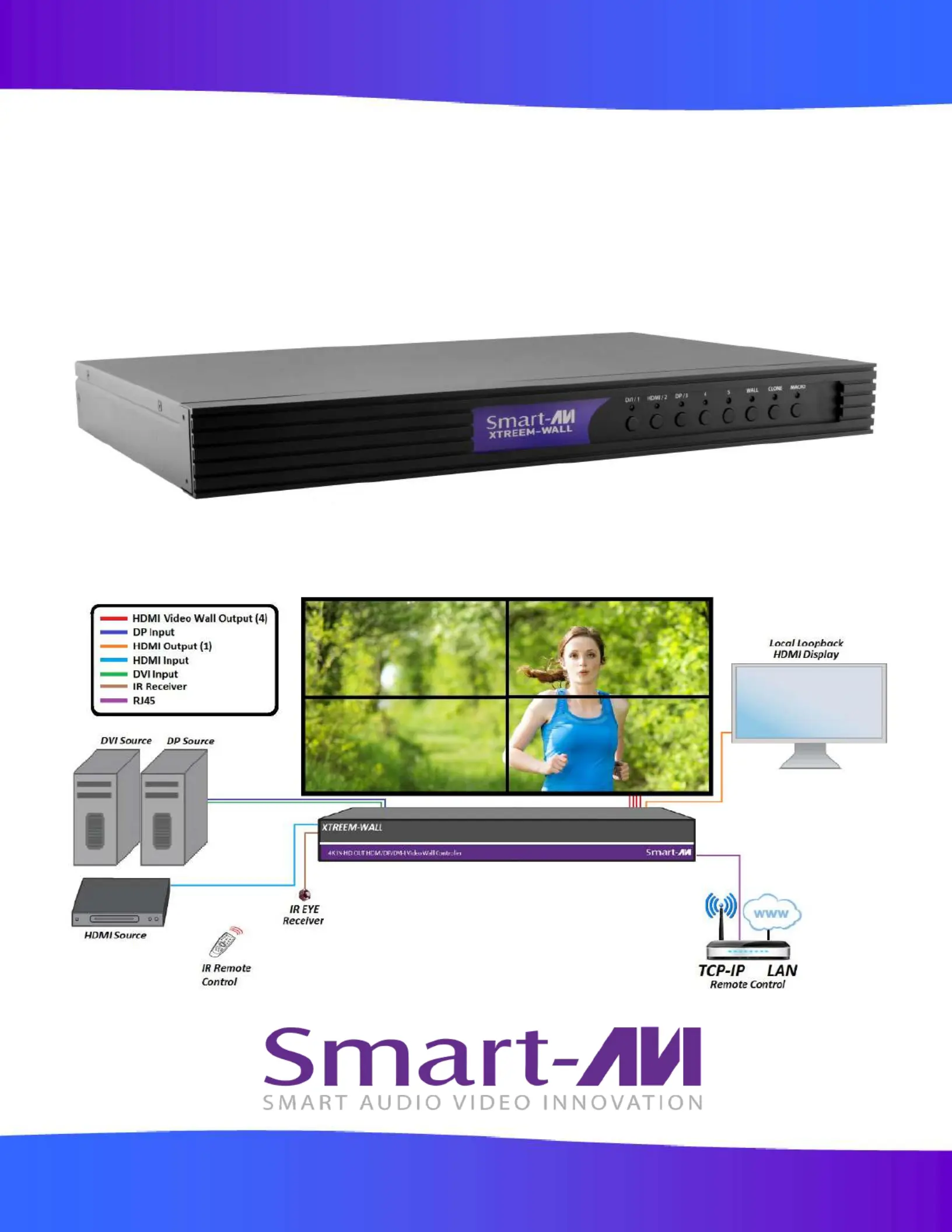

Made in U.S.A. www.SmartAVI.com 1- -AVI-2131 800
XTREEM-WALL
User Manual
4K INPUT MULTI-FORMAT 2X2 VIDEO WALL CONTROLLER
2
TABLE OF CONTENTS
WHAT'S IN THE BOX? 2
INTRODUCTION
3
FEATURES
3
APPLICATIONS 3
TECHNICAL SPECIFICATIONS
4
HARDWARE INSTALLATION
5-6
FRONT PANEL CONTROL
7
IR REMOTE CONTROL
8
CONTROL VIA NETWORK 9- 14
PRE-DEFINED DISPLAY MODES
15
LIMITED WARRANTY STATEMENT 16

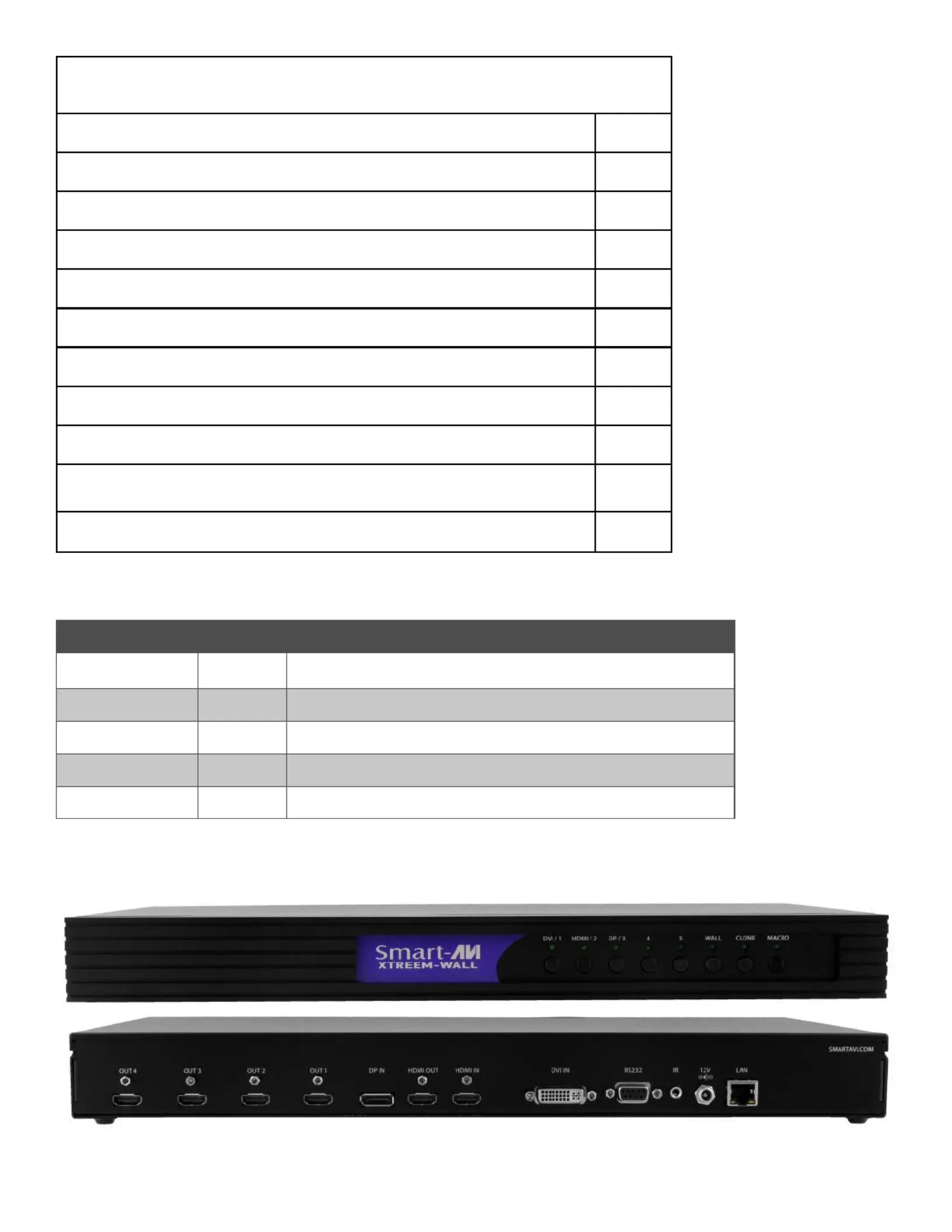

Figure 2-1
WHAT’S IN THE BOX?
PART NO. QTY DESCRIPTION
XTRW-S
1
4K IN-HD OUT HDMI/DP/DVI-I Video Wall Controller
RMT-XW 1 IR Remote Control
SM-EYE3 1 IR Receiver
PS12VDC3.33A 1 Power Adapter
1 Quick Start Guide
Brackets for mounting this device in a standard 19” rack can be ordered from SmartAVI.
3
INTRODUCTION
The XTREEM-WALL is Smart-AVI’s easiest and most effective solution for building creatively configured
video walls. With multi-format inputs for video resolutions up to 4K (3840x2160 @ 30Hz), the XTREEM-
WALL sends multi-screen imagery to four connected HDMI displays in 1080p Full HD (1920x1080 @
60Hz) output.
Best of all, the XTREEM-WALL is highly compatible with the most popular displays on the market, and fea-
tures a wide variety of video wall modes.
FEATURES
INPUT: (1) DP, (1) DVI-I Full HD Input, (1) HDMI 4K Input
OUTPUT: (4) 1080p HDMI, (1) HDMI Local Loop
Input up to 4K (3840x2160 @ 30Hz)
Output up to 1080p (1920x1080 @ 60Hz)
Creative configuration modes, including: Full Video Wall | Clone | PIP | POP | Flip
Supports VGA & Y/Pb/Pr (With DVI-I Adapter)
Supports IR remote control
Control over web console
Plug-and-Play ready
Front Panel Buttons: XTREEM-WALL features a button control panel for switching between sources
and accessing preset configurations.
Web Console: Control everything from source resolution and aspect ratios to creative display modes
from anywhere in the world over the Internet with SmartAVI’s easy- -use web console for the XTREEMto
-WALL.
APPLICATIONS
Corporate or Educational Presentations
Airport Installations
Wall Displays
Digital Signage
Dealer Rooms
Control Rooms
Shopping Centers
Security
Point-of-Sale
Entertainment Venues
Corporate Lobbies
Restaurants
