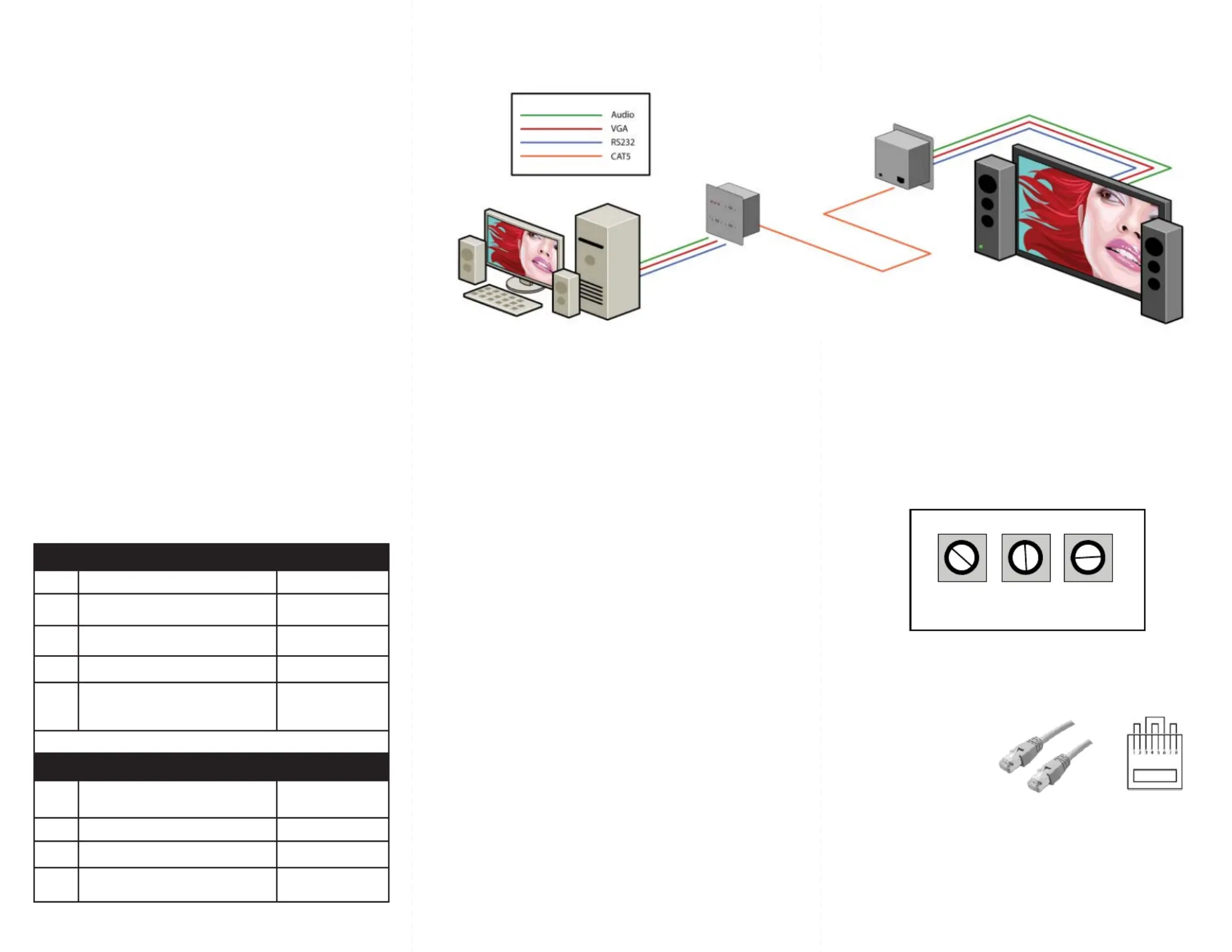

Use a single CAT5 to broadcast high

resolution SXGA, Stereo Audio, RS232

and IR up to 1000ft away.

XTWALL

www.smartavi.com

User Manual

2840 N. Naomi Ave.

Burbank, California 91504

Phone: (818) 565-0011

Facsimile: (818) 565-0020

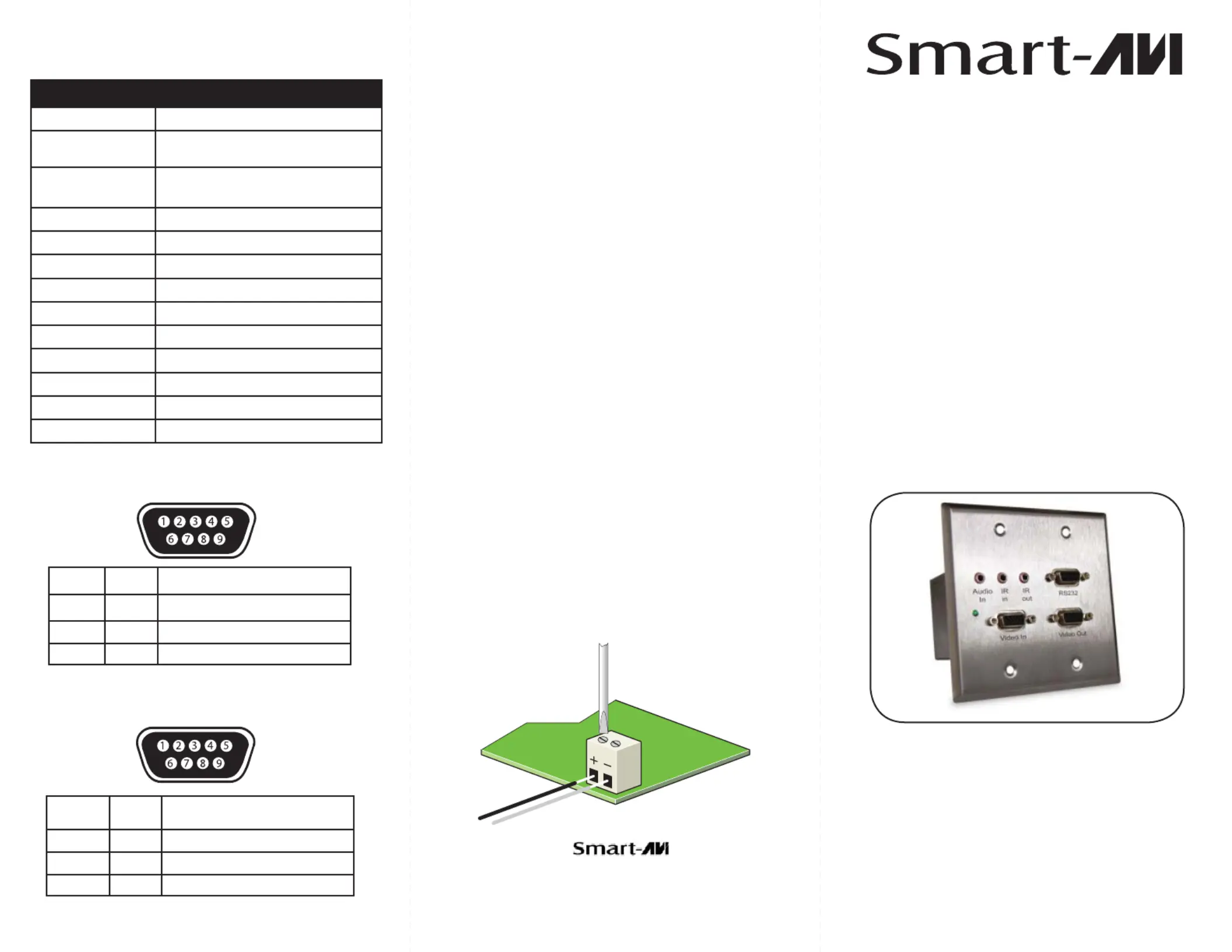

Technical Specifications

XTWALL SPECIFICATIONS

VGA Data

FormatRGBHV, RGsB, YUV, Y/C, CVBS

Resolution

Up to 1900 x 1200

VGA, SVGA, XGA, SXGA

Connector typeHD 15 socket

Audio

Signal TypeStereo unbalanced

Connector3.5mm jack socket

Power

Requirements5VDC @.5A

Connector2.1mm DC jack (center +ve)

Physical

Dimensions135 x 90 x 23mm (26 with pegs)

Weight.8 lbs or .36 kg

Pin No.NameDescription

2RxDReceive Data on DB9 Male

3TxDTransmit Data on DB9 Male

5SGNDGround

Pin No.NameDescription

2TxDTransmit Data on DB9 Female

3RxDRecieve Data on DB9 Female

5SGNDGround

Recieve on DB9 Male

Transmit on DB9 Female

© Copyright 2008 Smart-AVI, All Rights Reserved

Notice

The information contained in this document is

subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties

of merchantability and fitness for any particular

purpose.

Smart-AVI will not be liable for errors contained

herein or for incidental or consequential damages

in connection with the furnishing, performance or

use of this material.

No part of this document may be photocopied,

reproduced or translated into another language

with

out prior written consent from Smart-AVI.

For the complete manual, visit www.smartavi.com.

SMART AUDIO VIDEO INNOVATION

Attaching the Power Supply

Insert black wire into the positive input (left) and 1.

secure.

Insert white wire into the negative input (right) 2.

and secure.

Plug into outlet.3.
