Bluetooth® wireless technology

laser barcode scanner

Model S730

www.socketmobile.com

SOCKETSCAN®

S730 USERGUIDE

socketmobile.com

Package Contents 4

Product Information 5

Attach Wrist Strap 6

Charge the Battery 7

Optional Charging Accessories 8

Powering on/off 9

Scanning Barcodes 10

Bluetooth Connection Modes -12 11

How to setup your scanner:

Download our Companion App for Apple® and Android Device 13

Setup Alternatives

How to setup your scanner in Basic Mode:

Basic Mode 14

How to setup your scanner in Application Mode:

Android 15

Apple® 16-17

Windows 18

TABLE OF CONTENTS

Bluetooth Unpairing 19

Factory Reset 0 2

Restore Method 1 2

Bluetooth Reconnection of Scanner 2 2

Status Indicators 3-26 2

Product Specifications 27-28

Helpful Resources 29

Safety, Compliance & Warranty 30-40

Battery Warning Statements 35-36

Command Barcodes 1-47 4

TABLE OF CONTENTS

Attach the Lanyard (optional)

1. Detach the string loop of the tether from the lanyard.

2. Feed the string loop through the eyelet.

3. Pull the tether through the string loop.

4. Pull tight so the string loop is secure.

5. Reattach the string loop’s tether to the lanyard.

ATTACH WRIST STRAP

Plug in the power adapter and the scanner will beep twice.

The scanner must be fully charged before rst use. Please allow 8 hours

uninterrupted charging for the battery charge.initial

The scanner will stop charging once the battery is full (No overcharging

occurs)

• Amber Light = Charging

• Solid Green Light = Fully charged

Important: Charging from a computer USB port is not reliable and

not recommended.

CHARGE THE BATTERY

Power Adapter

Available separately

OPTIONAL CHARGING ACCESSORIES

For all optional accessories visit our .Socket Store.com

AC Power Supply

International Adapters

available

Charging Dock Charging Stand

MODEL - S730 CAUTION - LASER LIGHT. DO NOT

STARE INTO BEAM. CLASS 2 LASER PRODUCT

COMPLIES WITH LASER NOTICE 50.

ATTENTION - LUMIERE LASER NE PAS

REGARDER LE RAYON. CLASSE 2 PRODUIT LASER

650nm

1.0mw

1D Laser Barcode Scanner

Aim the scan beam

across the entire barcode

Scanning Barcodes

1. Hold the scanner at least 4 inches from the barcode.

2. Aim, press and hold the scan button.

By default, the scanner will beep, vibrate, and the scan indicator will

ash green to conrm a successful scan.

Caution: Do not stare directly into the scanner’s laser beam.

SCANNING BARCODES

Scan button

Connect your scanner using one of the following Bluetooth connection

modes:

Bluetooth Connection Proles

Bluetooth Mode Description

BLUETOOTH CONNECTION MODES

Basic Mode (HID)

(Default)*

Human Interface

Device Prole

• NO software installation required

• Connects to most devices

• Good for barcodes containing small amounts of

data

• Scanner interacts with host device like a keyboard

Application Mode

(SPP)

Serial Port Prole

For Android or Windows

1. Software installation is required

2. More ecient and reliable data communications

for barcodes containing lots of data

3. If you have an application that supports Socket

Mobile Scanners this is the mode recommended

Application Mode

(MFi-SPP)

Apple Specic

Serial Prole

For iOS Devices

1. More ecient and reliable data communications

for barcodes containing lots of data

2. If you have an iOS application that supports

Socket Mobile Scanners this is the mode to use

*By default, the scanner is set to Basic Mode (HID).

Note: This procedure will put the scanner in discoverable mode.

Step 1: Unpairing the scanner: Delete the Bluetooth Pairing

If the scanner is paired with a device, unpair it before trying to

connect to a dierent device.

a. Power on the scanner.

b. Press and hold the scan button, then press and hold the

power button at the same time.

The scanner will unpair and automatically power o. The next time you

power on the scanner, it will be discoverable.

Step 2: Remove and/or forget the scanner from the Bluetooth list on

the host device in Settings>Bluetooth.

Important: Both steps above must be done to complete

the unpairing process.

BLUETOOTH UNPAIRING

Or follow the Factory Reset manually:

1. Power ON the scanner.

2. Press and hold the scan button.

3. Tap the power button once while continuing to press the scan button.

4. Keep holding the scan button until you hear a beep and then release

(about15 seconds).

Your scanner will beep 5 times and power o.

Note: If you follow this sequence but release the scan button too early,

the Factory Reset will fail.

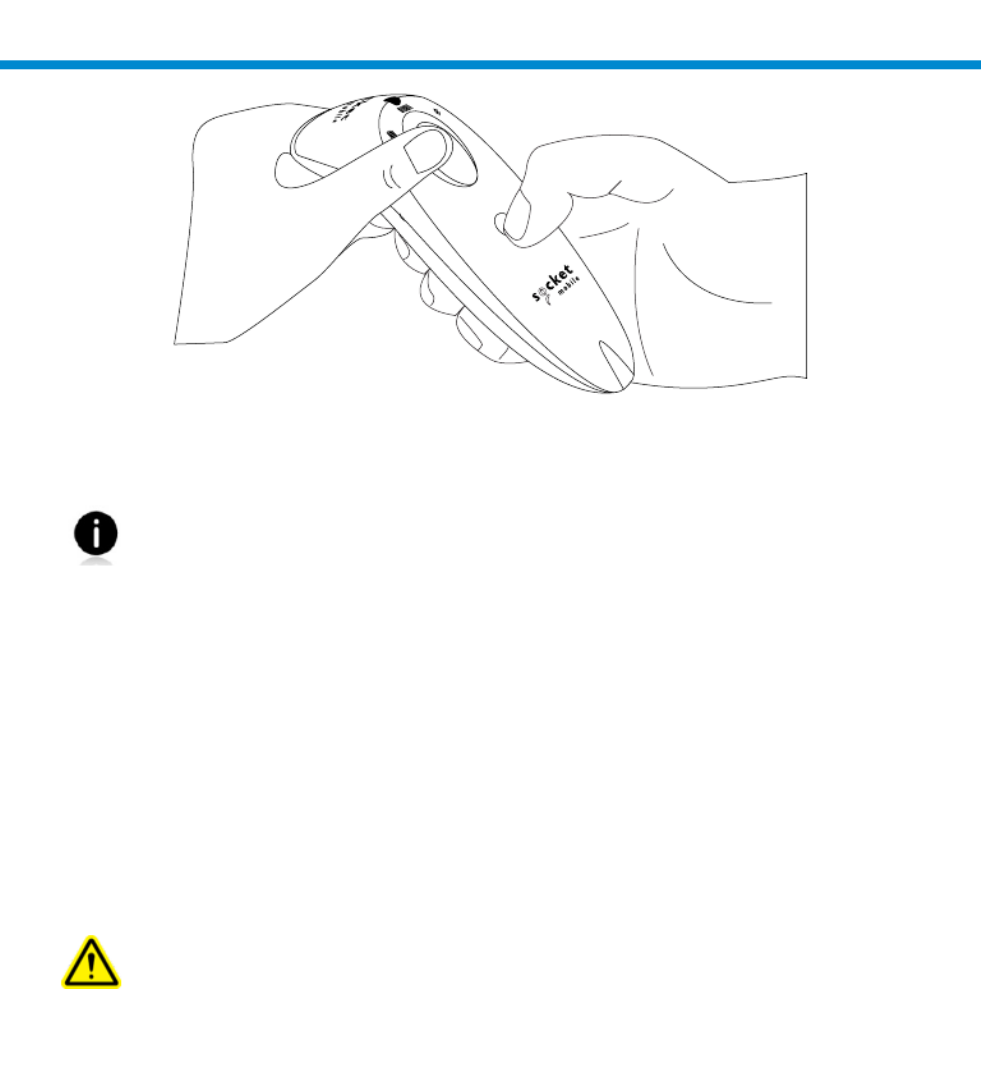

Quickly press and release

the power button

STATUS INDICATORS (CONTINUED)

Vibrate Meaning

Vibrate Data successfully scanned

Command Barcodes are available on pages to modify the LED, 42-48

beep, and vibrate settings.

If you are using a scanner-enabled application, typically the

application provides settings for LED, beep, and vibrate notica-

tions.

Conguration Settings

Time after powering on Scanner Bluetooth mode

0-5 minutes Discoverable and connectable

5 minutes If connection is not made, scanner

powers o

2 hours If your scanner is connected but

not used it will power o in 2

hours. When scan button is pressed

the timer is reset.
