INSTALLATION & USE GUIDE

for SolidDrive SD1g on glass surfaces

INSTALLATION OFSOLIDDRIVE SD1G ON GLASS

SURFACES

By utilizing these basic installation steps, you can install

the SolidDrive SD1g on glass surfaces to create sound for

boardrooms, home theater, and distributed audio.

GETTING STARTEDWITHSOLIDDRIVE

What’s included with the SolidDrive SD1g for installation

onnduppth g surf alassaces what sislied bye inst aller—

ASolidDrive SD1g consists of:One (1) SolidDriveSD1g

unit and attached wiring harness with Eurostyle connector.

The SolidDrive SD1g comes with a VHB double-sided

adhesivedisc.

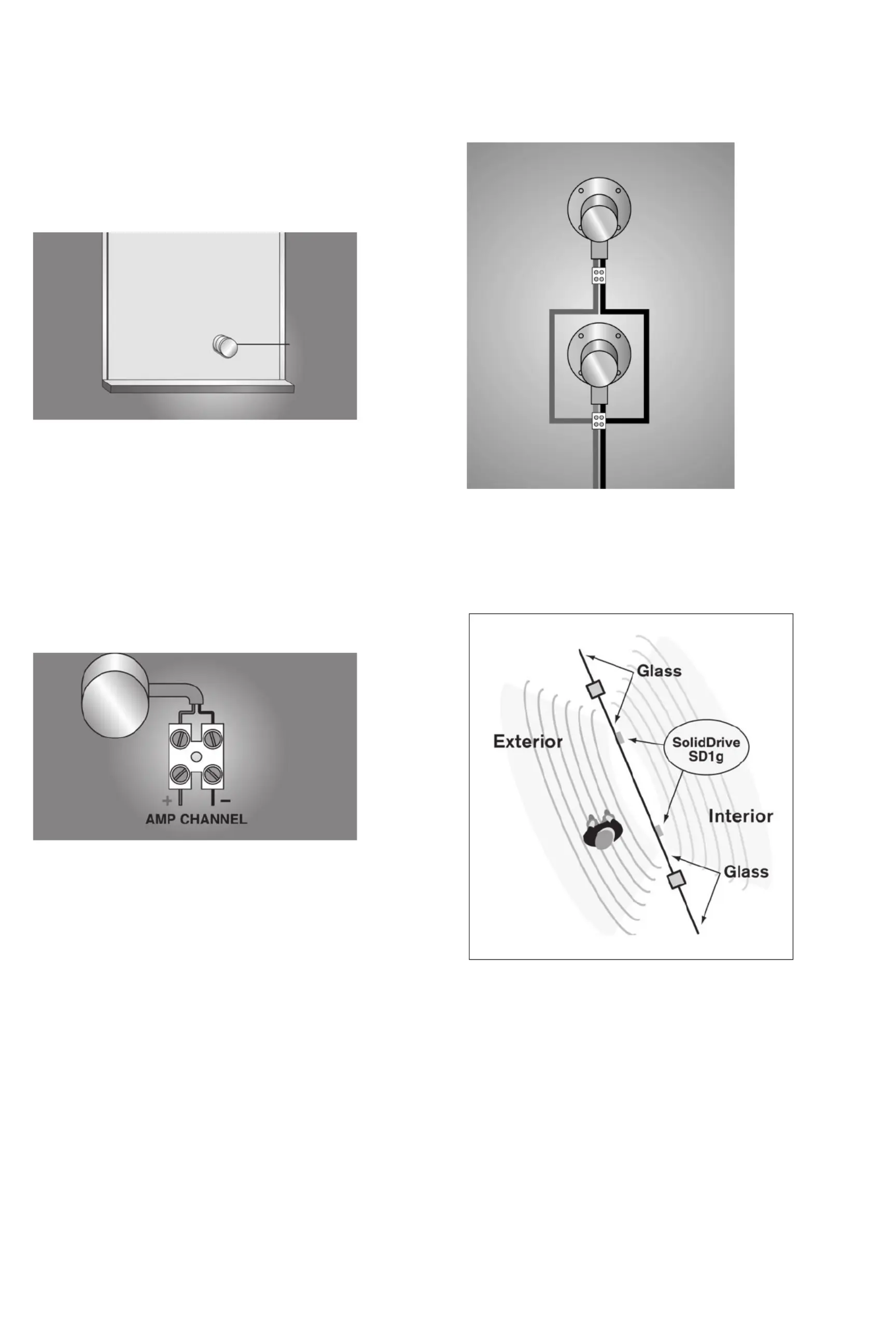

The SolidDriveSD1g can be installed on windows to deliver

sound to glass storefronts and glass reception areas.The

entire windowpane can become a speaker delivering both

interior and exterior sound on single-pane glass.For

double-pane glass,it is important to mount the SolidDrive

SD1g to the side you wish to be audible.

The SolidDrive mounted to glass works great for these

applications:

•Restaurants

•Mall stores

•Auto dealerships

•Department stores

•Stadium sky boxes

•Reception

areas

•Glass atriums

•ANY pane of glass where you want

audio delivered.

WARRANTY

SolidDrives, SolidDrive subwoofers, and A4 amplifiers are guaranteed for 7 years

from date of purchase.Any misuses or modifications to this equipment in any way will

void the warranty.

WARNING

Read instructions prior to operating.To reduce the risk of fire or electric shock, do not

expose this product to rain or moisture.Unplug prior to cleaning and clean with a

damp cloth.There are no user-serviceable parts in this product, please refer all

servicing to qualified personnel.

So SD1g SpftislirivedDeciicaon

NOTE:When installed in Canada, this product must be installed in accordance

with the Canadian Electrical Code, C22.1, Part1.

Type

Impedance

Frequency Response (Hz)

Recommended Amplifier Power

Dimensions

Weight

UL Listing

Full Range Transducer

8Ohm

70 Hz to 15 kHz

10 100 Watts–

2.28'' Diameter x 2.08'' Height

Mounting Plate 3.5'' Diameter

1.2 lb/.54 kg

1480 & 2043

Experience Audio Perfection

Inductonynateni Dmics exsive iolineofaud

prc makes it y ulteodutseastocreatetheimat

audteegaesoftaatio sysm, rrdls insllion

requirements.Induction Dynamics builds

these products with only the most select

components and materials;and utilizes

numerous unique and proven technologies.

8005 W. 110th St., Suite 208 • Overland Park, KS 66210

TEL: 913-663-5600 • FAX: 913-663-3200 • www.SolidDrive.com

REV - 3 / 3 / 11
