Rugged and Portable 2-Drive Hardware RAID SATA Storage System
FUSION™ F
3
User’s Guide
For
Windows

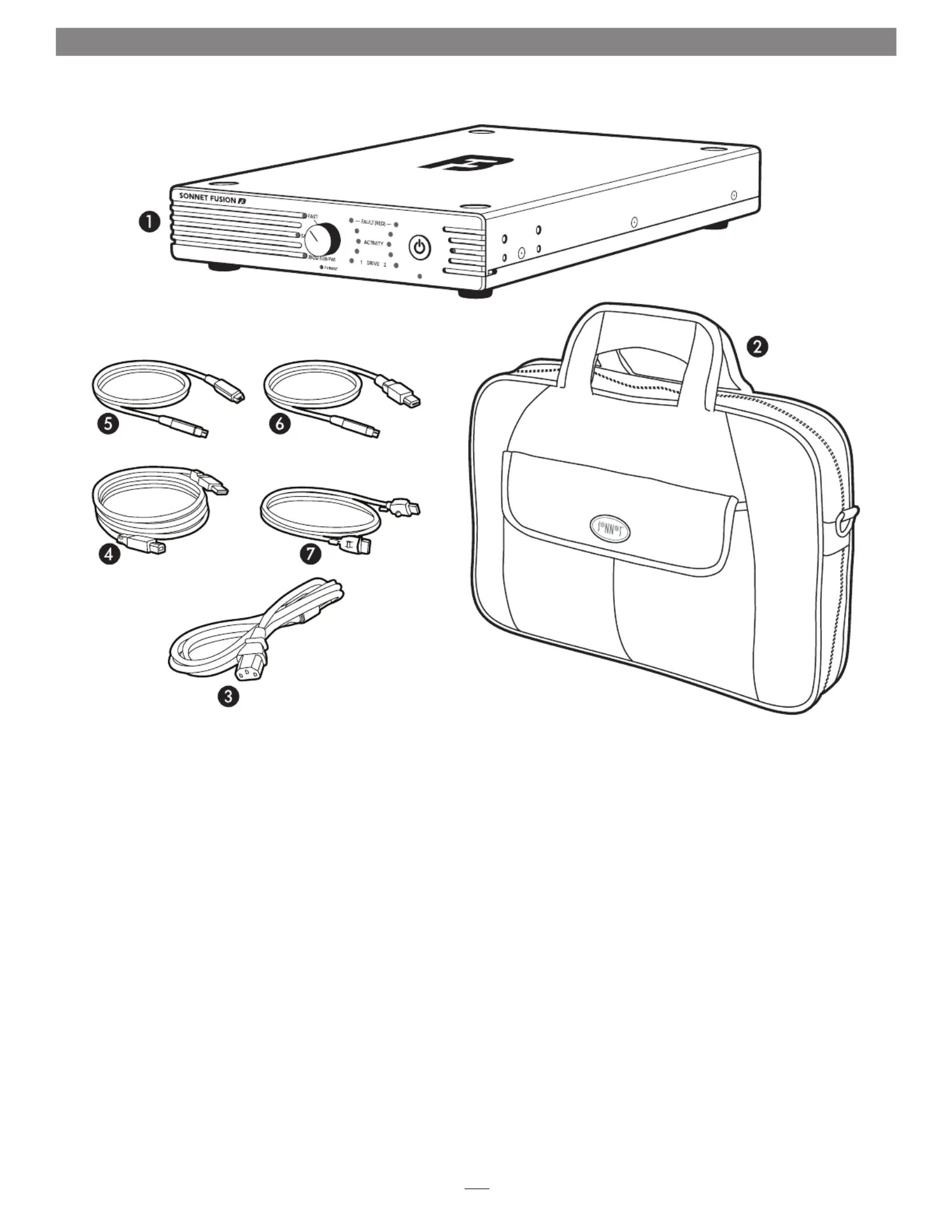

Fusion F3 Package Contents
2
1 – Fusion F3 2-Drive RAID SATA Storage System
2 – Carrying Case
Store the Fusion F3, interface cables and power cord for
on-the-go use.
3 – Power Cord
US version shown; version varies by region.
4 – USB 2.0 Cable
2-meter A male to B male cable
5 – FireWire 800 Cable
2-meter 9-pin male to 9-pin male cable
6 – FireWire 400 Cable
2-meter 9-pin male (FireWire 800) to 6-pin male (FireWire 400)
cable
6 – Locking eSATA Cable
2-meter eSATA data cable with locking connectors, compatible
with Fusion F3 and Sonnet Tempo PCI-X and PCIe eSATA host
controller cards. Note: You may remove the lock housing if
necessary.

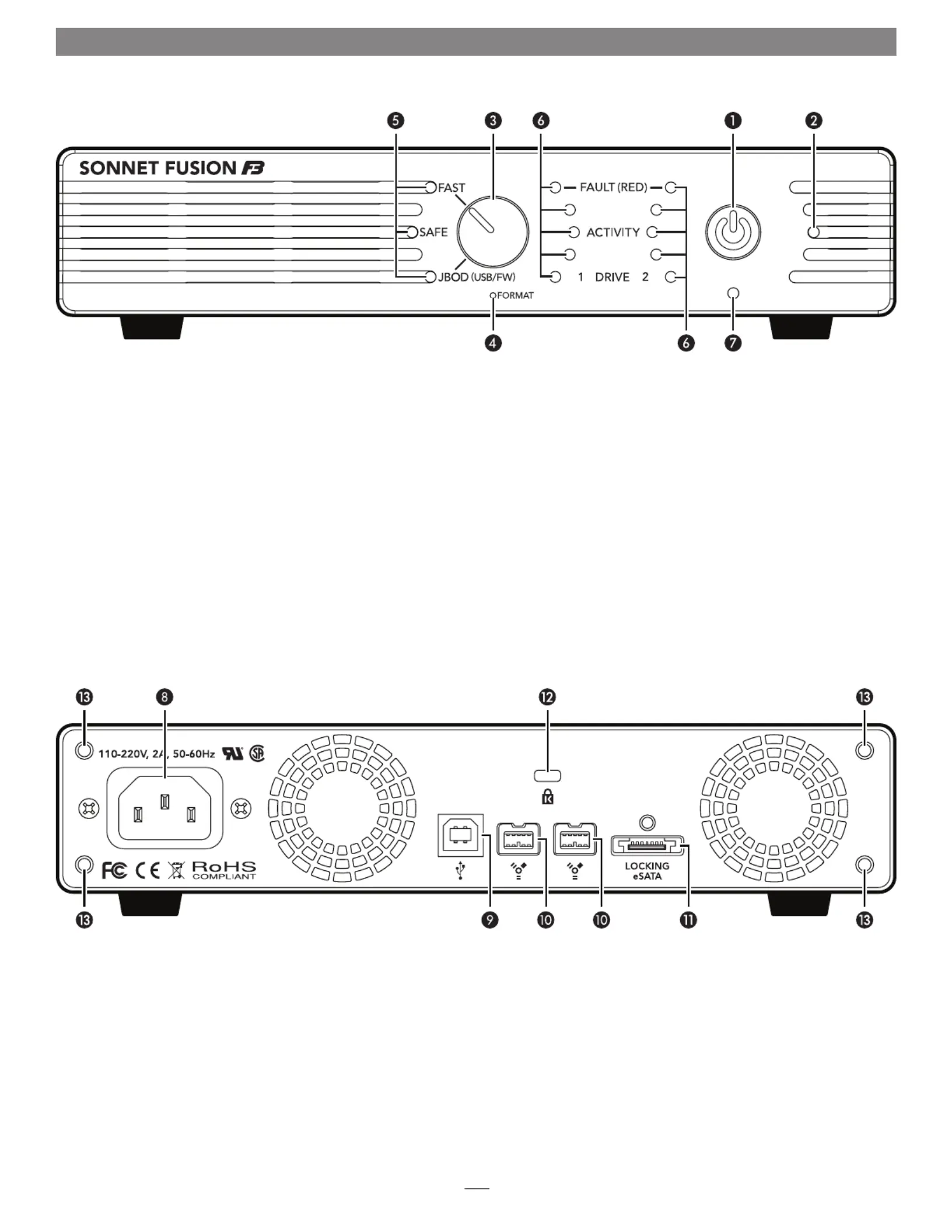

Fusion F3 Specifications and Features
3
1 – Power Button
2 – Power Indicator LED
This indicator lights when Fusion F3 is powered.
3 – Drive Configuration Selector Switch
Select the drive configuration using this switch.
4 – Drive Configuration Format Switch
This switch is mounted behind the front panel, and is
depressed with a paper clip to enable drive configuration
switching.
8 – Power Cord Socket
9 – USB 2.0 Interface Port
10 – FireWire 800 Interface Ports
These ports are compatible with FireWire 400 ports on
computers and adapter cards when the correct cable is used.
11 – Locking eSATA Interface Port
This port is compatible with the included Sonnet locking
eSATA data cable and standard eSATA data cables as well.
12 – Security Slot
This slot works with Kensington®
brand and similar security
locks to secure the Fusion F3 enclosure and deter theft.
13 – Rackmount Kit’s Rear Bracket Mounting Holes
These holes are used when you attach the optional
rackmount kit’s rear mounting brackets. Note: The
rackmount kit for one or two Fusion F3 systems, part
number FUS-F3-RK, is sold separately, and is available for
purchase through your reseller.
5 – Drive Configuration Indicator LEDs
These LEDs indicate the current drive configuration: FAST
(RAID 0), SAFE (RAID 1), and JBOD (individual drives).
6 – Drive Presence, Activity, and Fault Indicator LEDs
These LEDs indicate the drives’ ready state (bottom LEDs),
read and write activity (all LEDs), and fault (error) status (top
LEDs). LEDs on the left light and flash for drive 1, LEDs on
the right for drive 2.
7 – Ambient Light Sensor
This sensor controls the LEDs’ brightness. The lower the
ambient light level, the dimmer the LEDs will glow.
