Quick Start Guide

You Should Have

The following items should be included in your product package:

• One Solo10G PCIe Card

• One additional mounting bracket

• QSG

The following items may be required for installation:

• Medium Phillips screwdriver

Computer Compatibility

• Mac Pro

(Mid 2010 or newer), PC desktop or server with full-

height or low-proﬁle PCIe slots

OS Compatibility

• macOS

10.13.4+

• Windows

10, 8, 7; Server 2016, 2012, 2008

• Linux

Thunderbolt™ Compatibility

• Mac

or Windows computer with a Thunderbolt port via a

Thunderbolt-to-PCIe Card Expansion System

Driver Information

For Mac users, the drivers that enable the Solo10G PCIe Card to work

in your computer or Thunderbolt expansion chassis are installed as

part of macOS 10.13.4 and later; the Presto card is ready to be used

when you power on your computer.

For Windows and Linux users, please go to www.sonnettech.com/

support/kb/kb.php, click the Computer Cards link, and then the PCIe

Cards link. Locate and click Solo10G PCIe Card link, and then click

the Driver link. Locate, download, and install the appropriate drivers.

Installation Preparation

Sonnet strongly recommends that you read the section in your

computer’s user manual that addresses PCIe card installation, prior to

installing the Sonnet card into your system.

Card Installation Steps

1. Shut down your computer or Thunderbolt-to-PCIe card

expansion system and disconnect it from its power source, and

then open it to access the expansion card area (PCIe slots); refer

to the user’s manual for speciﬁc information.

2. Locate an available x4 (4-lane) or larger PCI Express slot and

then remove its access cover.

3. Remove the Sonnet card from its packaging, and then install it

into the PCI Express slot; make sure the card is firmly seated

and secured.

4. Close your computer or expansion system, and then reconnect

it to its power source. If the card is installed in an expansion

system, also connect the Thunderbolt cable between the

Thunderbolt ports on the system and computer.

5. Connect a CAT 6A, CAT 6, or CAT 5e cable (depending on the

network connection) between the port on the Presto card and a

port on the switch or device.

* 10 Gb/s speed supported on CAT 6A and CAT 6 cabling at 100 and

55 meters, respectively. Lower speeds supported on CAT 5e (and

better) cabling at distances up to 100 meters. 5 Gb/s and 2.5 Gb/s

link speed support requires an NBASE-T compatible switch.

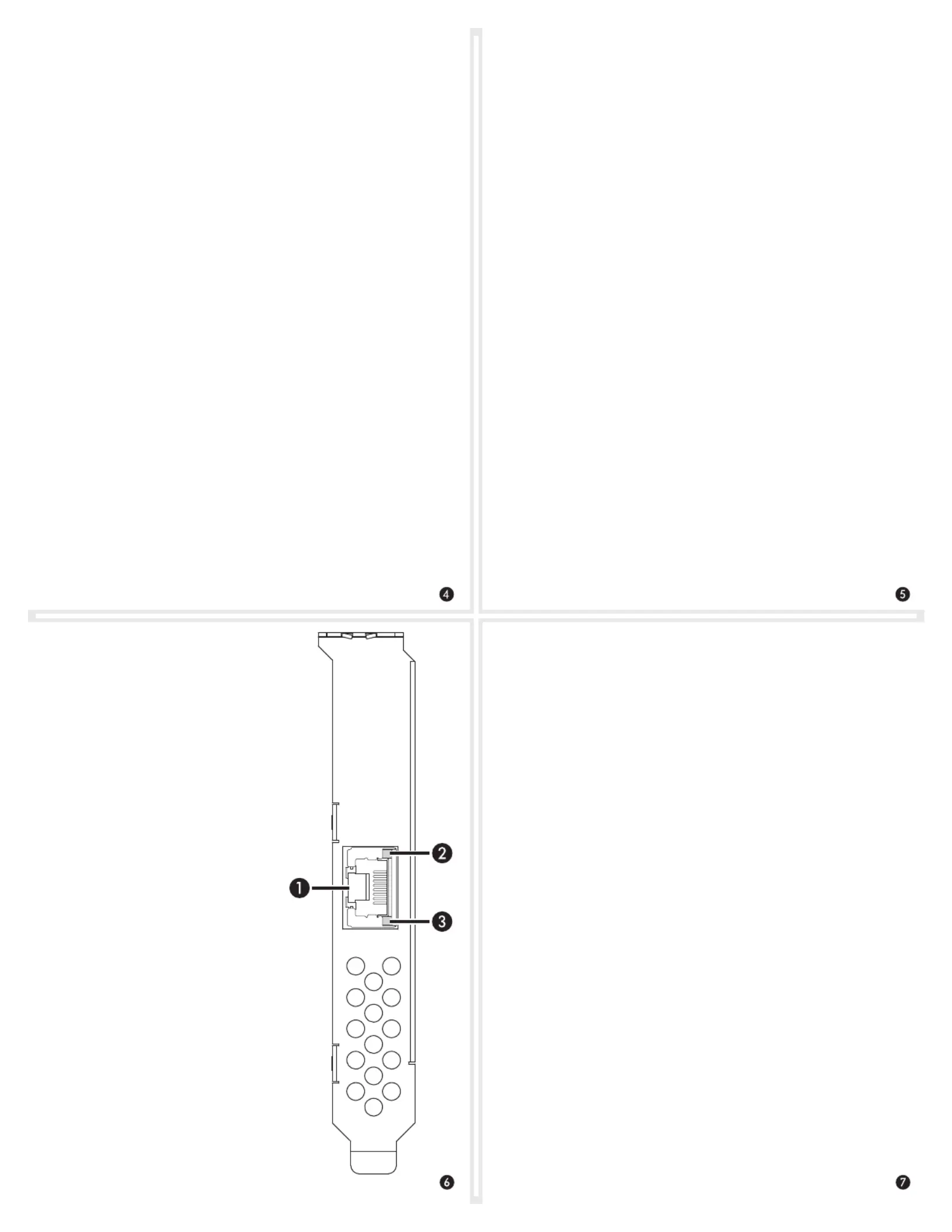

Solo

™

PCIe

Card

1-Port 10 Gigabit Ethernet PCIe 3.0 Card

are trademarks of Sonnet Technologies, Inc. Mac, the Mac logo, Mac Pro, and macOS are trademarks of Apple Inc., registered in the

United States and other countries. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or

other countries. Other product names are trademarks of their respective owners. Product specifications subject to change without

notice. QS-G10E-1X-E3-E-C-062218

Support Notes: When handling computer products, you

must take care to prevent components from being damaged

by static electricity. Before opening your computer or removing

parts from their packages, always ground yourself first by touching

a metal part of the computer, such as a port access cover, and work

in an area free of static electricity; avoid carpeted areas. Handle

all electronic components by their edges, and avoid touching

connector traces and component pins.

Support Note: This document was up to date at the time

of printing. However, changes to the hardware or software

may have occurred since then. Please check the Sonnet website for

the latest documentation.

1. Go to www.sonnettech.com/support/kb/kb.php

2. Click the Computer Cards link.

3. Click the PCIe Cards link.

4. Click the Solo10G PCIe Card link, and then click the

Documentation link.

5. Click the Solo10G PCIe Card Quick Start Guide [English] link, and

then check the Document Version information. If the version listed

is later than this document ( ), click the Download Now revision C

button for the latest version.

Produktspecifikationer

Varumärke:	Sonnet
Kategori:	nätverkskort/adapter
Modell:	G10E-1X-E3
Snabbstartsguide:	Ja
Gränssnitt:	Ethernet
Kabelteknik:	10GBase-T
Maximal räckvidd:	100 m
Värdgränssnitt:	PCI Express
Maximal dataöverföringshastighet:	10000 Mbit/s
Monteringsfästen ingår:	Ja
PCI-version:	3.0
Mac-operativsystem som stöds:	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Typ av ethernet-gränssnitt:	10 Gigabit Ethernet
Antal LAN (RJ-45) anslutningar:	1
Hållbarhetscertifiering:	RoHS
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Ja
Wake-on-LAN förberedd:	Ja
Kommunikationsstandarder:	IEEE 802.3az
Linux operativsystem som stöds:	Ja
Intern:	Ja
Kretsar:	Aquantia AQC-107S
Jumbo Frames stöd:	Ja
Flödeskontroll:	Ja
Täckplåt, låg profil:	Ja
