960H 700TVL Color Indoor Dome Camera, Wall/Ceiling Mount

DC Auto Iris 2.8~12mm, Dual Voltage (12VDC / 24VAC)

CVC6146H –black housing

CVC6146HW –white housing

200 New Highway, Amityville, NY 11701

800-645-5516 / www.specotech.com

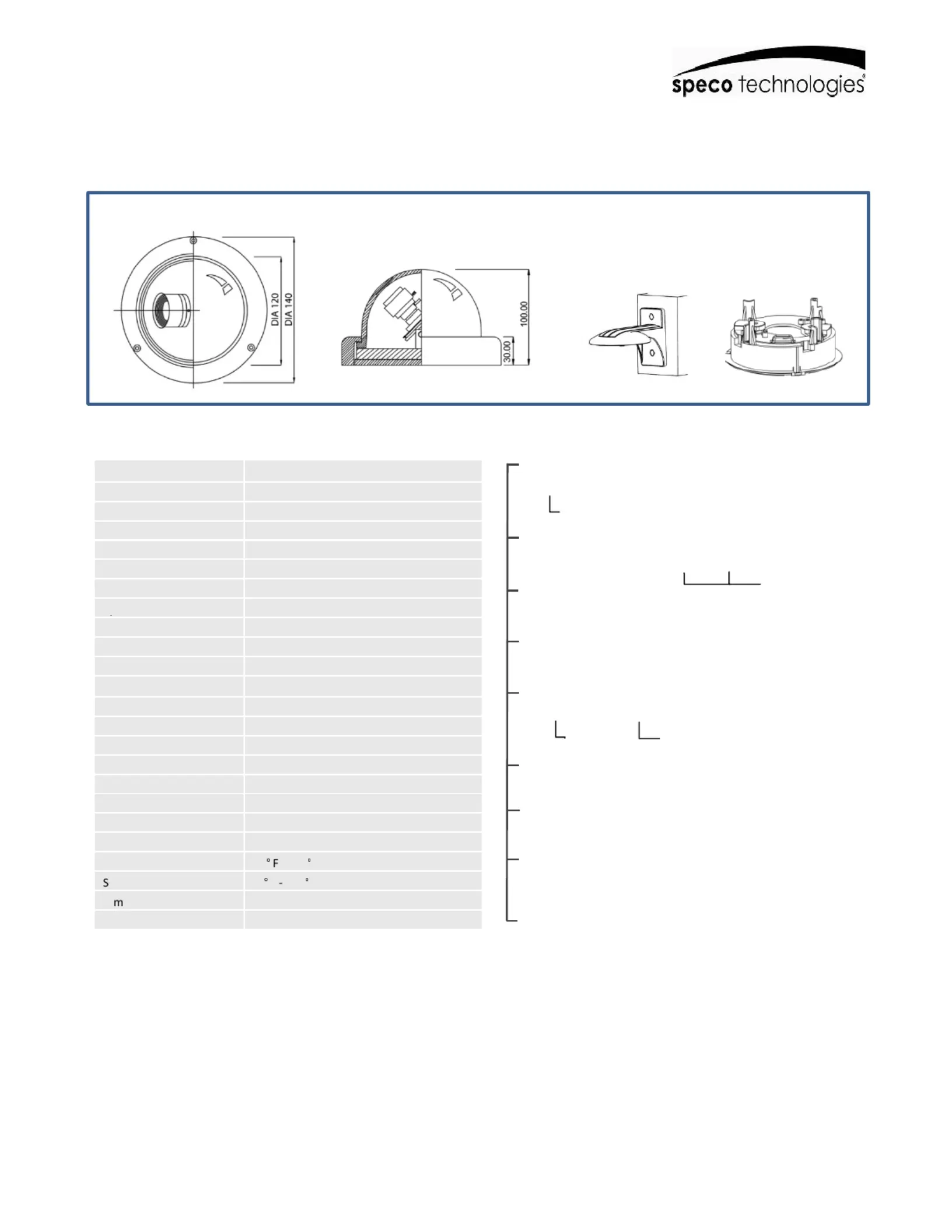

DIMENSIONS

Side View

ITEMS960H 700TVL Indoor Dome Camera

Lens2.8~12mm auto iris lens

Image Sensor1/3” COLOR 960H CCD

Resolution700TV lines

Total Pixels1020(H) x 508(V) (NTSC)

Effective Pixels976(H) x 494(V) (NTSC)

Scanning System2 : 1 Interlace

Synchronization

Internal

SPECIFICATIONS

Top View

EXPOSURE

•ALC / ELC

••CDSEXTERN

DAY&NIGHT

•SHUTTER

•FLK

•AGC

•LENS

•BRIGHTNESS

•

ATW

•

MANUAL

WHITE BAL.

•SENS UP

••AUTONIGHT•DAY

•

PUSH

•SMART IR

Optional Accessories

DFM

(Tile Ceiling Flush Mount)

CVCWMTIND

(Indoor Wall Mount)

Unit : mm

Min. Illumination0.01Lux at F1.2, 0.00001Lux (Sens-up x512)

S/N (Y signal)50dB

AGCLevel Adjustable

Shutter1/60~1/120,000sec (NTSC)

DAY / NIGHTAUTO / NIGHT / DAY

ImageBLC / HLC / D-WDR / DEFOG

White BalanceATW / PUSH / MANUAL

DNRLOW / MIDDLE / HIGH

Motion DetectionON | OFF (4 Programmable Zone)

Privacy MaskingON | OFF (8 Programmable Zone)

Power Consumption150mA (DC) / 2W (AC)

Power Supply12VDC / 24VAC Dual Voltage

Operational Temp.14

F -122

F

Storing Temp.-4

F -140

F

Dimensions3.82”(H) x 5.47”(Dia.)

Weight1.54Ibs

••BACKLIGHTPRIVACY•••CONTRASTPOSI/NEGAH-MIRROR

•••CAM TITLECAM IDID DISP.

••LANGUAGESPECIAL

MONITOR


SYSTEM

EXIT

(SAVE/RESTORE/INITIAL/MANUAL)

•••••GAMMACHROMASHARPNESSSHADINGPED.LV.

•

ATW

•

MANUAL

DNR

••••LOWMIDDLEHIGHOFF

MOTION

••ONOFF

•SYNC

•••OFFD-WDRDEFOG

•

PUSH

••BLCHLC

•BAUDRATE

EXPOSURE: Adjusts exposure settings.

ALC (Automatic Light Control) / ELC (not used for this camera)

LENS : Select the lens type (ALC/ELC)

BRIGHTNESS : Adjusts image brightness. (0~ 20)

SHUTTER : Auto / Manual Shutter can be selectable (1/60 ~ 1/120000)

FLK(Flicker Less) : Select this when the picture flickers (ON/OFF)

AGC: Adjusts the Automatic Gain Control level. (0~20)

SENS-UP: p1-x2 ~ x512 (increasing magnification maycause noise/distortion).

DAY / NIGHT: Adjusts Day / Night options.

DAY : Full time color mode (This camera has this function as a factory default)

NIGHT : Full time B/W mode.

AUTO : Day / Night is switching automatically by AGC level.

EXTERN & CDS : not used for this camera

WHITE BAL: Adjusts white balancing options.

ATW : Automatically white balances the image.

PUSH : if you press itin appropriate item position, then Auto White Balance

will perform once.

MANUAL : manually adjust the scene to desired settings.

RED : Adjusts the red gain level. (0~ 20)

BLUE : Adjusts the blue gain level. (0~20)

MONITOR: Sets the video output to main input types.

GAMMA : Sets the desired Gamma value (0.35/0.40/0.45/0.50/0.55/0.60/0.65/0.70)

CHROMA : Sets the color gain (0~20)

SHARPNESS : Sets the amount of sharpness applied on the image(0~20)

SHADING : Sets the Lens Shading Compensation value. (0~20)

PED. LV : Sets the Pedestal Level (0~20)

OSD MENU Details
