Sida 1/4
INSTRUCTION
MANUAL

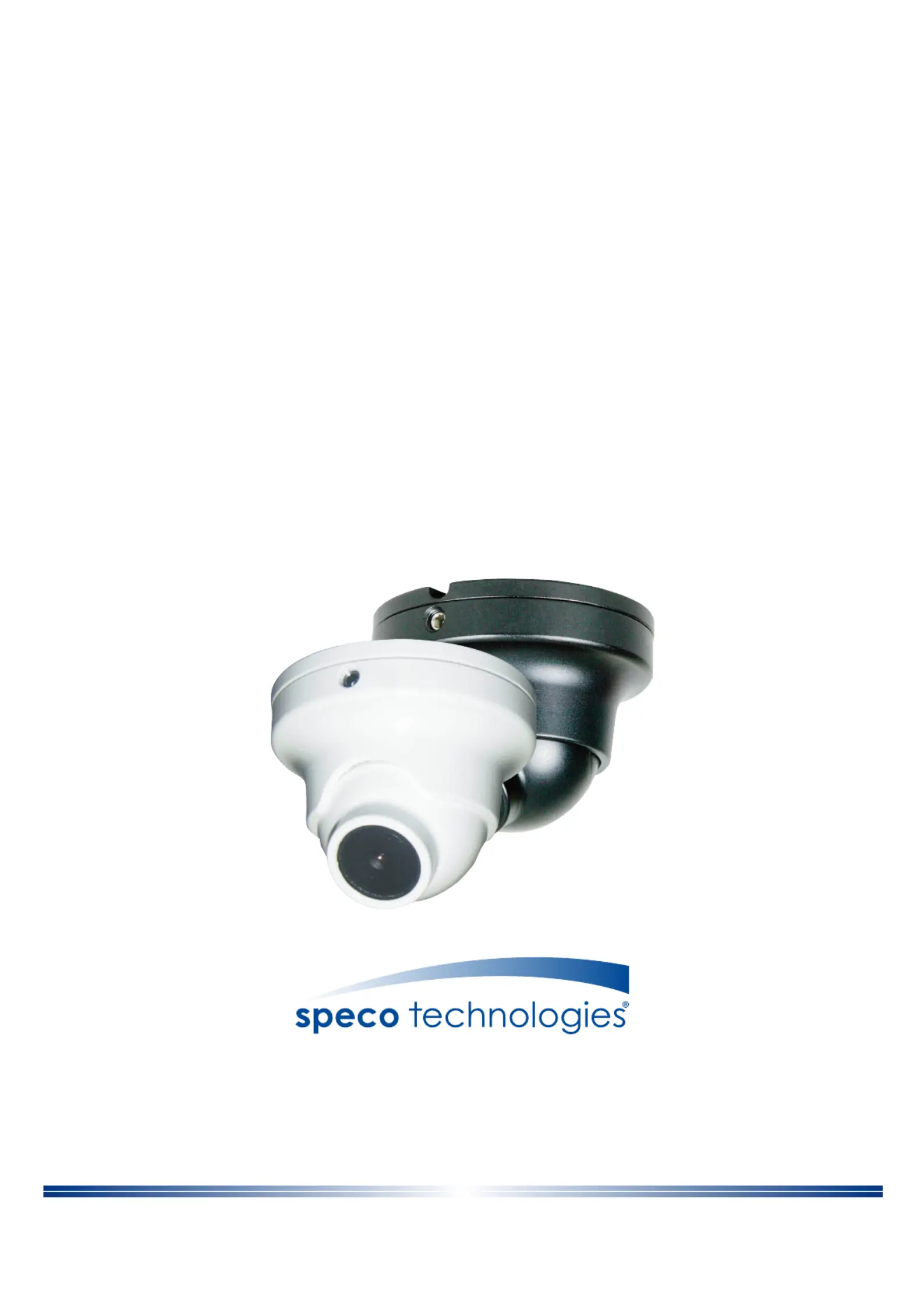

Miniature Weatherproof
Color Camera
CVC61HRB(Black)
C 61HRW(W te)VC hi
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 6/9/10
• To avoid electrical shock, do not open the case of this prod t. uc
• Only use a regulated DC 12V Power supply to operate this prod t. uc
• Do not overload electrical utlets or extension cords. This can result in a fire or o
electrical shock.
• ep this product away from strong magnetic fiel . Ke ds
• Do not expose his product in direct sunlight or strong reflected rays. t
• Refer servicing to qualified personnel only.
• Do not change or modify this product. This will void the warranty.
•
•
•
•
1. Loosen the two locking screws , ①using he s t upplied hex-head wrench and remove
the mounting base.
2. Attach the ting base to a suitable solid surface, such as a wall or ceiling. On moun ②
partitioning lo te a wall stud or ceiling joist. Secure the mounting base using the ca
supplied screws . Fit the camera to the mounting base and x in to pos on ③ ④ ② fi iti
using the two l king ws , secure them with the hex-head wrench. oc scre ①
3. How to set the angle of view:
Loosen the two locking screws , using he supplied hex-head wrench, and set the ① t
desired camera angle by moving the camera right /left and up/down.
4. Connect the video connector (BNC) of the camera cable to the inco ng video mi
cable. The other end of the video cable should be conn ted to a DVR or Monitor. ec
Plug the camera power connector (red DC jack) into he DC12V regulated power t
supply. Switch on the power supply and the picture will be displayed on a monitor.
Precautions
Features
Installation
•
•
•
•
•
1/3” Sony Su r A Dpe -H D™ CC
540 TV nes Su r gh solu onLi pe Hi Re ti
Compact ze - y mm In Diam er!Si Onl 48 et
Vandal sista Hous gRe nt in
Cast Alu nium Cons c onmi tru ti
In gra d d ste te 3mm Fixe Len
Impressive Pic re a ytu Qu lit
Weath proof P Ra d)er (I 66 te
1 d2V DC Require
Specifications
1.89”
1.46”
Image Sensor
Horizontal Resolution
Sensitivity
Lens
Effective Pixels (H x V)
Electronic Shutter Speed
Scanning System
Synchronization
Frequency
Video Output
S/N Ratio
Gain Control
White Balance
IP Rating
Operating Temperature
Power Supply
Power Consumption
Dimensions
Weight
1/3” Sony Super-HAD™ CCD
540 TV Lines
0.1 Lux
3mm Fixed Lens
768 x 594
Auto: 1/60 ~ 1/120,000 Seconds
2:1 Interlace
Internal
Horizontal: 15.734KHz / Vertical: 60Hz
1.0Vp-p~75 Ohm
>50dB (AGC Off)
Auto
Auto
IP66
-14° F ~ +120° F
12V DC Required
120mA Max.
1.89” W x 1.46” H x 1.89” D
0.25 lbs.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
