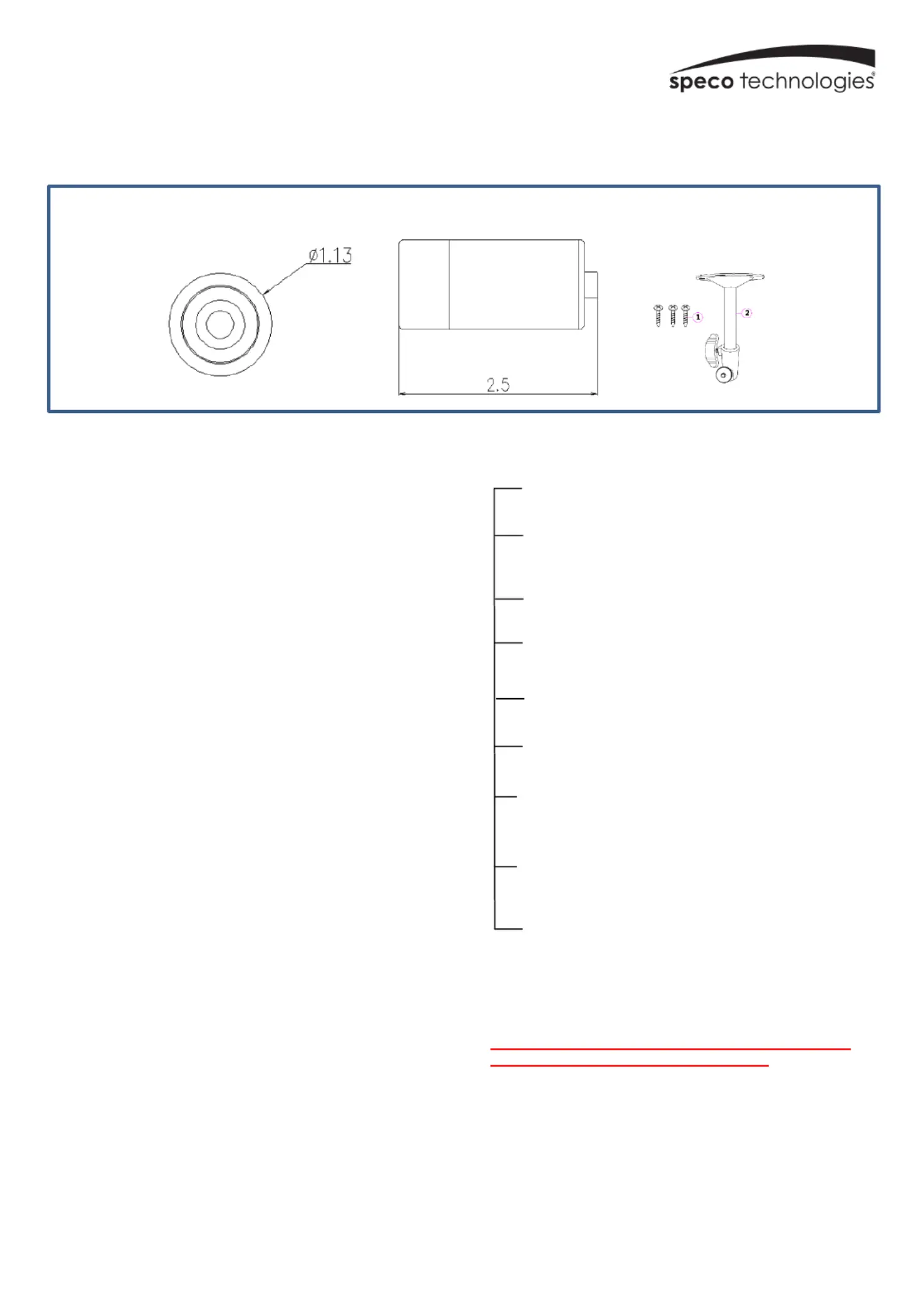

HD-TVI 1080p 2MP Weatherproof Bullet Camera

UTC, 2BNC out for TVI & CVBS

CVC637T 3.6mm fixed lens, dark grey housing

CVC637TW 3.6mm fixed lens, white housing

Accessories!

&.$/")"/*+"'%&(

Image Sensor.................. 1/3” Progressive Scan CMOS, 2MP

Minimum Illumination....... 0.001 lux (Sens-up ‘On’)

Effective Pixels................ 1984 (H) x 1105 (V)

Total Pixels...................... 2000 (H) x 1121 (V)

Scanning System............ Progressive

S/N Ratio......................... More than 50dB

Output Resolution............ 1920x1080 @ 30fps

Video Output.................... 1.0Vp-p / 75 Ohms

Electronic Shutter............ Auto / Manual (1/30 – 1/30,000 sec.)

Day / Night....................... Auto / Color / BW / External

Test Monitor Output......... CVBS (BNC out in Yellow)

Communication............... UTC (up the coax)

Power............................. 12VDC (power supply not included)

Power Consumption........ 12VDC, 200mA max.

Operating Temperature....14° F – 120° F

Unit Dimensions.............. 1.13” (Dia.) x 2.5” (H)

Unit Weight...................... 4 oz.

Certifications.................... FCC, RoHS

Signal Distance............... Up to 1600 feet

(depending on coax quality)*

• Full HD resolution over coax (HD-TVI)

• Supports up to Full HD 1080p @ 30fps

• Superior low-light performance

• 3.6mm fixed lens

• Weather resistant

• 3-axis bracket for wall and ceiling mounting

• Full OSD operation through UTC (up the coax)

• Additional 960H analog output (BNC out in Yellow)

• Signal distance up to 1600 feet*

• 12VDC operation

• IP66 compliant

• 5 year warranty
