SecureGuard
®
Server
+
Faceplate
(Set of 2 keys included)
+
Rack Ears (included)
About this Quick Setup Guide
Before operating the unit, please read this user’s guide thoroughly and
retain it for future reference.
Product Components
LED Status Indicators continued

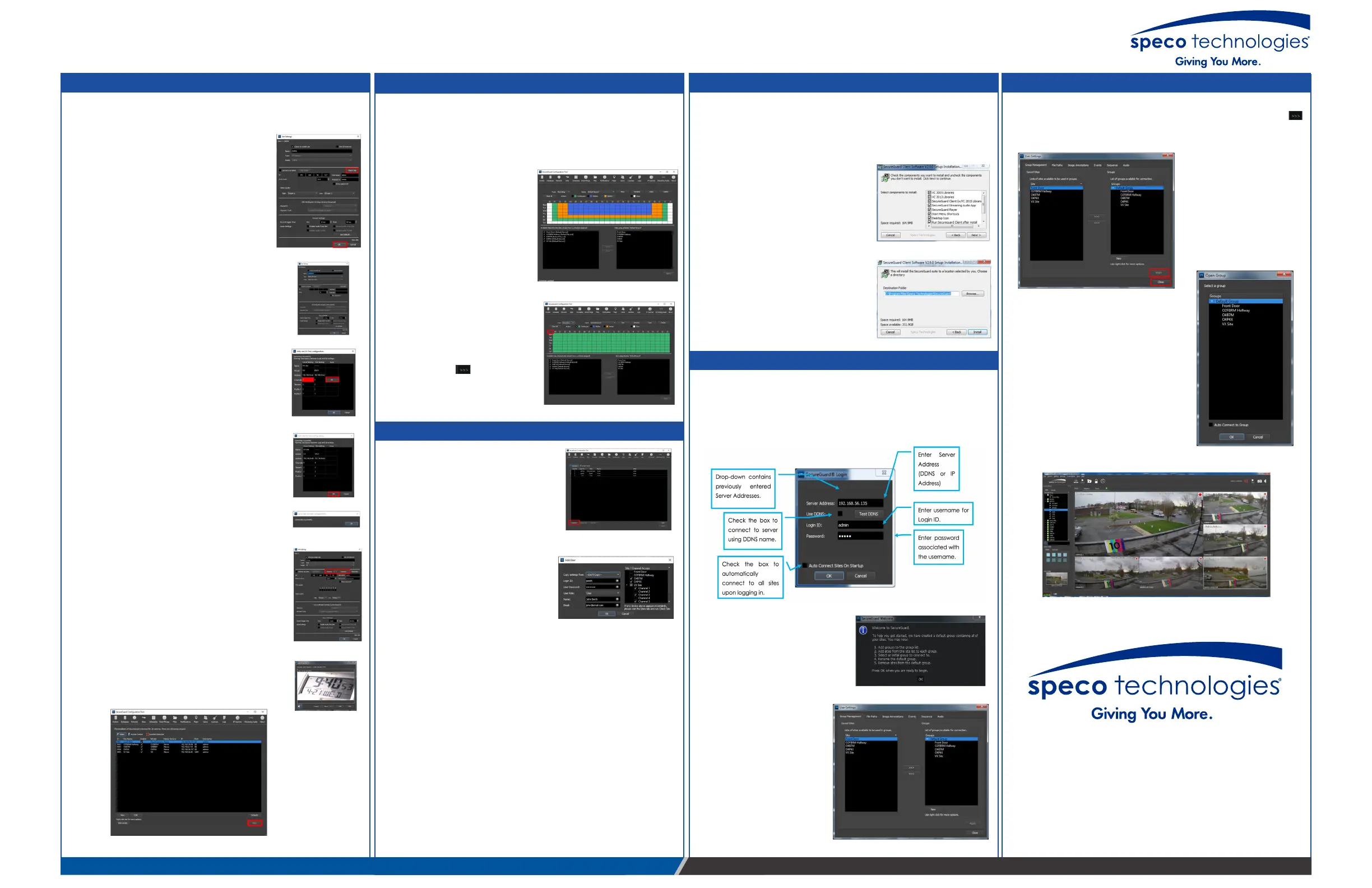

Quick Setup Guide (Ver. 2.9)
Speco Technologies SecureGuard
®
Server - Model: SG319
The following components are included:
QTY: 1
*Server comes with the rack ears mounted*
Power Cable
QTY: 2
Server Rails
(Instruction Manual
Included)
QTY: 1 pair
Rack Bracket Adapters
Hardware
Internal Connections
Rear View
5
6
7
8
9
10
1
Power Switch
2
Reset Switch & LED Status Indicators
3
3.5” HDD Bays x24
4
AC Inputs for Redundant Power Supply
DB9 COM Port
IPMI Interface x1
USB 2.0 x2
USB 3.0 x2
Gigabit Ethernet LAN ports x2
VGA Output
Power Failure LED:
Flashing LED indicates power supply failure.
Information LED:
NIC2 Activity LED:
Indicates network activity on LAN 2 when flashing.
NIC1 Activity LED:
Indicates network activity on LAN 1 when flashing.
HDD Activity:
Indicates drive (SAS/SATA, SCSI, and/or DVD-ROM) activity when
flashing.
Power Status:
Indicates power is being supplied to the power supply units.
LED Status Indicators
1
Front View (Without Faceplate)
2
3
4
5
6
7
8
9
10
Run SecureGuard
®
Conguration Tool continued
Setting up Network
•If prompted to select or create a
Systems Recordings folder, point to the
storage drive where the recordings will be
stored (Recordings D:). Otherwise move
on to the next step. See Image 3.
•Upon opening the Configuration Tool,
you will need to register your SecureGuard
®
installation. This information is mandatory
and will be included in e-mail notifications
if utilized. The default username admin
and default password admin to access
the SecureGuard
®
Configuration Tool.
See Image 4.
•At the “System” tab, ensure “System
Recordings” file path is pointing to the
storage drives. See Image 5.
Image 3
Image 4
Image 5
Setting up Software Updates
Setting up Database Backup
Note: Server must be connected
to the internet to search and
download updates
Note: It is HIGHLY recommended
that you backup your database to
a separate drive and NOT to your
C: drive.
•SecureGuard
®
will be set to check for
updates on a daily basis. The time to
check for updates can be modified by
simply changing the hour, minute, and
meridiem. You can manually check for
updates by clicking “Check Now”.
See Image 6.
•The “Database” tab is where you import
or export settings and back up, restore, or
validate the SecureGuard
®
database.
See Image 7.
•It is recommended that you back up your
database on a scheduled basis. If your
database gets corrupted, you will be
able to restore to a point where the
database was stable. To setup up a
scheduled database backup, first check
the box next to “Scheduled Backup”.
•Choose where you would like to backup your database by clicking “Browse”.
•Adjust the time’s hour, minute, and
meridiem to specify what time the
database will be backed up. And lastly,
select whether the database will be
backed up on a daily basis or weekly
basis. Once completed, click “Apply”.
See Image 8.
Applying Channel License
Adding Sites (IP cameras, DVRs, NVRs mobile devices, Access Control Servers)
Image 6
Note: For servers with Dual Network
Interface Cards, it is highly advisable
that the camera and the client connection
network traffic be kept separate.
•To disable the scheduled update check, uncheck the box next to “Enable Automatic
Updates”. Click “Apply” to confirm changes.
Image 7
Image 8
•If the server name isn’t currently registered
with Speco’s DDNS server, then the
registration will be successful. If it fails, use a
different name for the “Host Name”.
See Image 11.
Image 11
Image 12
Image 9
Image 10
• By default, the server uses ports 7312 & 7313 for network communication.
Note: To avoid network conflicts with devices that also use the server default
ports 7312, 7313,and 7314 the option of changing the port numbers is
available through the Configuration Tool. The servers come shipped with an
inbound rule for Window’s firewall that allows communication on the server
default ports. If the server default ports are changed, please ensure the
existing inbound rule is updated, or create a new inbound rule permitting
communication on the new server port values.
•The “Sites” tab is where sites (IP cameras,
DVRs, NVRs, mobile devices, and Access
Control Devices) can be added, deleted
or updated. There are two methods of
adding sites to the server. The first method
uses “Site Locate” which automatically
scans the Local Area Network for IP
cameras and select, DVRs , NVRs
and hybrid DVRs. See Image 13.
Image 13
Image 14
•Clicking on “Site Locate”, will open
the “Site Locate” window and start
scanning the local area network
for your devices. You can rescan the
network by clicking on “Refresh”.
See Image 14.
Quick Setup Guide
QTY: 1
Power on the Server
•Please follow the proper power ON procedures to avoid damaging the server.
•Connect all necessary components, e.g. monitor and cameras, before powering
the server.
•Power ON the server by depressing the Power Switch ( ) to boot up the server.
WARNING: To reduce the risk of database corruption due to power loss,
Speco strongly urges use of an uninterruptible power supply with our
SecureGuard
®
servers.
1
Login to Windows
• After boot up, at the Windows login screen, you will see that the default user account
is “Speco Tech”. There is no password associated with the default account. It is
highly advisable to set a password after logging into the Windows home screen for
the first time. See Image 1.
Image 1
Note: The server comes pre-loaded with SecureGuard
®
Server software.
•At the Windows Desktop home screen, run the SecureGuard
®
Configuration Tool to setup the server by double clicking on the
SecureGuard
®
Configuration Tool icon. See Image 2.
Image 2
Run SecureGuard
®
Conguration Tool
WARNING: Please store your password
in a safe location. Speco Technologies
will not be able to assist you in
recovering a lost password.
Note: The default timezone on the servers
is set to (UTC-05:00) Eastern Time (US &
Canada).
•In the “Network” tab, for “Client Interface”
select the network adapter that remote
client(s) will connect to. For “Video Interface”
select the network adapter that the camera(s)
will connect to. See Image 9.
•Your SecureGuard
®
Server initially comes with a free 32-channel license. If your
server installation exceeds 32-channels, you will need to apply a channel license
in order to add the remaining total. This license is provided by Speco.
•Go to the “License Tab” and either enter your
activation code (requires an internet
connection) or import your license by pressing
“Import License File” and selecting your
license file. See Image 12.
•Your license, along with the channel count,
will then be displayed in the list below.
SecureGuard® Server
+
Faceplate
(Set of 2 keys included)
+
Rack Ears
About this Quick Setup Guide
Before operating the unit, plesae read this user’s guide thoroughly and
retain it for future reference.
Product Components
LED Status Indicators
continued
Quick Setup Guide
(Ver. 2.2)
Speco Technologies SecureGuard
®
Server -
Model: SG515(4U)
The following components are included:
QT: 1
*Server comes with the rack ears mounted*
Power Cable
QT: 2
Server Rails
(Instruction Manual
Included)
QT: 1 pair
Rack Bracket Adapters
Hardware
Internal Connections
Rear View
6
7
8
9
10
1
Power Switch
2
Reset Switch & LED Status Indicators
3
3.5” HDD Bay x24
4
AC Inputs for Redundant Power Supply
5
2.5” HDD Bay x2
DB9 COM Port
IPMI Interface
USB 2.0 x4
Gigabit Ethernet LAN Ports x2
VGA Output
Power Failure LED:
Flashing LED indicates power supply failure.
Information LED:
STATUS DESCRIPTION
Continuously ON & red Overheat condition has occured.
Blinking red (1 Hz) Fan failure.
Blinking red (.25 Hz) Power failure.
Solid blue
Local UID has been activated to
locate the server in a rack
environment.
Blinking blue (300 msec)
Remote UID has been activated
to locate the server from a
remote location.
NIC2 Activity LED:
Indicates network activity on LAN 2 when flashing.
NIC1 Activity LED:
Indicates network activity on LAN 1 when flashing.
HDD Activity:
Indicates drive (SAS/SATA, SCSI, and/or DVD-ROM) activity when
flashing.
Power Status:
Indicates power is being supplied to the power supply units.
LED Status Indicators
1
Front View (Without Faceplate)
2
3
4
5
6
7
8
9
10
Run SecureGuard
®
Conguration Tool
continued
Setting up Network
• When prompted, enter the
default username admin and
default password admin to access
the SecureGuard
®
Configuration
Tool. See Image 3.
• At the “System” tab, ensure
“System Recordings” file
path is pointing to the
storage drives. See Image 4.
Image 3
Image 4
Setting up Software Updates
Setting up Database Backup
Note: Server must be connected to the internet to search and download updates
Note: It is HIGHLY recommended that you backup your database to a separate
drive and NOT to your C: drive.
•SecureGuard
®
will be set
to check for updates on a
daily basis. The time to check
for updates can be modified
by simply changing the hour,
minute, and meridiem. You can
manually check for updates
by clicking “Check Now”. See
Image 5.
•The “Database” tab is where you
import or export settings and back up,
restore, or validate the SecureGuard
®
database. See Image 6.
•It is recommended that you back up
your database on a scheduled basis.
If your database gets corrupted, you
will be able to restore to a point where
the database was stable. To setup up a
scheduled database backup, first check
the box next to “Scheduled Backup”.
•Choose where you would like to backup your database by clicking “Browse”.
•Adjust the time’s hour, minute, and
meridiem to specify what time the da-
tabase will be backed up. And lastly,
select whether the database will be
backed up on a daily basis or weekly
basis. Once completed, click “Apply”.
See Image 7.
Adding Sites (IP cameras, DVRs, NVRs)
Image 5
Note: For servers with Dual Network
Interface Cards, it is highly advisable
that the camera and the client connection
network traffic be kept separate.
•To disable the scheduled update check, uncheck the box next to “Enable
Automatic Updates”. Click “Apply” to confirm changes.
Image 6
Image 7
• If the server name isn’t currently
registered with Speco’s DDNS
server, then the registration will be
successful. If it fails, use a different
name for the “Host Name”. See
Image 10.
Image 10
Image 8
Image 9
• By default, the server uses ports 7312 & 7313 for network communication.
Note: To avoid network conflicts with devices that also use the server default ports
7312 and 7313, the option of changing the port numbers is available through the
Configuration Tool. The servers come shipped with an inbound rule for Window’s
firewall that allows communication on the server default ports. If the server default
ports are changed, please ensure the existing inbound rule is updated, or create a
new inbound rule permitting communication on the new server port values.
• The “Sites” tab is where sites (IP cameras, DVRs, and NVRs) can be added,
deleted or updated. There are two methods of adding sites to the server. The first
method uses “Site Locate” which automatically scans the Local Area Network
for only IP cameras. See Image 11.
Method 1: Auto Detect
Method 2: Manual
Image 11
Image 12
Image 13
• Clicking on “Site Locate”, will
open the “Site Locate” window
and start scanning the local area
network for IP cameras. You can
rescan the network bY clicking on
“Refresh”. See Image 12.
• To add an IP camera to the
server, double click on the IP
camera to bring up the “Site
Settings” windows for the IP
camera. Ensure the values for all
the fields are accurate and then
click “OK”. See Image 10.
• The IP cameras will now be
listed under “Sites to add” list.
• Continue to repeat this process
for the remaining IP cameras that
must be added To the server. Once
complete, click on “OK” to exit
the “Site Locate” window. The
cameras that were added to the
“Sites to add” list will now be made
available in the “Sites” tab. Click
on “Apply” to complete adding the
sites to the server. See Image 13.
Quick Setup Guide
QT: 1
Power on the Server
• Please follow the proper power ON procedures to avoid damaging the server.
• Connect all necessary components, e.g. power cable(s), network cable(s), monitor
and cameras, before powering the server.
• Power ON the server by depressing the Power Switch ( ) to boot up the server.
WARNING: To reduce the risk of database corruption due to power loss,
Speco strongly urges use of an uninterruptible power supply with our
SecureGuard
®
servers.
1
Login to Windows
• After boot up, at the Windows login screen, you will see that the default user
account is “Speco Tech”. There is no password associated with the
default account. It is highly advisable to set a password after logging into the
Windows home screen for the first time. See Image 1.
Image 1
Note: The server comes pre-loaded with SecureGuard
®
Server software.
• At the Windows Desktop home screen, run the SecureGuard®
Configuration Tool to setup the server by double clicking on
the SecureGuard
®
Configuration Tool icon. See Image 2.
Image 2
Note: DO NOT store recordings on the hard drive dedicated for the operating system.
Run SecureGuard® Conguration Tool
WARNING: Please store your password
in a safe location. Speco Technologies will
not be able to assist you in recovering a lost
password.
Note: The default timezone on the servers is set
to (UTC-05:00) Eastern Time (US & Canada).
Speco Tech
•In the “Network” tab, for “Cli-
ent Interface” select the network
adapter that remote client(s) will
connect to. For “Video Interface”
select the network adapter that
the camera(s) will connect to. See
Image 8.
• To register the server with Speco’s
Free DDNS, ensure the “Enable
Speco DDNS” checkbox is
selected, and enter a name for the
server in the “Host Name” field
then click on “Submit/Update”.
See Image 9.
1706-035
Rev. 8/22/17
Note: SecureGuard
®
servers come with independent hard drive(s) for the storage recordings and the
operating system. Do not store recordings in the hard drive dedicated for the operating system.
** IT IS STRONGLY RECOMMENDED THAT THE
ADMIN PASSWORD BE CHANGED TO ENSURE
THE SECURITY OF YOUR INSTALLATION.
•To register the server with Speco’s
Free DDNS, ensure the “Enable
Speco DDNS” checkbox is
selected, and enter a name for the
server in the “Host Name” field then click on “Submit/Update”. See Image 10.
STATUS DESCRIPTION
Continuously ON & red Overheat condition has been met.
Blinking red (1 Hz) Fan failure.
Blinking red (.25 Hz)
Power failure.
Solid blue
Local UID has been activated to
locate the server in a rack environment.
Blinking blue (300 msec) Remote UID has been activated to locate the
server from a remote location.
Rev. 4/26/21
•Once the client software has been downloaded, start the installation by running the
executable file.
•Uncheck the components you don’t wish to install on the client computer.
This option is limited to the following components:
• SecureGuard
®
Streaming Audio App
• SecureGuard
®
Player
• Start Menu Shortcuts
• Desktop Icon
Components deemed necessary for the operation
of SecureGuard
®
Client cannot be unchecked.
Click on “Next” to proceed. See Image 27.
Adding Sites (IP cameras, DVRs, NVRs mobile devices, Access Control Servers)
continued
Adding Users
200 New Highway
Amityville, NY 11701
1.800.645.5516
specotech.com
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without
notice and without incurring any obligation. Rev. 4/26/21
•To set up a recording schedule, click on the “Schedules” tab.
•Next to “Action:” select the type of recording (Continuous, Motion, or Sensor)
by clicking on the button (radio button) next to it.
•The schedule grid is made up of rows and columns. The rows pertain to the days
of the week (Mon-Sun), and the columns pertain to the hours of a day (00HR-23HR).
•The cells inside the schedule grid can be colored in based on the type of recording
selected. The color representation is
as follows: Green for Continuous,
Blue for Motion, Orange for Sensor,
and White for No Recording. To color
in the grid, hold down the mouse button
and drag the mouse cursor over the grid.
See Image 23.
•To set the entire schedule to a single
recording type, click on the white box
located in the top-left most corner of the
grid. See Image 24.
Note: By default, the server comes loaded
with 3 user accounts: Admin, User, & Guest.
•Go to the “Users” tab. Here you can add,
edit, or delete users, manage user site
privileges through roles and permissions.
•The “Add User” window will pop up.
See Image 26.
•If desired, you can copy settings from another
to streamline the process. This will include Role
Information, Site/Channel permissions, and
Client settings such as layouts, tours, etc.
•To add users, click on “Add User”. See Image 25.
•The “admin” account will have full access to all
sites and features and cannot be deleted.
•Enter the new user credentials and a name.
•If applicable, select a “User Role” based on the level of access you wish the user to
have. An “Administrator” role has full access to the system and sites. The “User” and
“Guest” roles have limited access, but the permissions can be modified.
•Users and Guests can also be restricted to specific sites and channels by toggling
the boxes next to the sites and channels.
Note: A customized role can be created to
meet varying levels of access control.
•Click on “OK” to exit the “Add User” window,
and click on “Apply” in the “Users” tab to add
the user(s) to the system.
Startup & Live View continued
Installing SecureGuard
®
on Client PCs
Startup & Live View
Quick Setup Guide (Ver. 2.9)
Speco Technologies SecureGuard
®
Server - Model: SG319
Setting up Recording Schedules
•Once the installation is complete, the SecureGuard
®
Client user login window
will open. If not, run the application by double clicking on the SecureGuard
®
Client desktop icon.
•At the user login window, enter the server address. The server address can be the
IP address of the server or the DDNS name. If using the latter, please make sure
“Use DDNS” checkbox is checked and then click on “OK”. See Image 29.
•Once logged in, the SecureGuard
®
Client
Welcome window will pop up. Click “OK”
to proceed. See Image 30.
•Next, the User Settings window
will pop up. Here the sites that were
added to the server will be listed
under Saved Sites. See Image 31.
•In order to view the sites, they need to be placed in a group. To start off, a default
group has already been created named Group. To add the sites Group, click on
“Apply.” The “Apply” button will be grayed out, indicating the sites have been added
to Group. Click on “Close” to exit the User Settings window. See Image 32.
•The Open Group window will pop up listing
all the groups and sites. Select Group and click
on “OK” to begin viewing the sites added to
Group. See Image 33 and Image 34.
Note: Download the SecureGuard
®
Client from Speco Technologies website
at www.specotech.com
•Select the destination folder where SecureGuard
®
Client will be installed by clicking on “Browse”,
or use the suggested destination folder which
SecureGuard
®
Client will create. Click on “Install”
to proceed. See Image 28.
•The second method of adding sites to the server is by
manually entering the site information. This method must be
used when adding mobile devices as well as DVRs, NVRs,
and hybrid DVRs not scanned in “Site Locate”. To enter site
information manually, click on “New” in the “Sites” tab to
bring up the “Site Settings” window. See Image 16.
•Fill in the values for all the fields, and verify the accuracy
of the information by clicking on “Check Site”.
Note: A “Check Site” should always be performed
when adding a DVR/NVR/Hybrid. Doing so will
confirm the number of channels on the site in order
to toggle PTZ control for the channels and, if needed,
restrict users from specific channels in the client.
•The channel boxes under PTZ Control will be consistent with
the number of channels on the DVR, NVR, or Hybrid. Per
form another “Check Site”. If the connection is successful,
click “OK” on both windows. See Image 19.
•Correct any information by clicking “Fix”. See Image 17.
•Finally click on “Apply” to add the site(s) to the server.
See Image 22.
•Click “OK”. See Image 18.
•If a “Check Site” connection is successful, you can preview
the incoming video from the site (and channels, if applicable).
If you’re connecting to a recorder, use the dropdown next to
“Channel” to select the channel you would like to preview.
This can assist you in better identifying the camera you’re
adding to your installation and naming the site.
See Image 20 and Image 21.
Image 16
Image 17
Image 18
Image 19
Image 20
Image 21
Image 22
Image 23
Image 25
Image 26
Image 29
Image 30
Image 34
Image 33
Image 31
Image 32
Image 24
•Once the schedule and recording type
has been set, associate the schedule with
individual sites (IP cameras, DVRs, NVRs)
by moving over the sites listed under
“Available Site…” to “Sites using schedule
…” by clicking on
•Click on “Apply” to save the schedule.
Image 27
Image 28
•The devices will now be listed under “Sites to add” list.
•Continue to repeat this process for the remaining
IP Cameras that must be added to the server.
Once complete, click on “OK” to exit the “Site
Locate” window. The cameras that were added to
the “Sites to add” list will now be made available
in the “Sites” tab. Click on “Apply” to complete
adding the sites to the server. See Image 22.
Image 15
•To add a site to the server, double click on the device to bring up the “Site Settings”
window. Ensure the values for all the fields are accurate, enter the camera’s login
credentials and verify the accuracy of the information by clicking on “Check Site”.
If the connection is successful, click “OK”.
See Image 15.
Produktspecifikationer
| Varumärke: | Speco Technologies |
| Kategori: | Videobandspelare |
| Modell: | SG319 |
Behöver du hjälp?
Om du behöver hjälp med Speco Technologies SG319 ställ en fråga nedan och andra användare kommer att svara dig
Videobandspelare Speco Technologies Manualer
5 September 2024
4 September 2024
3 September 2024
2 September 2024
2 September 2024
2 September 2024
1 September 2024
1 September 2024
1 September 2024
31 Augusti 2024
Videobandspelare Manualer
- Lorex
- Silvercrest
- Axis
- UniView
- Synology
- Foscam
- Bang And Olufsen
- Daewoo
- Mitsubishi
- D-Link
- Dual
- Toshiba
- Grandstream
- Hitachi
- Proline
Nyaste Videobandspelare Manualer
31 Augusti 2025
16 Augusti 2025
14 Augusti 2025
6 Juli 2025
7 April 2025
6 April 2025
5 April 2025
4 April 2025
4 April 2025
4 April 2025
