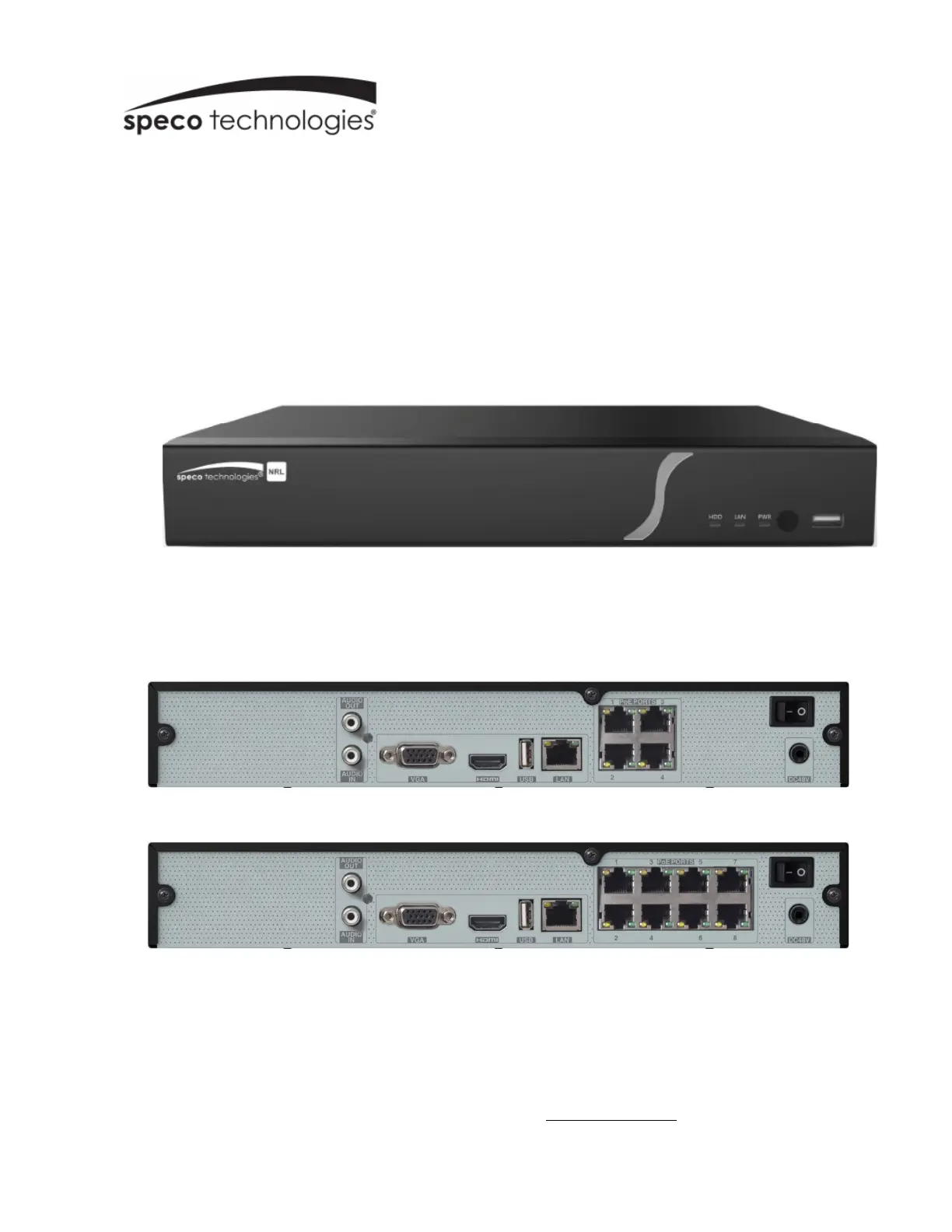

NRL (4 and 8 Channel)

User Manual

N4NRL

N8NRL

Version 1.0

Features and specifications are subject to change, please check www.specotech.com

for firmware updates.

Notes &Contents

NVR User Manual

Notes

 Please read this user manual carefully to ensure that you can use the device correctly and safely.

 There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this

manual. The contents of this manual are subject to change without notice.

 This device should be operated only from the type of power source indicated on the marking label. The voltage of the power must be verified

before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.

 Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.

 Do not install this device near water. Clean only with a dry cloth.

 Do not block any ventilation openings and ensure proper ventilation around the machine.

 Do not power off the device at normal recording condition.

 This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get inside the

machine’s case, please turn off the device immediately and get it checked by a qualified technician.

 Do not try to repair the device by yourself without technical aid or approval.

Contents

1 Introduction............................................................................................................................................................................................... 1

1.1 Welcome! .......................................................................................................................................................................................................... 1

1.2 Features ............................................................................................................................................................................................................. 1

1.3 Front Panel Descriptions ................................................................................................................................................................................... 3

1.4 Rear Panel Descriptions ..................................................................................................................................................................................... 3

1.5 Connections....................................................................................................................................................................................................... 3

2 Basic Operation Guide ............................................................................................................................................................................... 4

2.1 Startup & Shutdown .......................................................................................................................................................................................... 4

2.1.1 Startup .................................................................................................................................................................................................... 4

2.1.2 Shutdown ............................................................................................................................................................................................... 4

2.2 Remote Control ................................................................................................................................................................................................. 4

2.3 Mouse Control ................................................................................................................................................................................................... 5

2.4 Text-input Instruction ........................................................................................................................................................................................ 5

2.5 Common Button Operation ............................................................................................................................................................................... 5

3 EZ Setup & Main Interface ......................................................................................................................................................................... 6

3.1 EZ Setup............................................................................................................................................................................................................. 6

3.2 Main Interface ................................................................................................................................................................................................... 9

3.2.1 Main Interface Introduction ................................................................................................................................................................... 9

3.2.2 Setup Panel ........................................................................................................................................................................................... 10

3.2.3 Main Functions ..................................................................................................................................................................................... 11

4 Camera Management .............................................................................................................................................................................. 13

4.1 Add/Edit Camera ............................................................................................................................................................................................. 13

4.1.1 Add Camera .......................................................................................................................................................................................... 13

4.1.2 Edit Camera .......................................................................................................................................................................................... 14

4.2 Add/Edit Camera Group .................................................................................................................................................................................. 15

4.2.1 Add Camera Group ............................................................................................................................................................................... 15

4.2.2 Edit Camera Group ............................................................................................................................................................................... 16

4.2.3 IP Planning ............................................................................................................................................................................................ 16

5 Live View Introduction ............................................................................................................................................................................. 17

5.1 Live View Interface Introduction ..................................................................................................................................................................... 17

5.2 View Mode ...................................................................................................................................................................................................... 18

5.2.1 Display Mode ........................................................................................................................................................................................ 18

5.2.2 Quick Sequence View ........................................................................................................................................................................... 19

5.2.3 Camera Group View In Sequence ......................................................................................................................................................... 19

5.2.4 Scheme View In Sequence .................................................................................................................................................................... 19

5.3 Image Configuration ........................................................................................................................................................................................ 20

5.3.1 OSD Settings ......................................................................................................................................................................................... 20

5.3.2 Image Settings ...................................................................................................................................................................................... 21

5.3.3 Mask Settings ....................................................................................................................................................................................... 21
