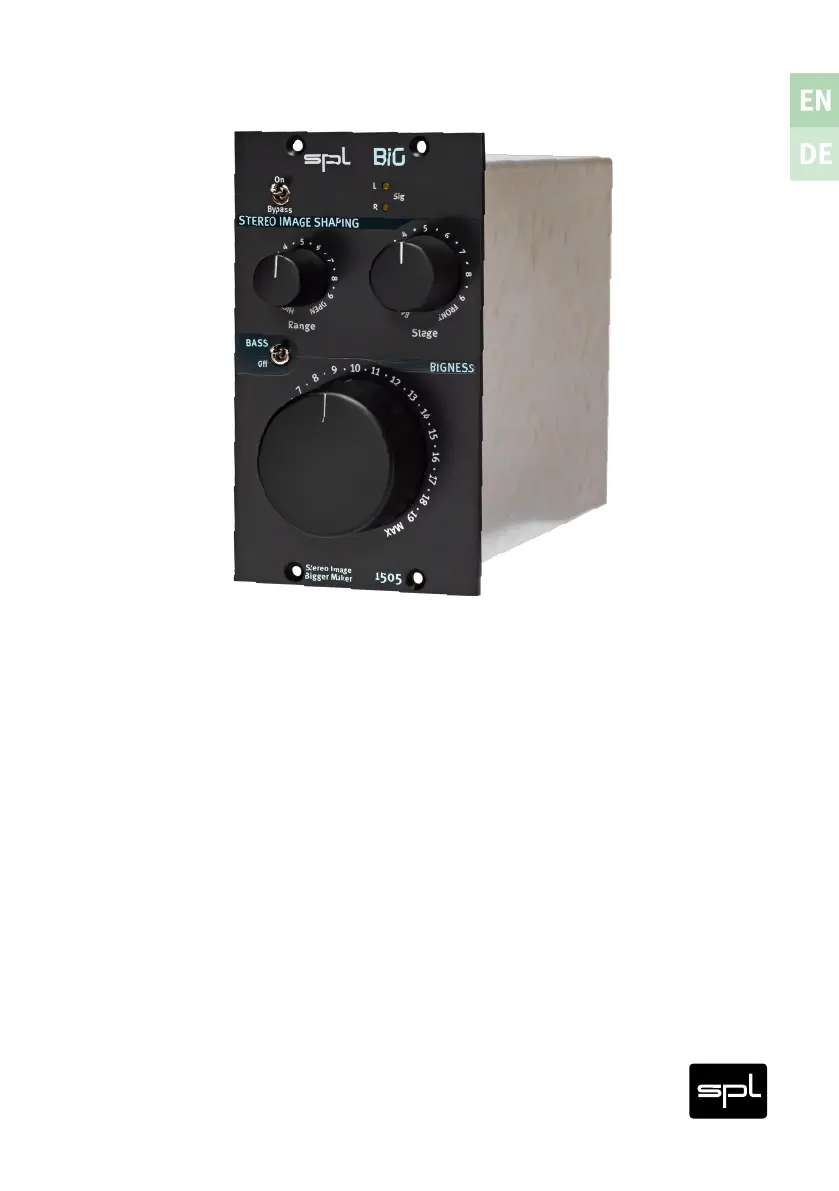

Stereo Image Bigger Maker
500 series double-slot module for stereo stage processing
BiG
EN
DE
2 BiG – 500 series BiG – 500 series 3
Introduction
Developer
Wolfgang Neumann
Version 1.0 – 05/2022
This manual contains a description of the product. In no way it represents a guarantee
of particular characteristics or results of use. The information in this document has
been carefully compiled and veried and, unless otherwise stated or agreed upon,
correctly describes the product.
Specications are subject to change without notice.
Specications
General
Frequency range (-3 dB): 10 Hz - 100 kHz
Common mode rejection (1 kHz, 0 dBu ): > -82 dBu
THD + N (0 dBu): 0.03%
Noise (A-weighted): 92.3 dBu
Dynamic range: 113 dB
Input (balanced)
Impedance: 20 kohms
Maximum input gain: +21 dBu
Output (balanced)
Impedance: 150 ohms
Maximum output gain: +21 dBu
Scope of Delivery
BiG module, 500 series
Manual
Measurement & Weight
Double-slot module, series 500
Weight: 1.98 lbs (0.9 kg)
Please keep the original packaging. In a service case the original packaging ensures a
safe transport.
Installation
Installation into a 500 series rack:
• Please read the manual that comes with the 500 series rack. You should receive all
necessary information for the installation process.
• For the installation or exchange of BiG, your 500 series rack should be switched
o and the power cable should not be connected.
• Insert the BiG module into two adjacent free slots of your rack. Make sure the con-
nectors of the BiG is precisely aligned with the rack connectors.
• Press the BiG module carefully into the rack connectors and tighten the screws.
• Connect the BiG module with your audio environment using the connections from
your 500 series rack.
• Insert the power cable to the 500 series rack and switch it on.
EN
DE
4 BiG – 500 series BiG – 500 series 5

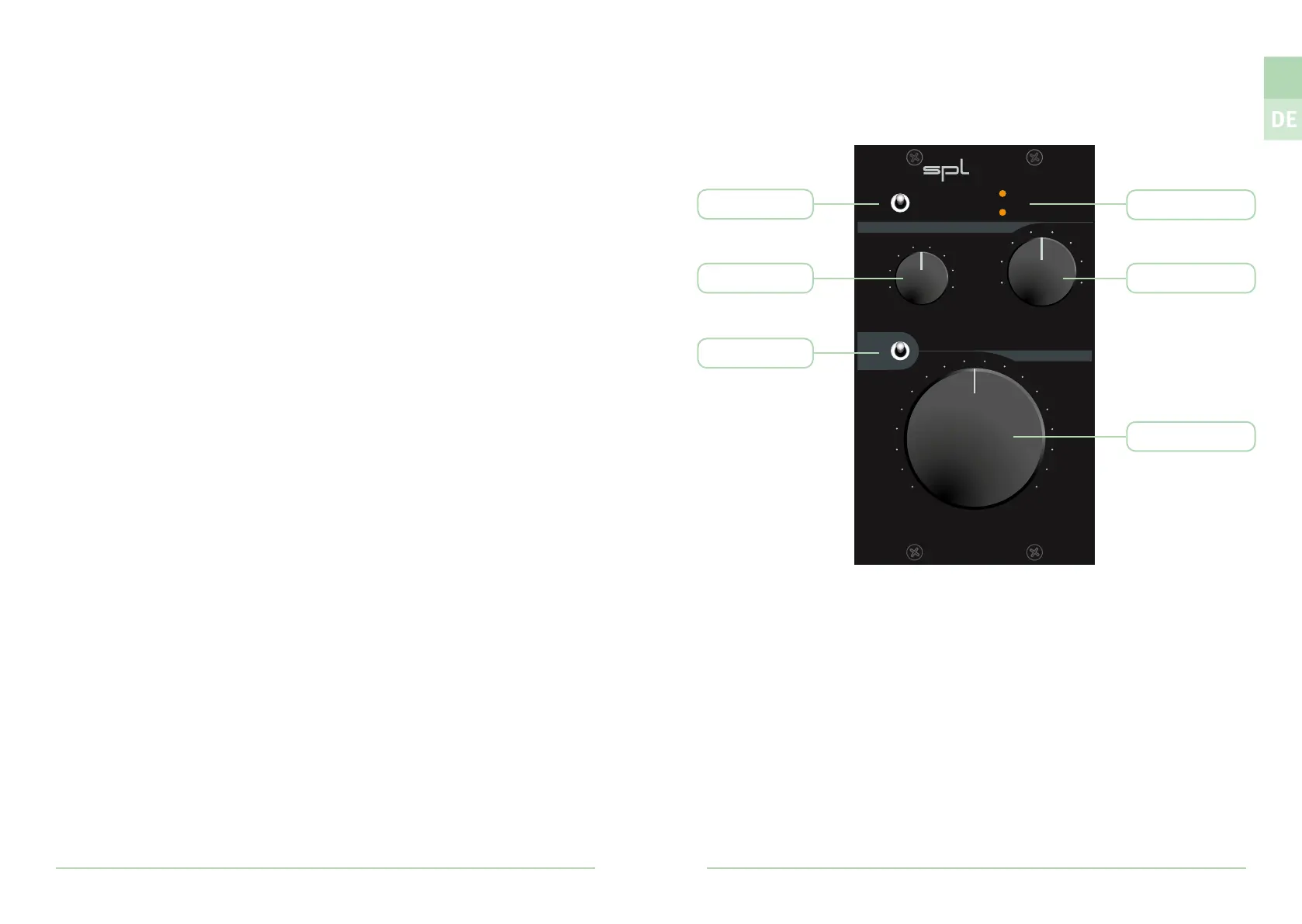

Control Elements
Signal LEDs
The signal LEDs (Sig) indicate whether an audio signal is present at the input of the
respective channel with a level higher than -20 dBu.
These LEDs serve as an assistant to quickly detect whether a signal arrives at the BiG
within a complex studio cabling.
On/Bypass
The On/Bypass switch activates or deactivates (Bypass) the module.
STEREO IMAGE SHAPING – Range
With the Range control, the frequency range which should be processed
can be selected.
STEREO IMAGE SHAPING – Stage
With the Stage control, the frequency range previously selected with the Range
control can be moved backwards or forwards on the stereo stage.
BASS
The BASS/O switch can be used to activate (BASS) or deactivate (O) an additional
bass boost following the BIGNESS section. The bass boost is performed by a passive
lter implemented in a similar circuit to the one used in the AirBass function of the
SPL IRON Mastering Compressor.
BIGNESS
The huge BIGNESS control adjusts the intensity of the STEREO IMAGE SHAPING.
Stereo Image
Bigger Maker
1505
BiG
H
I
G
H
O
P
E
N
M
I
N
M
A
X
BIGNESS
STEREO IMAGE SHAPING
On
Bypass
L
R
Sig
B
A
C
K
F
R
O
N
T
BASS
O
Stage
Range
On/Bypass
Range
BASS/O
Stage
Signal LEDs
BIGNESS
EN
DE
