Important operation notes

• The USB-C port on your computer must support DisplayPort over

USB-C (DP Alt mode) in order to work with this MST hub.

• MST is certied for operation with Microsoft® Windows 10, 8/8.1

and 7 devices.

• MST is currently not supported by other operating systems

such as Mac OS X and Chrome OS™.

• Other operating systems might adopt MST in the

future. Verify MST support with your operating system

manufacturer.

• Operating system support is subject to change. For the

latest requirements, please visit:

www.StarTech.com/MSTCDP123HD.

• After the MST hub has been connected to your computer it may

be necessary to initiate the operation of additional displays from

within your Windows Display Settings.

• The SCAN button resyncs all of the attached displays, and can be

utilized if any of the displays are not detected

• The MST adapter works with HDMI cables up to 15 ft. in length.

• Certain graphics adapters have limited MST support and will only

output to three displays in total. If more than three monitors are

attached, the fourth will be disabled, including built-in laptop

monitors or touchscreen displays.

• MST shares 21.6Gbps of bandwidth across all attached displays.

Higher resolutions can restrict the bandwidth available for the

remaining ports. Please see our guidelines below for determining

the ideal resolution for your setup.

Quick-start guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 08/21/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/MSTCDP123HD.

Package contents

• 1 x MST hub

Requirements

• 1 x computer with:

• DisplayPort over USB-C video support (DP Alt Mode)

• One of the following operating systems:

• Windows® 10 (32-bit or 64-bit)

• Windows 8 / 8.1 (32-bit or 64-bit)

• Windows 7 (32-bit or 64-bit)

• 3 x HDMI displays with cabling

Operating systems are subject to change. For the latest

requirements, please visit:

www.StarTech.com/MSTCDP123HD.

MSTCDP123HD

MST Hub - DisplayPort over USB-C to 3x DisplayPort

*actual product may vary from photos

Introduction

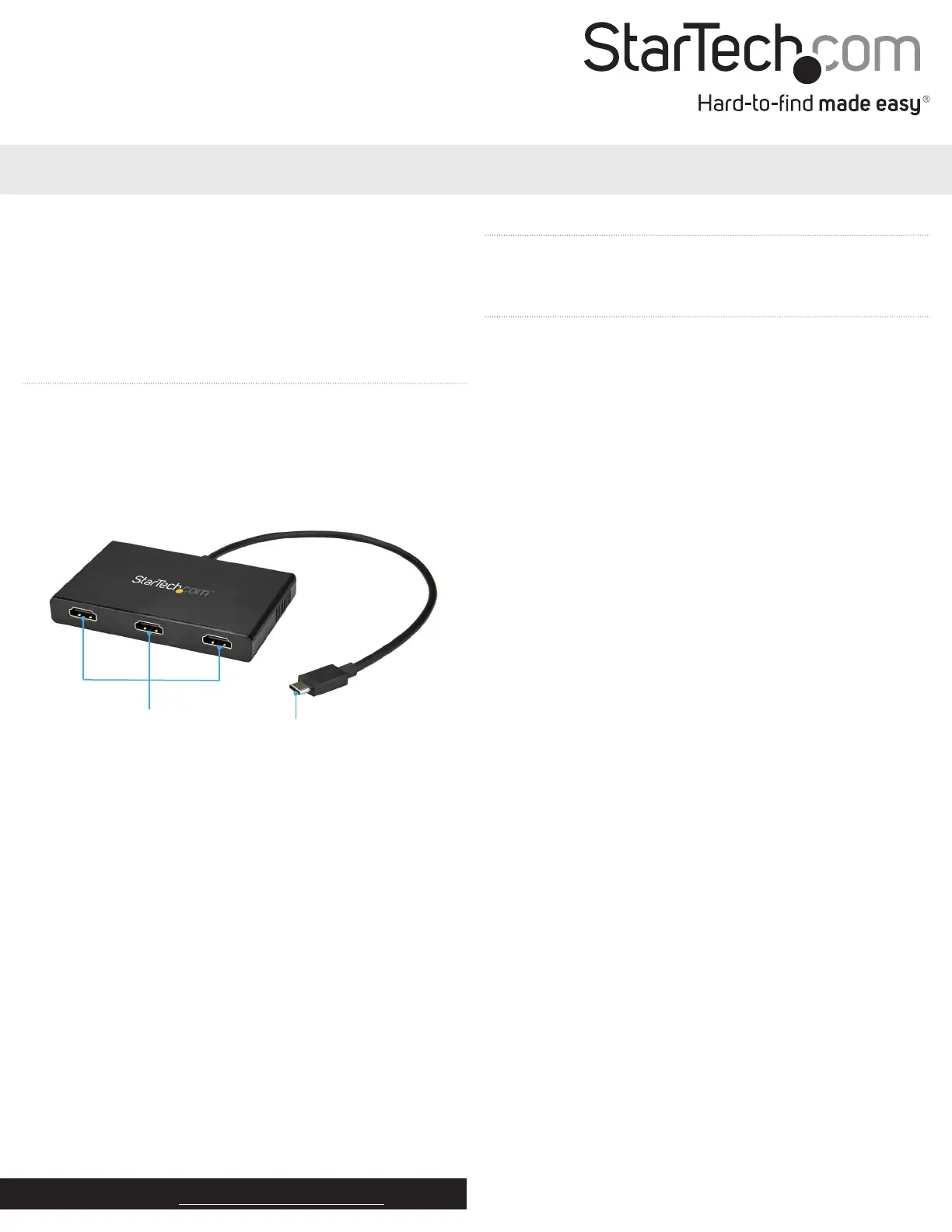

HDMI

output ports Integrated USB-C

input cable

This MST hub enables a Windows® device that’s equipped with

DisplayPort over USB-C™ (DP alt mode) to connect three DisplayPort

monitors.

Product overview

Installation

This device is natively supported in compatible operating systems

and supports plug-and-play installation.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders. Microsoft and

Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum.

Chrome OS is a registered trademark of Google Inc.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Examples of supported resolution congurations

Screen 1

resolution

Screen 2

resolution

Screen 3

resolution

Total % of

bandwidth

1920x1200

@60Hz (30%)

1920x1200
