Sida 1/41

Manual Revision: 01/23/2014
For the most up-to-date information, please visit: www.startech.com
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
PM1115P2
10/100Mbps Ethernet to Parallel Network
Print Server
*actual product may vary from photos

Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.

Instruction Manual
1
Table of Contents
Introduction ............................................................................................ 2
Packaging Contents 2 .................................................................................................................................
System Requirements 2 ..............................................................................................................................
Product Overview ..................................................................................3
LED Indicators.............................................................................................................................................3
Reset Button 4 ................................................................................................................................................
Default Settings 4 ........................................................................................................................................
Installation ..............................................................................................4
Hardware Installation 4 ..............................................................................................................................
Software Installation 5 ................................................................................................................................
Operation 15 ................................................................................................
PSAdmin Application (Windows) 15 ........................................................................................................
Troubleshooting 34 ........................................................................................................................................
Specications 36 ..........................................................................................
Technical Support ..................................................................................37
Warranty Information ............................................................................ 37

Instruction Manual
2
Introduction
Packaging Contents
• 1x Parallel Print Server
• 1x Power Adapter
• 1x Software CD
• 1x Quick Start Guide
System Requirements
• Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000, Windows® Server
2008 R2, 2003(32/64), Mac OS 10.x, 9.x, Linux

Instruction Manual
3
Product Overview
LED Indicators
LED IndicationState
Status Blinking for POST (Yellow)
When power is connected, the Status
indicator will ash ve times, and then
go solid.
100Mbps On (Green) LAN Port has a valid network connection
at 100Mbps.
10Mbps On (Yellow) LAN Port has a valid network connection
at 10Mbps.
DC Jack
Ethernet
Port
Status LED
10Mbps
Indicator
100Mbps
Indicator Reset Button
Centronics Printer
Connector

Instruction Manual
4
Reset Button
Reboot the Print Server:
1. Verify the power of print server is turned on.
2. Press the reset button once, and then release it.
Note: This will restart the print server and stop all on-going and pending print jobs.
Reset to Factory Defaults:
1. Disconnect the power adapter from the print server.
2. Hold down the reset button.
3. Reconnect the power adapter while continuing to hold the reset button for
about 5 seconds.
4. Release the reset button.
5. The print server will restart.
WARNING: This will erase all settings on the print server and return it to factory
default.
Note: A reset to factory defaults can also be performed through the web console,
covered later in this manual.
Default Settings
DHCP client: o
IP Address: 192.168.0.10
Subnet Mask: 255.255.255.0
Installation
Hardware Installation
1. Turn o the power to your printer.
2. Connect the print server to your printer with the appropriate printer cable.
3. Turn the printer on.
4. Plug in the AC power adapter into the DC jack on the print server.
5. Wait 10 seconds until the Status LED has stopped ashing.
6. Connect an RJ45 network cable to the print server, then to your network switch
or wall jack.

Instruction Manual
5
Software Installation
Windows
1. To enable network communication with print server, your computer must have a
proper IP address, e.g. 192.168.0.100 (the print server’s default IP is 192.168.0.10)

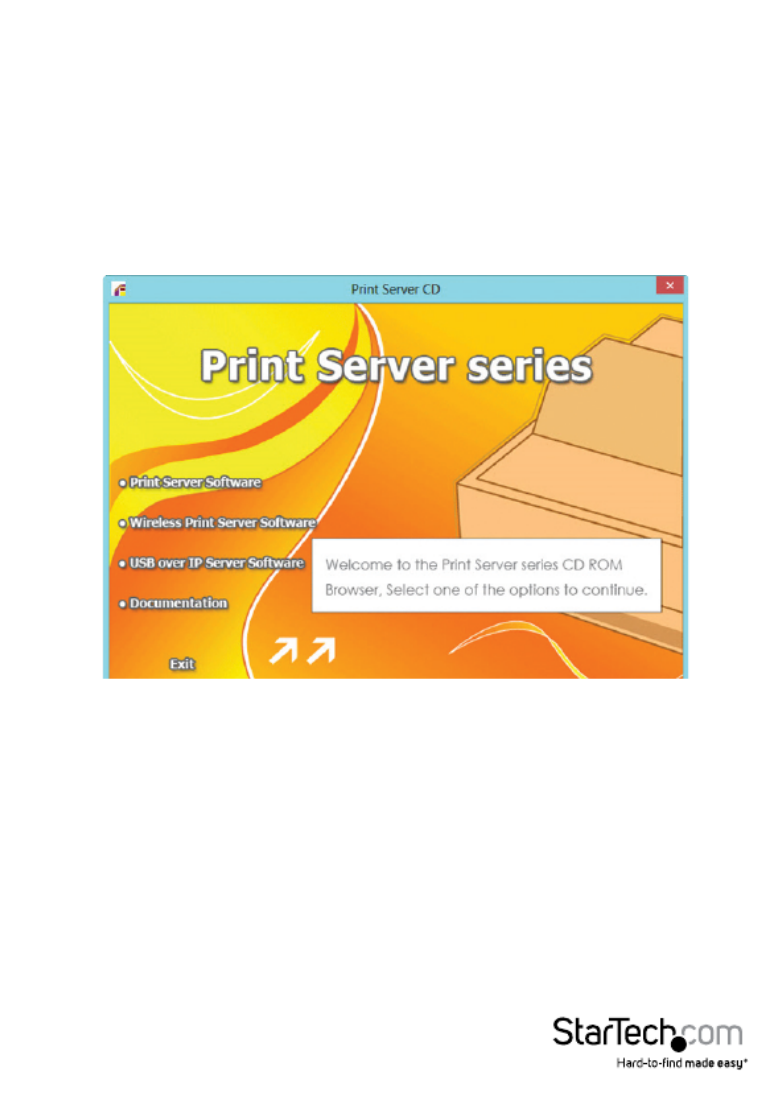

2. Insert the setup CD into your CD/DVD drive.
3. Select from the Autoplay menu. If Autoplay is disabled on your Setup Wizard
system, browse to your CD/DVD drive and run the application.
Note: The setup CD will install the print server driver, PSAdmin and Setup Wizard
into your computer. The default installation directory will be C:\Program les\
Network Print Monitor
4. Click Next on the following screen and the wizard will automatically discover the
print server. At this point of the install, you may get a Windows Firewall message,
click Allow Access if prompted.

Instruction Manual
8

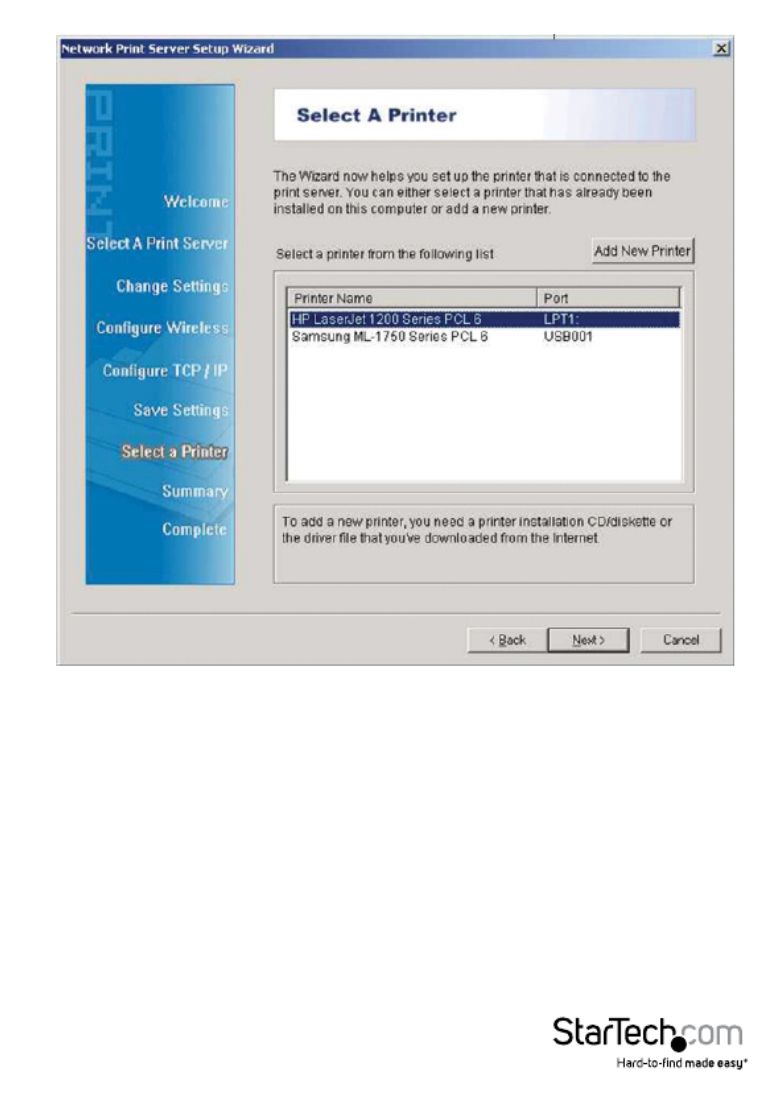

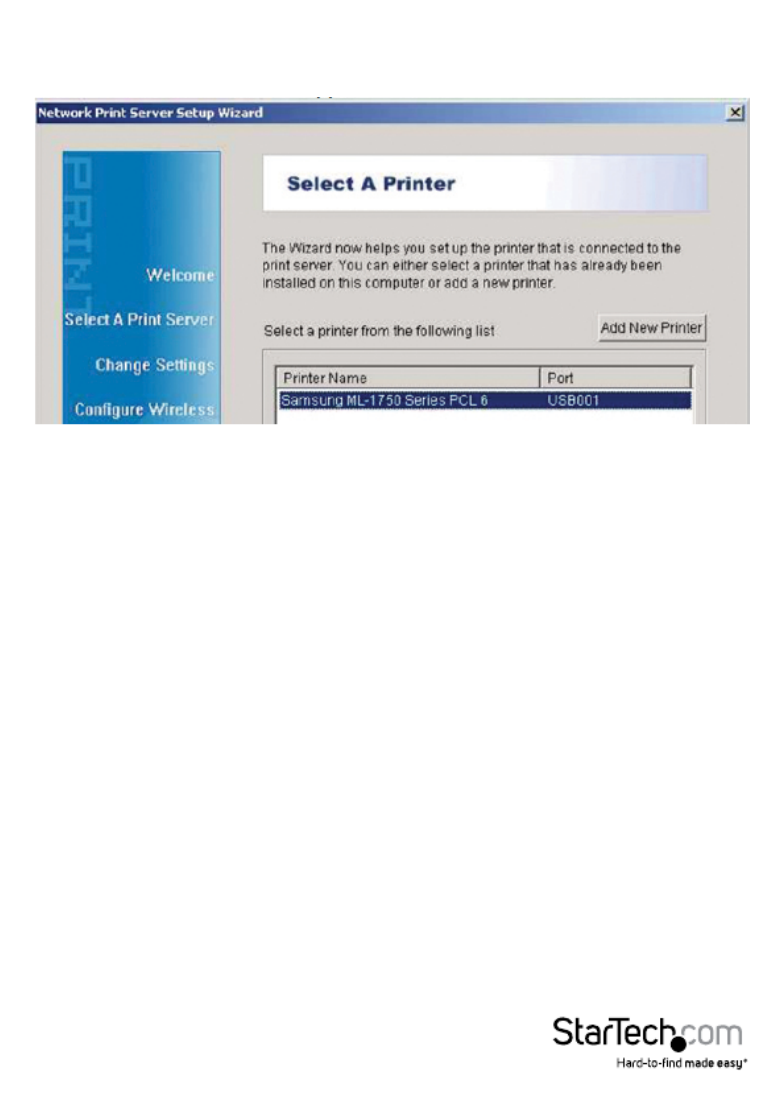

7. In the setup wizard, select an already congured printer from the list, click Next,
Next and then to complete the installation. Finish
OR
8. Select Add New Printer to launch the Windows Add Printer Wizard, if the print
server is connected to a printer that hasn’t been installed before and does not
appear in the list.

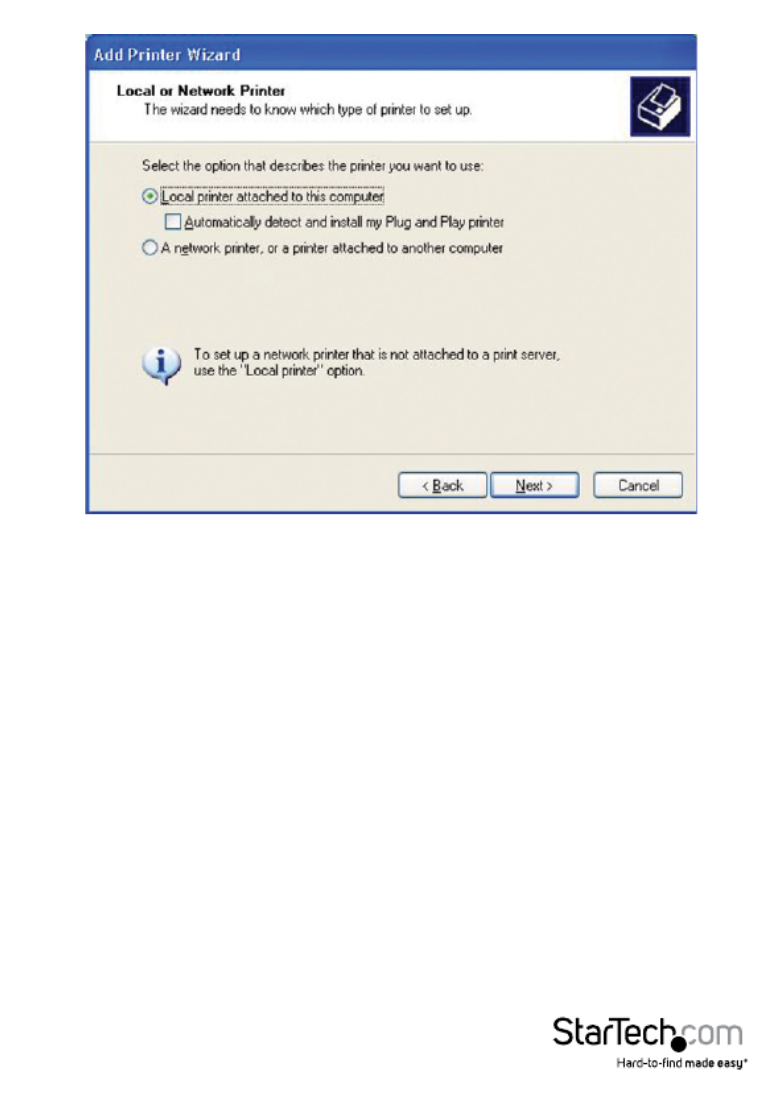

9. Click and select , make sure the Next Local Printer Automatically detect and
install my Plug and Play printer check box is NOT checked. Then click . Next

Instruction Manual
9

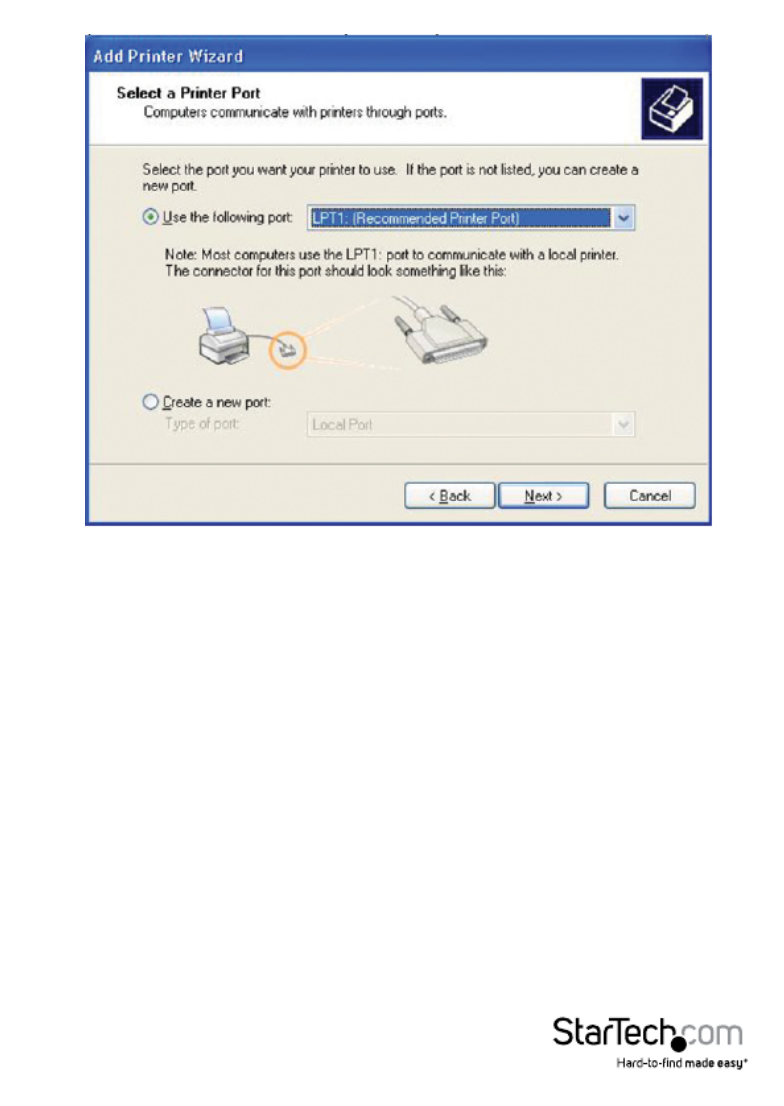

10. Make sure the Use the following port LPT1: radio-button is clicked and select
(recommended Printer Port) from the pull-down list. Then click .Next

Instruction Manual
10
11. Select and Printer from the lists of printer drivers. Then click . Manufacturer Next
12. If you already have the printer’s driver installed, you will be asked whether to keep
it or to replace it. Click Supply a name for the printer and choose whether you Next.
want to make it your default printer. Then click Next.
13. Then, choose whether you want to share the printer with other network user, print
a test page (please select .), etc. Select the appropriate radio-button and click No
Next and Finish.
14. In the setup wizard, nish the installation by highlighting the installed printer in the
Select a Printer Next, Next -> Finish list and click .

Instruction Manual
11
15. Click -> and highlight your newly installed printer.Start Devices and Printers

Instruction Manual
14
Mac OS
To use the print server in Mac OS (10.2 and up), no software installation is required. The
necessary conguration can be done through the Web Console.
1. Open your browser and enter the IP address of the print server in the address bar of
your web browser ( 192.168.0.10), then press Enter.Default:
2. Enter your user ID and password ( admin / no password).Default:

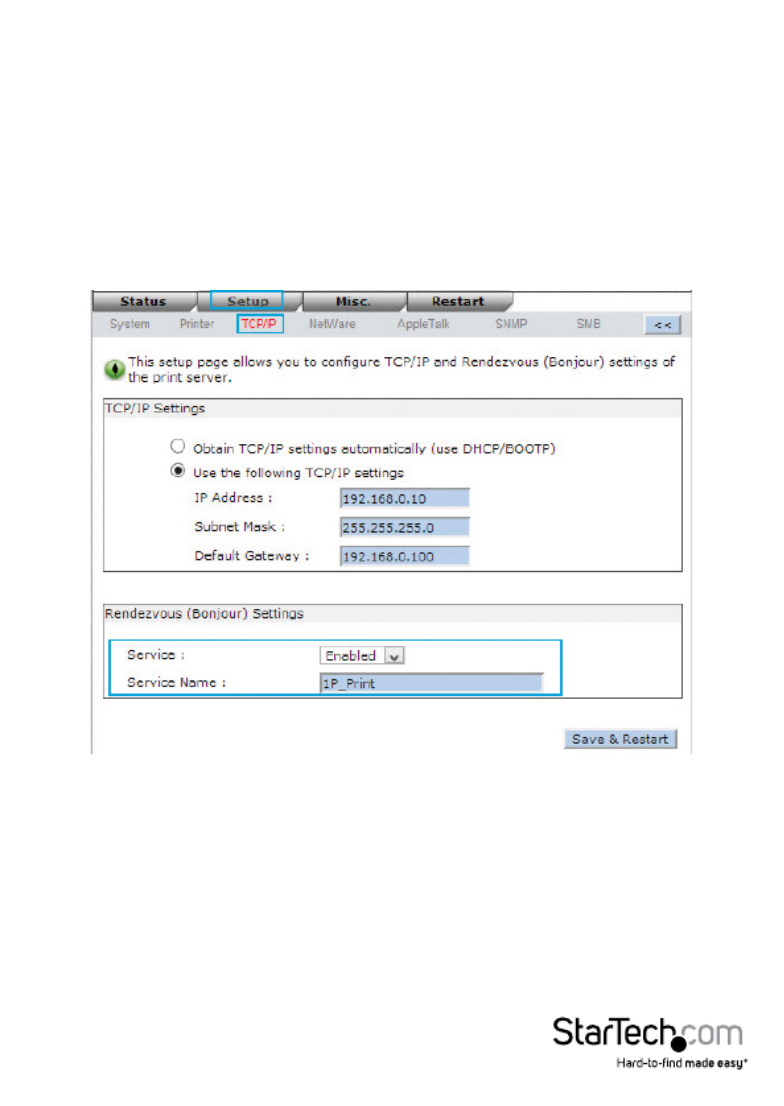

3. Click the section, then the tab. Setup TCP / IP
4. Change the box to Enabled and enter a Service Name to Rendezvous Settings
identify the print server on the network.
5. Click to apply the settings.Save & Restart
6. On your Mac system, open your System Preferences page, then the Print & Scan
Utility.
Produktspecifikationer
Varumärke: | StarTech.com |
Kategori: | Skrivarserver |
Modell: | PM1115P2 |
Vikt: | 53 g |
Bredd: | 52 mm |
Djup: | 56 mm |
Höjd: | 22 mm |
Förpackningens bredd: | 228 mm |
LED-indikatorer: | Activity, Link, Power, Status |
Typ av nätverksanslutning: | Ethernet LAN |
Produktens färg: | Beige |
Låddjup: | 152 mm |
Vikt inkl. förpackning: | 362 g |
Ytterförpackningens höjd: | 343 mm |
Produkter per ytterförpackning: | 20 styck |
Ytterförpackningens längd: | 487 mm |
Ytterförpackningens bredd: | 373 mm |
Mac-operativsystem som stöds: | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Datahastighet för Ethernet-LAN: | 10, 100 Mbit/s |
Antal LAN (RJ-45) anslutningar: | 1 |
Temperaturintervall (förvaring): | 0 - 50 ° C |
Intervall för relativ operativ luftfuktighet: | 10 - 70 % |
Fuktighet (förvaring): | 0 - 50 % |
Extern strömadapter: | Ja |
Hållbarhetscertifiering: | RoHS |
AC-inspänning: | 100-240 V |
Stöd för nätverksprotokoll: | IPX, TCP/IP (LPR, IPP, RAW 9100), NetBEUI, AppleTalk, SNMP, SMB |
Likströmsingång: | Ja |
Växelström Frekvens: | 50 - 60 hz |
Manual: | Ja |
Kommunikationsstandarder: | IEEE 802.3, IEEE 802.3u |
Linux operativsystem som stöds: | Ja |
Intern: | Nej |
Ingående ström: | 0.31 A |
Mac-kompatibel: | Ja |
Parallellport: | 1 |
