SB-WM-ART1-S-BL
Weatherproof Universal Single-Arm Articulating Mount
for Small Displays
10mm Long Screws
-M4x10 (4)
-M5x10 (4)
-M6x10 (4)
16mm Long Screws
-M4x16 (4)
-M5x16 (4)
-M6x16 (4)
20mm Long Screws
-M4x20 (4)
-M5x20 (4)
-M6x20 (4)
30mm Long Screws
-M4x30 (4)
-M5x30 (4)
-M6x30 (4)
Black M5
Washer (16)
Black M8
Washer (8)
Black Nylon
Washer (4)
BOX CONTENTS
Not Pictured: Manual (1)
SPECIFICATIONS
• Weather Resistant Coating
• Stainless Steel Mounting Hardware
• Maximum Load: 50 lbs (22.68 kg)
• VESA Patterns: 75x75, 100x100, 200x200
• Tilt Range: +/- 13.8°
• Pan/Swivel Range: 180°
• Horizontal Rotation: 360°
• Extension/Prole: 3.7” to 15.2” (9.5 to 38.5 cm)
WARNINGS
• Make sure these instructions are read and thoroughly understood before attempting installation. If you are unsure of any part of
the installation process, contact a professional installer for assistance.
• The wall or mounting surface must be capable of supporting the combined weight of the mount and the display; otherwise the
structure must be reinforced.
• Safety gear and the proper tools must be used. Failure to do so can result in property damage and/or serious injury.
• Follow all instructions and recommendations regarding adequate ventilation and suitable locations for mounting your display.
Consult the owner’s manual for your display for information.
CAUTION: This wall mount is
intended for use only with maximum
weight of 50 lbs (22.68 kg).
TV Mounting Hardware
(Extra parts are included to ensure compatibility with your TV. Not all of this hardware will be used.)
TOOLS REQUIRED
• Phillips Head screwdriver
• Electric or Portable Drill
• 3/16” (5mm) Drill Bit and Stud nder for Drywall Installation
• 5/16” (8mm) Masonry Bit for Concrete Installation
Wall Mount Assembly (1)
Wall Plate (1)
200x200 VESA
Adapter Arms (4)
Adapter Arm Hardware
M6x12 Bolts w/ Nuts (4 ea.)
Lag Screws (2)
Concrete Anchors
(2)
Hex Keys
4mm (1)
6mm (1)
Security Keys
4mm (1)
5mm (1)
6mm (1)
INSTALLATION
1-1. Installing the Wall Plate (Drywall)
IMPORTANT! For safety reasons, this mount must be secured to a wood stud capable of supporting the combined weight of the
mount and display.

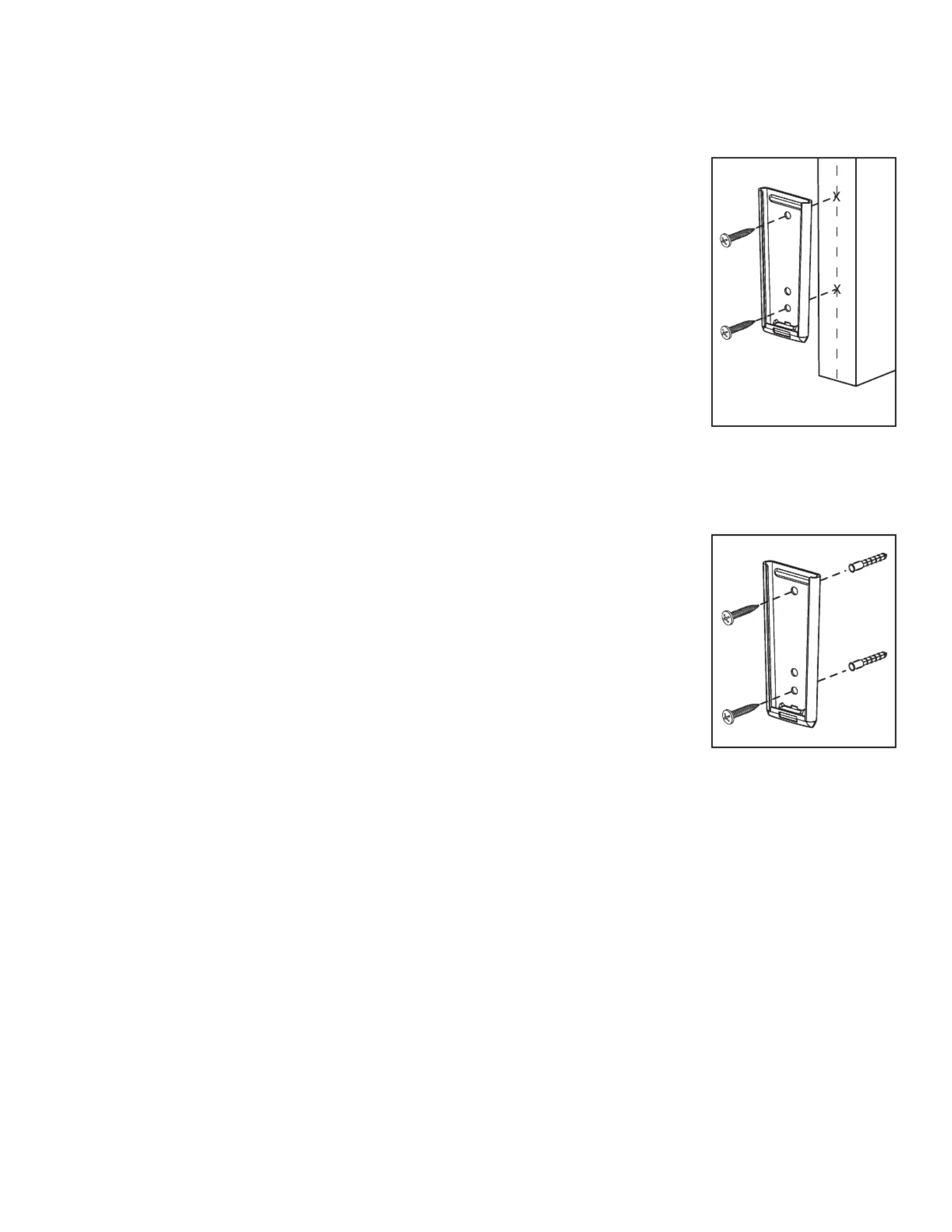

A. Use a high quality stud nder to locate a single stud where you want to install your mount.
B. Mark both edges of the stud to help identify the exact center (see illustration to the right).
C. Place the wall plate over the center of the marked stud and level it using the integrated bubble
level.
D. Mark the two holes for securing the mount and set wall plate aside.
E. Drill a pilot hole at each marked location using an electric or portable drill and 3/16” (5 mm) bit.
F. Move the wall plate back into position and secure it using the lag screws from the hardware kit.
Do not over-tighten the screws.
2. Attaching the Mount to the Display
IMPORTANT! Avoid placing your display face down as it may damage the viewing surface. Use care when handling your display!
NOTE: Dierent bolt lengths are included to accommodate a wide variety of displays. Not all included hardware will be used.
A. Determine the VESA pattern of your display. If necessary, attach adapter arms for 200x200 using M6 security bolts and lock nuts.
B. Determine the correct bolt to use by examining the back of your display:
• If the back of your display is at and the mounting holes are ush with the surface, you will use one of the 10 mm length
bolts from the TV mounting hardware kit.
• If the back of your display is curved, has a protrusion, or if the mounting holes are recessed, use the longer bolts and spacers.
Use the shortest screw possible to avoid damage to the display from protrusion through the mounting hole.
C. Attach the mount to the back of your display using the matching hardware. Do not over-tighten the screws.
NOTE: If the holes of the mount do not line up with the holes on your display, check to make sure that your display is VESA com-
patible. This mount can only be used with displays that are VESA 75, 100, or 200 compatible.
Align screws with
center of stud
1-2. Installing the Wall Plate (Concrete)
IMPORTANT! For safety reasons, the concrete wall must be capable of supporting the combined weight of the mount and display.
A. Place the wall plate in the desired location, using the built-in bubble to level it.
B. Mark the two holes for securing the mount and set the wall plate aside.
C. Drill a 5/16” (8 mm) hole at both marked locations. Remove any excess dust from the holes.
D. Insert a concrete anchor into each hole so that it is ush with the concrete surface. A hammer
can be used to lightly tap the anchors into place if necessary.
NOTE: If the concrete wall is covered by a layer of plaster or drywall, the concrete anchor must
pass completely through the layer to rest ush with the concrete surface.
E. Move the wall plate back into position and secure it using the lag screws from the hardware kit.
Do not over-tighten the screws.
