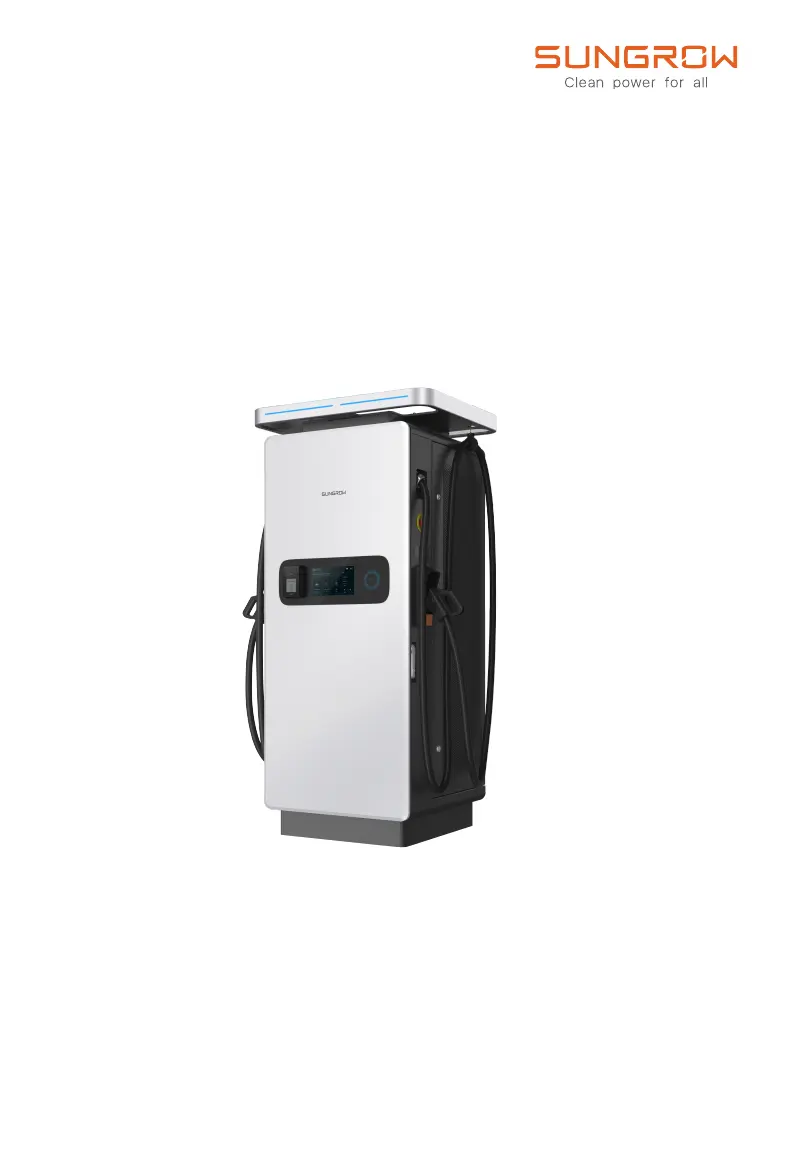

Quick Installation Guide
IDC180E
IDC180E-QIMUL-Ver12-202402
Integrated DC Charger
This document will be updated from time to time due to updates of the product or other reasons. Under no circumstances
should this document be taken as a substitute for the user manual and the safety instructions provided on the product.
Before performing any operation, please read through carefully the user manual and relevant standards and specications.
You can nd the related documents by visiting http://support.sungrowpower.com/ , or by scanning the QR code provided on
the device or back cover of this Quick Installation Guide.
Operations on the device must only be performed by qualied technical persons. The qualied technical persons must have
received specialized training, read through the user manual to gain a good understanding of the relevant safe operation
instructions, and be familiar with the applicable local standards and safety code for electrical systems.
Before installation, check the delivered items for quantity according to the packing list and see if the delivery matches the
order you placed. Meanwhile, inspect the items for any visible damage. Contact the transport service provider or SUNGROW
in case of anything abnormal.
The cables used must all be intact and well-insulated. Be sure to use insulated tools and wear personal protective equipment
properly during operation.
Violation of any of the above requirements may result in personal injury or device damage.
Safety Disclaimer
Marks on the Product
SUNGROW shall not be held liable for any personal injury or device damage arising from device-related operations that are not
carried out in compliance with the requirements specied in this document or the user manual.
Do not touch the contact inside the charging connector when it is powered on.
Electrical connection must be performed by qualied personnel who wear personal protective equipment.
All electrical connections must be done in compliance with the applicable local and national electrical standards.
Be sure to use specialized insulated tools when performing electrical connection.
Do not use the charger when its charging connector or cable is defective, frayed, cracked, or in case of exposed wires.
Contact SUNGROW if you have found any of the above issues.
When the charger is running, do not touch any of its live parts or remove any of its part or component; otherwise, it may lead
to electrical shocks.
Burn hazard!
During the charging process, do not touch any hot part of the charger (e.g., air outlet for heat dissipation); otherwise, it may
cause burns.
All safety signs and warning labels and the nameplate on the charger must be clearly visible and cannot be removed or
covered.
Non-qualied personnel are forbidden from disassembling the device or moving its components.
Do no install the device in a place with corrosives such as corrosive gas and organic solvent, etc.
Do not install the device in dusty and smoky environments.
Disconnect the device from all the external
power sources before maintenance!
Burn hazard due to the hot surface
that may exceed 60－!
Danger to life due to high voltages!
Only qualified technical persons can install and
operate the device.
Read the user manual before performing any
operation on the device.
Do not dispose of the device together with
household waste.
CE mark of conformity.
EU/EEA Importer.
UKCA mark of conformity.
TÜV mark of conformity.
EBOHFS
XBSJOH
DBVUJPO
OPUJDF
EN
Radio data
EU Declaration of Conformity
within the scope of the EU directives:
Low Voltage Directive 2014/35/EU (LVD)
Electromagnetic compatibility Directive 2014/30/EU (EMC)
Radio Equipment Directive 2014/53/EU (RED)
The restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment Directive 2011/65/EU
and Commission Delegated Directive (EU)2015/863
SUNGROW confirms herewith that the products described in this document are in compliance with the fundamental
requirements and other relevant provisions of the above-mentioned directives. The entire EU Declaration of Conformity can be
found at support.sungrowpower.com.
WIFI
Model
Power Supply
3.3V
Maximum transmitting power
20dBm
Max. Antenna gain
Model
EC25-EUX
3.8VPower Supply
2.5dBi
Frequency range
2412-2472MHz
AW-AM510-I
RFID
4G
5V
0dBi
MT628V115
<5 dBμA/m
13.56MHz
*Technical parameters listed above apply to EU countries only.
Frequency range
Maximum transmitting power
LTE band 1
1920~1980 MHz
LTE band 3
1710~1785 MHz
LTE band 7
2500~2570 MHz
LTE band 8
880~915 MHz
LTE band 20
832~862 MHz
LTE band 28
703~736 MHz
LTE band 38
2570~2620 MHz
LTE band 40
LTE band 1
LTE band 3
LTE band 7
LTE band 8
LTE band 20
LTE band 28
LTE band 38
LTE band 40
2.0dBi
Max. Antenna gain
2300~2400 MHz
24.37 dBm
24.04 dBm
23.60 dBm
24.17 dBm
22.88 dBm
23.17 dBm
23.78 dBm
23.78 dBm
