INFORMATIONSHEET

Calibre Basin Mixer

Product code: CBM

160

80

100

40

35

48

sussextaps.com.au

5.0

litres per

minute

Licence No. 0124

In accordance with AS/NZS 6400

Sussex Taps Pty Ltd

WATER RATING

www.waterrating.gov.au

The more

stars the more

water efcient

AS/NZS 3718:2005

LIC. 20081

Calibre

Calibre Basin Mixer

Productcode:Availableoptions:

CBMBasinMixer

CEBMExtendedBasinMixer

INSTALLATIONGUIDE

PLUMBERNOTE

-On-site testing using higher water pressures must be

conducted with the Mixer in the closed position.

(STATICTEST)

-UndernocircumstancesistheMixertobeopened

whenexceedingthemaximumstatedwaterpressure.

-At the completion of testing, do not relieve any high

water pressure by operating the Mixer.

-Exposing the internals of the Mixer Cartridge to higher

than specified water pressures will void the

manufacturerswarranty.

INSTALLATIONGUIDELINES

-The Mixer is supplied assembled, only the Fixing nut

and the Clamp need to be removed.

-After removing the mentioned parts, lower the Mixer

on to the mounting surface and fit the Flexible Hoses.

-In some cases the Flexible Hoses may need to be fed

throughfromunderthemountingsurfaceandthen

attached.(Tightenusingappropriatespanner)

-After securing the Flexible Hoses, fit Clamp and attach

theFixingNutfromunderneath.

-Before fully securing the Mixer ensure that the Base O

Ring is intact and the Mixer is properly centered over

themountingsurfacehole.

-The Mixer mounting surface must be completely sealed

and water-tight.

-The 1/2” Fittings of the Flexible Hoses have a conical

seal, ensure that the matching threads are cut square

and burr free.

-Prior to connecting the Flexible Hoses, ensure all

pipeworkisthoroughlyflushedandensurepipeworkis

free of any dirt ordebri.

-IsolatingStopValvesarerecommendedwithall

installations.(notsupplied)

-Connect the Flexible Hoses to Hot and Cold pipework

fittings, ensure the Hoses do not kink or become

twisted whentightening.

-Checkallfittingsandconnectionsaresecureand

water-tight.

BASE

O-RING

CLAMP

Hole Size

32-35mm

50mm Max.

Bench thickness

1/2" BSP Fittings

with conical Seals

FLEXIBLE HOSES

FIXING

NUT

CONCEPT One

Product code

Circa

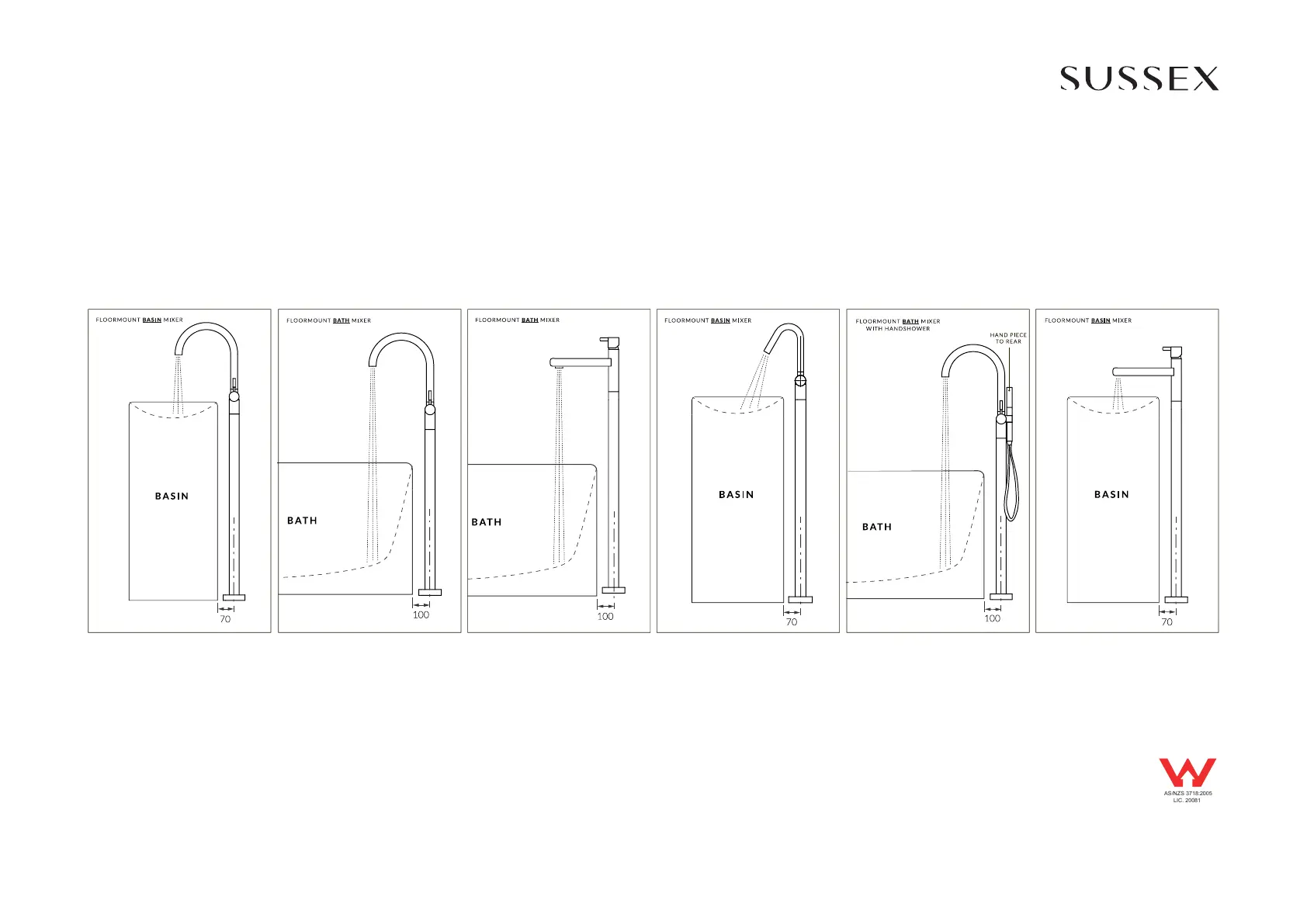

Floormount mixer Fixing distances

RFMCT Floormount mixer

RFMCT-V Floormount mixer - Vertex

RFMBMCT Floormount basin mixer

RFMBMCT-V Floormount basin mixer - Vertex

RFMHT Floormount mixer with hand shower

RFMHT-V Floormount mixer with hand shower - Vertex
