INFORMATIONSHEET

Calibre Basin Mixer

Product code: CBM

160

80

100

40

35

48

sussextaps.com.au

5.0

litres per

minute

Licence No. 0124

In accordance with AS/NZS 6400

Sussex Taps Pty Ltd

WATER RATING

www.waterrating.gov.au

The more

stars the more

water efcient

AS/NZS 3718:2005

LIC. 20081

Calibre

Calibre Basin Mixer

Productcode:Availableoptions:

CBMBasinMixer

CEBMExtendedBasinMixer

INSTALLATIONGUIDE

PLUMBERNOTE

-On-site testing using higher water pressures must be

conducted with the Mixer in the closed position.

(STATICTEST)

-UndernocircumstancesistheMixertobeopened

whenexceedingthemaximumstatedwaterpressure.

-At the completion of testing, do not relieve any high

water pressure by operating the Mixer.

-Exposing the internals of the Mixer Cartridge to higher

than specified water pressures will void the

manufacturerswarranty.

INSTALLATIONGUIDELINES

-The Mixer is supplied assembled, only the Fixing nut

and the Clamp need to be removed.

-After removing the mentioned parts, lower the Mixer

on to the mounting surface and fit the Flexible Hoses.

-In some cases the Flexible Hoses may need to be fed

throughfromunderthemountingsurfaceandthen

attached.(Tightenusingappropriatespanner)

-After securing the Flexible Hoses, fit Clamp and attach

theFixingNutfromunderneath.

-Before fully securing the Mixer ensure that the Base O

Ring is intact and the Mixer is properly centered over

themountingsurfacehole.

-The Mixer mounting surface must be completely sealed

and water-tight.

-The 1/2” Fittings of the Flexible Hoses have a conical

seal, ensure that the matching threads are cut square

and burr free.

-Prior to connecting the Flexible Hoses, ensure all

pipeworkisthoroughlyflushedandensurepipeworkis

free of any dirt ordebri.

-IsolatingStopValvesarerecommendedwithall

installations.(notsupplied)

-Connect the Flexible Hoses to Hot and Cold pipework

fittings, ensure the Hoses do not kink or become

twisted whentightening.

-Checkallfittingsandconnectionsaresecureand

water-tight.

BASE

O-RING

CLAMP

Hole Size

32-35mm

50mm Max.

Bench thickness

1/2" BSP Fittings

with conical Seals

FLEXIBLE HOSES

FIXING

NUT

CONCEPT One

Product code

Voda

VFMT Floormount mixer 160mm

VFM200T Floormount mixer 200mm

VFM250T Floormount mixer 250mm

VFMHT Floormount mixer with hand held

VFMMCT Floormount mixer with curved outlet

VFMBMCT Floormount basin mixer curved

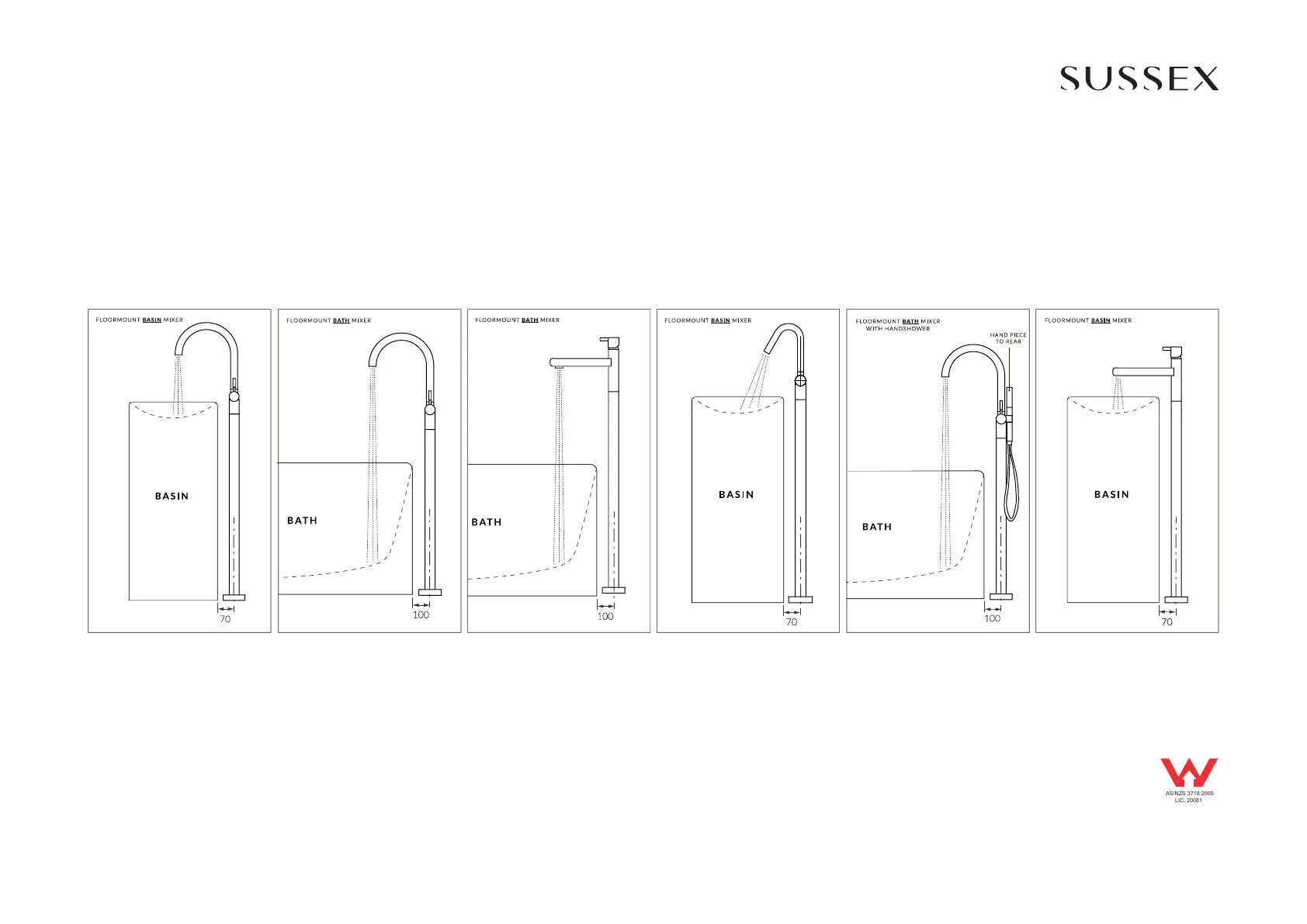

Floormount mixer Fixing distances

sussextaps.com.au

Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003

Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c
