Quick Start Guide

FLASHBACK TRIPLE DELAY

V 1.0

Visit musictribe.com to download the full manual

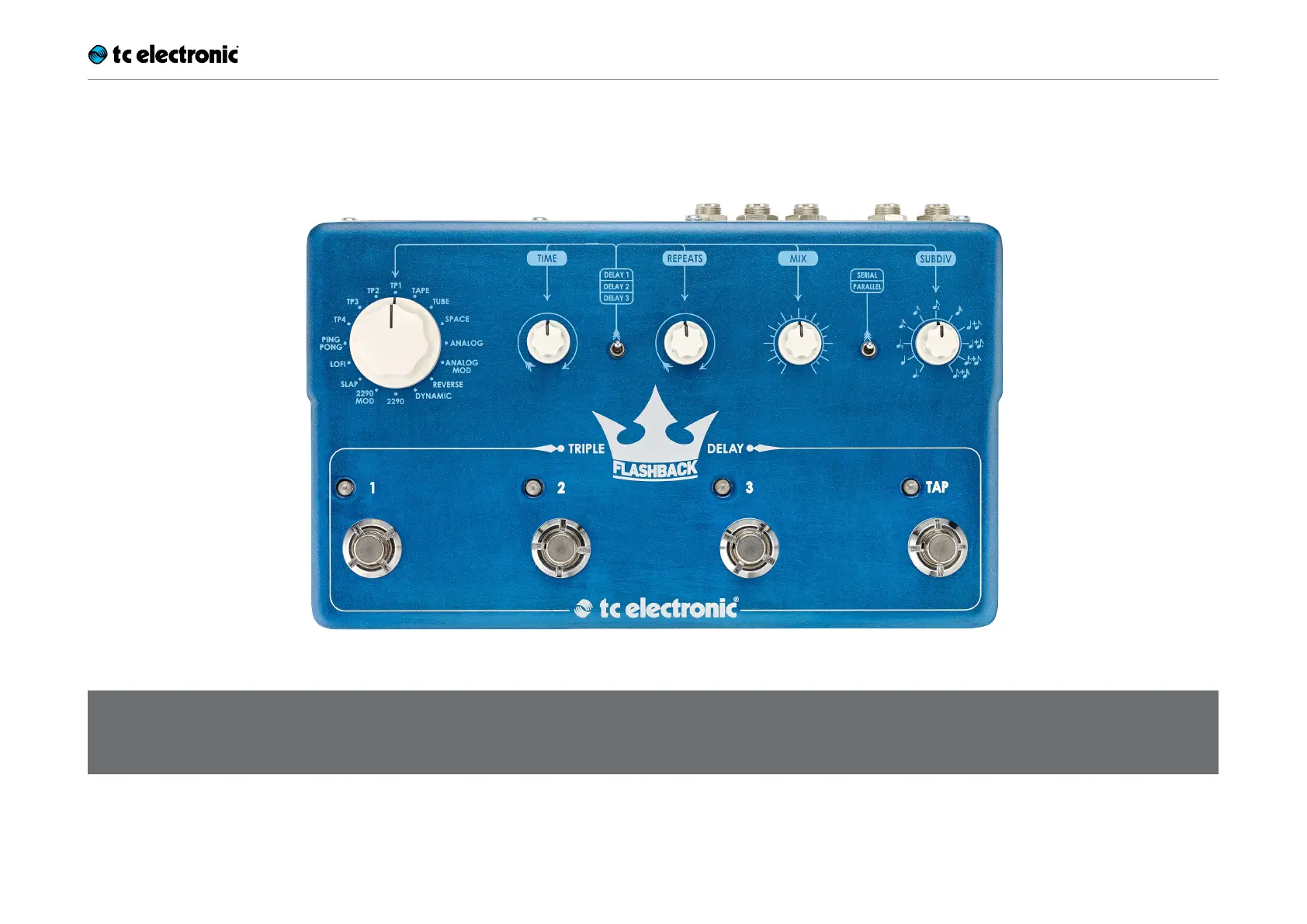

(3) (4)(2)(1) (5) (6) (7)

(8) (9)

(10) (11) (12) (13) (15) (16)(14)

2 3

FLASHBACK TRIPLE DELAY FLASHBACK TRIPLE DELAY

(EN) Controls

(1) DELAY TYPE – Selects between a wide range of delays – from classic

tape delays to the pristine sound of a TC 2290. The TP1, TP2, TP3 and

TP4 slots are reserved for TonePrints, and you can load one TonePrint

into each slot.

(2) TIME – Adjust the delay time for the currently-selected Delay Engine.

(3) DELAY 1/2/3 – Choose which of the three Delay Engines is available

for editing with the DELAY TYPE, TIME, REPEATS, MIX and SUBDIV controls.

(4) REPEATS – Control the number of delay repeats for the Delay Engine

currently selected for editing with the DELAY 1/2/3 selector switch.

(5) MIX – Control the amount of delay mixed with the original dry signal.

(6) SERIAL/PARALLEL – Choose the signal path for the three delay

engines. Serial Mode sends the output from Delay Engine 1 into

Delay Engine 2, which then sends its output to Delay Engine 3.

In Parallel Mode, each Delay Engine outputs separately.

(7) SUBDIV – Select the rhythmic subdivision (e.g., dotted quarter

notes, quarter notes, eighth notes, and so on) used to create

the delay repetitions. The basic pulse used for subdivision

is controlled by the TIME knob or the TAP footswitch.

(8) DELAY ENGINE/PRESE T (1/2/3) – Use these footswitches to turn

the Delay Engines (1, 2 and 3) on or o. The three Delay Engines can

each be activated separately (on = LED is lit). Switching a Delay Engine

o and then on again will recall the stored Preset for that Delay Engine.

(9) TAP – This footswitch sets the desired delay time (as an alternative

to the TIME knob). Tap the TAP footswitch rhythmically to set up

the basic tempo used by the SUBDIV knob to generate the delays.

(10) INPUT (MONO/STEREO) – Connect one ¼" TS cable for mono

operation, or 2 cables for stereo.

(11) OUTPUT (MONO/STEREO) – Connect one ¼" TS cable for mono

operation, or 2 cables for stereo.

(12) EXP PEDAL – Connect an expression pedal (optional/not included).

We recommend that you use a 25 kΩ linear pot expression pedal.

Once you have connected and congured an expression pedal, you can

use the pedal to control Delay Time, Delay Repeats or the Delay Mix.

(13) POWER INPUT – Connect a 9 V power supply providing 300 mA

or more (included).

(14) USB – Use a standard Mini-B USB to connect your pedal

to a computer for TonePrints and rmware updates.

(15) MIDI IN – Connect a computer/DAW (or another device generating

a MIDI Clock signal) to control the pedal’s delay tempo.

(16) MIDI THRU – Forward the incoming MIDI signal to another

MIDI-equipped device. Connect the MIDI THRU jack to the MIDI input

of another device further down the signal chain.

IMPORTANT SAFETY INSTRUCTION

Before operating the device, please see “Important Safety Instructions”

on page 3 of the full manual.

Visit musictribe.com to download the full manual.

(ES) Controles

4 5

FLASHBACK TRIPLE DELAY FLASHBACK TRIPLE DELAY

(13) ENTRADA DE ALIMENTACIÓN – Conecte una fuente de alimentación

de 9 V que proporcione 300 mA o más (incluida).

(14) USB – Utilice un USB Mini-B estándar para conectar su pedal

a una computadora para TonePrints y actualizaciones de rmware.

(15) MIDI IN – Utilice un USB Mini-B estándar para conectar su pedal

a una computadora para TonePrints y actualizaciones de rmware.

(16) MIDI THRU – Reenviar la señal MIDI entrante a otro dispositivo

equipado con MIDI. Conecte la toma MIDI THRU a la entrada

MIDI de otro dispositivo más abajo en la cadena de señal.

INSTRUCCIONES DE SEGURIDAD IMPORTANTES

Antes de utilizar el dispositivo, consulte las “Instrucciones de seguridad

importantes” en la página 3 del manual completo.

Visite musictribe.com para descargar el manual completo.
