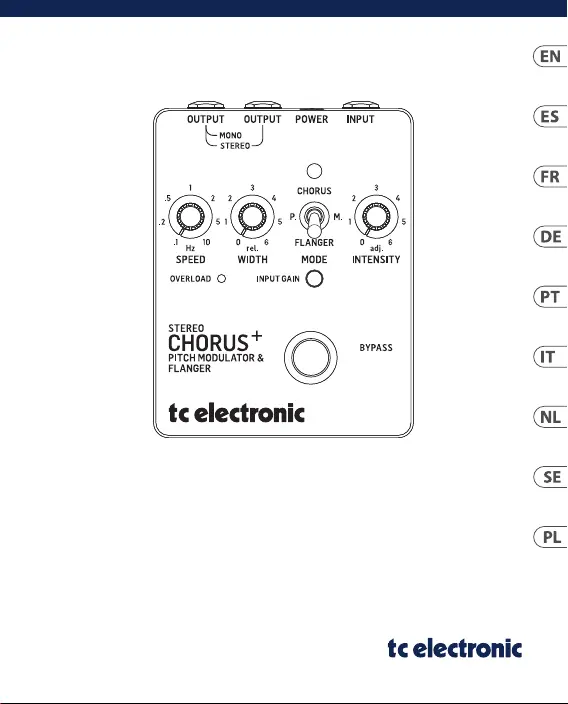

SCF GOLD

Reissue SCF Stereo Chorus Flanger Pedal with

3 Modulation Modes, Analog BBD Circuit and Preamp

Quick Start Guide

V 1.0

2SCF GOLD

3 types of stereo eects

The 3 kinds of eects are all stereo, but can be used in mono as well. The eects are suitable

for all electric or electried instruments and will in no way compromise the tonal quality

of the instrument.

Chorus

A chorus is basically a pitch generator which mixes multiple delay signals. When the

multiple delay signals are mixed with the original signal, a soft and wide sounding

modulation eect is created.

Flanger

A anger is based on the same principle as a chorus, although here the signal can be

regenerated (like adding feedback on a delay) creating a more distinctive sounding eect.

Pitch Modulation

A combination of chorus and pitch vibrato which creates a “light” chorus sound.

Real Stereo

When using stereo, the eect signals and the clean signal appear simultaneously in both sides.

The eect signals are alternating phase reversed in left and right sides, creating a unique

spatial dimension.

Introduction SCF GOLD Controls

4SCF GOLD

(1) SPEED – Controls the rate of sweep

in a range from 1 sweep every

10 seconds to 10 sweeps each second

(0.1 – 10 Hz). Slower Speed settings

usually work well with higher

Width settings, and faster speeds

should use lower Width settings.

(2) INTENSITY – The Intensity knob has 3

functions, one for each mode:

• In the Chorus mode, it blends

between chorus and clean signal.

• In Flanger mode, it controls

the strength of the comb lter

phasing of the signal (like

feedback on a delay).

• In Pitch Modulation mode,

it blends chorus with vibrato.

(3) MODE – Switches between the

3 modes of operation: Chorus, Pitch

Modulation (P.M.), and Flanger.

(4) WIDTH – Determines how wide of

a modulation (sweep) is produced.

Ranges are from 0 (no modulation) to

6 (max) on a relative scale.

(5) INPUT GAIN – Controls the gain of

the built-in preamplier. Set fully

counterclockwise for most situations.

(6) OVERLOAD – Indicates when the SCF

is close to being overloaded. Adjust for

occasional peak indication.

(7) INPUT – High impedance input.

Connect your instrument here.

(8) OUTPUT (MONO) – Outputs a

monophonic eect signal, or if both

outputs are used, the left channel of

the stereo signal.

(9) OUTPUT (STEREO) – Outputs the right

channel of the stereo signal.

(10) BYPASS – Press to engage or bypass

the pedal.

(11) POWER – Connect a standard

9 V / >150 mA power supply.

(12) LED INDICATOR – Indicates the sweep

rate (as set by Speed knob) with the

eect on.

SCF GOLD Controls

(EN) Controls
