Technaxx® * User Manual

HD Rearview Mirror Dash Cam TX-124

Suitable for most of cars (& vans, SUVs, minibuses, caravans,

etc.) as assistance for reverse parking.

This system is designed to be an aid and should NOT replace

the need to drive carefully.

Under no circumstances will the manufacturer or supplier

accept any responsibility or can held liable for any direct or

indirect, incidental or consequential damage, or for injuries

resulting from installing or use of this system.

The Declaration of Conformity for this device is under the Internet link:

www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the

device the ﬁrst time, please read the user manual carefully.

Service phone No. for technical support: 01805 012643 (14 cent/minute from German ﬁxed-line and 42 cent/minute from mobile networks).

Free Email: support@technaxx.de

Keep this user manual for future reference or product sharing carefully. Do

the same with the original accessories for this product. In case of warranty,

please contact the dealer or the store where you bought this product.

Warranty 2 years

Enjoy your product * Share your experience and opinion on one of the

well-known internet portals.

Features

 Rearview mirror Dash cam for high resolution HD video recordings suitable

for most vehicles

 Rearview camera gives more safety when driving backwards & reverse

parking

 Dash cam recording angle 90° & rearview camera wide angle 160°

 Simultaneous recording of dash cam & rear camera

 Invisibly integrated TFT color display (Ø screen 10.9cm/4,3")

 Automatic night vision mode (~2m) for rearview camera (4 white LED)

 Automatic activation of rearview camera when engaging reverse gear

 Recordings with time & date stamp

 Attachment to the rearview mirror with adjustable rubber bands

 Rear camera protection class IP68 (dustproof & protection against

permanent immersion)

Technical speciﬁcations

Rearview camera

Sensor / Resolution 1/4" CMOS 0.5MP / 720x480 pixel

Viewing angle 160°

LED light ~2m

Power supply Connection cable (6m) Dash cam to rearview

camera (video transmission & power supply)

Working temperature –20°C up to +50°C

Protection class IP68

Weight / Dimensions 28g / (L) 3.0 x (W) 2.0 x (H) 2.0cm

Mirror with display & Dash cam

Display / Resolution TFT colour display 10.9cm (4.3“) / 480x272 pixel

Sensor / Resolution 1/4" CMOS 1MP/ 1280x720 pixel

Viewing angle 90°

Recordings Video (AVI) (simultaneous recording of dash

cam & rear camera)

Power consumption 3W

Power input DC 5V via Mini USB

Max. current 230mA

MicroSD card Max. 32GB SDHC class 10

Loop video recording Yes

Built-in microphone / speaker Yes / Yes

Switch On/Oﬀ Support auto ignition startup, shutdown

ﬂameout

Supported language English, German, French, Italian, Czech,

Polish, Dutch

Working temperature / Humidity

0°C up to +40°C / 85% RH max.

Weight / Dimensions 217g / (L) 30.0 x (W) 8.0 x (H) 3.5cm

Package

Contents

Rearview mirror with display & Dash cam, Rearview camera,

12V cigarette power supply for rearview mirror (2.5m),

Video/power cable (6m) for connection between Dash cam

and rearview camera, 2x mirror rubber holder, 2x screws,

User Manual

Hints for Environment Protection: Packages materials are

raw materials and can be recycled. Do not disposal old

devices or batteries into the domestic waste. Cleaning:

Protect the device from contamination and pollution (use a

clean drapery). Avoid using rough, coarse-grained materials or

solvents/aggressive cleaner. Wipe the cleaned device

accurately. Technaxx Deutschland GmbH & Distributor:

Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany

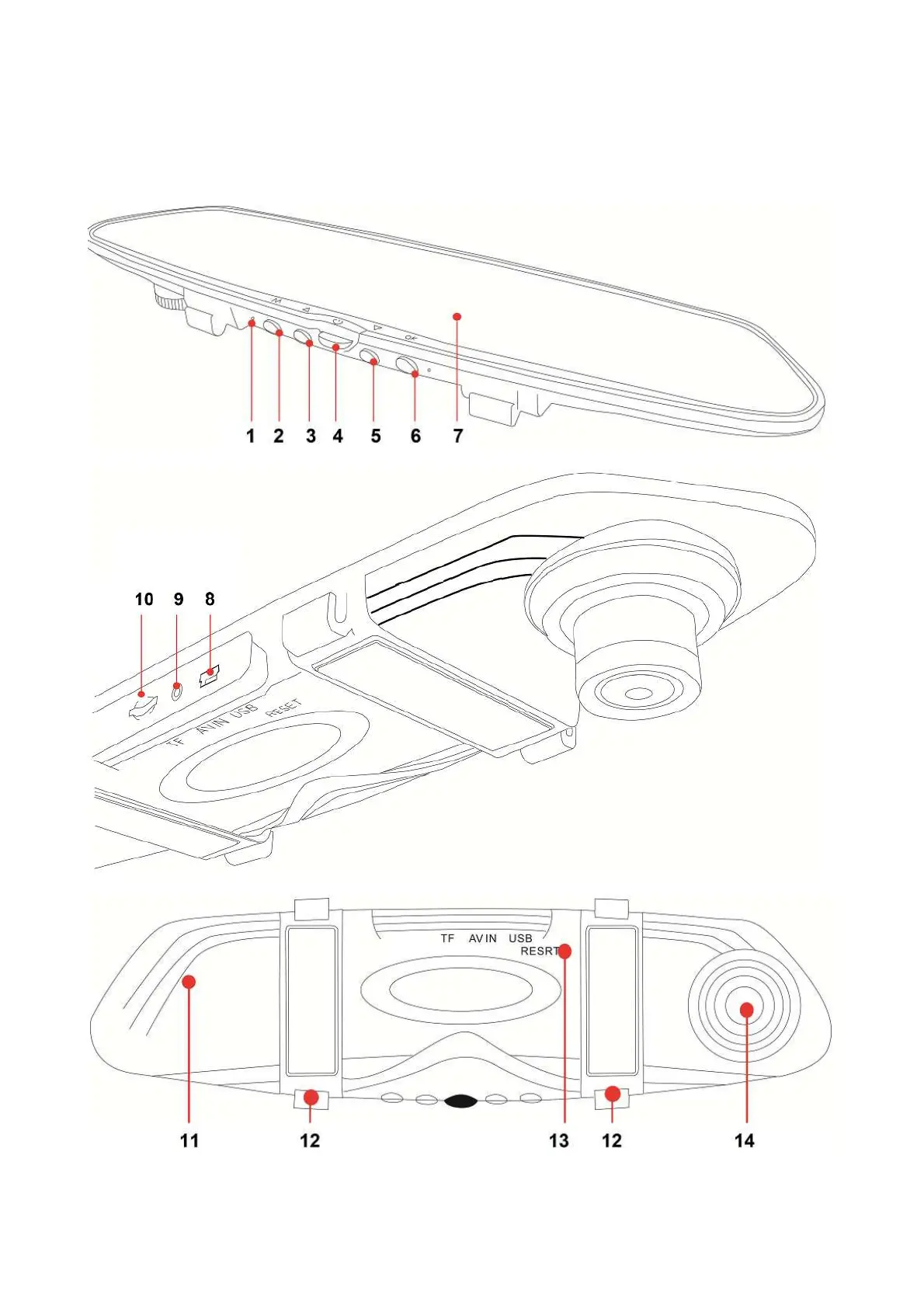

Product Overview

Dash Cam
