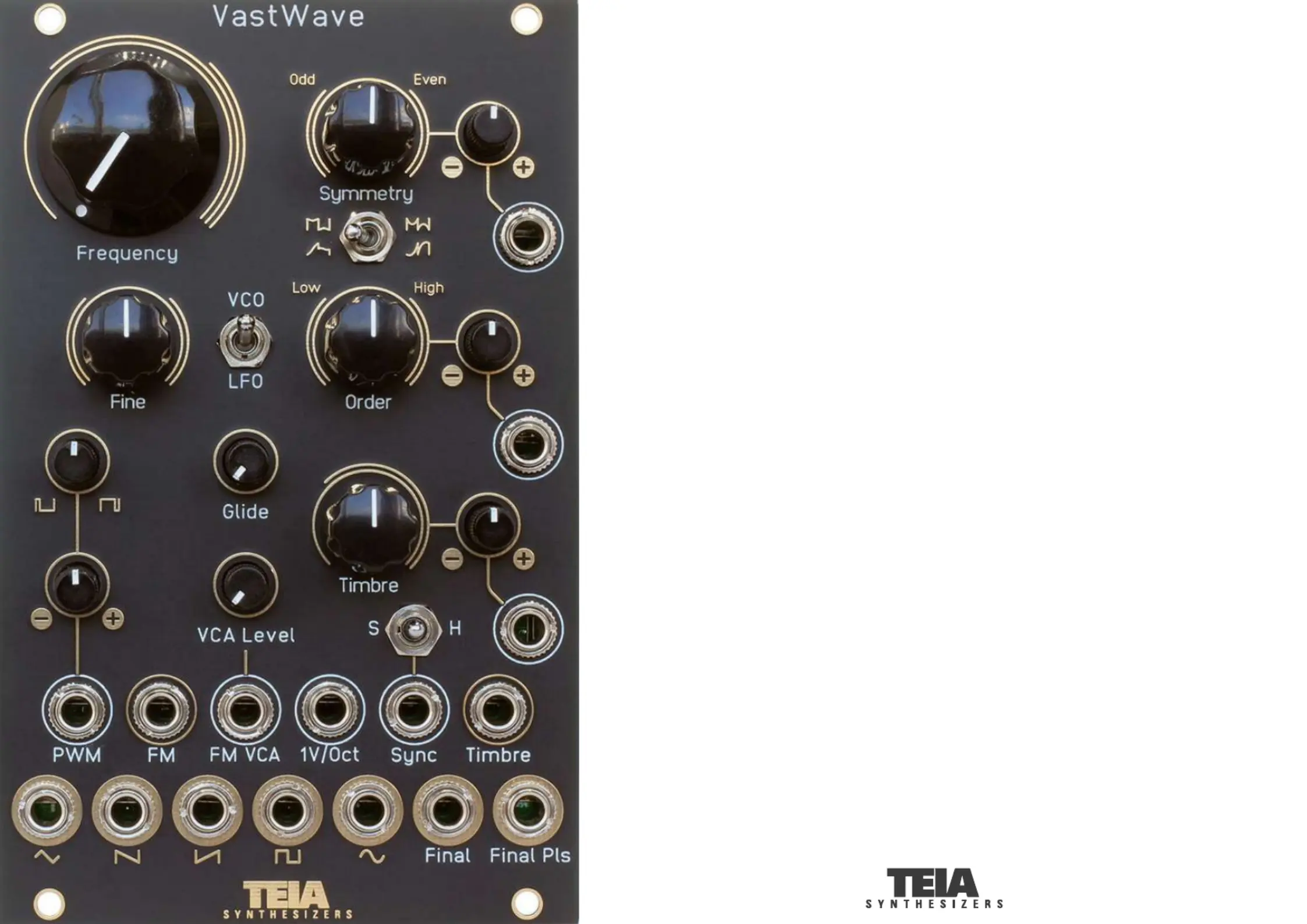

Analog Complex Oscillator
VastWave
1
VastWave is a complex analog Oscillator with advanced waveshaping
capabilities that invites new textural and harmonic exploration
beyond subtractive synthesis principles.
Crossfading between harmonically rich folded waveforms and
waveforms with Odd/Even harmonics, the VastWave waveshaper
expands on the Principal Oscillator heritage, bringing an additional
set of waveforms with Odd and Even harmonics and a pulse wave-
form derived from the Waveshaper’s Final output stage.
Furthermore the linear FM input has a dedicated VCA for external FM
amplitude modulation and an on board linear Glide delivers a more
musical approach to this classic feature.

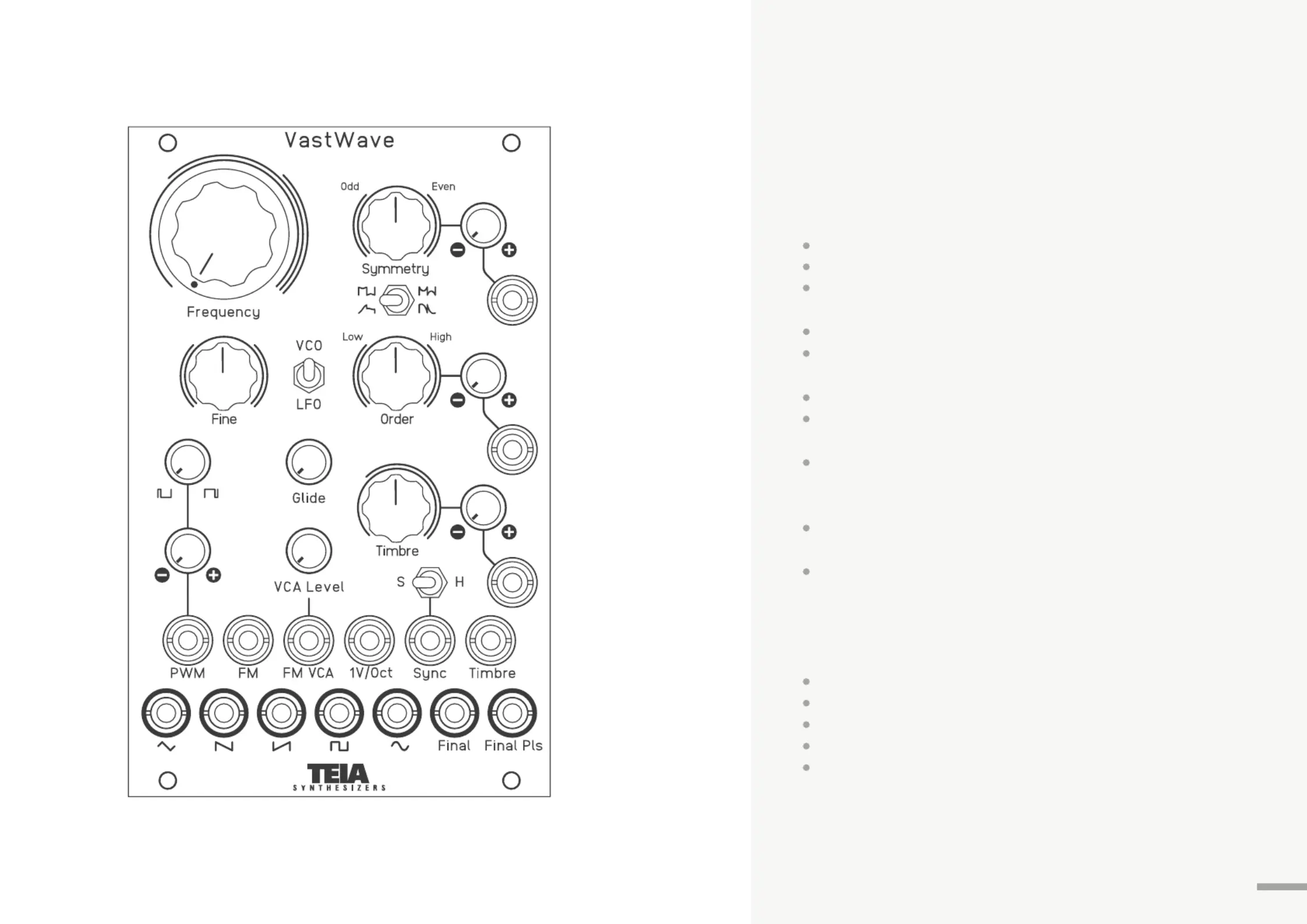

Overview
2
Overview
Voltage controlled complex waveshaping.
Triangle core.
FM input with voltage controlled amplitude
for FM amplitude modulation.
On board linear Glide.
Voltage controlled Pulse-width modulation
for Pulse and Final Pls waveforms.
Modern temperature and tuning stability.
High Frequency (VCO) or Low Frequency
(LFO) operation.
External Timbre input with sine wave
normalization if no external source is
patched.
Attenuator/inverter knobs on all voltage
controlled inputs.
Inverted or double Sawthooth waveform
(selectable by jumper).
Features:
Width: 16HP
Depth: 33mm
Power consumption: ##mA +12 ##mA -12
Eurorack Format
Doepfer power connection
Specs:
3
1
1
6 9
7 9
2
3
4
9
5
8 9
12
11
10

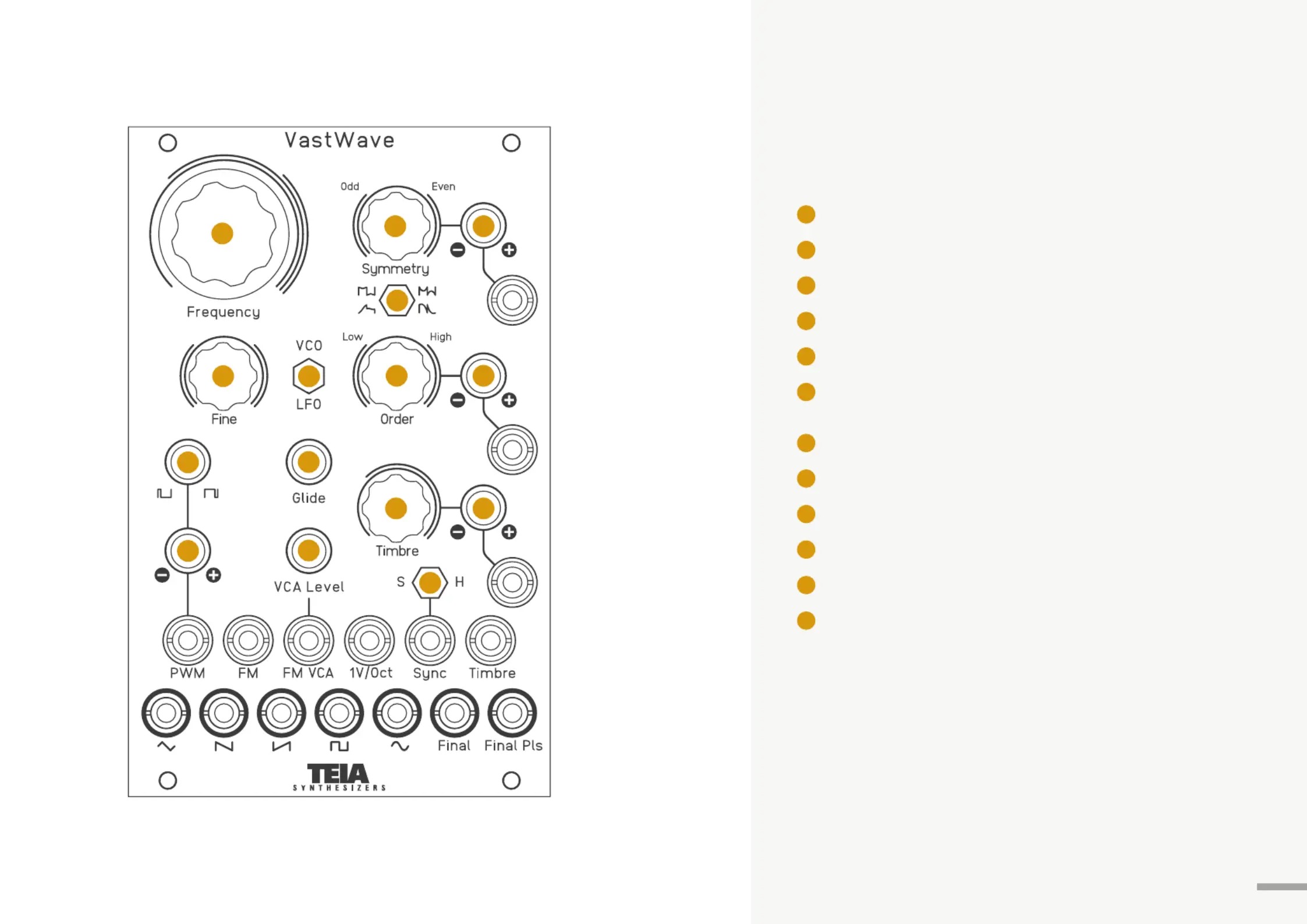

Manual Controls
Frequency Offset control
2
Frequency Fine tune control
3
Pulse Width control for both Pulse wave and Final Pls wave
4
1 Volt per octave linear glide amount
5
Linear FM amplitude level
6
Even to Odd harmonics waveform Crossfade (High section) and
Timbre (Low section) Symmetry control
7
Low to High section Crossfade
8
Timbre control (Low Section) and High section fundamental Sine wave
9
CV attenuator-inverter
10
Low frequency (LFO) or High frequency (VCO) operation switch
11
Even and Odd harmonics waveform set switch
12
Hard or Soft synchronisation switch
4
1
7777789
2 3 4 5 6
1
10
10
10

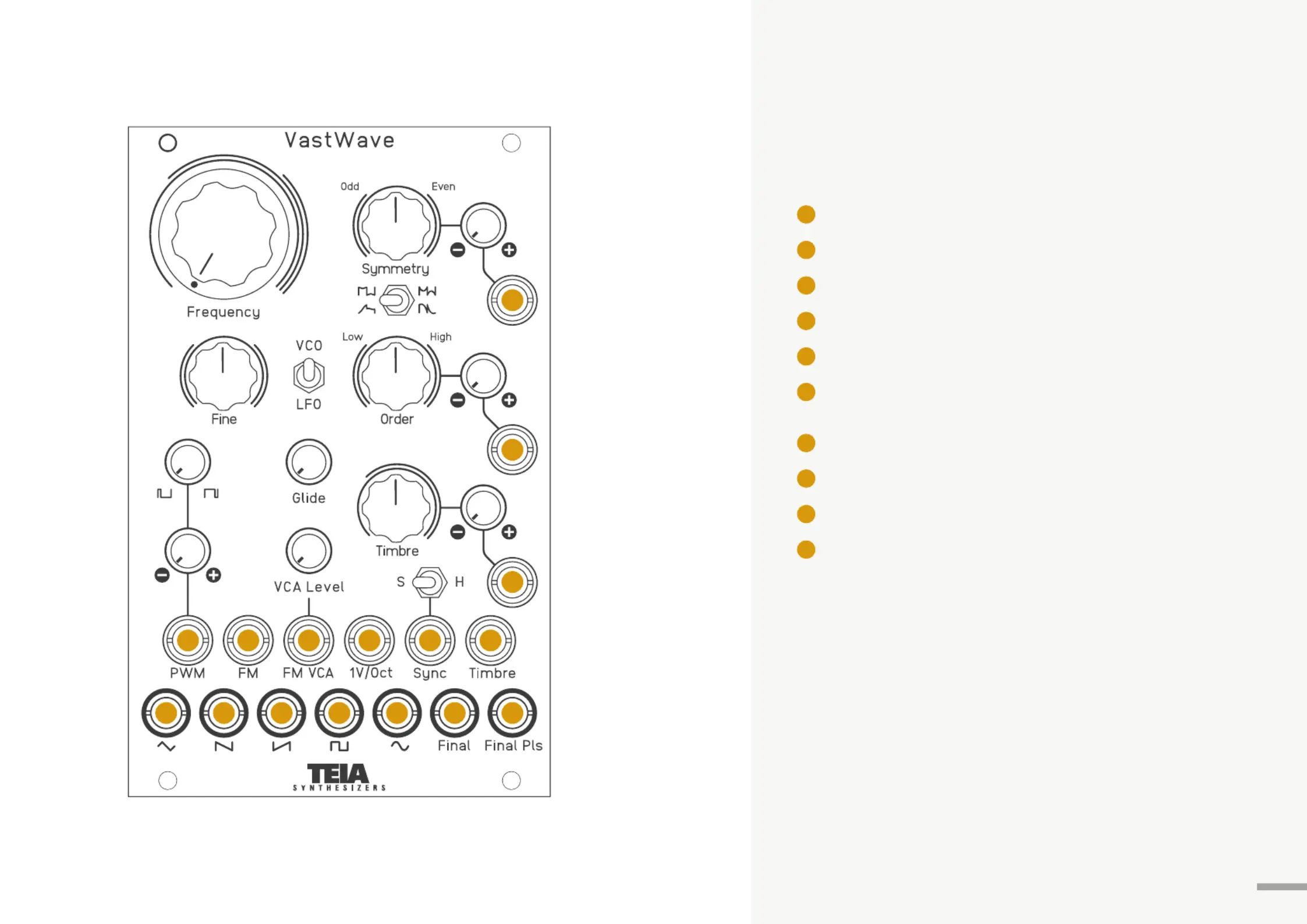

Inputs e Outputs
Pulse Width modulation CV Input (+5v/-5v)
2
Linear FM input (+5v/-5v)
3
Linear FM CV input (0v/+5v)
4
1 volt per octave pitch input
5
Oscillator synchronisation input
6
External Timbre audio input. Replaces sine-to-timbre
normalization (+5v/-5v)
7
Waveform output
8
Waveshaper output
9
Waveshaper output pulse wave
10
CV input (+5v/-5v)
5
Wave Folder
Symmetry
Fundamental
Harmonic
(Sine)
Wave Folder
Order
X-Fade
High
Low
Final
Comparator
Pulse Width
Modulation
Final
Pulse
CV In
Wave
Folder
In
CV In
CV In
Symmetry
High
Timbre
Low
Odd & Even
Harmonic waves
X-Fade
X-Fade

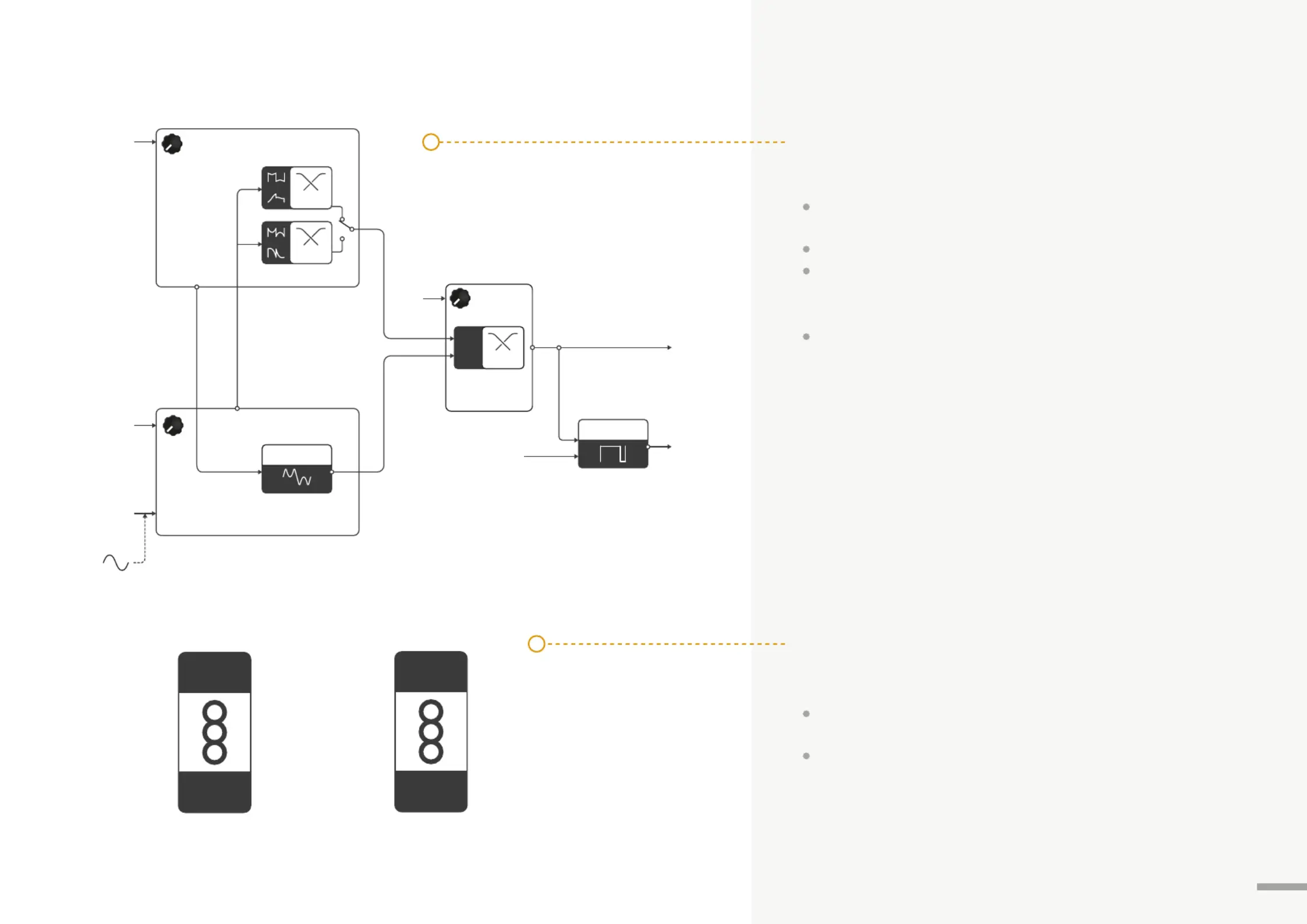

Wave Shaper Diagram
Back Jumper Switches
FM AC
Coupling
Off
Inverted
Saw
Double
Saw
High section controls the Wave Folder's Symmetry and crossfades
two sets of Odd and Even hamonics waveforms.
Order crossfades between Low and High section.
Low section controls the Wave Folder, folding the input wave in
on it self creating new harmonics and also adds or subtracts the
fundamental harmonic into the High section.
Sine wave is internally normalized to the Wave Shaper input. Will
switch off if an external source is Patched.
The jumper on the Left selects if the FM input is AC coupled.
If AC coupling is ON, DC voltage will be blocked.
The jumper on the right selects if the second sawtooth output is
an inverted sawtooth or a double frequency sawtooth.
