Sida 1/6

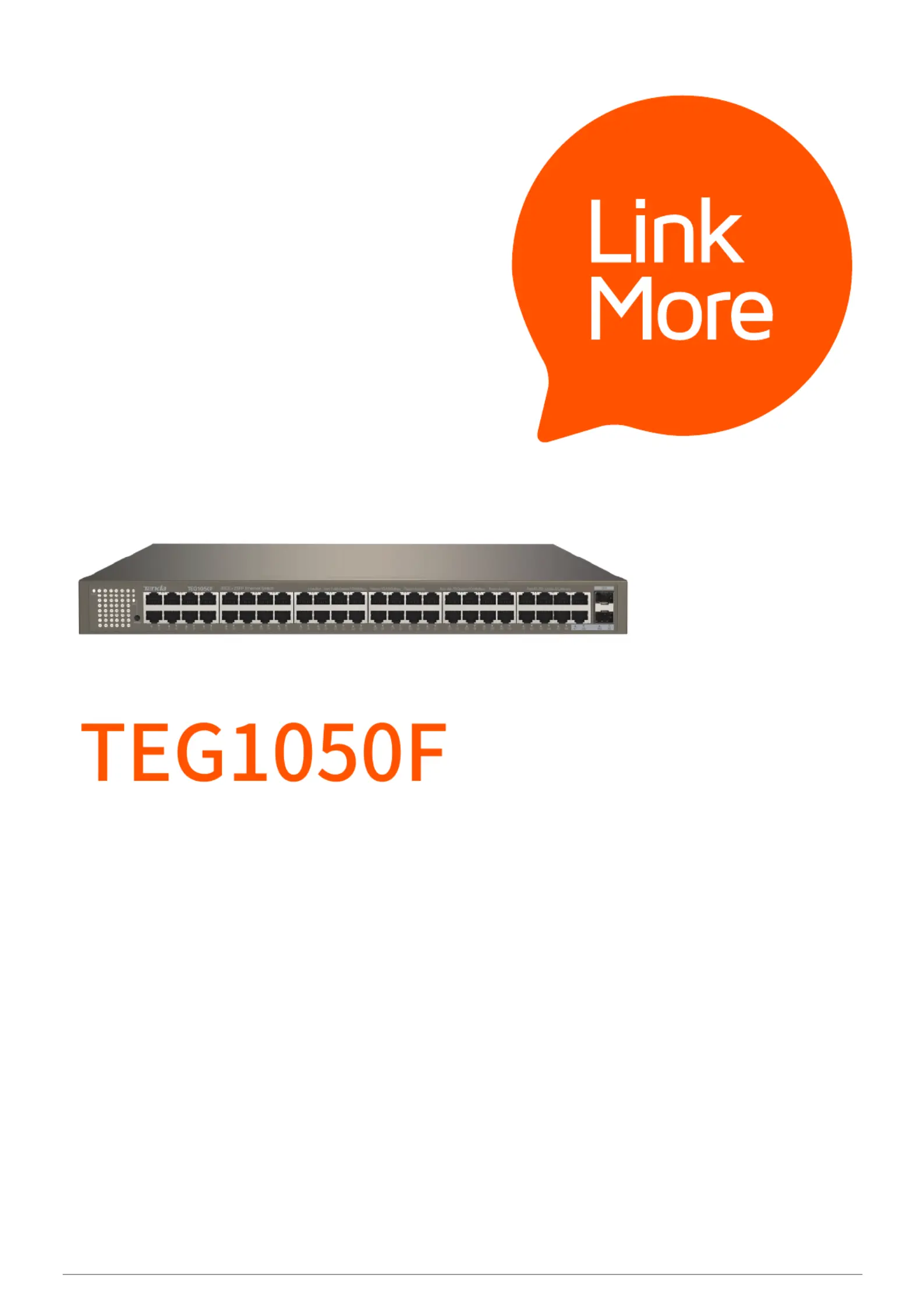

TEG1050F

48GE+2SFP Ethernet Switch

www.tendacn.com

Products Description

48GE+2SFP Ethernet Switch

Developed by Tenda, TEG1050F is a Gigabit unmanaged Ethernet switch designed for establishing wired

networks of high density and high speed in such scenarios as enterprises, parks, schools, and internet cafes,

providing a simple, easy, cost-effective, and rapid internet access solution for video surveillance and SMBs'

networking. With 48 10/100/1000 Mbps RJ45 ports, and 2 independent Gigabit SFP slots that can be paired

with Tenda's SFP modules, this switch can be used to deploy a long-distance network up to 20 km. Its

full-duplex transmission rate can reach 2000 Mbps, ensuring the timely transmission of large files and

smoothness of videos. Its one-key VLAN function can isolate broadcast storms. Its integrated professional

lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports,

ensuring the stability and reliability of the switch. The switch supports desktop mounting, rack mounting and

wall mounting, and features a 1U 19-inch standard rack-mount shell design and plug & play function. With

these advantages, it is an ideal choice for deploying a cost-effective and high-speed network.

TEG1050F 48GE+2SFP Ethernet Switch

 Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x standards.

 Provide 48 10/100/1000 Mbps Base-T Ethernet ports and support auto MDI/MDIX.

 Provide 2 independent 1000 Mbps SFP slots and support 20 km long-distance networking.

 Support 16 K MAC address table and MAC address auto-learning.

 Support full duplex IEEE 802.3x flow control and half duplex back pressure flow control.

 Support unblocked wire speed forwarding for all ports.

 Support 12 Mb large buffer queue.

 Integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in

power supply and all Ethernet ports.

 One-key VLAN function helps isolate broadcast storms effectively.

 Feature a 19-inch/1U standard rack-mount shell design.

High-density Gigabit Ports

The switch provides 48 10/100/1000 Mbps auto-negotiation RJ45 ports, and 2 indepen-

dent 1000 Mbps SFP ports. The full-duplex transmission rate of the switch can reach 2000

Mbps, and all ports feature wire speed forwarding, ensuring high performance for process-

ing applications that require high bandwidth.

12 Mb Large Buffer

With 12 Mb large buffer, the switch can meet the needs of such network applications with

burst traffic as search engine, IPTV, and P2P downloads, ensuring no packet loss, timely

transmission of large files, and smoothness of videos.

6 kV Lightning Protection

This switch provides 6 kV lightning protection for both Ethernet ports and the power supply,

and supports over-temperature, over-voltage and surge current protection.

One-key VLAN

Under the VLAN mode, ports 1 to 46 cannot communicate with each other, but can

communicate with uplink ports 47 to 50, isolating broadcast storms and enhancing network

security.

Ease of Use

The switch features a 1U 19-inch standard rack-mount shell design and can be easily

installed on a 19-inch rack using the included L-shaped brackets. With plug & play function,

it needs no professional settings and can be used for networking directly, greatly reducing

the maintenance cost.

Key Feature

Product Features

Produktspecifikationer

Varumärke:	Tenda
Kategori:	brytare
Modell:	TEG1050F
Bredd:	440 mm
Djup:	240 mm
Höjd:	44 mm
LED-indikatorer:	Ja
Strömförbrukning (max):	48 W
Rackmontering:	Ja
Kabeltyper som stöds:	Cat5, Cat5e
Produktens färg:	Grå
Temperatur vid drift:	0 - 45 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	5 - 90 %
AC-inspänning:	100 - 240 V
Växelström Frekvens:	50 - 60 hz
Strömkälla:	AC
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ingående ström:	4 A
Adresstabellstorlek:	8000 poster
Switch kapacitet:	1000 Gbit/s
Hastighet vid vidarebefordran:	74.4 Mpps
10G stöd:	Nej
Antal grundläggande RJ-45 Ethernet-portar:	50
Typ av grundläggande RJ-45 Ethernet-portar:	Gigabit Ethernet (10/100/1000)
Switch typ:	Ohanterad
Lagra-och-vidarebefordra:	Ja
Antal SFP-modulplatser:	2
Koppar Ethernet-kablar teknik:	10BASE-T, 100BASE-TX, 1000BASE-T
Likströmsdriftspänning:	12 V
Stöd för automatisk inlärning av MAC-adresser:	Ja
