Sida 1/6

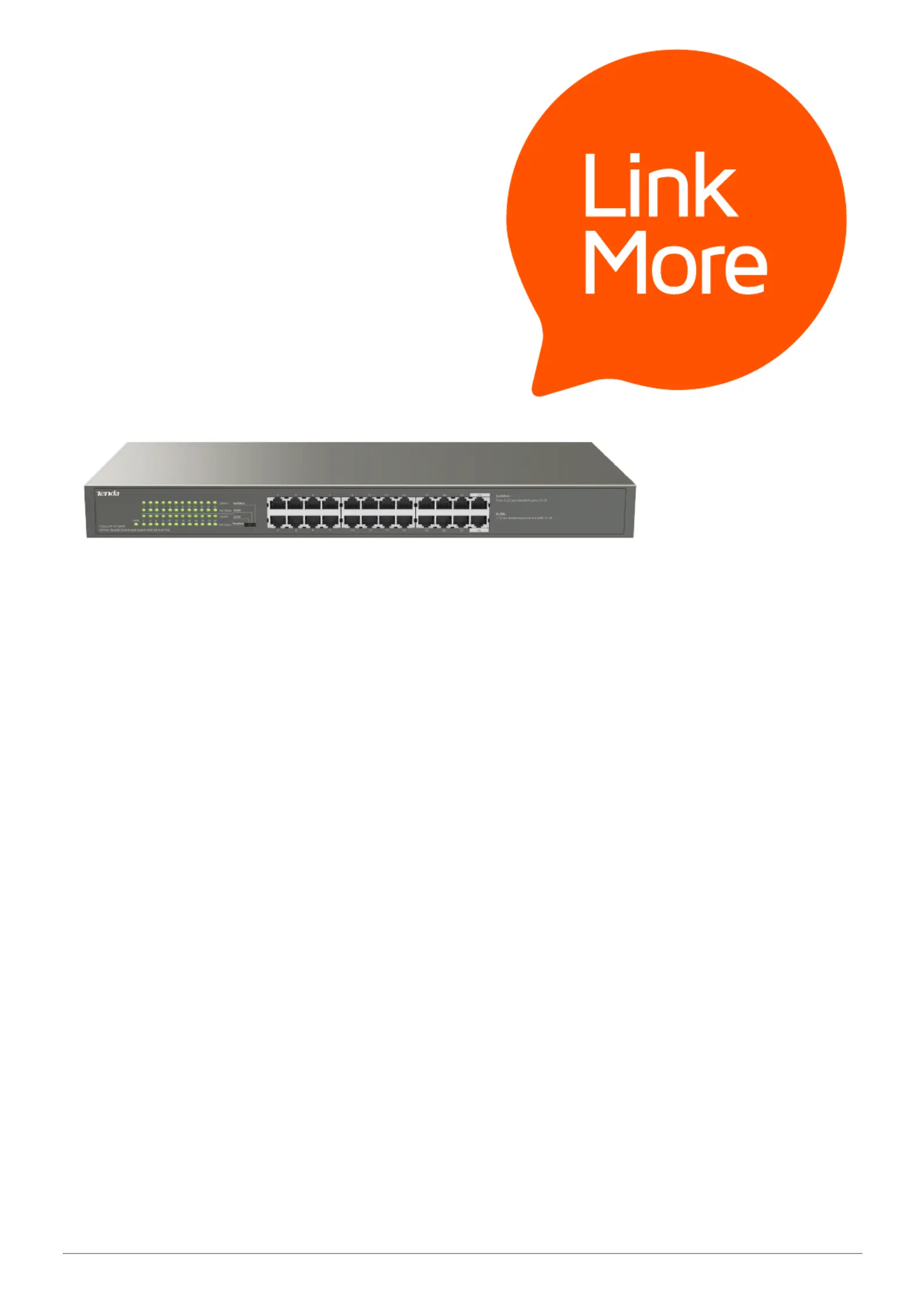

TEG1124P-24-250W v1.0

24-Port Gigabit Desktop

Rackmount Switch With 24-Port PoE

http://www.tendacn.com

TEG1124P-24-250W v1.0

24-Port Gigabit Desktop/Rackmount Switch

With 24-Port PoE

Products Description

TEG1124P-24-250W is a Tenda PoE switch that oers 24 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-24 comply with the

IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The

switch oers a maximum PoE power output of 225 W and can supply power to and exchange data with APs, IP cameras, and

IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Isolation to help

reduce cabling costs of IP terminals like APs and IP cameras.

Key Feature

* 24 10/100/1000 Mbps Base-TX RJ45 ports

* Ports 1-24: IEEE 802.3af/at PoE ports

* maximum power output of the switch: 225W

* 19-inch desktop size, 1U height, rack mountable

* Hardware DIP switch for selection among the CCTV, Standard, VLAN, and Isolation modes.

* Hardware DIP switch to VLAN ports to prevent broadcast storm and defend against DHCP spoong.

TEG1124P-24-250Wv1.0

Mark

225W PoE power supply

Ports 1-24 comply with the IEEE802.3af and IEEE802.3at power supply

standards. The entire switch oers a maximum PoE power output of 225 W,

whereas each port oers a maximum PoE power output of 30 W. The ports

can be used to supply power to and exchange data with APs and IP cameras.

6KV lightning protection

Integrated with a professional circuit that oers 6 kV lightning and surge

protection for the entire device, ensuring proper operation of the device even

in severe weather conditions such as thunderstorm and lightning.

CCTV/VLAN and Extend Operation Modes Oered

Hardware DIP switch for selection among the CCTV, Standard, VLAN, and

Isolation modes. Hardware DIP switch to isolate ports to prevent broadcast

storm and defend against DHCP spoong.

Produktspecifikationer

Varumärke:	Tenda
Kategori:	brytare
Modell:	TEG1124P-24-250W
Bredd:	440 mm
Djup:	178 mm
Höjd:	44 mm
Strömförbrukning (max):	225 W
Rackmontering:	Ja
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	5 - 90 %
AC-inspänning:	100 - 240 V
Växelström Frekvens:	50 - 60 hz
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Harmonized System (HS)-kod:	85176990
Adresstabellstorlek:	4000 poster
Switch kapacitet:	48 Gbit/s
Hastighet vid vidarebefordran:	35.6 Mpps
Antal grundläggande RJ-45 Ethernet-portar:	24
Typ av grundläggande RJ-45 Ethernet-portar:	Gigabit Ethernet (10/100/1000)
Antal Power over Ethernet plus (PoE +)-portar:	24
Switch typ:	Ohanterad
