SLLS640 – JANUARY 2005

Description

The MAX4595 is a single-pole single-throw (SPST)

analog switch that is designed to operate from 2 V to

5.5 V. This device can handle both digital and analog

signals, and signals up to V

+

can be transmitted in either

direction.

Applications

DSample-and-Hold Circuits

DBattery-Powered Equipment

(Cellular Phones, PDAs)

DAudio and Video Signal Routing

DCommunication Circuits

DPCMCIA Cards

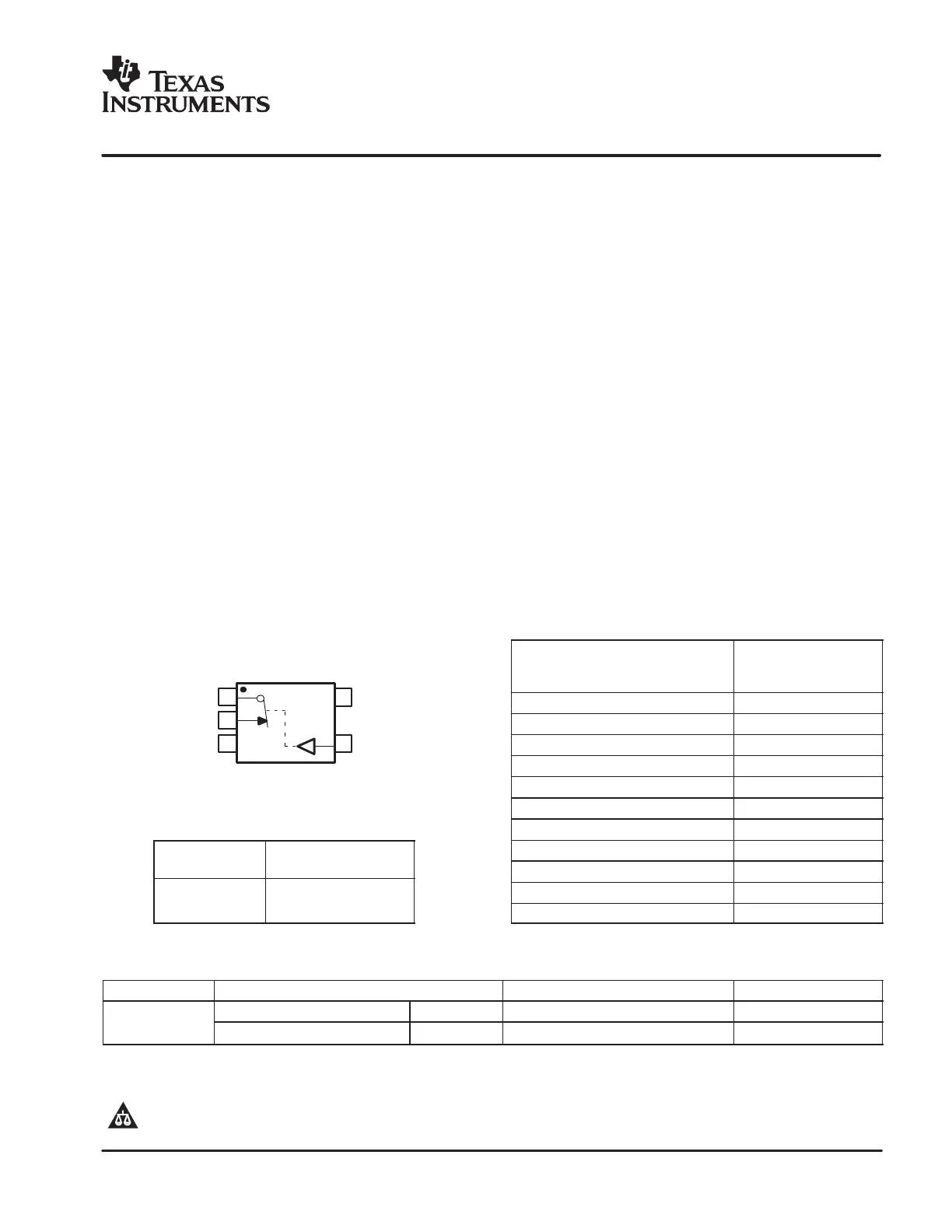

SOT-23 OR SC-70 PACKAGE

(TOP VIEW)

1

2

3

4

5

COM

NC

GND

IN

V

+

FUNCTION TABLE

IN

NC TO COM,

COM TO NC

LON

HOFF

Features

DLow ON-State Resistance (10 W)

DON-State Resistance Flatness (1.5 W)

DControl Inputs Are 5.5-V Tolerant

DLow Charge Injection (5 pC Max)

D300-MHz −3-dB Bandwidth at 255C

DLow Total Harmonic Distortion (THD) (0.05%)

D2-V to 5.5-V Single-Supply Operation

DSpecified at 5-V and 3.3-V Nodes

D−80-dB OFF Isolation at 1 MHz

DLatch-Up Performance Exceeds 100 mA Per

JESD 78, Class II

D0.5-nA Max OFF Leakage

DESD Performance Tested Per JESD 22

− 2000-V Human-Body Model

(A114-B, Class II)

− 1000-V Charged-Device Model (C101)

DTTL/CMOS-Logic Compatible

Summary of Characteristics

V

+

= 5 V, T

A

= 25°C

Configuration

Single Pole

Single Throw

(SPST)

Number of channels1

ON-state resistance (r

on

)10 Ω

ON-state resistance flatness (r

on(flat)

)1.5 Ω

Turn-on/turn-off time (t

ON

/t

OFF

)35 ns/40 ns

Charge injection (Q

C

)5 pC

Bandwidth (BW)300 MHz

OFF isolation (O

ISO

)−80 dB at 1 MHz

Total harmonic distortion (THD)0.05%

Leakage current (I

COM(OFF)

/I

NC(OFF)

)±0.05 nA

Power-supply current (I

+

)1 µA

Package option5-pin SOT-23 or SC-70

ORDERING INFORMATION

T

A

PACKAGE

(1)

ORDERABLE PART NUMBERTOP-SIDE MARKING

(2)

−40°C to 85°C

SOT (SOT-23) − DBVTape and reelMAX4595DBVR6SB_

−40

°

C to 85

°

C

SOT (SC−70) − DCKTape and reelMAX4595DCKRSB_

(1)

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

(2)

DBV/DCK: The actual top-side marking has one additional character that designates the assembly/test site.
