Sida 1/5

Version 2.0, 07/07

USER’S GUIDE

Humidity and Temperature USB Datalogger LOG32

REC

ALM

Version 2.0, 07/07

FEATURES

l Memory for 32,000 readings

(16000 temperature and 16,000 humidity readings)

l Dew point indication

l Status Indication

l USB Interface

l User-Selectable Alarm

l Analysis software

l Multi-mode to start logging

l Long battery life

l Selectable measuring cycle:

2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, 24hr

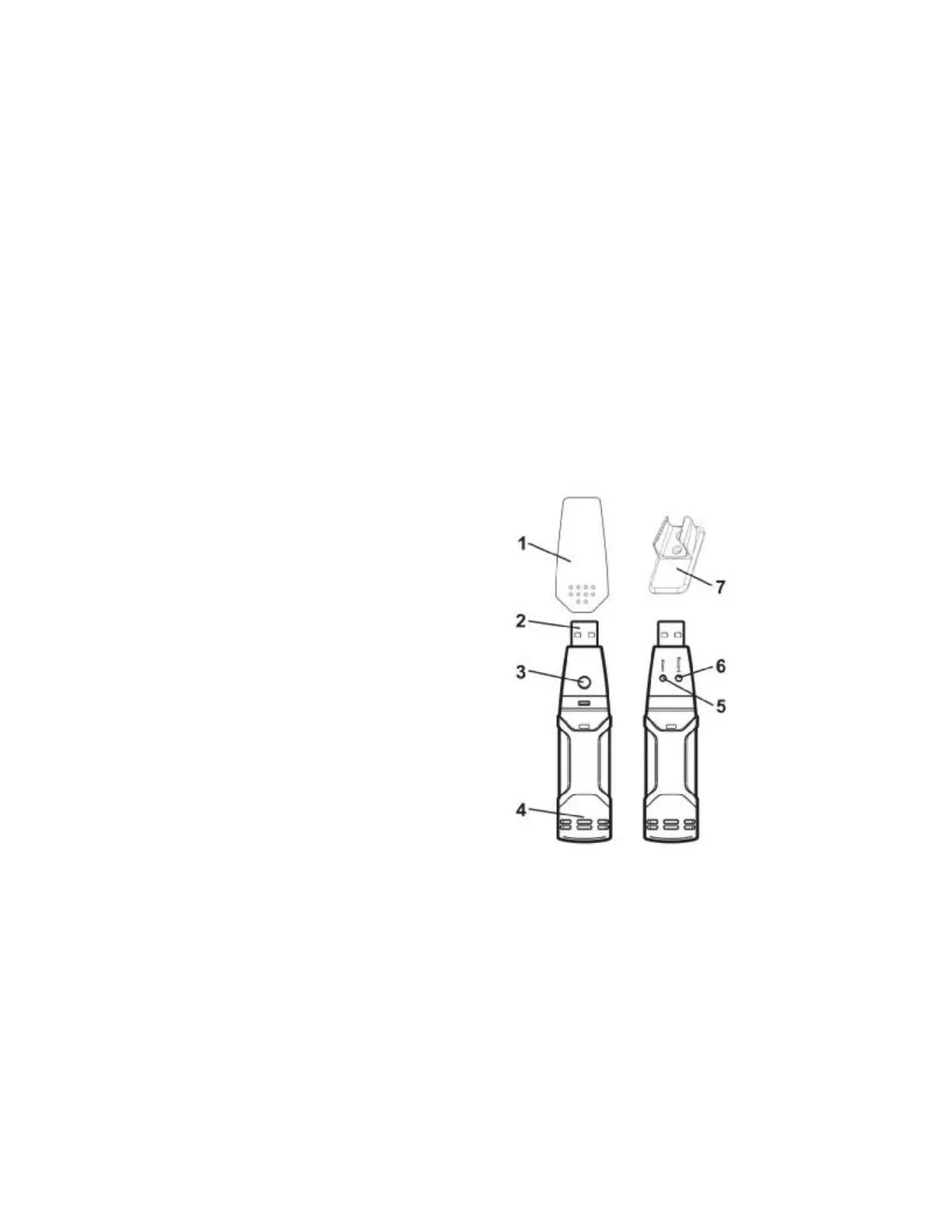

DISCRIPTION

1. Protective cover

2. USB connector to PC port

3. Start button

4. RH and Temperature sensors

5. Alarm LED(red/yellow)

6. Record LED(green)

7. Mounting clip

Version 2.0, 07/07

LED STATUS GUIDE

LEDs Indication Action

REC ALM

Both LED lights OFF

Logging not active

Low Battery

Start logging

Replace battery and

download the data

REC ALM

One green flash every 10 sec. *

Logging, no alarm condition**

Green double flash every 10 sec. *

Delayed start

To start, hold the start

button until Green and

Yellow LED flash

REC ALM

Red single flash every 10 sec. *

-Logging, low alarm for RH***

Red double flash every 10 sec. *

-Logging, high alarm for RH***

Red single flash every 60 sec.

- Low Battery****

If logging, it will stop

automatically. No data will

be lost. Replace battery

and download data

REC ALM

Yellow single flash every 10 sec. *

-Logging, low alarm for TEMP***

Yellow double flash every 10 sec. *

-Logging, high alarm for TEMP***

Yellow single flash every 60 sec.

- Logger memory full

Download data

* To save power, the logger’s LED flashing-cycle can be changed to 20s or 30s via the supplied software.

** To save power, alarm LEDs for temperature and humidity can be disabled via the supplied software.

***When both temperature and relative humidity readings exceed alarm level synchronously, LED status indication

alternate every cycle. For example: If there is only one alarm, the REC LED blinks for one cycle and alarm

LED will blink for next cycle. If there are two alarms, REC LED will not blink. First alarm will blink for first

cycle and the next alarm will blink for next cycle.

****When the battery is low, all operations will be disabled automatically. NOTE: Logging automatically stops when the

battery weakens (logged data will be retained). The supplied software is required to restart logging and to download

logged data.

***** To use the delay function. Run the datalogger Graph software, click on the computer icon on the menu

bar (2nd from left) or select LOGGER SET from the LINK pull-down menu. The Setup window will appear,

and you will see there are two options: Manual and Instant. If you select the Manual option, after you click

the Setup button, the logger won't start logging immediately until you press the yellow button in logger's

housing.

REC

ALM

Green LED

Red/Yellow LED

Produktspecifikationer

Varumärke:	TFA
Kategori:	Termometer
Modell:	31.1035
Produkttyp:	Temperatur- och luftfuktighetsmätare
Inbyggd display:	Nej
Vikt:	117 g
Modell:	Elektronisk väderstation
Måttenhet:	°C
Batterityp:	AA
Antal batterier:	2
Temperatur mätenheter:	°C
Ändamål:	Inomhus / utomhus
Mätområde vid mätning av kroppstemperatur:	-40 - 70 ° C
Precision i mätning av kroppstemperatur:	1 ° C
