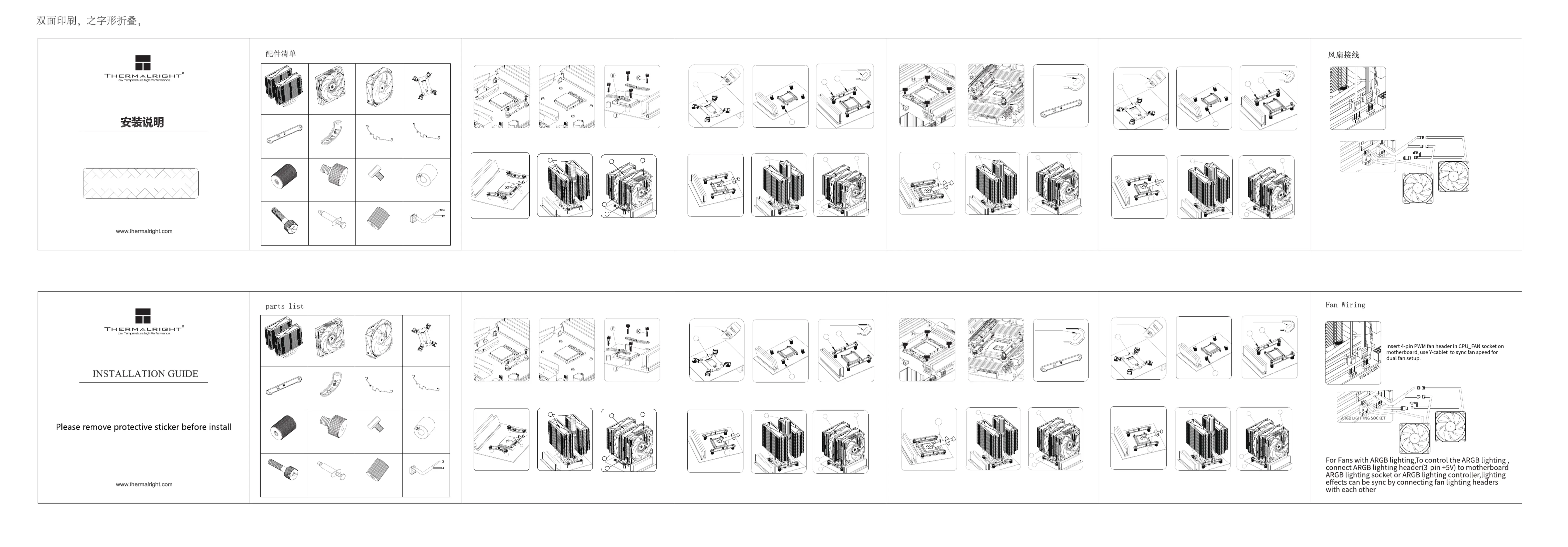

Thermalright Royal Pretor 130 Ultra Bruksanvisning

Sidor 1 kylsystem för dator

Läs bruksanvisningen för Thermalright Royal Pretor 130 Ultra gratis online eller ladda ner PDF:en. 17 personer har tyckt att guiden var hjälpsam. Fråga om modellen? Ställ en fråga

Ladda ner PDF (1.3 MB) Specifikationer

112*112mm

系列

115X安装孔

115Xmountinghole

115X 螺柱 x4

LGA20xx螺柱 x4

1700screw bolt x4

LGA115X/1700

背板 x1

散热器 x1

120mm 风扇 x1

INTEL支架 x2

KLM

130mm 风扇 x1

120mm 风扇扣 x2130mm 风扇扣 x2

1700安装孔

1mountinghole700

2011安装孔

2011mounting

hole

INTEL LGA115X/1200

INTEL LGA1700/1851

INTEL LGA2011/2066

INTEL LGA1700/1851

ROYAL PRETOR 130 ULTRA

Series

AM4/AM5螺丝x4

导热膏 x1

1700螺柱 x4

Y型转接线 x1

AM4/AM5支架 x2

红色胶柱 p1-x4

AM4/AM5专用

螺丝 p1-x4

AMD AM4/AM5

115X卡位

1007卡位

115X Position

1007 Position

移除AMD原装塑胶支架，保留背板;放置AM4/AM5胶柱，使用AM4/AM5螺丝

将支架固定到主板。

Remove the AMD original plastic support, keep the back plate, and lock it to

the original motherboard base plate with AM4/AM5 rubber column

将背板推到LGA115X卡位，对应主板孔位穿过主板，然后从正面扭紧LGA115X螺柱、

放置Intel支架再用螺丝固定住.

将背板推到LGA1700卡位，对应主板孔位穿过主板，然后从正面扭紧LGA1700螺柱、

放置Intel支架再用螺丝固定住.

涂好导热膏，然后用螺丝刀锁好主体,再用风扇线扣固定风扇

将LGA20XX螺柱拧到主板，然后放置支架，再用螺帽固定住lNTEL支架。

Push the backplane to the LGA1700 detent, and the corresponding hole position

of the main board passes through the main board, and then tighten the LGA1700

stud from the front Place the Intel bracket and fix it with screws

Push the backplane to the LGA115x detent, and the corresponding hole position

of the main board passes through the main board, and then tighten the LGA115x

stud from the front Place the Intel bracket and fix it with screws

Thread in the LGA20XX screws;put on the brackets andthen

tightening with nuts.

！安装前请先去除铜底保护膜

将风扇4针PMW接头插入主板CPU FAN插座

如果使用双风扇,请使用Y型转接线。

115X screw bolt x4

LGA20xx Screw x4

LGA115X/1700

Backplate x1

Heatsink x1

120mm FAN x1

INTEL Bracket x2

KLM

130mm FAN x1

120mm FAN Clip x2130mm FAN Clip x2

AM4/AM5

Screw x4

Thermal Greasa x1

AM4/AM5

Bracket

AM4/AM5

Standoffs x4

Tightening Nut x4

FAN Y Cable x1

Apply thermal compound on CPU,install the heatsink with a screw driver, and

install fans on heatsink with fan clips.

Apply thermal compound on CPU,install the heatsink with a screw driver, and

install fans on heatsink with fan clips.

Apply thermal compound on CPU,install the heatsink with a screw driver, and

install fans on heatsink with fan clips.

Apply thermal compound on CPU,install the heatsink with a screw driver, and

install fans on heatsink with fan clips.

如果风扇有ARGB灯效，请将ARGB 3针(5V)插入主板对应ARGB灯效插座

或者控制器，多风扇之间可串联同步。

ARGB插座

风扇插座
