Sida 1/5

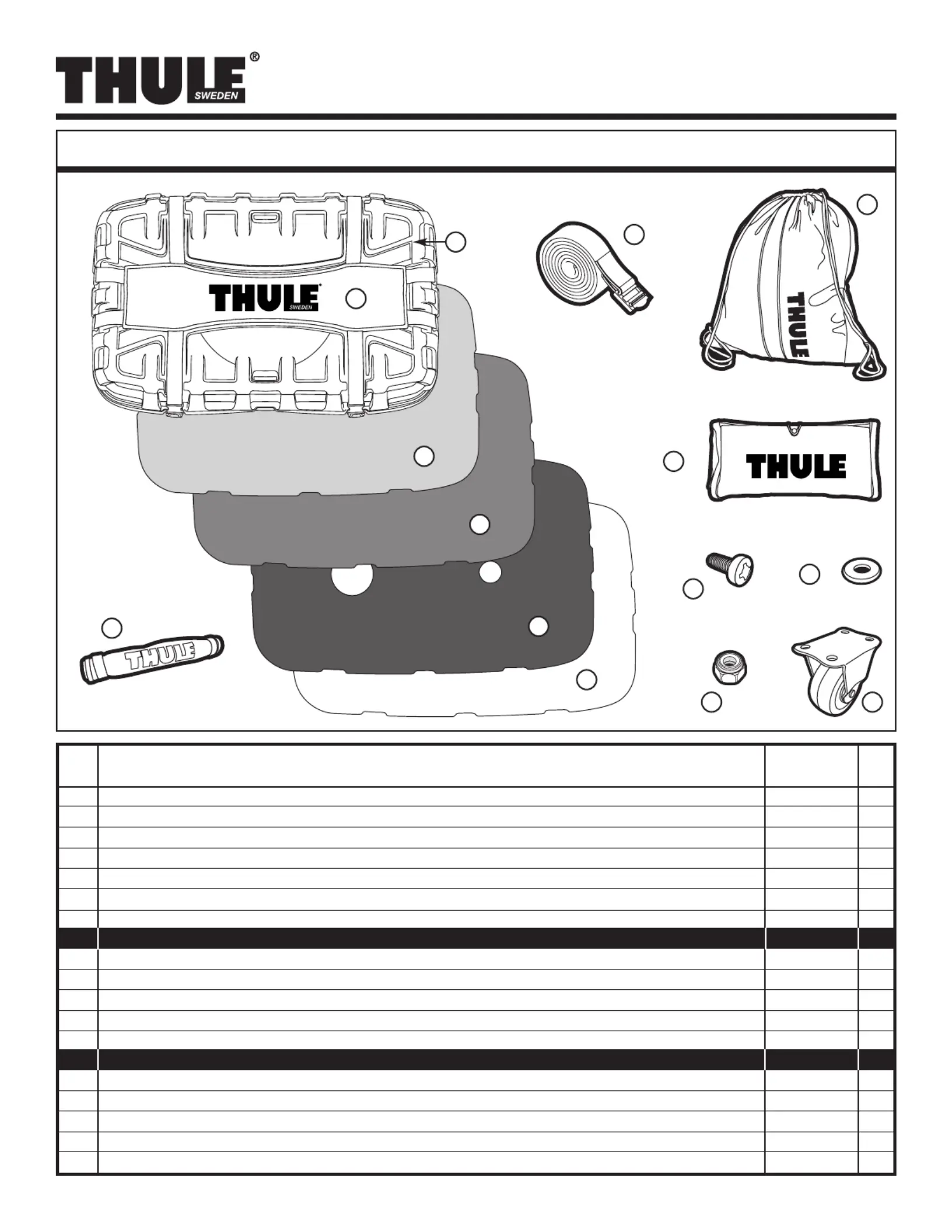

PARTS INCLUDED

part description part number qty.

05325

05327

05310

05328

05329

10169

05360

05331

05338

05340

05339

05314

05311

05312

05313

top shell

bottom shell

strap harness

plastic shield

protective foam

tie-down strap

PARTS BAG

caster

lock nut

screw

washer

PARTS BAG

tote bag

tool bag

chain/tube wrap

699 ROUND TRIP™ BIKE TRAVEL CASE

• The Round Trip is designed to accommodate bicycles of a variety of sizes and frame designs, which may require extra protection in areas susceptible to scratches

and dents.

• Wheels should be carefully packed to avoid damage to spokes.

PREPARING YOUR ROUND TRIP BIKE TRAVEL CASE:

• The Round Trip will arrive in a clamshell position. Remove the top half,

foam pads and plastic shield - set aside.

• Unpack your Thule tote bag, tool bag, chain and tube wraps as you will

use these during the packing process.

*TOTE BAG: Great for clothes, helmet, shoes or any thing

you want to keep away from the grime and

grease of your bicycle.

*TOOL BAG: Don’t leave small items behind! Carry

wrenches, bike skewers, even pedals in

your tool bag and pack it along with

everything else.

*CHAIN WRAP: Secure the bike chain away from your frame.

*TUBE WRAP: Use this to protect any other areas that may

be vulnerable to metal on metal contact.

Reinforce with foam padding or bubble wrap.

*FOR EXTRA PROTECTION: Using extra padding wherever possible - foam

or bubble wrap secure with zip ties or string

works great and is readily available at your

local shipping supply or hardware store.

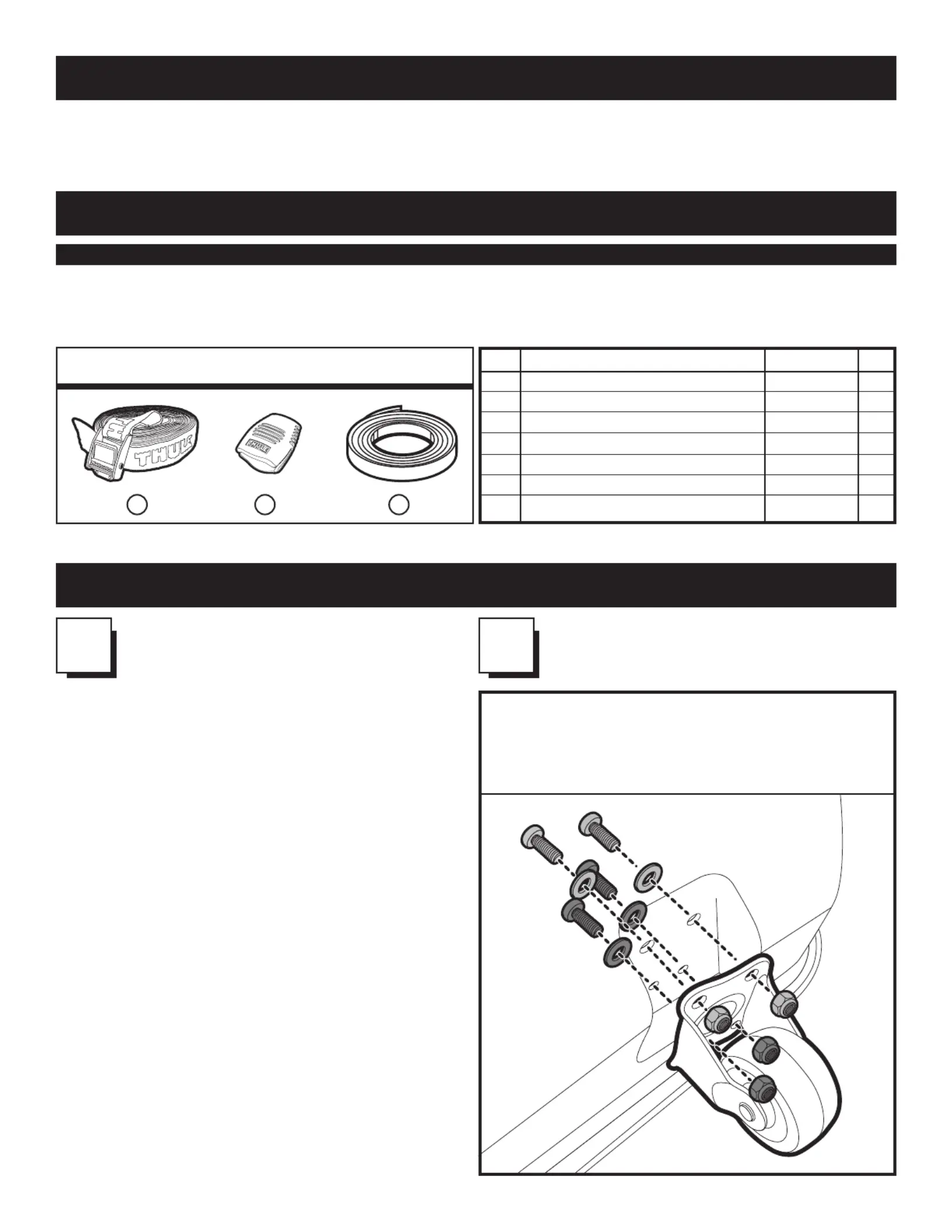

• Assemble wheels to bottom shell as shown.

1B1A

ASSEMBLY

ACCESSORIES

WARNINGS/LIMITATIONS

TRANSPORTING THE ROUND TRIP™ – [RFM] ROOF MOUNT KIT (SOLD SEPARATELY)

Also available from Thule is the RFM Roof Mount Kit for transporting the Round Trip on top of your car. The RFM consists of heavy-duty nylon straps and weather

stripping for protection from the elements and is suitable for Thule standard and Xsporter load bars, Yakima

®, and most factory installed racks.

part description part number qty.

753-2030-07

853-5593

01315

strap

buckle bumper

foam gasket

PARTS INCLUDED (RFM SOLD SEPARATELY)

B CA

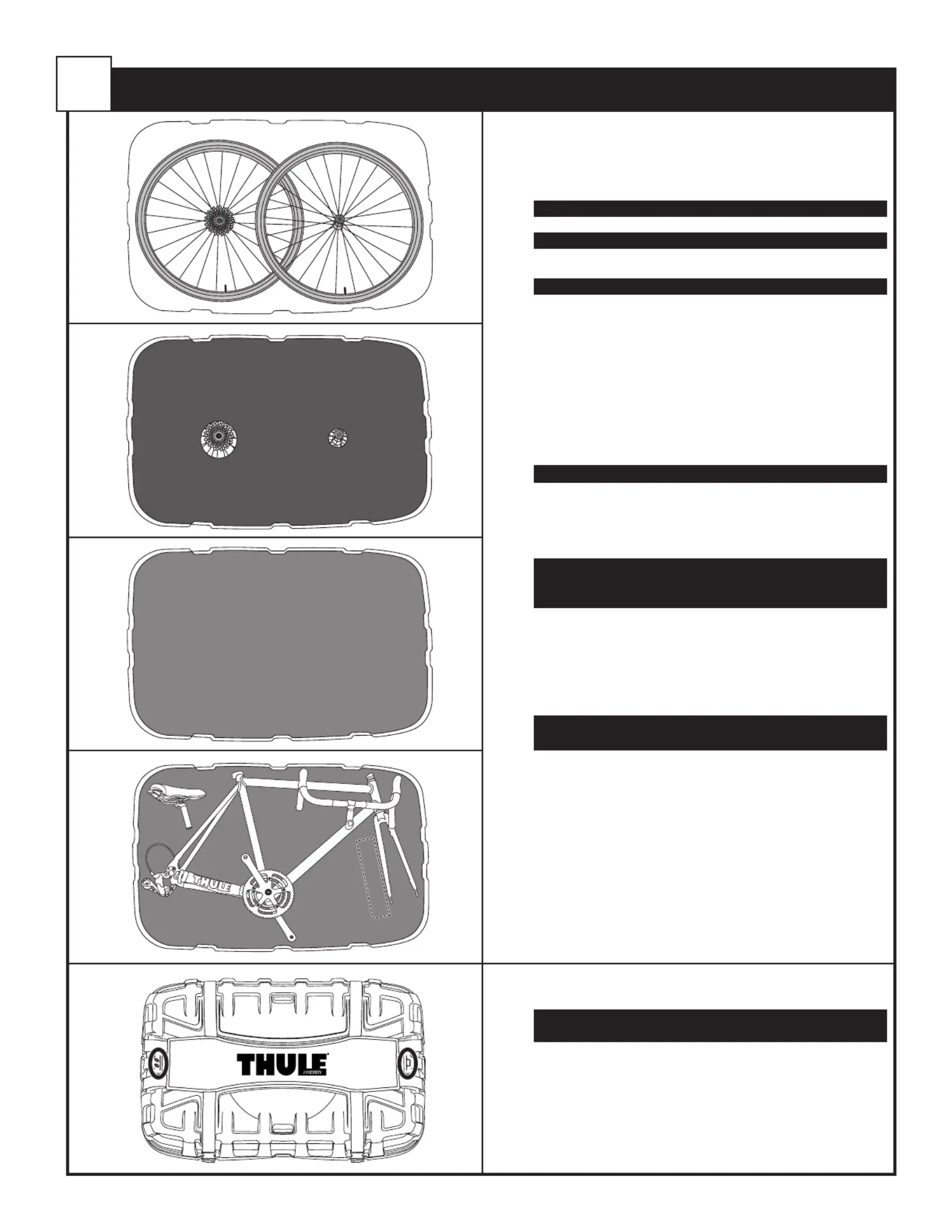

PACKING YOUR BIKE

a PREPARING YOUR BIKE:

• Position your bike for disassembly. Place items in your tote bag and

tool bag to ensure nothing is left behind.

• Remove front and rear wheels. Remove skewers.

HINT: Pack these in your Thule tool bag.

• Unthread pedals.

HINT: Place these in your Thule tote or tool bag.

• Remove seat/seat post. DON’T FORGET to loosely tighten the binder

bolt after the seat post has been removed.

HINT: Mark the position of your seat with tape for easy reassembly.

b Lay rear wheel into the rear of bottom shell cog side up followed by

the front wheel. Place plastic shield over the wheels so that it rests

on the shelf around the perimeter of the bottom shell. The larger hole

should be positioned over the cog set. Place one layer of foam over

plastic shield.

c Disassemble handlebars. Depending on your frame style you may need

to either loosen handlebars and position along the top tube or

remove handlebars completely and position along the fork.

HINT: Reinforce this area against metal-on-metal contact!

d Line up the right crank arm (chain side) with the chain stay tube.

Capture the slack in the chain with the Chain Wrap then secure to chain

stay tube. The Chain Wrap will prevent chain oil and dirt from contacting

bike case contents.

HINT: To prevent damage in while in transit, you may wish to

secure the derailleur tension pulley to the chain stay using

your own zip

ties or string.

e Secure the bike frame into a center position by threading the tie-

down straps, which we have provided, through the frame and metal

rings attached to the inside of the bike case.

f Place seat/post either inside frame triangle or behind seat stay.

HINT: This area may require aditional security against metal-on-

metal contact by using your own foam padding or bubble

wrap.

g Lay second foam sheet over frame. Make sure no bicyle parts are

touching sides of case.

h Place the Tool Bag and Tote Bag in this layer to ensure they will be

held in position by protective foam.

i Place top shell over bottom shell of case.

HINT: Handle and Wheel icons at the top and bottom of the top

shell indicate proper alignment.

j Loosen all straps. Latch buckles then pull tabs to cinch straps snugly.

k For extra security, rings on both sides of case will accept most

padlocks.
