HATS808
TIPTOP AUDIO
HATS808
Introduction.

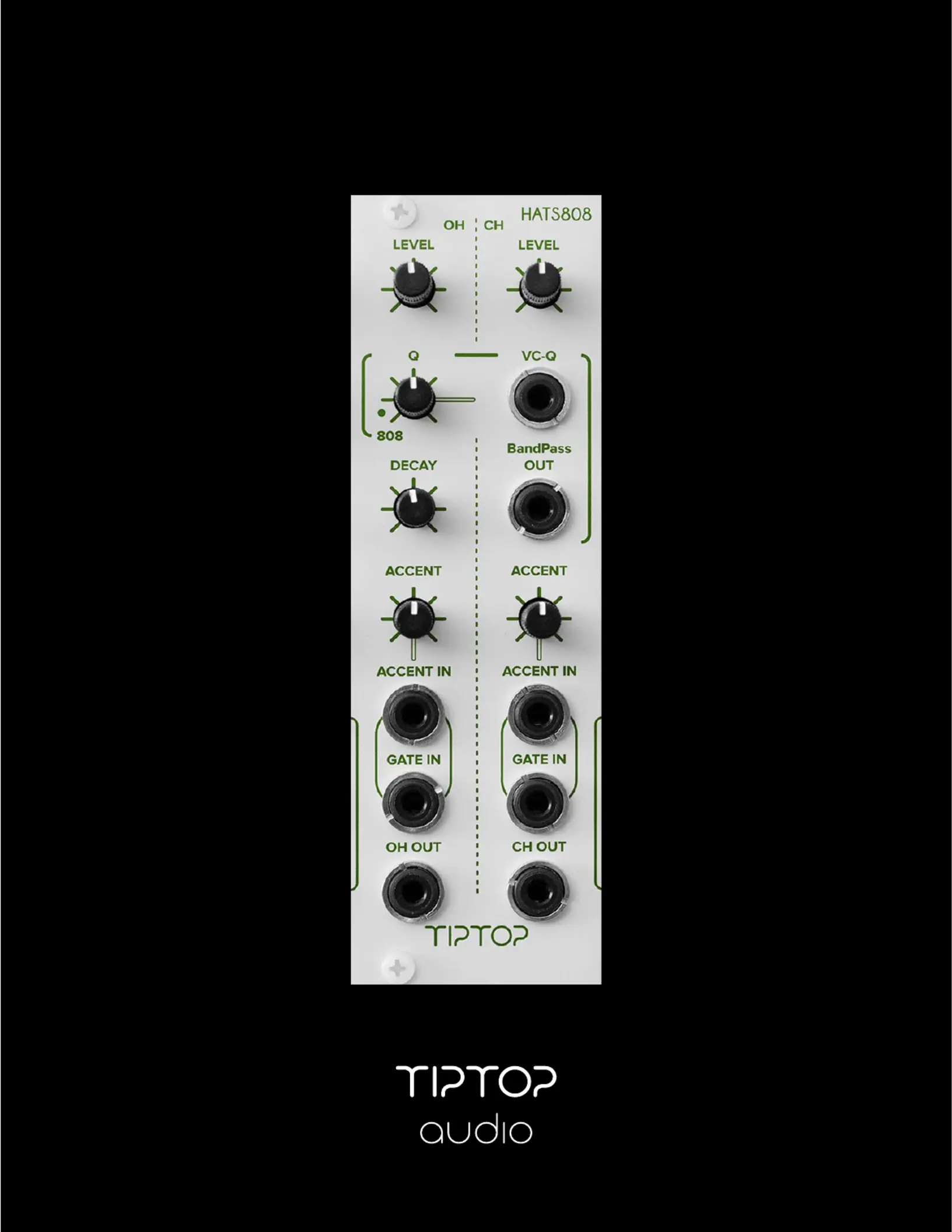

The HATS808 is Roland's TR-808 Hi-Hats sound generator adapted for modular
synthesizer use. The front panel contains all of the controls found on the original TR-808
drum machine, allowing you control over the hi-hat decay time, volume levels to mix with
other drums, and accent levels. In addition to the original circuit, a voltage-controlled
Resonance (Q) was added allowing additional timbre changes. The module itself is very
simple and straightforward to operate; however, we highly encourage you to read this
manual as it contains useful information that will help you get much more out of the
HATS808. These electronic drums are the heart and soul of our electronic music
generation and learning how to use them correctly will open up a world of organic
analog beats and sounds for you to utilize in your own music.
About the Making of the HATS808:
The HATS808 is a one-to-one clone of the original circuit found in Roland's TR-808 drum
machine. The noise source in the HATS808 is made of a mix of six analog square wave
oscillators set at specific frequencies. During the design we measured the frequency of
those oscillators in several original machines and found large dierences; that wasn't
much of a surprise as these oscillators are made using very primitive methods with no
scaling or temperature compensation. As with all the other modules in this series, our
guide has been the original schematic.
For more in-depth information about the challenges that were facing us at making this
series of modules please look at the BD808 User Guide.
Understanding the 'choke' function:
The 'choke' function is a clever interaction between the two hats that adds a feel of
dynamics and movement to your groove. It is an original part of the TR-808 circuit and
is fully implemented in the HATS808. The idea is simple: if both sounds (CH and OH) are
triggered at the same time, the short envelope of the CH will be forced on the internal
VCA of the OH. So in that scenario what you will be hearing is a short CH from both
outputs.
The nice thing about the choke is when a CH will be trigger after a long decayed OH,
the CH envelope will 'choke' the long decay of the OH and will give this great eect of
interaction between the two hats.
Using the choke function with accents can produce great rhythms.

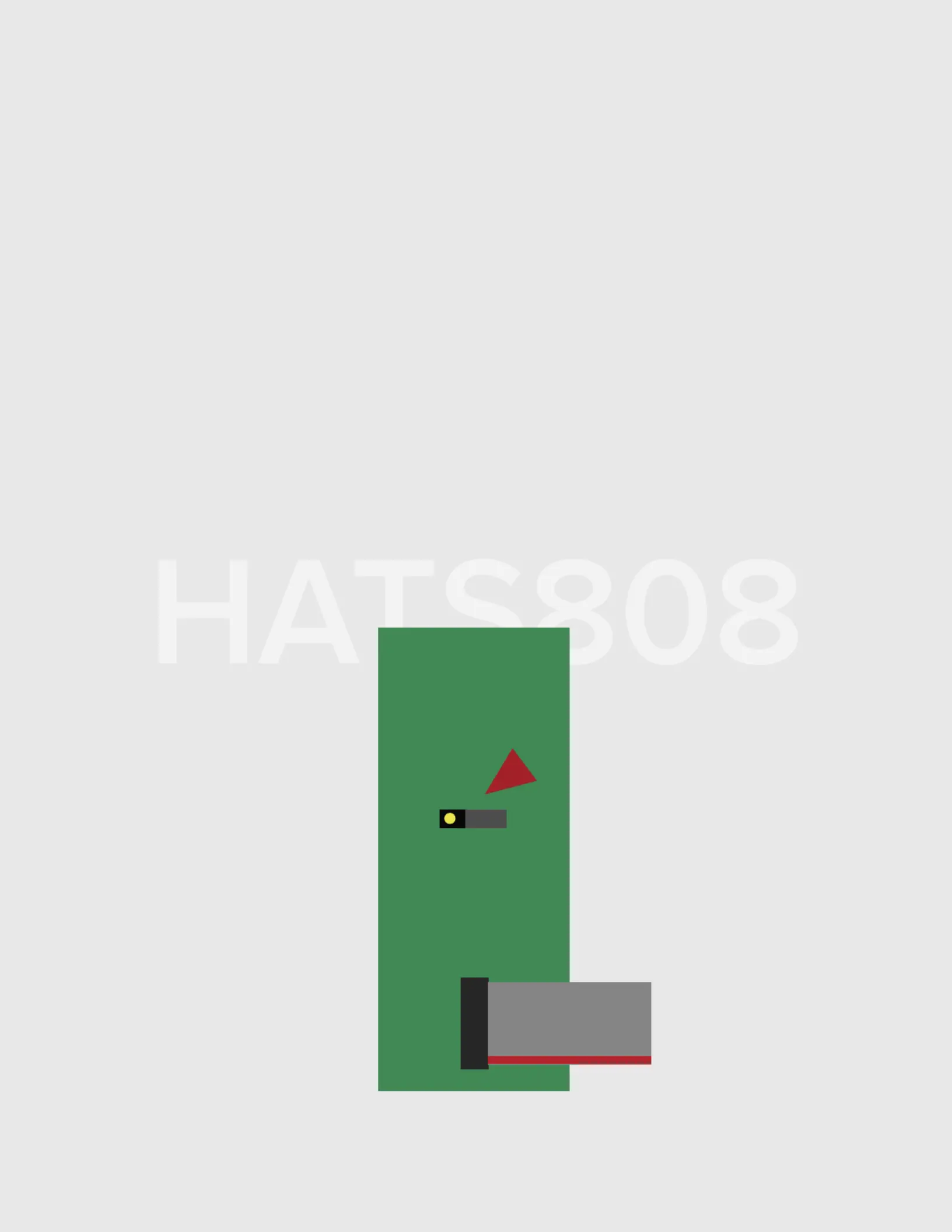

If however you would like to disable to choke function, all you have to do is move the
header located on the center of the module pcb to the other side. In that setting, the
choke will be disabled and the OH will have long decays regardless of the CH
triggering.
