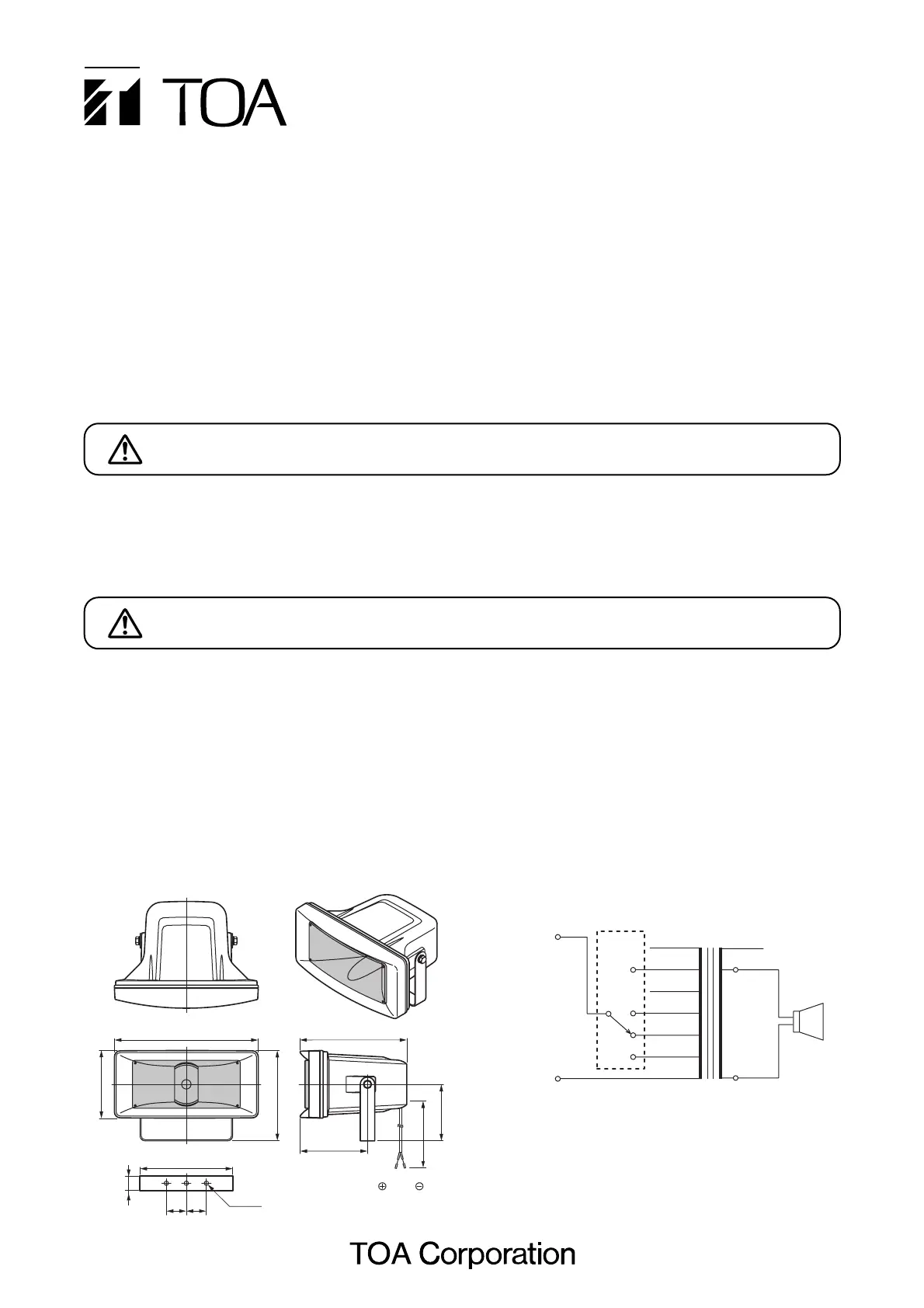

3. APPEARANCE AND DIMENSIONS

5151

3-ø11

236

37

366

230

172

172

Unit: mm

144

600

272

BlackWhite

Black (+)

White (–)

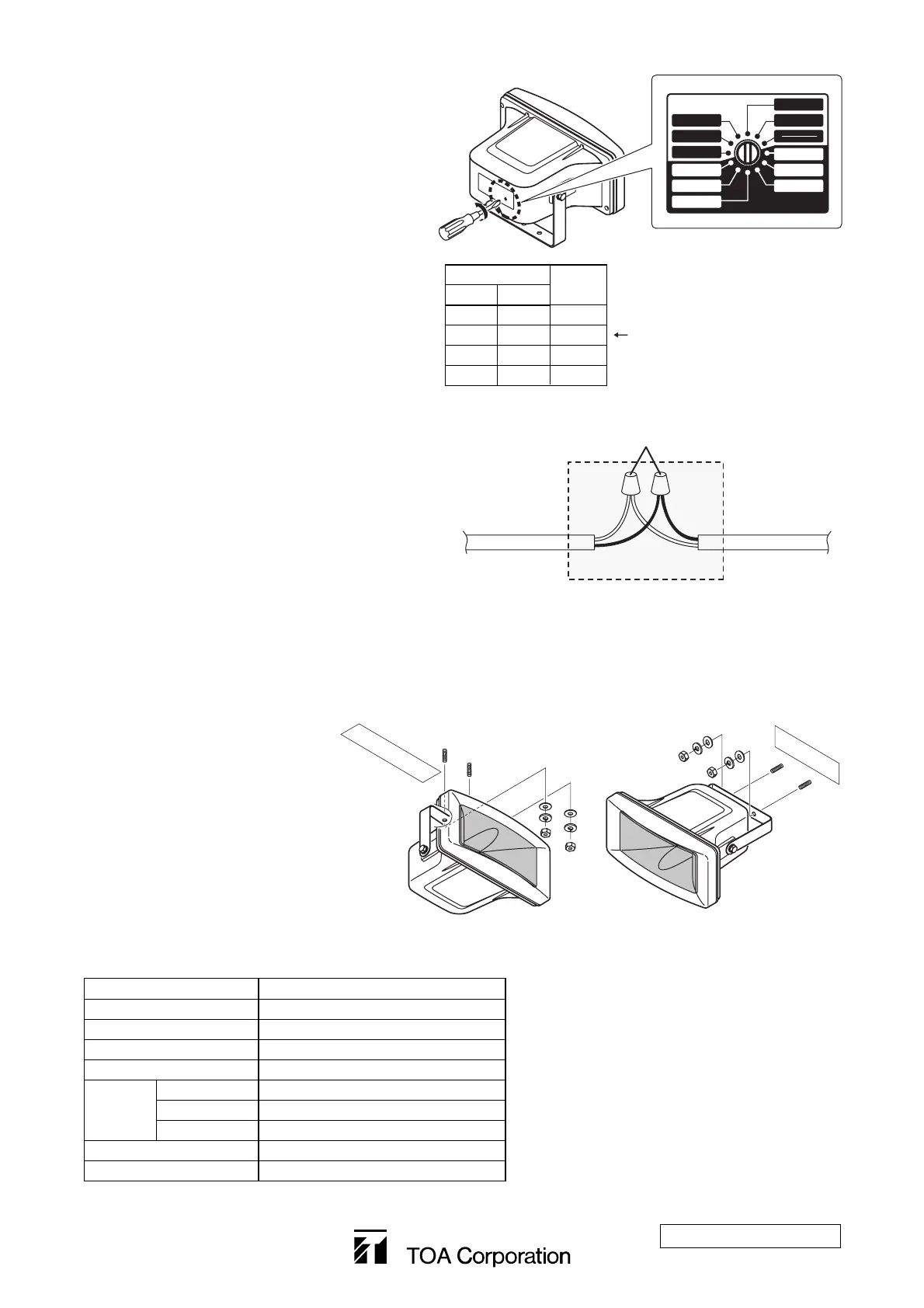

Rotary switch

Matching

transformer

Speaker

component

2 kΩ

1 kΩ

670 Ω

500 Ω

330 Ω

170 Ω

16 Ω

8 Ω

0

Note

The rotary switch is factory-preset to 330 Ω.

1. SAFETY PRECAUTIONS

•Before installation or use, be sure to carefully read all the instructions in this section for correct and safe

operation.

•Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or

cautions regarding safety.

•After reading, keep this manual handy for future reference.

Indicates a potentially hazardous situation which, if mishandled, could

result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

•Install the speaker only in a location that can structurally support the weight of the speaker and the mounting

bracket. Doing otherwise may result in the speaker falling down and causing personal injury and/or property

damage.

•Do not stand or sit on, nor hang down from the speaker as this may cause it to drop, resulting in personal

injury and/or property damage.

•Do not operate the speaker for an extended period of time with the sound distorting. This is an indication of a

malfunction, which in turn can cause heat to generate and result in a fire.

4. WIRING DIAGRAM

2. GENERAL DESCRIPTION AND FEATURES

TOA's CS-304U outdoor speaker features a resin enclosure and stainless steel hardware for all-weather

durability. It is designed to offer the weather resistance and high efficiency of horn speakers combined with

the high sound quality of cone speakers. The CS-304U also employs a constant directivity horn for clear

sound output over the limited horizontal range of dispersion.

Thank you for purchasing TOA's Wide Range Speaker.

Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of your equipment.

CS-304UWIDE RANGE SPEAKER

INSTRUCTION MANUAL
