INSTALLATION MANUAL
SPEAKER RIGGING BRACKETS HY-VM7B
HY-VM7W
Thank you for purchasing TOA’s Speaker Rigging Bracket.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ..................................................................................................................... 1
2. GENERAL DESCRIPTION ................................................................................................................... 2
3. MOUNTING THE SPEAKER ON A WALL (using the optional HY-WM7B or HY-WM7W bracket) ........ 2
4. MOUNTING THE SPEAKER TO A CEILING (using the optional HY-C0801 or HY-C0801W bracket) .. 6
5. SUSPENDING THE SPEAKER FROM A CEILING (only the T-bracket is used) ............................. 8
6. DIRECT SPEAKER CEILING MOUNTING (only the T-bracket is used) ........................................ 10
7. SPECIFICATIONS ............................................................................................................................... 12
1. SAFETY PRECAUTIONS
• Beforeinstallationoruse,besuretocarefullyread
all the instructions in this section for correct and
safe operation.
• Besuretofollowalltheprecautionaryinstructions
in this section, which contain important warnings
and/orcautionsregardingsafety.
• After reading, keep this manual handy for future
reference.
• Referallinstallationworktothedealerfromwhom
the speaker was purchased. Installation for ying
requires extensive technical knowledge and
experience. The speaker may fall off if incorrectly
installed,resultinginpossiblepersonalinjury.
• FlyingPrecautions
Be sure to follow the instructions below. Otherwise,
the suspension wires or belts may be off or snap
and the speaker may fall off, causing personal
injury.
· Check to conrm that the suspension wires and
beltsarestrongenoughtowithstandthespeaker
load.
· Theconnectorsofthesuspensionwiresandbelts
mustbesecurelylinkedwiththoseofthespeaker.
· All parts and components (such as enclosures,
metalpieces,andscrews)mustbefreefromany
deformation,crack,andcorrosion.
· Besuretousescrewssuppliedwiththeoptional
yinghardwarewheninstallingthespeakerusing
suchhardware.
• Install the speaker only in a location that can
structurallysupporttheweightofthespeakerand
the mounting bracket. Doing otherwise may result
in the speaker falling down and causing personal
injuryand/orpropertydamage.
• Sincethebracketisdesignedforindooruse,donot
install it outdoors. If installed outdoors, the aging
of parts causes the speaker to fall off, resulting in
personal injury. Also, when it gets wet with rain,
thereisadangerofelectricshock.
• Owing to the speaker’s size and weight, be sure
that at least two persons are available to install the
speaker. Failure to do so could result in personal
injury.
• Donotuseothermethodsthanspeciedtomount
thebracket.Extremeforceisappliedtothebracket
andthespeakercouldfalloff,possiblyresultingin
personalinjuries.
• Attachthesafetywiretothespeaker.Ifnotattached,
itcouldfalloff,resultinginpersonalinjury.
• Use safety wires when installing speakers. If not
used, personal injury could result if a speaker
shouldaccidentallyfall.
• Use nuts and bolts that are appropriate for the
ceiling’sorwall’sstructureandcomposition.Failure
todosomaycausethespeakertofall,resultingin
Indicatesapotentiallyhazardoussituationwhich,
if mishandled, could result in death or serious
personalinjury.
WARNING
2
materialdamageandpossiblepersonalinjury.
• Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation
to prevent accidents that could result in personal
injury.
• Use the HX-7B or HY-7W Speaker System in
combination. Doing otherwise may cause the
speaker or component to fall off, resulting in
personalinjury.
• Do not mount the speaker in locations exposed
to constant vibration. The mounting bracket can
be damaged by excessive vibration, potentially
causing the speaker to fall, which could result in
personalinjury.
• Avoid installing the speaker in locations such
as in indoor swimming facilities that are not well
ventilated. In such locations, the bracket may be
vulnerable to corrosion, eventually allowing the
speakertofallresultinginpersonalinjury.
• Avoid touching the bracket’s sharp metal edge to
preventinjury.
• Donotplaceheavyobjectsonthespeakerasthis
may cause it to fall or break which may result in
personalinjuryand/orpropertydamage.Inaddition,
theobjectitselfmayfalloffandcauseinjuryand/or
damage.
• Do not stand or sit on, nor hang down from the
bracketasthismaycausethespeakertofalldown
ordrop,resultinginpersonalinjuryand/orproperty
damage.
• Havethebracketcheckedperiodicallybytheshop
fromwhereitwaspurchased.Failuretodosomay
result in corrosion or damage to the bracket that
could cause the speaker to fall, possibly causing
personalinjury.
Indicatesapotentiallyhazardoussituationwhich,
ifmishandled,couldresultinmoderateorminor
personalinjury,and/orpropertydamage.
CAUTION
2. GENERAL DESCRIPTION
TheHY-VM7SeriesSpeakerRiggingBracketsareusedtoconnecttheHX-7BorHX-7WSpeakerSystemto
theoptionalHY-WM7BorHY-WM7WSpeakerWallMountingBracketsorHY-C0801orHY-C0801WSpeaker
CeilingMountingBrackets.Itisalsopossibletosuspendthespeakersystemfromtheceilingormountittothe
ceilingorbeamswiththeuseoftheHY-VM7bracket.
3. MOUNTING THE SPEAKER ON A WALL
(using the optional HY-WM7B or HY-WM7W bracket)
Mount asingle HX-7Bor HX-7W SpeakerSystem tothe wallbyusingtheHY-VM7 incombination with the
optionalHY-WM7BorHY-WM7Wbracket.

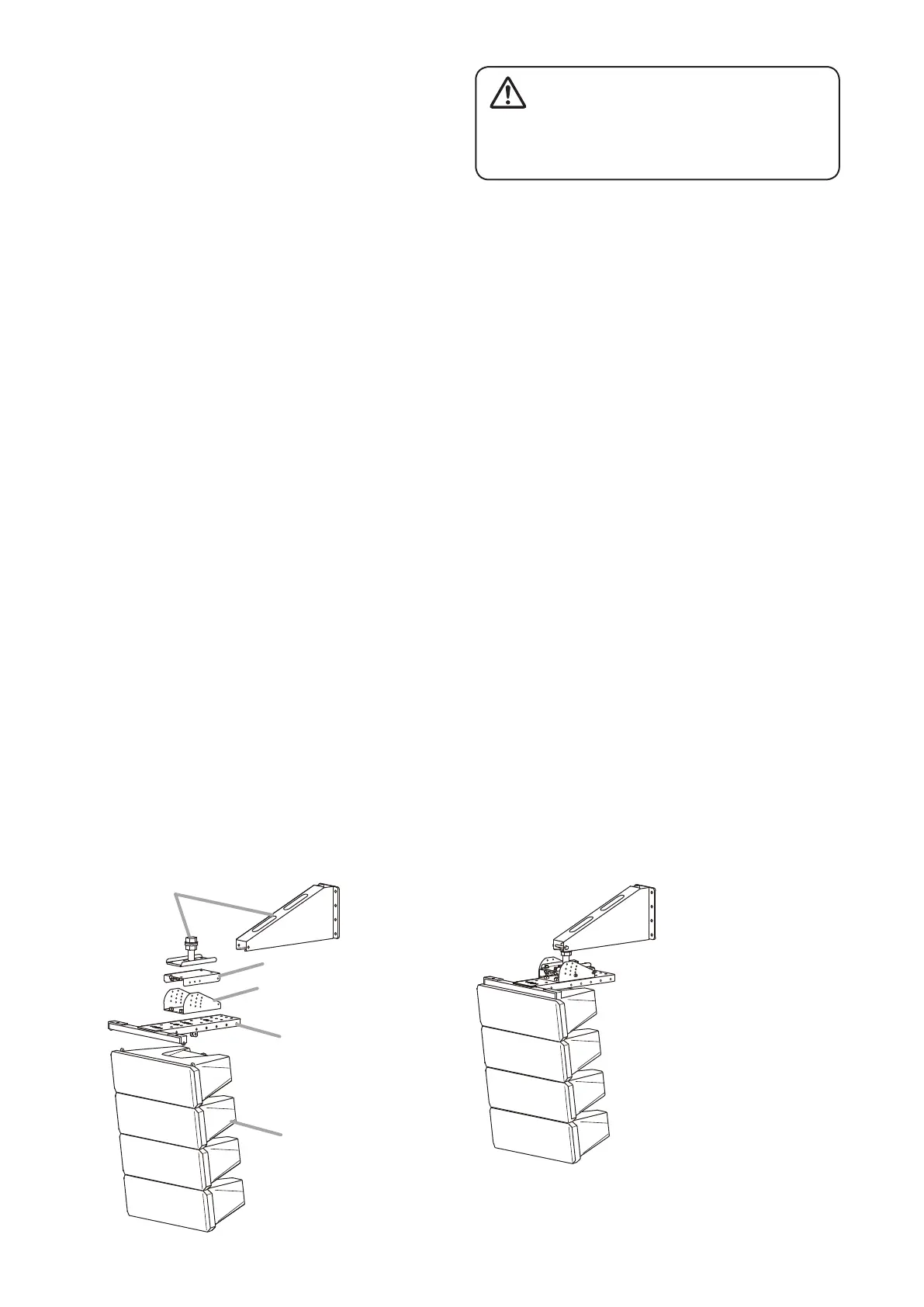

3.1. Mounting Diagrams
[Component disassembly] [Completed installation]
HY-WM7B or HY-WM7W
Speaker Wall Mounting Bracket
This bracket (T-bracket)
This bracket (Angle bracket)
HX-7B or HX-7W
This bracket (Mounting base)
Note
OnlyoneHX-7BorHX-7Wspeakercanbemounted.
Twojoinedspeakerscannotbemounted.
Produktspecifikationer
| Varumärke: | Toa |
| Kategori: | högtalare |
| Modell: | HY-VM7W |
| Vikt: | 4800 g |
| Placering: | Ceiling, Wall |
| Material: | Stål |
| Produktens färg: | Vit |
| Skruvar inkluderade: | Ja |
