Thank you for purchasing TOA's Projection Speakers.

Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in this

section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future

reference.

PJ-100W, PJ-200WPROJECTION SPEAKERS

INSTRUCTION MANUAL

Factory-preset

values

Line Voltage

Imp.

50 V 70 V 100 V

250 Ω 10 W

––

500 Ω 5 W 10 W

–

1 kΩ 2.5 W 5 W 10 W

2 kΩ 1.25 W 2.5 W 5 W

4 kΩ 0.63 W 1.25 W 2.5 W

[PJ-100W]

[PJ-200W]

Cabinet

Cover

Speaker cable

Grommet B

Grommet A

Bracket

Screws

Detach the black input cable (HOT) and connect it to the

terminal of the desired input impedance/wattage according

to the tables below.

4. IMPEDANCE CHANGE

When changing impedance, follow the procedure below

after unscrewing and removing the cover.

• Install the speaker only in a location that can structurally

support the weight of the speaker and the mounting

bracket. Doing otherwise may result in the speaker falling

down and causing personal injury and/or property damage.

• Do not stand or sit on, nor hang down from the speaker

as this may cause it to drop, resulting in personal injury

and/or property damage.

• Do not operate the speaker for an extended period of

time with the sound distorting. This is an indication of a

malfunction, which in turn can cause heat to generate

and result in a fire.

2. GENERAL DESCRIPTION

The PJ-100W and PJ-200W Projection Speakers are

designed for indoor use. The built-in terminal board

provides an easy cable connection and allows bridge

wiring. Its wide frequency range makes it suitable for use

in both paging and BGM applications.

3. FEATURES

• Maximum input: 15 W (PJ-100W), 30 W (PJ-200W).

• Built-in transformer for 50 V, 70 V and 100 V speaker

line.

• Two grommets for parallel (bridge) connection.

WARNING

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

CAUTION

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

Factory-preset

values

Line Voltage

Imp.

50 V 70 V 100 V

125 Ω 20 W

––

250 Ω 10 W 20 W

–

500 Ω 5 W 10 W 20 W

1 kΩ 2.5 W 5 W 10 W

2 kΩ 1.25 W 2.5 W 5 W

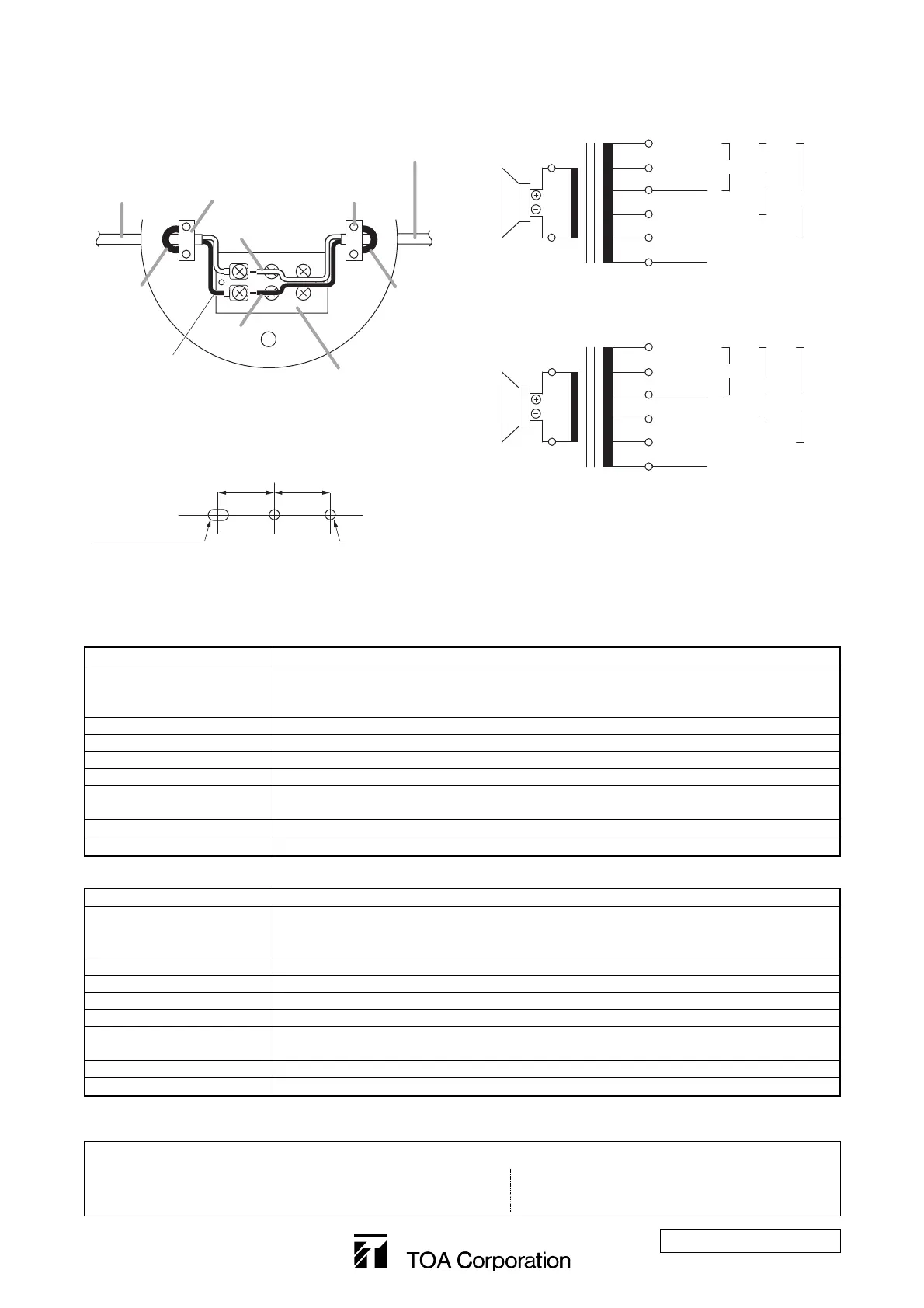

[Back side view of cover removed]

Grommet A

COM

Terminal board

Speaker cable

Cable clump A

Black input cable (HOT)

Note: The black input cable has been connected to the

terminal of 1 kΩ impedance for the PJ-100W and

500 Ω for the PJ-200W.

Produktspecifikationer

Varumärke:	Toa
Kategori:	högtalare
Modell:	PJ-100W
Vikt:	1800 g
Bredd:	160 mm
Djup:	195 mm
Höjd:	200 mm
Rekommenderad användning:	Högtalarenhetssats
Impedans:	500 Ω
Lämplig för utomhusbruk:	Nej
Ljudutgångskanaler:	- kanaler
Produktens färg:	Vit
Uteffekt (RMS):	10 W
Material, hölje:	Acrylonitrile butadiene styrene (ABS), SPCC
Frekvensområde:	65 - 15000 hz
Anslutningsteknologi:	Kabel
Överföringseffekt:	92 dBmW
