INSTALLATION MANUAL
ADAPTER PLATE
HY-F03B
、
HY-F03W
HY-F05B
、
HY-F05W
HY-F08B
、
HY-F08W
Thank you for purchasing TOA’s Adapter Plate.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read
all the instructions in this section for correct and
safe operation.
• Be sure to follow all the precautionary instructions in
this section, which contain important warnings and/
or cautions regarding safety.
• After reading, keep this manual handy for future
reference.
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
WARNING
• Since the unit is designed for indoor use, do not install
it outdoors. If installed outdoors, the aging of parts
causes the unit to fall o, resulting in personal injury.
• Do not use other methods than specied to mount
the bracket. Extreme force is applied to the speaker
and the speaker could fall o, possibly resulting in
personal injuries.
• Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation
to prevent accidents that could result in personal
injury.
• Use the specied speakers in combination. Doing
otherwise may cause the speaker to fall o, resulting
in personal injury.
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
CAUTION
• Avoid touching the unit’s sharp metal edge to
prevent injury.
2. GENERAL DESCRIPTION
HY-F series is an adaptor bracket designed for attaching
the optional F-03, F-05, and F-08 series Speaker systems
to the commercial brackets*.
The table below shows the combinations of brackets and
speakers.
Brackets Speakers
HY-F03B, HY-F03W F-03BT, F-03WT
HY-F05B, HY-F05W F-05BT, F-05WT
HY-F08B, HY-F08W F-08BT, F-08WT
* Recommended commercial brackets are as follows.
• Speaker ceiling mount: 24496 (K&M)
• Adapter: 19780, 19610 (K&M)
• Adapter panel: 24359 (K&M)
3. INSTALLATION EXAMPLES
F-05BT
(option)
F-05BT
(option)
HY-F05B
HY-F05B
ST-34B (option)
Speaker ceiling mount
(K&M)
Adapter (K&M)
133-01-00352-01

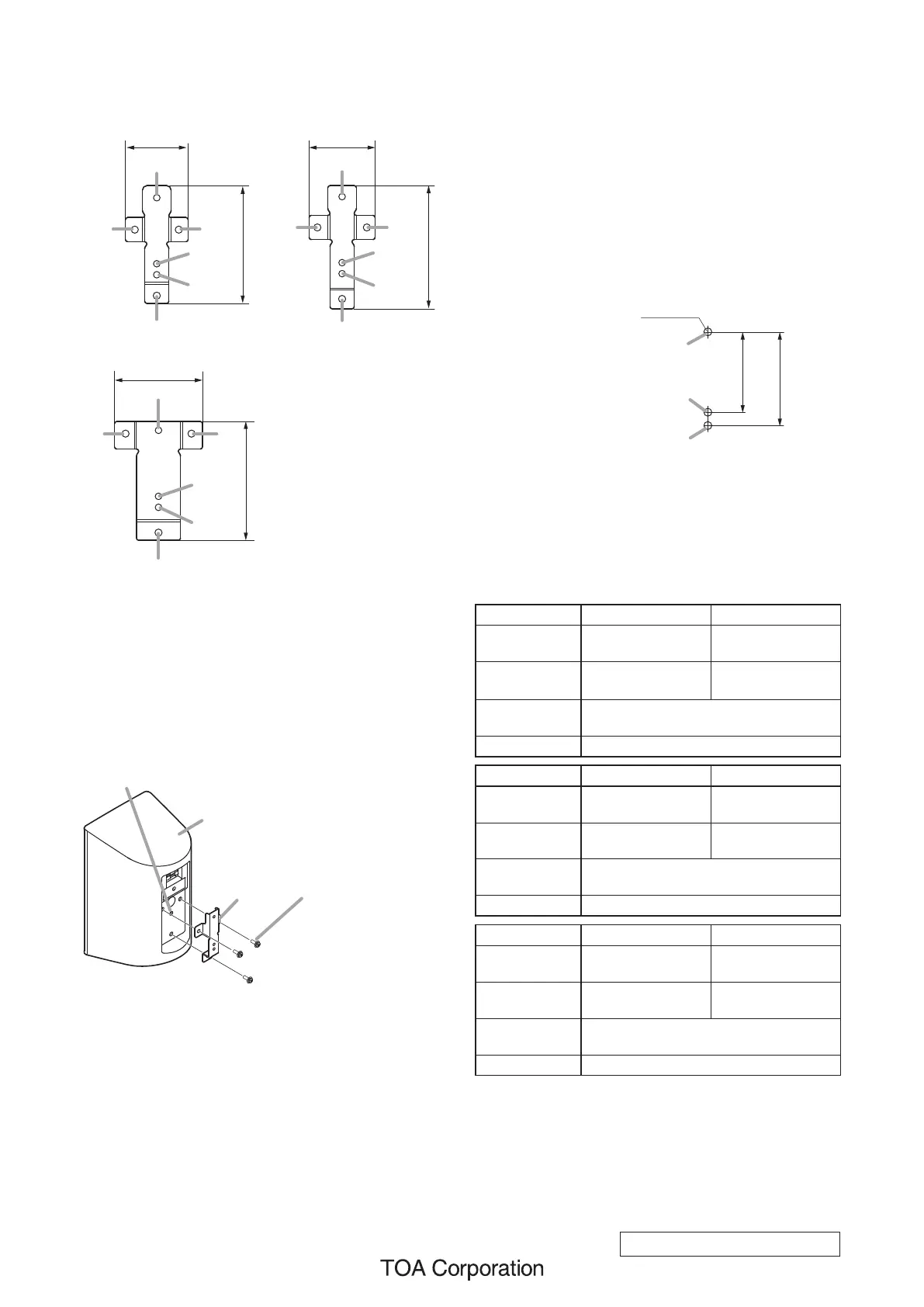

4. DIMENSIONAL DIAGRAM
[HY-F03B/F03W] [HY-F05B/F05W]
[HY-F08B/F08W]
Unit: mm
107 or 4.21"
108 or 4.25"
112 or 4.41"
57 or 2.24"
80 or 3.15"
60 or 2.36"
(1)
(1) (1)
(1)
(1)
(1) (1)
(1)
(1)
(2)
(2)
(2)
(3)
(3)
(3)
(4) (4)
(4)
5. INSTALLATION
The attaching method is the same though each bracket’s
shape and size are dierent.
Step 1. Attach this bracket to the speaker’s rear surface.
Use 1 bracket’s supplied screw and 2 speaker’s
supplied screws.
HY-F05B
* Supplied with this bracket: 1 pc
Supplied with speaker: 2 pcs
F-05BT
Speaker system (option)
The figure shows the method to attach HY-F05B to F-05BT.
Attach a safety wire to this hole.
Machine screw
M5 x 20
(with plain washer and
spring washer)*
Notes
● Do not use the bracket supplied with the speaker.
● When installing the speaker to the place other than a
speaker stand, attach the safety wire at the position as
shown above.
● The safety wire is not included. Separately prepare it.
Step 2. Attach the speaker to the commercial bracket
using this bracket.
● Use 2 supplied M6 x 12 screws (w/plain and
spring washers) for installation.
● Use 2 out of 3 mounting holes (A - C) in this
bracket when attaching to a commercial bracket.
· Be sure to use hole A.
· Use hole B or C, either of which aligns with the
mounting hole in the commercial bracket.
● For usage of the commercial bracket, see the
installation manual supplied with it.
[Mounting holes for the commercial bracket
(common to all models)]
60 or 2.36"
70 or 2.76"
3-M6 x 1.0
Unit: mm
Bracket mounting
hole A
Bracket mounting
hole B
Bracket mounting
hole C
Step 3. Connect the speaker cables to the speaker’s input
terminals.
For connection, see the installation manual
supplied with each speaker.
6. SPECIFICATIONS
Model No. HY-F03B HY-F03W
Applicable
Speaker
F-03BT F-03WT
Finish Steel plate, black*
1
,
paint
Steel plate, white*
2
,
paint
Dimensions 57 (w) x 107 (h) x 18 (d) mm
(2.24" x 4.21" x 0.71")
Weight 90 g (0.2 lb)
Model No. HY-F05B HY-F05W
Applicable
Speaker
F-05BT F-05WT
Finish Steel plate, black*
1
,
paint
Steel plate, white*
2
,
paint
Dimensions 60 (w) x 112 (h) x 18 (d) mm
(2.36" x 4.41" x 0.71")
Weight 90 g (0.2 lb)
Model No. HY-F08B HY-F08W
Applicable
Speaker
F-08BT F-08WT
Finish Steel plate, black*
1
,
paint
Steel plate, white*
2
,
paint
Dimensions 80 (w) x 108 (h) x 18 (d) mm
(3.15" x 4.25" x 0.71")
Weight 150 g (0.33 lb)
*
1
RAL 9011 equivalent *
2
RAL 9016 equivalent
Note: The design and specications are subject to change
without notice for improvement.
• Accessories
Machine screw (M5 x 20)*
3
................................... 1
Machine screw (M6 x 12)*
3
................................... 2
*
3
With plain washer and spring washer
(1) Speaker mounting hole
(2) Bracket mounting hole A
(3) Bracket mounting hole B
(4) Bracket mounting hole C
