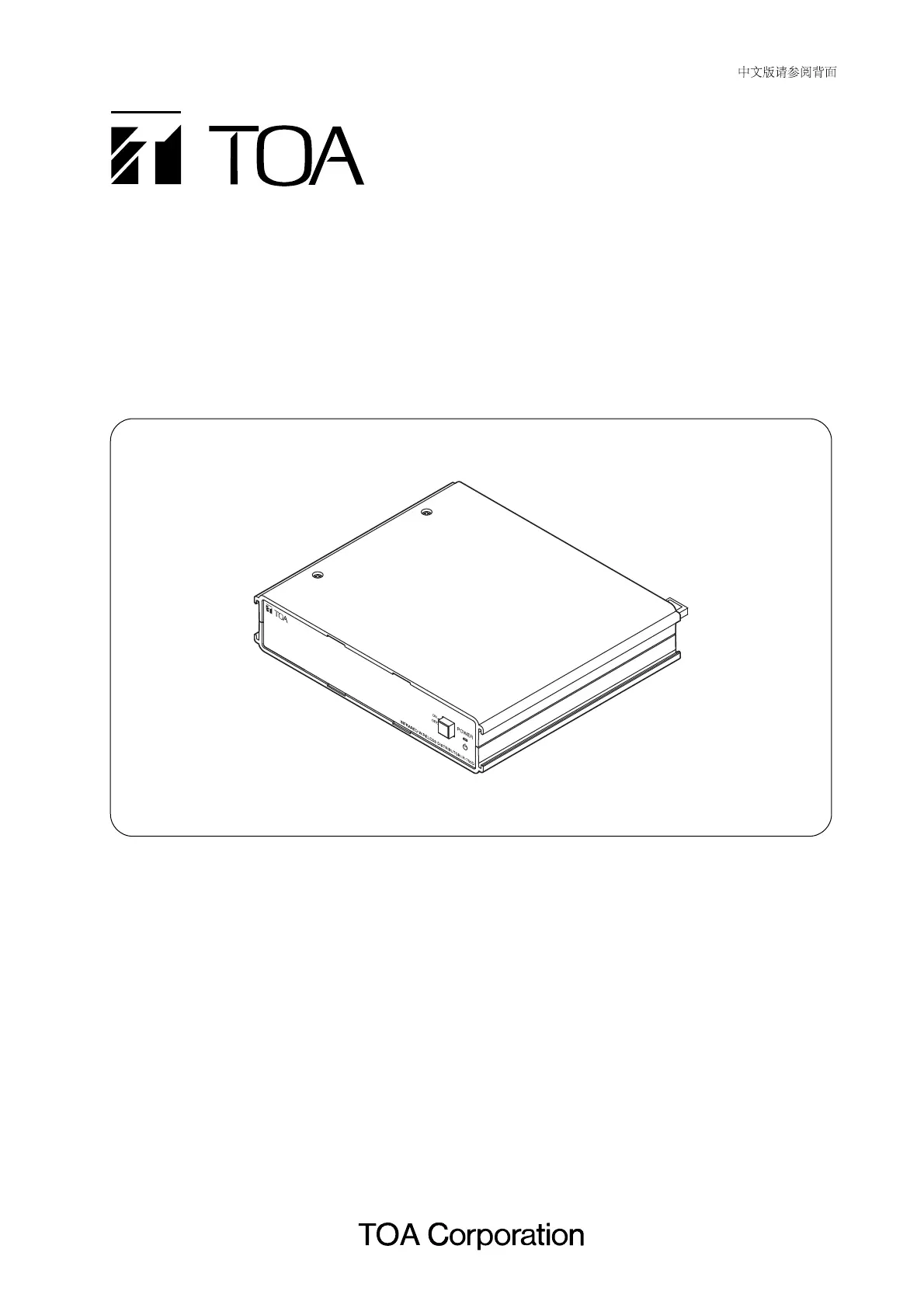

OPERATING INSTRUCTIONS

INFRARED WIRELESS DISTRIBUTOR

IR-700D

Thank you for purchasing TOA's Infrared Wireless Distributor.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

133-07-276-9C

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ...................................................................................... 3

2. GENERAL DESCRIPTION ................................................................................... 4

3. HANDLING PRECAUTIONS ................................................................................ 4

4. NOMENCLATURE AND FUNCTIONS

Front ............................................................................................................................... 4

Rear ............................................................................................................................... 4

5. SYSTEM CONFIGURATION EXAMPLE .......................................................... 5

6. CONNECTION EXAMPLE .................................................................................... 6

7. INSTALLATION

7.1. Mounting a Single Unit in an Equipment Rack ........................................................ 7

7.2. Mounting in Conjunction with the IR-702T in an Equipment Rack .......................... 7

7.3. Mounting on a Desk ................................................................................................ 7

8. WIRING TO INFRARED WIRELESS RECEIVER

8.1. Wiring Precautions .................................................................................................. 8

8.2. When Using the Distributor YW-1022/1024 ............................................................ 8

8.3. Wiring Examples ..................................................................................................... 9

9. SUPPLEMENTARY REMARKS

9.1. Wiring Design Confirmation .................................................................................. 10

9.2. Design Examples .................................................................................................. 10

10. SPECIFICATIONS ................................................................................................. 12

Accessories .................................................................................................................. 12

Optional products ......................................................................................................... 12

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired

operation.

Any modifications made to this device that are not approved by TOA Corporation may void the authority

granted the user by the FCC to operate this equipment.

FCC Compliance

Produktspecifikationer

Varumärke:	Toa
Kategori:	mikrofon
Modell:	IR-700D
Vikt:	640 g
Bredd:	210 mm
Djup:	200.9 mm
Höjd:	44 mm
Material:	ABS
Impedans:	75 Ω
Kompatibilitet:	IR-702T
Strömförbrukning (mottagare) (max):	25 mA
Förstärkning:	0 dBi
Produktens färg:	Svart
Temperatur vid drift:	-10 - 50 ° C
Brand kompatibilitet:	TOA
Antal:	1
